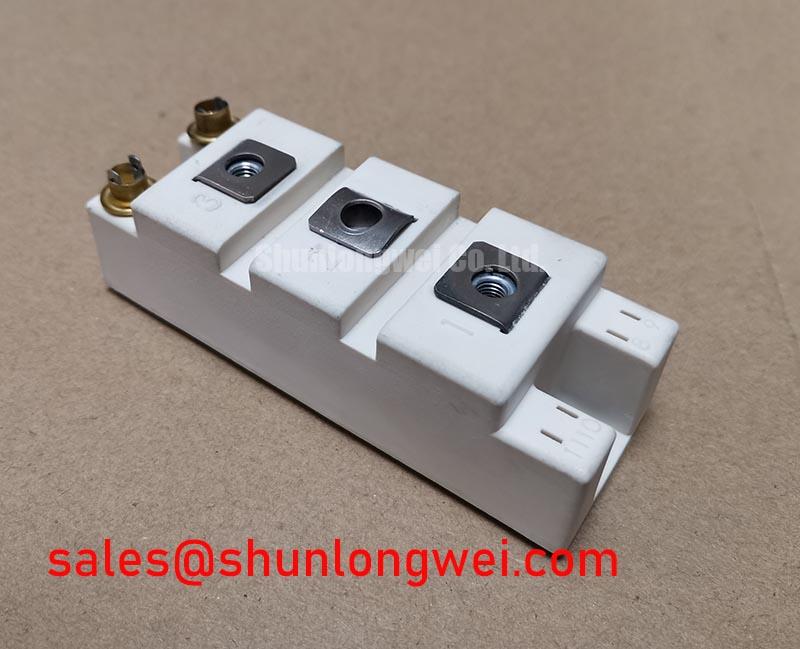

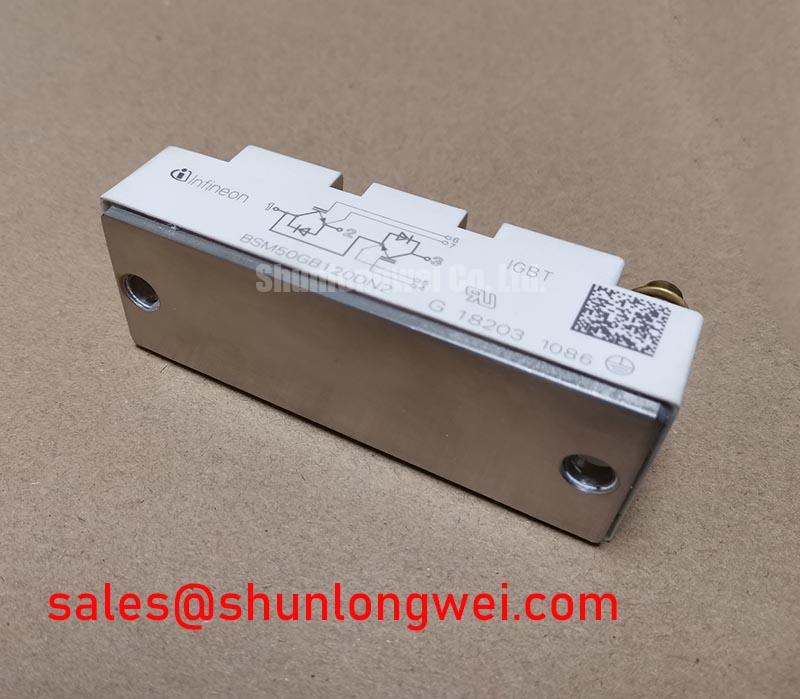

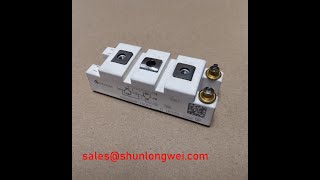

BSM50GB120DN2 IGBT Module: 1200V/50A for Robust Industrial Drives
A Technical Foundation for System Dependability
In power electronics design, the long-term reliability of a system is often dictated by the fundamental technology of its core components. The BSM50GB120DN2 is a 1200V, 50A dual IGBT module built upon a foundation of proven Non-Punch-Through (NPT) technology. This design choice delivers exceptional ruggedness and a positive temperature coefficient for the collector-emitter saturation voltage, which is critical for stable current sharing when paralleling modules for higher power outputs. More than just a switch, this module integrates an NTC thermistor, providing a direct, real-time feedback loop for thermal management. For engineers designing motor drives, power supplies, and inverters where operational stability is the primary design driver, the BSM50GB120DN2 offers a blend of performance, durability, and built-in protection that minimizes field failures and extends equipment lifetime.
Powering Dependable Industrial Systems
The BSM50GB120DN2's robust electrical and thermal characteristics make it an ideal power-switching solution for a range of demanding industrial applications where uptime is critical. Its half-bridge configuration serves as a versatile building block for numerous power converter topologies.
- Variable Frequency Drives (VFDs): In motor control applications, the module's ability to handle demanding load cycles while maintaining thermal stability ensures precise and reliable motor speed and torque regulation, contributing to factory automation efficiency.
- Uninterruptible Power Supplies (UPS): The high reliability of the BSM50GB120DN2 is crucial for UPS systems, guaranteeing that critical power is available during mains failure. Its efficiency helps reduce standby power consumption.
- Welding Power Supplies: Welding equipment generates harsh electrical conditions with high current pulses. The module's rugged NPT IGBTs are engineered to withstand these stresses, providing the consistent power delivery needed for high-quality welds.
- Industrial Inverters and Converters: As a general-purpose power block, it is perfectly suited for solar inverters, battery charging systems, and other switched-mode power conversion platforms requiring high voltage capability and proven durability.
A Foundation for Long-Term Operational Uptime
In today's industrial landscape, the focus extends beyond initial performance to the Total Cost of Ownership (TCO). The design philosophy of the BSM50GB120DN2 directly addresses this by prioritizing operational integrity. The use of established NPT technology is a strategic choice for systems deployed in environments where maintenance is difficult or downtime is exceptionally costly. This focus on proven reliability aligns with the industrial sector's increasing demand for components that offer predictable lifecycles and reduce unscheduled service interventions. By providing a stable power stage, the module allows system designers to build equipment that meets stringent uptime requirements, a key competitive advantage in the industrial automation and critical power markets. For more information on the fundamentals of IGBT technology, refer to this guide from Infineon, a leader in power semiconductors.
Inside the BSM50GB120DN2: NPT Technology and Thermal Integrity
The engineering value of the BSM50GB120DN2 lies in two core features. First, its NPT IGBT silicon exhibits a positive temperature coefficient of VCE(sat). This characteristic is vital for multi-module systems; as a device heats up, its on-state resistance effectively increases, naturally encouraging current to flow through cooler, parallel devices. This self-balancing mechanism prevents "current hogging" and subsequent thermal runaway, simplifying the design of high-power arrays. Second, the integrated NTC thermistor acts as an onboard diagnostic system for the module's thermal health. This allows the gate drive controller to implement intelligent over-temperature protection, actively reducing power or initiating a safe shutdown long before a destructive temperature is reached. This proactive protection is fundamental to preventing catastrophic IGBT failure modes.
Core Specifications and Their Engineering Impact
Understanding the key parameters of the BSM50GB120DN2 reveals its suitability for robust power designs. The following table highlights critical specifications and translates them into tangible engineering benefits. For a complete list of parameters, please Download the Datasheet.
| Parameter | Value | Engineering Significance |
|---|---|---|
| Collector-Emitter Voltage (VCES) | 1200 V | Provides a substantial safety margin for applications running on 400V to 690V AC lines, ensuring resilience against voltage transients. |
| Continuous Collector Current (IC) | 50 A (at Tc = 80°C) | Defines the module's continuous power handling capability, making it suitable for motor drives and inverters in the 15 kW to 25 kW range. |
| Collector-Emitter Saturation Voltage (VCE(sat)) | 2.1 V (Typ. at 50A, 25°C) | Directly determines conduction losses. This competitive value helps minimize heat generation, improving overall system efficiency and reducing heatsink requirements. |
| Thermal Resistance, Junction-to-Case (Rth(j-c)) | 0.4 K/W (Max, per IGBT) | Indicates how efficiently heat can be transferred from the silicon die to the module's baseplate. A lower value simplifies thermal design and allows for higher power density. |
| Integrated NTC Thermistor | Yes | Enables precise, real-time temperature monitoring, which is essential for implementing critical over-temperature protection and ensuring long-term system reliability. |
Strategic Positioning: BSM50GB120DN2 vs. Alternatives
When selecting an IGBT module, it's crucial to match the component's strengths to the application's priorities. The BSM50GB120DN2 is positioned as a highly reliable solution for applications where ruggedness and predictable performance are more critical than achieving the absolute highest switching frequency. While modern Trench/Field-Stop (TFS) IGBTs may offer lower switching losses for designs operating above 20 kHz, the NPT technology in this module provides a proven track record of durability in harsh industrial environments. For engineers whose primary concern is creating a system that will operate reliably for years with minimal maintenance, this module represents a sound and conservative design choice. For applications demanding similar robustness but with higher current needs, the BSM75GD120DN2 offers an excellent upgrade path within the same family, providing 75A capacity in a compatible package.
Field-Proven Performance
The value of the BSM50GB120DN2 is demonstrated in its successful deployment across various industrial sectors. For instance, a European manufacturer of conveyor belt systems for the mining industry utilizes this module in their VFDs to ensure continuous operation in dusty, high-vibration environments. The integrated thermal monitoring was cited as a key factor in preventing motor burnout during high-load conditions. Similarly, a producer of backup power systems for telecommunications infrastructure relies on the module's proven lifecycle to meet their contractual uptime guarantees, valuing its predictable performance over experimental, newer technologies.
Frequently Asked Engineering Questions
1. What is the key benefit of the NPT technology in the BSM50GB120DN2 for paralleling modules?
The primary benefit is its positive temperature coefficient of VCE(sat). This means as an IGBT heats up, its on-state voltage drop increases slightly, which naturally pushes current to flow through other, cooler parallel modules. This inherent self-balancing behavior simplifies the design of high-current power stages and prevents thermal runaway in a single module.
2. How should I properly utilize the integrated NTC thermistor for protection?
The NTC thermistor should be connected to an analog input on your system's microcontroller or a dedicated input on the gate driver IC. By using the resistance-temperature characteristic curve provided in the datasheet, you can program firmware to continuously calculate the module's internal temperature. Set a warning threshold (e.g., 105°C) to reduce output power and a shutdown threshold (e.g., 120°C) to safely disable the drive before damage occurs.
3. Is the BSM50GB120DN2 suitable for high-frequency switch-mode power supply (SMPS) designs?
While it is functional, the BSM50GB120DN2 is optimized for lower to medium switching frequencies, typically below 20 kHz, which are common in motor drives and UPS systems. For high-frequency SMPS (e.g., >50 kHz), its switching losses would be significant. In those cases, a module based on faster Trench-Gate Field-Stop IGBT technology or a SiC module would be a more efficient choice.
4. What is the recommended gate drive voltage for this 1200V IGBT module?
A typical and robust gate drive configuration for a 1200V module like this is a positive voltage of +15V for turn-on and a negative voltage between -8V and -15V for turn-off. The negative turn-off voltage provides a strong buffer against dV/dt induced turn-on (the Miller effect), which is crucial for reliability in half-bridge configurations.
5. Why is a low VCE(sat) important for my design?
A lower Collector-Emitter Saturation Voltage, or VCE(sat), directly translates to lower conduction power loss (P_loss = VCE(sat) * I_c). This reduction in wasted energy means less heat is generated within the module, leading to higher overall system efficiency, a lower operating temperature, and the potential to use a smaller and more cost-effective heatsink.
For the design engineer, the BSM50GB120DN2 represents more than a component for a single project; it is a foundational element for a platform built on stability and longevity. Its predictable performance and integrated protection features allow engineering teams to concentrate on advanced control algorithms and system-level features, confident in the integrity of the power stage. This module provides the stable, reliable core upon which future-proof industrial systems are constructed.
