Sharp LM10V335 | Legacy Industrial Display for Unmatched Reliability

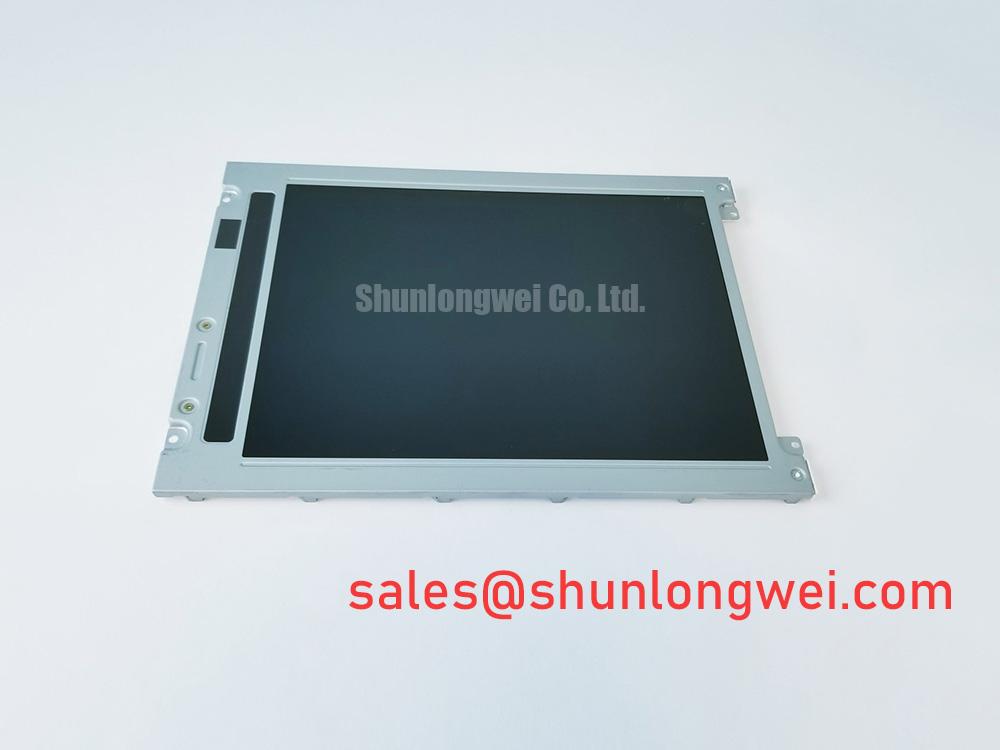

The Sharp LM10V335 is a 10.4-inch VGA monochrome display engineered for environments where operational stability and long-term reliability are non-negotiable. While modern color displays dominate the market, the LM10V335 serves a critical role in maintaining and servicing legacy industrial equipment. Its design philosophy prioritizes clarity, durability, and seamless integration over high-end specifications, making it the definitive choice for extending the life of mission-critical systems.
- Exceptional Readability: High-contrast monochrome DSTN technology delivers sharp, unambiguous text and graphical data, essential for industrial control panels and medical instrumentation.
- Proven Backlight Technology: Features a single Cold Cathode Fluorescent Lamp (CFL) backlight, known for its stable brightness and predictable performance over a long operational life.
- Robust Industrial Build: Designed to withstand the rigors of factory floors and demanding operational environments, ensuring consistent performance for years.
- Drop-in Compatibility: Engineered as a direct replacement for a vast array of existing HMIs and control systems, eliminating the need for costly redesigns or software redevelopment.
Technical Deep Dive: The Engineering Philosophy of the LM10V335
The design choices behind the Sharp LM10V335 are deliberate, targeting applications where proven technology is an asset, not a limitation. The selection of Dual Scan STN (DSTN) technology is a prime example. Unlike a modern TFT-LCD, DSTN provides excellent contrast and clarity for monochrome applications without the complexity of a thin-film transistor array. This results in a display that is not only cost-effective but also inherently rugged and less susceptible to the pixel defects that can plague more complex screens.
Similarly, the use of a CFL backlight is a strategic decision rooted in reliability. In many industrial settings, predictable maintenance cycles are paramount. CFL backlights have a well-documented performance curve and lifespan, allowing maintenance managers to proactively schedule replacements and avoid unexpected downtime. This contrasts with early-generation LED backlights, whose failure modes could be less predictable. For more insights into modern display technology, explore our ultimate guide to TFT LCDs.
Key Parameters Overview
The following specifications highlight the core capabilities of the Sharp LM10V335, making it an ideal component for specific industrial applications. For a complete technical breakdown, you can Download the LM10V335 Datasheet.
| Parameter | Value |
|---|---|
| Manufacturer | Sharp |
| Model | LM10V335 |
| Screen Size | 10.4 inches |
| Resolution | 640x480 (VGA) |
| Display Technology | DSTN-LCD (Monochrome) |
| Backlight System | 1 x CCFL |
| Contrast Ratio | 22:1 (Typical) |
| Interface | 10-bit Parallel Data |
| Operating Temperature | 0°C to +50°C |
Application Scenarios: Where Proven Technology Excels
The true value of the LM10V335 is demonstrated in its target applications, where its unique features directly solve engineering challenges:
- CNC Machinery and Machine Tools: The high-contrast monochrome display provides machine operators with crystal-clear readouts of G-code, tool paths, and system status, minimizing errors in environments often subject to vibration and poor lighting.
- Medical Diagnostic Equipment: In legacy ultrasound systems or patient monitors, the LM10V335 offers a reliable, certified replacement part that ensures critical patient data is displayed without ambiguity, avoiding the lengthy and expensive process of re-certifying equipment with a new display type.
- Industrial Process Control: For older PLCs and HMI panels monitoring factory automation lines, this display serves as an economical and immediate solution to a failed screen, keeping production lines running with minimal interruption. Its straightforward interface ensures plug-and-play compatibility.
Expert FAQ on the Sharp LM10V335
Why should I choose a monochrome DSTN display when color TFTs are available?For many legacy systems, the HMI software and driving hardware are specifically designed for a monochrome VGA interface. Upgrading to a color TFT would require significant engineering effort in both hardware and software. The LM10V335 provides a risk-free, cost-effective path to repair and maintain the equipment's original, certified performance.
Is the CFL backlight a disadvantage?Not for its intended application. The CFL backlight provides a known, stable light source with a well-understood lifespan. This allows for planned, preventative maintenance. Furthermore, these backlights and their associated inverters are readily available, ensuring the long-term serviceability of the entire display unit. If you're designing a new system and energy efficiency is your top priority, consider exploring our resources on LED backlight efficiency.
If you are looking to service, repair, or maintain critical industrial systems, the Sharp LM10V335 is an indispensable component. For sourcing, technical inquiries, or to discuss your specific application needs for this or other industrial LCD displays, please contact our technical team.
