NLT NL8048AC21-01F | Engineered for Industrial Reliability and Longevity

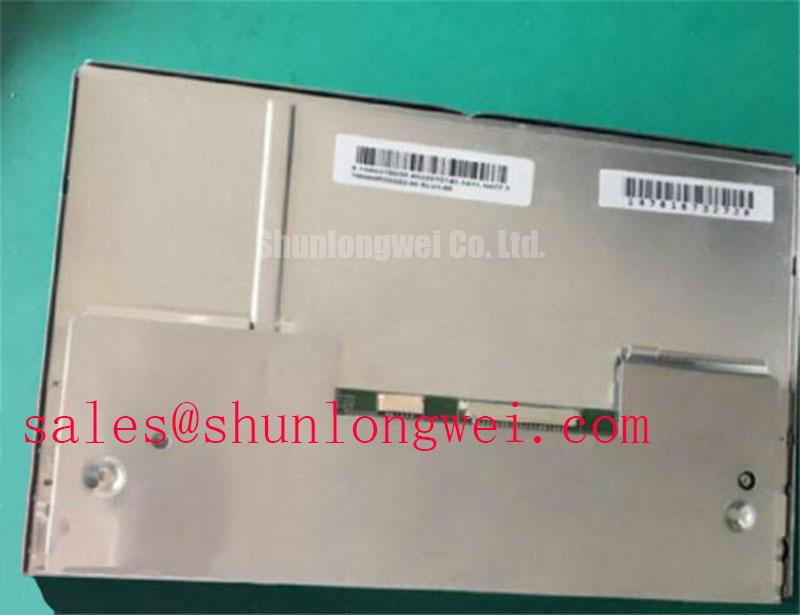

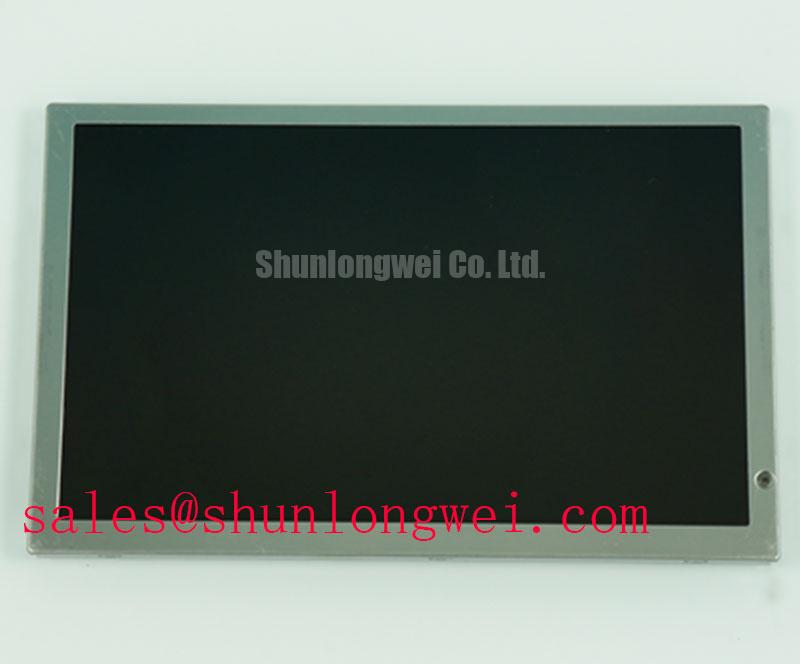

The NLT NL8048AC21-01F is an 8.4-inch SVGA TFT-LCD module that embodies the principles of industrial-grade design: robustness, long-term availability, and consistent, predictable performance. Developed by NLT, a brand with deep roots in NEC's legacy of high-reliability displays, this panel is not designed to chase the highest pixel density or brightest specifications. Instead, it delivers precisely what system integrators in demanding sectors require—a display that works flawlessly for years, even in challenging thermal environments.
Key Parameters at a Glance
For engineers requiring immediate technical data, the following table summarizes the core specifications of the NL8048AC21-01F. A comprehensive datasheet is also available for detailed analysis. You can download the full datasheet here.
| Parameter | Specification |
|---|---|
| Screen Size | 8.4 inches |
| Resolution | 800 (RGB) × 480 [SVGA] |
| Technology | a-Si TFT-LCD |
| Brightness | 400 cd/m² (Typical) |
| Contrast Ratio | 600:1 (Typical) |
| Viewing Angle | 80/80/80/60 (L/R/U/D) |
| Interface | LVDS (1 channel, 6-bit) |
| Backlight | WLED, 50,000-hour lifetime, Integrated Driver |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
Technical Deep Dive: The Engineering Behind the Specs
Beyond the numbers, two features of the NL8048AC21-01F demonstrate its engineering pedigree for industrial applications.
- Wide Operating Temperature Range: The ability to operate reliably from -20°C to +70°C is a critical differentiator. This is not merely a specification; it is the result of careful material selection for the liquid crystal, polarizers, and internal components to prevent crystallization at low temperatures and degradation at high temperatures. This ensures boot-up and stable operation in unheated outdoor kiosks, vehicle cabins, and factory floors where thermal control is not always precise.
- 50,000-Hour WLED Backlight with Integrated Driver: A long-life backlight is fundamental to lowering the total cost of ownership. The 50,000-hour rating (to half-brightness) translates to over 5.7 years of continuous 24/7 operation. Critically, the integration of the LED driver onto the module simplifies the system design. It eliminates the need for a separate driver board, reduces cabling complexity, and ensures the backlight is driven with optimized current and voltage, maximizing its lifespan and contributing to overall HMI energy efficiency.
Application Scenarios & Value Proposition
The specific feature set of the NLT NL8048AC21-01F makes it an ideal choice for applications where long-term operational integrity is more valuable than cutting-edge consumer-grade features.
- Industrial HMIs and Control Panels: The 800x480 resolution is perfectly suited for displaying process data, schematics, and control interfaces without overwhelming the user. Its proven a-Si TFT (Amorphous Silicon) technology provides a stable, cost-effective platform for factory automation and machinery control.
- Medical Diagnostic Instruments: In non-patient-facing diagnostic equipment, such as lab analyzers or monitoring stations, reliability is paramount. The consistent color and contrast performance and robust build ensure that data is presented accurately, run after run, for the entire lifecycle of the instrument.
- Test and Measurement Equipment: For oscilloscopes, spectrum analyzers, and other portable or benchtop instruments, the NL8048AC21-01F offers a durable human-machine interface that can withstand the rigors of a lab or field environment. The standard LVDS Interface ensures straightforward integration with common processing boards.
Strategic Advantage: A Commitment to Stability
In an era of rapid product cycles, the NL8048AC21-01F represents a strategic choice for OEMs. Its design prioritizes supply chain stability and a long production lifecycle, a hallmark of true industrial LCD displays. Selecting a component like this minimizes the risk of costly redesigns and re-qualifications forced by the sudden end-of-life (EOL) announcements common with consumer-focused displays. This makes it a smart, conservative choice for products with a planned market life of 5-10 years or more. For a broader understanding of the technologies involved, our ultimate guide to TFT LCDs provides extensive background.
Frequently Asked Questions (FAQ)
Is the 60-degree downward viewing angle a limitation?
This is an astute observation from the datasheet. The 80/80/80/60 (L/R/U/D) viewing cone means the contrast and color shift more noticeably when viewed from below. In practice, this is a non-issue for most target applications where the display is mounted vertically at or below eye level, such as in a control cabinet or on a desktop instrument. For these use cases, the top and side viewing angles are excellent, ensuring clarity for the primary operator.
What is the primary benefit of the integrated LED driver for a design engineer?
The primary benefit is risk reduction and design acceleration. Without an integrated driver, the engineer must source a separate component, validate its compatibility with the panel, design a PCB for it, and manage potential EMI/EMC issues between the driver and the main system. The integrated driver is pre-validated by NLT to provide optimal performance and longevity for the backlight, reducing engineering effort, BOM complexity, and time to market.
