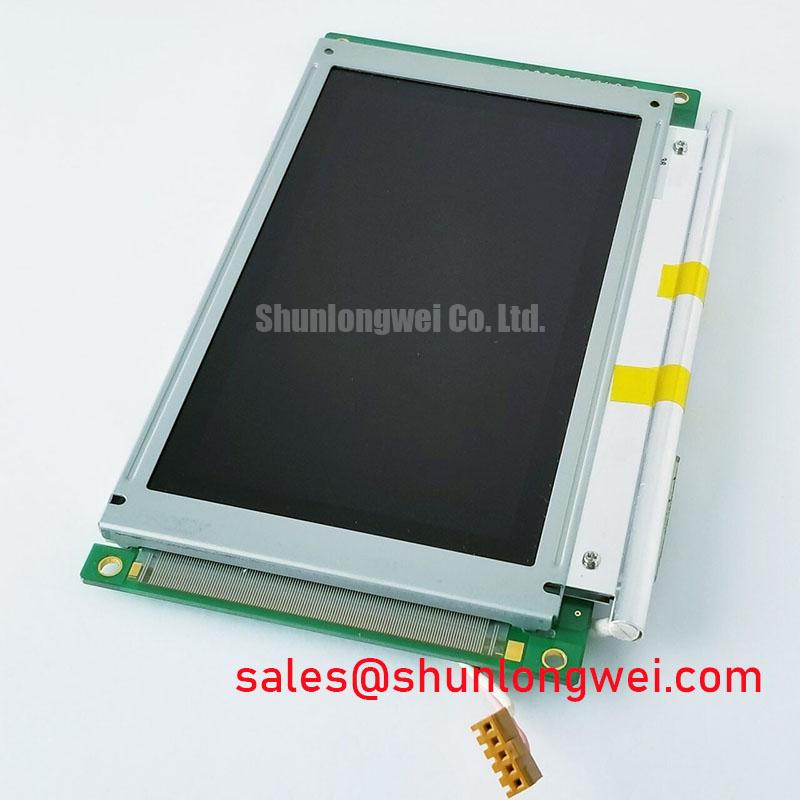

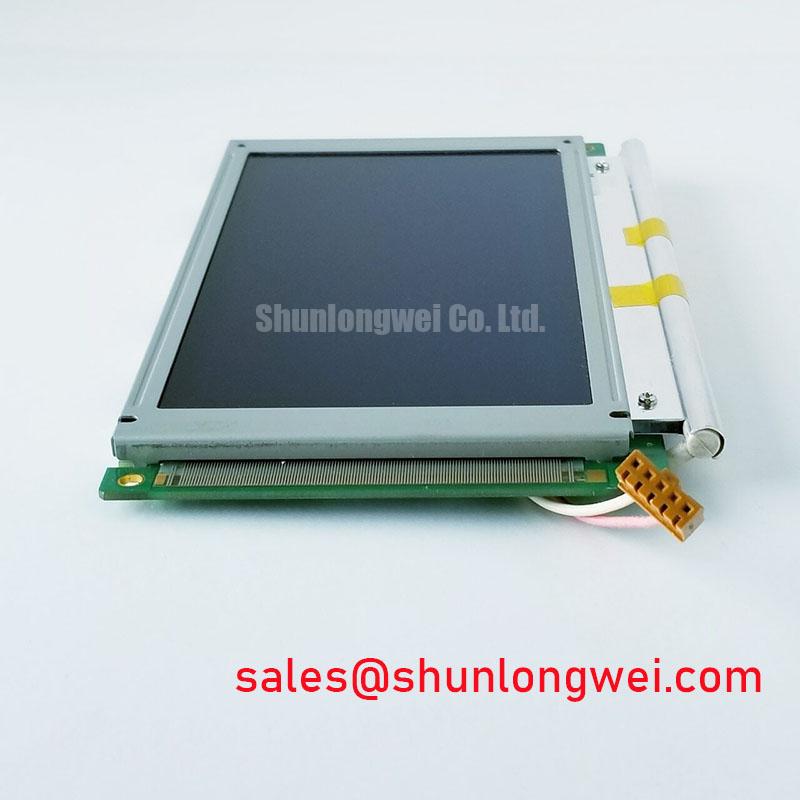

Kyocera DMF-50773NF-FW-ACE-AI | Drop-In QVGA Display for Legacy HMI Longevity
The Challenge of Aging Infrastructure: When HMI Failure Means System Failure
In industrial settings, a failed display on a critical piece of machinery often presents a disproportionately large problem. An otherwise functional CNC machine, process controller, or medical analysis device can be rendered useless by a defunct screen. The original equipment manufacturer may no longer support the product, and a complete system retrofit, costing tens of thousands of dollars, is often not a viable option. This scenario forces engineers to find a component-level solution that minimizes downtime, engineering effort, and capital expenditure. The Kyocera DMF-50773NF-FW-ACE-AI is engineered specifically for this challenge, providing a form, fit, and function replacement that extends the operational life of valuable legacy equipment.
Technical Foundations: Why This Module Endures
The resilience and practicality of the DMF-50773NF-FW-ACE-AI stem from two core design choices that prioritize long-term serviceability and seamless integration. These features are a direct response to the lifecycle realities of industrial hardware.
Serviceable CCFL Backlight System: Unlike many modern displays where the LED backlight is a permanent, integrated part of the panel, this module utilizes a Cold Cathode Fluorescent Lamp (CCFL) backlight that is designed to be replaceable. The backlight is often the first component to degrade in an LCD. Having a field-replaceable lamp means maintenance teams can restore original brightness and extend the display's service life for a fraction of the cost of replacing the entire module. This design transforms the display from a disposable component into a maintainable asset.
Embedded T6963C Graphics Controller: The integration of an industry-standard T6963C controller is the key to its drop-in compatibility. This controller offloads the burden of screen management, including text generation and graphic memory handling, from the host system's microprocessor. For an engineer, this is a critical advantage. It means the existing system firmware, which was written for this specific controller, requires no modification. The interface is a straightforward 4-bit parallel data bus, ensuring electrical compatibility with a wide array of microcontrollers prevalent in equipment from the 1990s and 2000s.
Core Specifications Overview
| Parameter | Specification | Engineering Implication |
|---|---|---|
| Display Technology | 5.7-inch FSTN Monochrome LCD | High-clarity, stable performance for text and graphic-based user interfaces. |
| Resolution | 320 x 240 Pixels (QVGA) | Standard resolution for a vast range of legacy industrial and medical HMIs. |
| Integrated Controller | T6963C Compatible | Ensures firmware and software compatibility for direct, drop-in replacement. |
| Backlight Unit | Single CCFL, Replaceable | Maximizes product lifespan and reduces long-term total cost of ownership. |
| Brightness | 160 cd/m² (Typical) | Provides clear readability in typical indoor industrial and lab environments. |
| Operating Temperature | 0°C to +50°C | Suitable for factory floor and control room deployments. |
Application Spotlight: Revitalizing a CNC Machine Control Panel
A manufacturing facility faced a critical production halt when the operator interface on a 15-year-old CNC lathe went dark. The machine's control systems were perfectly functional, but without the display, no new jobs could be programmed. The machine's OEM quoted a six-week lead time and a $12,000 fee for a complete control unit upgrade. A maintenance engineer identified the failed component as the original Optrex display. By specifying the DMF-50773NF-FW-ACE-AI, the team sourced a direct replacement. Thanks to the identical mounting points and the onboard T6963C controller, the physical installation and electrical connection were completed in under two hours. The existing system software recognized the new display instantly. The lathe was back in full production the same day, avoiding weeks of downtime and saving over 95% of the quoted upgrade cost.
Frequently Asked Questions for System Integrators
Problem: The original display in my equipment is obsolete, and I cannot find an exact part number match. How do I confirm if the DMF-50773NF-FW-ACE-AI is a suitable replacement?
Resolution: The primary compatibility checkpoint is the controller. If your system's technical documentation specifies a T6963C controller and a 320x240 QVGA resolution, this module is a strong candidate. Verify the physical dimensions and connector placement from the datasheet to ensure mechanical fit.
Problem: We are planning a system refresh but need a solution that bridges the gap between our legacy hardware and a potential future upgrade to a full-color interface. What is our path?
Resolution: The DMF-50773NF-FW-ACE-AI serves as an immediate, low-effort solution to maintain operational continuity. For a future-planned overhaul, you could consider a modern TFT-LCD module like the G057VN01 V2, which offers full color and higher brightness. However, this would require significant hardware and software redevelopment, a project that can be scheduled independently without immediate production pressure once the legacy system is stabilized with this monochrome display.
Problem: How does the Film-compensated STN (FSTN) technology in this display benefit my application?
Resolution: FSTN technology adds a retardation film layer to a standard STN display. This functions much like polarized sunglasses cutting through glare, improving the display's black-and-white contrast and widening the effective viewing angle. For an operator interface where users may be viewing the screen from off-center positions, this ensures that text and diagrams remain legible, reducing errors and improving usability. For a deeper understanding of various display technologies, explore this guide to TFT LCDs.
A Designer's Perspective: Planning for Long-Term Support
Selecting a component like the Kyocera DMF-50773NF-FW-ACE-AI is a strategic decision that looks beyond the initial bill of materials. It reflects a commitment to product lifecycle management and delivering value to the end-user. For engineers designing or supporting capital equipment with expected operational lives of a decade or more, specifying components with a clear path for maintenance is essential. By choosing a display with a replaceable backlight and an industry-standard controller, you are building a more resilient and economically viable system. This approach minimizes future technical debt and ensures that your equipment can be supported efficiently for years to come, safeguarding your customer's investment.
