G057VN01 V2: High-Brightness 5.7” VGA Display for Environmentally Demanding Applications

A Technical Introduction to the AUO Industrial Display

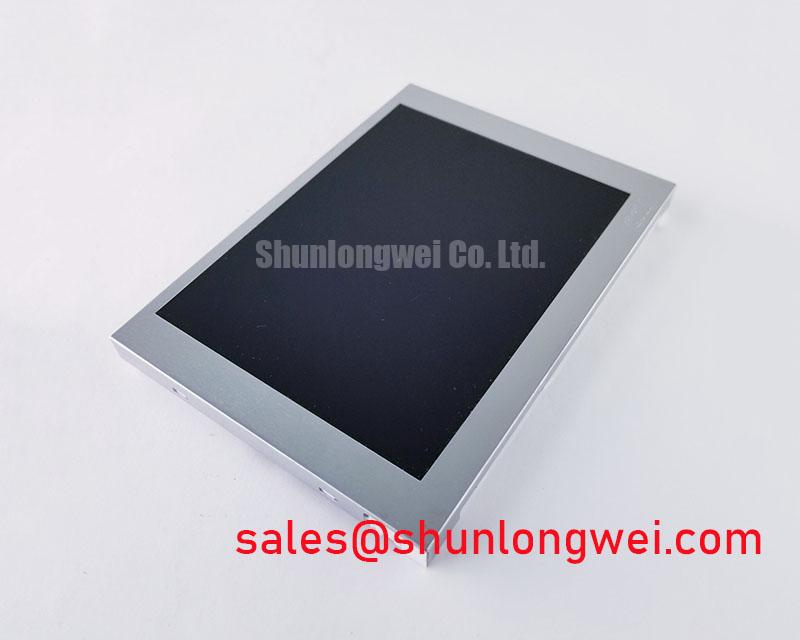

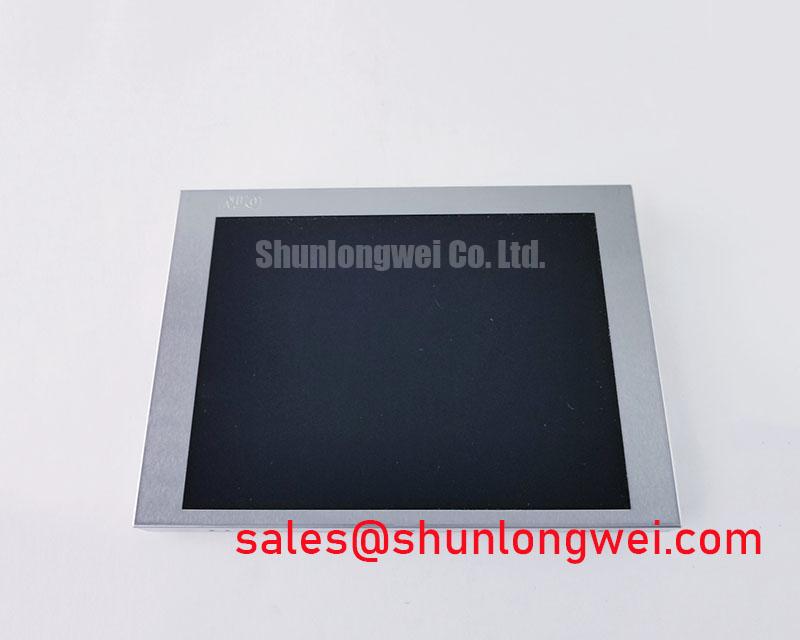

The AUO G057VN01 V2 is an industrial-grade 5.7-inch a-Si TFT-LCD module engineered for exceptional visual clarity and operational stability in extreme environmental conditions. Delivering a high-brightness output of 700 cd/m² and an extensive operating temperature range of -30°C to 85°C, this display provides superior readability and robust performance. Key benefits include direct sunlight legibility and long-term reliability in fluctuating thermal environments. This display directly addresses the need for a compact VGA panel that remains fully functional and readable whether deployed in freezing outdoor kiosks or heat-intensive factory floors. For industrial HMIs requiring robust performance and clarity in fluctuating temperatures, the G057VN01 V2 is the definitive choice.

Key Parameter Overview

Decoding the Specs for Environmental Resilience and Readability

The technical specifications of the G057VN01 V2 are purpose-built for industrial environments where standard displays falter. The combination of high brightness and extreme temperature tolerance is central to its value proposition.

Download the G057VN01 V2 datasheet for detailed specifications and performance curves.

Application Scenarios & Value

System-Level Benefits in Outdoor and Industrial HMIs

The G057VN01 V2 is engineered for Human-Machine Interfaces (HMIs) and control panels that operate in non-climate-controlled settings. Its core value lies in maintaining data legibility and reliability without requiring complex and costly thermal management systems.

A primary engineering challenge in outdoor equipment, such as EV charging stations or agricultural vehicle dashboards, is display washout under direct sunlight. The G057VN01 V2's 700-nit brightness directly counters this effect. To put this in perspective, this luminance level is significantly higher than typical consumer displays, acting like a powerful flashlight behind the image to cut through ambient glare and ensure critical data is always readable. This feature is crucial for sunlight readable HMIs where operator efficiency and safety depend on immediate data access.

Furthermore, the expansive -30°C to 85°C operating temperature range simplifies system design for applications like cold storage logistics or desert-based monitoring stations. It eliminates the need for auxiliary heaters or fans that would otherwise be required to keep a lesser display within its functional limits, thereby reducing system complexity, cost, and potential points of failure. The integrated WLED driver further streamlines design by reducing the external component count. While this 5.7-inch model is excellent for compact interfaces, for systems requiring a larger visual area with similar ruggedness, the related G065VN01 V2 offers a 6.5-inch alternative.

Frequently Asked Questions (FAQ)

What is the primary benefit of the -30 to 85°C operating temperature?
The primary benefit is operational reliability in thermally volatile environments. This wide range allows the display to function flawlessly in applications from sub-zero outdoor conditions to enclosed, heat-generating industrial control cabinets without dedicated heating or cooling systems, enhancing the system's overall robustness and lowering total cost of ownership.

How does the 700 cd/m² brightness impact usability in the field?
The 700 cd/m² luminance ensures the display is "sunlight readable," meaning it remains clear and legible even under direct, bright outdoor light. This is critical for operators of outdoor machinery, marine chartplotters, and public information kiosks, who need to view data without color distortion or image washout caused by high ambient light.

Does the G057VN01 V2 have an integrated backlight driver?
Yes, the module includes a WLED backlight system complete with an integrated LED driver. This simplifies the system integration process, as it removes the need for designing and sourcing a separate driver board and connecting circuitry, saving development time and reducing the overall system footprint.

What does the "TN, Normally White" display mode mean for industrial applications?
"TN, Normally White" refers to the Twisted Nematic panel technology where pixels are transparent (white) in their default, unpowered state. In an industrial context, this can be a minor fail-safe indicator; in the event of a total pixel drive failure, the screen would appear white rather than black, which can be a more obvious sign of a malfunction compared to a completely dark screen.

Application Vignette

Designing a Ruggedized HMI for Heavy Construction Equipment

Consider the challenge of designing an HMI for an excavator or bulldozer. The operator's cab is an environment of extremes: freezing temperatures on winter mornings, baking heat and direct sun in the summer, and constant high-frequency vibration. A standard display would quickly fail, either by the liquid crystal freezing, the screen washing out in the sun, or internal connections failing due to shock. The AUO G057VN01 V2 is specified to solve these exact problems.

Its -30°C startup capability ensures the display is operational instantly, without a warm-up period that delays work. The analogy here is a car dashboard; it is expected to work perfectly whether the car has been sitting in a blizzard or a desert. The 700-nit brightness, paired with an anti-glare surface, allows the operator to clearly read critical engine diagnostics and hydraulic pressures, even when the sun is directly overhead. This direct legibility is not just a convenience—it is a core safety requirement. Finally, the display's specified vibration resistance of 1.5G ensures it can withstand the constant jarring of a construction site, a testament to its design for engineering for extremes.

Strategic Design Considerations

Leveraging Durability for Long-Term System Value

Integrating the G057VN01 V2 is a strategic decision that prioritizes long-term reliability and a lower total cost of ownership over initial component price. The display's inherent ruggedness—defined by its thermal range, brightness, and 50k-hour backlight lifespan—reduces the likelihood of field failures, service calls, and reputational damage associated with downtime. For OEMs building equipment for mission-critical sectors like AUO's target markets in industrial and medical fields, this level of built-in resilience is a key differentiator. The choice to use such a component reflects a design philosophy focused on creating a product that is not only functional but enduring, aligning with the growing demand for sustainable and dependable technology in TFT-LCD based systems.
