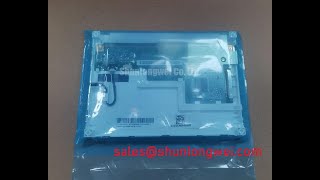

Tianma TM057QDHG04-00-BLU1-01 | High-Brightness 5.7" VGA Industrial LCD
The Tianma TM057QDHG04-00-BLU1-01 is an industrial-grade 5.7-inch TFT-LCD module engineered for performance and reliability in demanding environments. It delivers a classic VGA resolution (640x480) with exceptional brightness and a robust operational temperature range, making it a premier choice for mission-critical Human-Machine Interfaces (HMIs), control systems, and specialized instrumentation where visual clarity and durability are non-negotiable.
- Exceptional Readability: Features a high-luminance 800-nit WLED backlight, ensuring clear visibility even in high ambient light conditions.
- Industrial Durability: Built to withstand a wide operating temperature range of -20°C to 70°C, providing consistent performance in factory floors, outdoor enclosures, and unconditioned spaces.
- Standardized Integration: Equipped with a parallel 18-bit RGB interface, offering a straightforward and reliable connection for a wide array of industrial controllers and single-board computers.
- Long-Term Reliability: The WLED backlight system is rated for a 20,000-hour lifetime, minimizing maintenance cycles and total cost of ownership.
Technical Deep Dive: Engineering for Clarity and Resilience
Two core engineering decisions elevate the TM057QDHG04-00-BLU1-01 beyond a standard display. First is its focus on high luminance. At 800 cd/m², this display produces a powerful, vibrant image that cuts through ambient glare. This is not merely a comfort feature; it is a critical safety and efficiency component. For an operator monitoring a CNC machine or a technician reading diagnostics in the field, this level of brightness ensures that data is interpreted correctly and quickly. This makes it a strong candidate for applications discussed in the engineer's guide to sunlight-readable HMIs, where performance under challenging lighting is paramount.
Second is its impressive thermal resilience. The specified operating range of -20°C to 70°C is a testament to its industrial-first design. Unlike consumer-grade displays that can fail in extreme cold or overheat in enclosed, high-power systems, the TM057QDHG04-00-BLU1-01 is constructed with materials and components chosen for thermal stability. This ensures reliable startups in freezing conditions and prevents image degradation or failure in hot industrial settings, a crucial factor for displays in heavy machinery.
Key Parameters Overview
| Parameter | Specification |
|---|---|
| Manufacturer | Tianma |
| Model | TM057QDHG04-00-BLU1-01 |
| Screen Size | 5.7 inches |
| Resolution | 640(RGB) x 480 (VGA) |
| Panel Technology | a-Si TFT-LCD |
| Brightness | 800 cd/m² |
| Contrast Ratio | 800:1 |
| Viewing Angles (L/R/U/D) | 80°/80°/70°/70° |
| Interface Type | Parallel RGB (18-bit) |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -30°C to 80°C |
| Backlight | WLED, 20,000 hours |
Application Scenarios & Value Proposition
The specific feature set of the Tianma TM057QDHG04-00-BLU1-01 makes it an ideal solution for several key markets:
- Industrial HMI Panels: Its robust temperature range and high brightness are perfect for factory automation controls, process monitoring stations, and machine interfaces where reliability and clear visibility are essential for operational efficiency and safety.
- Medical Diagnostic Equipment: The crisp VGA resolution and high contrast ratio are well-suited for displaying vital signs, waveforms, and other critical data on patient monitors or portable diagnostic devices, where accuracy is paramount.
- Test & Measurement Instruments: For portable oscilloscopes, network analyzers, or field testing equipment, the combination of a compact 5.7" form factor, wide temperature range, and excellent readability makes it a dependable user interface.
- Transportation & Kiosks: The display's ability to perform in outdoor or semi-outdoor conditions makes it suitable for ticketing machines, public information displays, and vehicle-mounted control systems.
Frequently Asked Questions (FAQ)
Q: Is the 18-bit Parallel RGB interface compatible with modern microcontrollers?
A: Yes, the parallel RGB interface is a well-established standard and is widely supported by many microcontrollers (MCUs) and System-on-Chips (SoCs) that feature a TFT or LCD controller peripheral. For systems without a native controller, an external graphics driver IC can be used. Its simplicity and low latency make it a highly reliable choice for real-time systems.
Q: What does the 20,000-hour backlight lifetime mean in practical terms?
A: A 20,000-hour lifetime (to 50% brightness) translates to approximately 2.2 years of continuous, 24/7 operation. In a more typical application with 8-hour daily use, this extends to over 6.8 years of service. This long-life design is fundamental to reducing maintenance costs and ensuring system uptime, a key consideration when selecting industrial LCD displays for long-term deployments.
