LTA065B0D2F Product Analysis: A 6.5-inch TFT-LCD Engineered for High-Luminance Industrial and Automotive Applications
Delivering Visual Clarity and Robust Performance in Demanding Environments
The LTA065B0D2F from Toshiba Matsushita Display Technology is a 6.5-inch a-Si TFT-LCD module engineered for applications where high brightness and consistent readability are critical. This display delivers a high luminance of 550 cd/m², a 640x480 VGA resolution, and wide viewing angles, ensuring clear image reproduction under challenging operational conditions. Key benefits include its exceptional brightness for outdoor or high ambient light usability and a replaceable LED backlight unit that enhances serviceability. The module directly addresses the need for a durable, high-performance display solution in sectors like industrial control, automotive infotainment, and specialized instrumentation. For systems requiring a wide aspect ratio and high resolution in a similar size, the LQ065Y5DG02 offers a different set of specifications for consideration.
Application Scenarios & Value
System-Level Benefits in High-Brightness Human-Machine Interfaces
The LTA065B0D2F is purpose-built for environments where standard displays falter. Its core value lies in its high luminance output, which is a critical parameter for maintaining readability in applications exposed to direct sunlight or intense artificial lighting. In control panels for heavy machinery or outdoor kiosks, this brightness ensures that operators can clearly read crucial data without visual strain, improving both safety and operational efficiency.
What is the primary benefit of its high luminance? Enhanced readability in high ambient light environments, reducing operator error. The panel's wide viewing angles—140 degrees horizontally and 120 degrees vertically—are equally important. This feature allows multiple operators to view the screen from different positions without significant color shift or loss of contrast. Imagine a factory floor where a process control screen needs to be monitored by both a standing supervisor and a seated technician; the LTA065B0D2F ensures both have a clear, consistent view of the interface. This capability is crucial for collaborative environments and reduces the physical constraints on equipment placement.
Key Parameter Overview
Decoding the Specifications for Industrial Reliability
The performance of the LTA065B0D2F is defined by a set of specifications tailored for industrial and automotive use cases. The interaction between its optical and mechanical characteristics provides a foundation for reliable, long-term operation.
| Parameter | Specification |
|---|---|
| Display Size | 6.5 inches (17 cm diagonal) |
| Resolution | 640(RGB) x 480 [VGA] |
| Luminance | 550 cd/m² (Typical) |
| Viewing Angle (H/V) | 140° / 120° (Typical) |
| Contrast Ratio | 500:1 (Typical) |
| Backlight System | WLED, with replaceable LED unit |
| Interface Type | LVDS (1 channel, 6-bit) |
| Operating Temperature | -20°C to 70°C |
Download the LTA065B0D2F datasheet for detailed specifications and performance curves.
Interpreting these parameters reveals the display's design intent. The 550 cd/m² luminance is significantly higher than typical consumer-grade panels, making it suitable for outdoor-viewable applications. This brightness, combined with a 500:1 contrast ratio, ensures that graphics and text are sharp and distinct. The operating temperature range of -20°C to 70°C confirms its suitability for unconditioned environments, from cold-start automotive systems to factory floors with high process heat. Think of the contrast ratio as the display's ability to distinguish between the brightest white and the darkest black; a higher ratio means more "steps" in between, resulting in a more detailed and legible image, which is vital for interpreting complex on-screen data accurately.
Technical Deep Dive
A Closer Look at the Replaceable Backlight and LVDS Interface
A standout feature of the LTA065B0D2F is its replaceable LED backlight unit. In industrial settings, where equipment is expected to have a long service life, the backlight is often the first component to degrade, leading to diminished brightness. By making the unit replaceable, the display's operational lifespan can be significantly extended, which lowers the total cost of ownership. This modular approach simplifies maintenance, allowing technicians to restore the display to its original brightness without replacing the entire TFT panel assembly—a crucial advantage in maintaining uptime for critical systems.

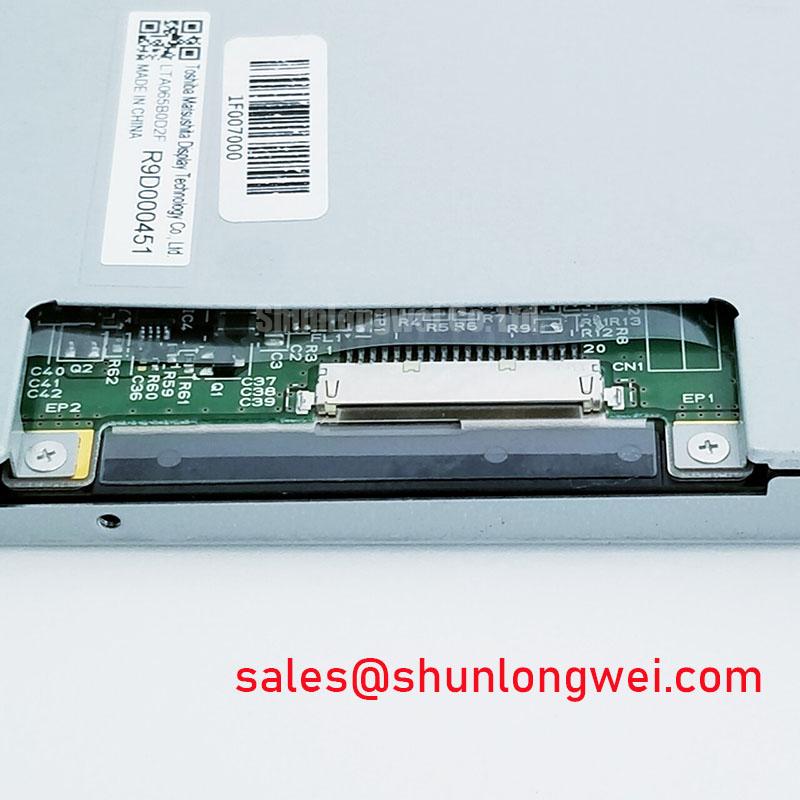

The use of a standard LVDS (Low-Voltage Differential Signaling) interface simplifies system integration. LVDS is known for its high noise immunity, which is essential in electrically noisy industrial environments where motors, drives, and power supplies can interfere with signal integrity. This robust interface ensures that the display receives a clean, stable video signal from the host controller, resulting in a flicker-free, reliable image. The LVDS interface is like an armored cable for video data; it protects the signal from external interference, ensuring the information displayed is exactly what was sent.
Frequently Asked Questions (FAQ)
What is the primary application for a display with 550 cd/m² luminance?
Displays with this level of brightness are specifically designed for use in high ambient light conditions, such as outdoor kiosks, marine chart plotters, and vehicle-mounted terminals where sunlight readability is a non-negotiable requirement.
How does the replaceable LED unit impact long-term use?
The replaceable LED unit is a key feature for extending the product's service life. It allows for cost-effective maintenance, enabling the restoration of original brightness levels after thousands of hours of use without needing to replace the entire display module.
Is the LVDS interface on the LTA065B0D2F suitable for industrial environments?
Yes, the LVDS interface is an excellent choice for industrial applications due to its inherent resistance to electromagnetic interference (EMI). This ensures signal integrity and a stable image, even when the display is used in close proximity to high-power electrical equipment.
Strategic Integration for Long-Life Systems
The Toshiba Matsushita LTA065B0D2F represents a strategic component choice for designers of industrial and automotive systems that demand high visual performance and long-term reliability. Its combination of high luminance, wide viewing angles, and a maintenance-friendly replaceable backlight provides a robust foundation for building effective and durable human-machine interfaces. By focusing on these core engineering strengths, the LTA065B0D2F enables the development of products that can perform reliably across a wide range of challenging operational environments.
