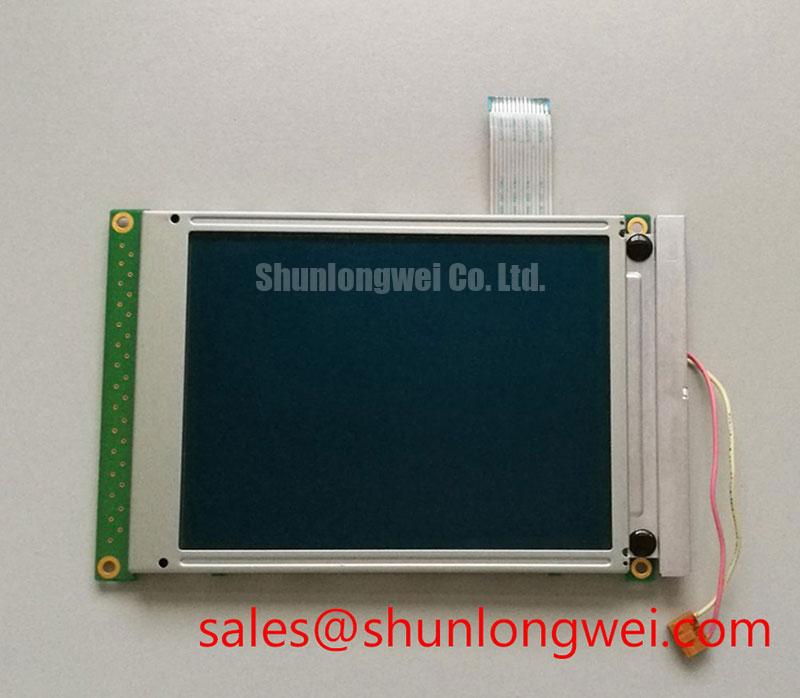

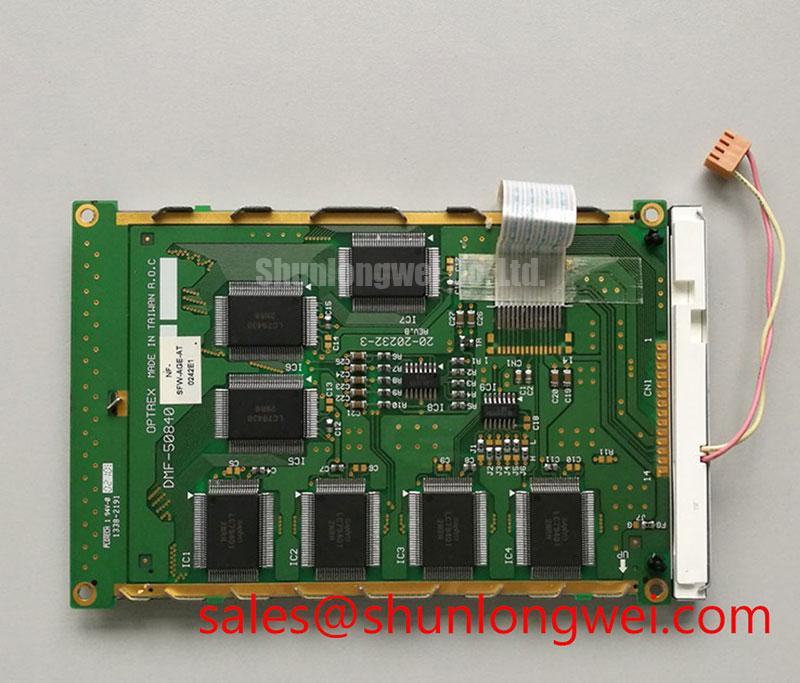

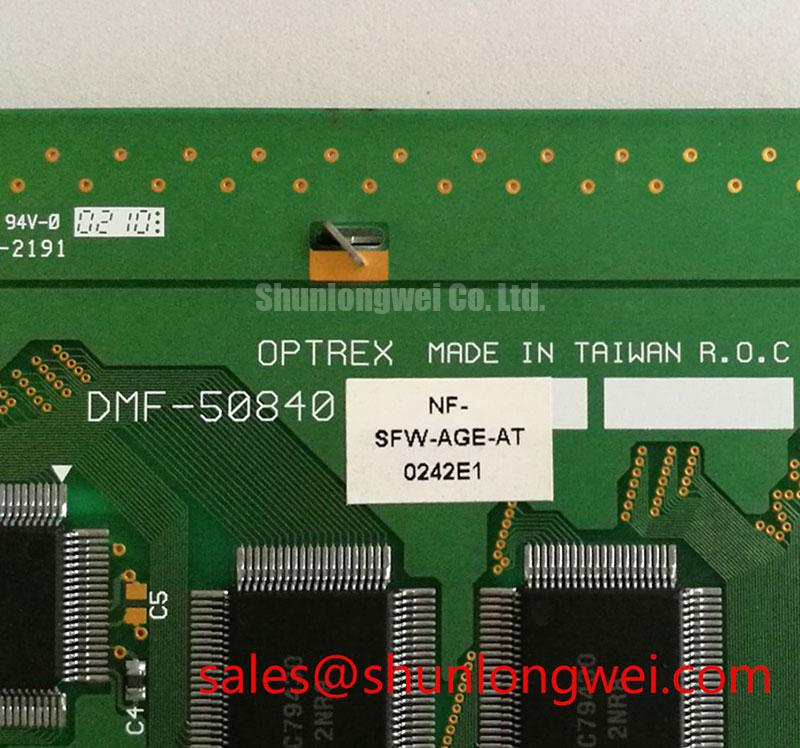

## DMF50840 Monochrome Display | Uncompromising Clarity for Industrial HMIs
The **DMF50840** is a purpose-built monochrome graphic LCD engineered for applications where clarity, reliability, and long-term performance are non-negotiable. This 240x64 resolution display moves beyond simple character readouts, offering the graphical flexibility needed for modern industrial automation, test equipment, and medical devices. It is an ideal solution for engineers designing or retrofitting systems that demand a crisp, easily readable interface without the complexity and power consumption of a full-color TFT.
## Technical Deep Dive: The Engineering Behind the Readability
### Superior Contrast with Film-Compensated STN (FSTN)
* **The Technology:** The **DMF50840** utilizes FSTN (Film-compensated Super-Twisted Nematic) technology. Unlike standard STN displays, an additional retardation film is applied to the outer surface of the glass. This film corrects the color shift, eliminating the typical yellowish-green or bluish background and resulting in a true black-and-white display.
* **Application Value:** This translates directly to a higher Contrast Ratio and sharper text and graphics. For an operator monitoring a control panel or a technician reading critical data from a measurement device, this enhanced clarity reduces eye strain and minimizes the risk of misinterpretation, especially under variable factory lighting.
### Robust Design for Industrial Longevity
* **The Technology:** This display is constructed with industrial-grade components, featuring a wide operating temperature range and a durable, long-life backlight (typically CCFL or LED options). The design prioritizes stability over years of continuous or intermittent operation.
* **Application Value:** For equipment intended for harsh environments, such as factory floors or field instruments, the **DMF50840** ensures consistent performance. Its longevity reduces total cost of ownership by minimizing the need for costly display replacements and system downtime, a crucial factor in mission-critical industrial systems. Explore our full range of industrial LCD solutions for more options.
## Multi-Dimensional Application Scenarios
The **DMF50840** excels in environments where information must be presented clearly and efficiently.
* **Industrial Control Panels & HMIs:** In manufacturing and process control, this display provides a perfect canvas for visualizing machine status, alarms, and simple GUIs. Its immunity to the visual noise of a factory floor makes it superior to low-contrast alternatives.
* **Test and Measurement Instruments:** For oscilloscopes, spectrum analyzers, and power meters, data integrity is paramount. The crisp, pixel-perfect rendering of waveforms and numerical readouts ensures that engineers and technicians get accurate information at a glance.
* **Medical Monitoring Devices:** In patient monitors or infusion pumps, key vital signs and dosage information must be unambiguous. The high-contrast black-and-white display of the **DMF50840** offers excellent readability, which is critical for patient safety.
* **Point-of-Sale (POS) Systems:** For legacy and new cost-sensitive POS terminals, this display provides a reliable and clear interface for both the operator and the customer, ensuring transaction accuracy and a long service life.
## Key Technical Specifications: DMF50840
| Parameter | Value |
|---|---|
| Display Type | FSTN Monochrome Graphic LCD |
| Resolution | 240 x 64 Dots |
| Display Mode | Positive, Transflective/Transmissive |
| Active Area (Typical) | 115.17(W) x 31.97(H) mm |
| Backlight | CCFL or LED (model dependent) |
| Interface | 8-bit Parallel |
| Datasheet | DMF50840 Datasheet |
## Selecting the Right Display: DMF50840 vs. Full-Color TFT
While modern TFT-LCD screens offer vibrant color, the **DMF50840** holds a distinct advantage in specific use cases.
* **vs. Full-Color TFT:** The DMF50840 offers significantly lower power consumption and often a lower unit cost. For systems where the interface is primarily text- and data-driven, adding color can introduce unnecessary complexity and cost. The monochrome display's simplicity is its strength.
* **vs. Character Modules:** While character displays are simple, the DMF50840's 240x64 graphic capability allows for far more sophisticated interfaces, including custom fonts, icons, basic charts, and more flexible data layouts. It represents a significant upgrade in HMI design possibilities.
For a deeper dive into modern HMI technologies, consider reading our guide on industrial touchscreen technologies. If you have questions about integrating the DMF50840 into your design or need to source this reliable component, please contact our technical specialists for assistance.
