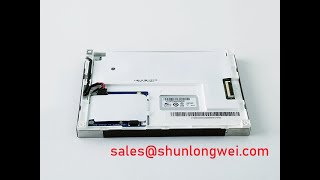

G057VN01 V0 | 5.7" Industrial VGA LCD for Extreme Temps
Engineered for Unwavering Performance in Harsh Environments
As industrial automation and outdoor systems demand greater resilience, the AUO G057VN01 V0 emerges as a 5.7-inch TFT-LCD platform engineered for unwavering performance. This display provides a robust foundation for Human-Machine Interfaces (HMIs) operating in environments where temperature fluctuations and high ambient light are constant challenges. Its key specifications are tailored for long-term operational stability. What makes the G057VN01 V0 suitable for outdoor use? Its -30 to +80°C operating range and anti-glare surface ensure consistent legibility and function, directly addressing critical field-deployment requirements.
Top Specs: 640x480 VGA | -30°C to +80°C Op. Temp. | 500 cd/m² Brightness
Key Benefits: Exceptional thermal resilience; High-contrast legibility.
Data Points for System Evaluation: G057VN01 V0
To support your system design and component evaluation process, the following table presents key datasheet parameters. This information is intended to provide a factual basis for comparison and integration analysis. For applications with different resolution or interface needs, the G057QTN01.1 offers an alternative set of specifications for consideration.
| Feature | AUO G057VN01 V0 | Commentary for Engineering Assessment |
|---|---|---|
| Operating Temperature | -30°C to +80°C | Enables deployment in un-controlled climates, from cold storage to sun-exposed enclosures, without auxiliary thermal hardware. |
| Surface Treatment | Anti-Glare | Critical for maintaining screen readability and reducing operator eye strain in high ambient light conditions. |
| Backlight Lifetime | 50,000 hours (Typ.) | Supports a lower total cost of ownership through extended operational life and reduced maintenance requirements in 24/7 systems. |
| Viewing Angle (L/R/U/D) | 70/70/60/60 (Typ.) | Provides adequate viewing flexibility for fixed-mount industrial panels where the operator's position is predictable. |
G057VN01 V0 Specification Highlights for System Design
The following parameters are central to the integration and performance of the G057VN01 V0 in demanding applications.
| Parameter | Specification |
|---|---|
| Screen Diagonal | 5.7 inch |
| Resolution | 640(RGB) x 480 [VGA] |
| Brightness | 500 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) |
| Signal Interface | Parallel RGB (1 ch, 6-bit) |
| Storage Temperature | -30°C to +80°C |
Download the Datasheet for complete electrical and mechanical specifications.
Deployment Environments: Where Robustness Translates to Value
The design specifications of the AUO G057VN01 V0 make it a component foundation for equipment that must perform reliably day after day, regardless of environmental stress. Its resilience is particularly valuable in sectors where downtime is not an option.
- Industrial Control Panels: On factory floors, the display's wide temperature range and resistance to vibration ensure stable operation amidst machinery and fluctuating ambient conditions.
- Outdoor Kiosks & Terminals: The combination of 500-nit brightness and an anti-glare surface provides the necessary legibility for use in ticketing machines, EV charging stations, and information points exposed to daylight. For a deeper understanding of designing for outdoor visibility, see this engineer's guide to sunlight-readable HMIs.
- Vehicle-Mounted Computers: From logistics fleet management to agricultural machinery, the G057VN01 V0 is built to withstand the temperature swings and shocks inherent in mobile applications.
- Marine Navigation Systems: The display's durable construction is well-suited for the challenging conditions of on-deck and bridge instrumentation.
For portable diagnostic tools requiring a compact VGA display with proven thermal stability across a -30°C to +80°C range, the G057VN01 V0 is the specified component foundation.
A Closer Look at the Display's Resilience Attributes
Two core attributes of the G057VN01 V0 underscore its suitability for industrial deployment: its thermal management and optical properties. What is the benefit of a 600:1 contrast ratio? It ensures that grayscale and color differentiations are distinct, which is crucial for interpreting complex graphical data or status indicators accurately.
The contrast ratio can be thought of as the display's "signal-to-noise" for visual information; a higher ratio means the brightest white is significantly brighter than the darkest black, making the "signal" (the intended image) stand out clearly from the "noise" (potential washout from ambient light). This, combined with the anti-glare surface, provides a high-fidelity user interface. Furthermore, the extensive operating temperature range is a testament to the material selection and thermal engineering, ensuring the liquid crystal and driving electronics maintain their specified performance from deep freeze to high heat.
Long-Term Operational Advantage in Demanding Sectors
Selecting a display module for an industrial product line is a long-term strategic decision that impacts maintenance schedules, operational uptime, and total cost of ownership. The G057VN01 V0, with its 50,000-hour rated LED backlight, offers a tangible advantage by aligning with the industry's push for "fit-and-forget" components. This extended operational life minimizes the need for costly field service, a critical factor for equipment deployed in remote or hard-to-access locations. By specifying components like the G057VN01 V0 from a reputable manufacturer such as AUO, system architects can build a foundation of reliability that supports their product's reputation and long-term market viability, which is essential when engineering for extreme environments.
