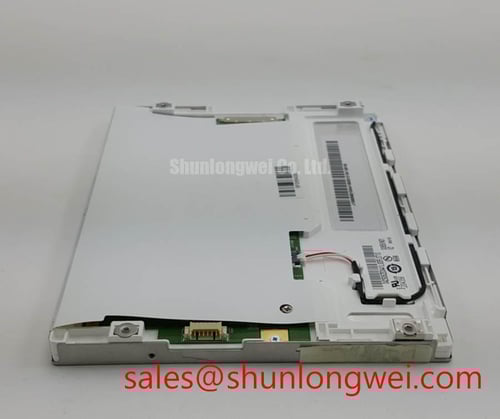

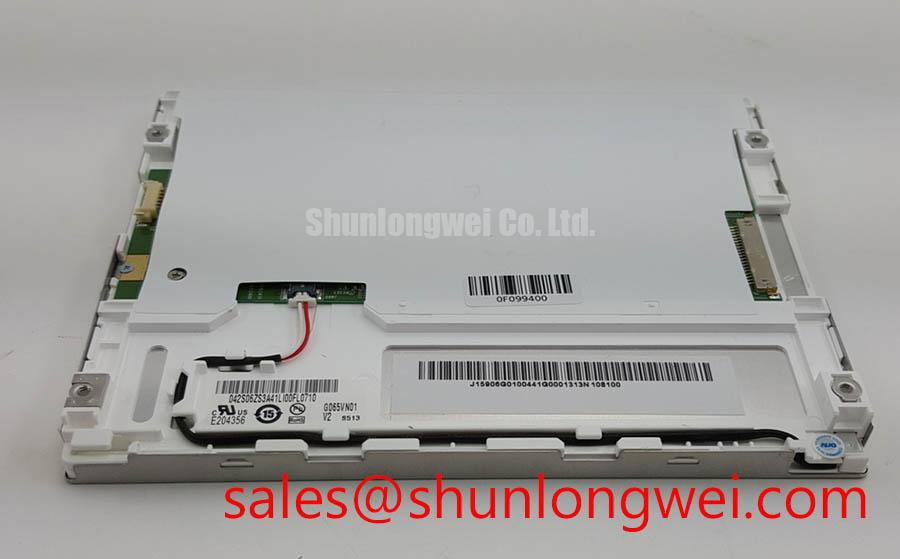

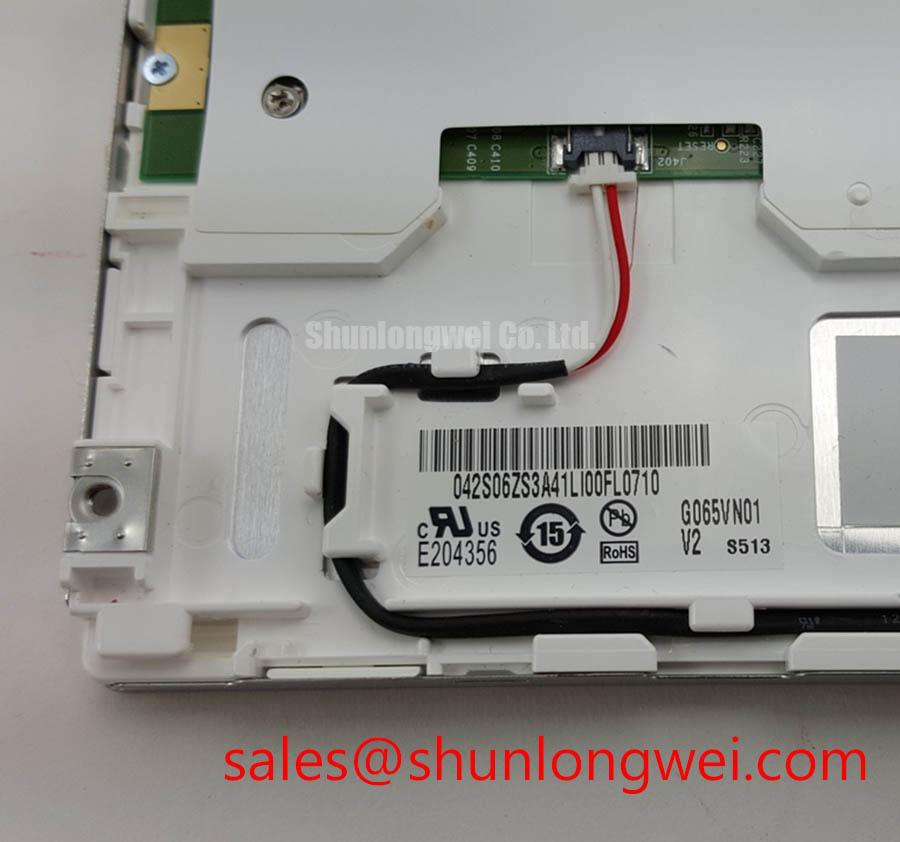

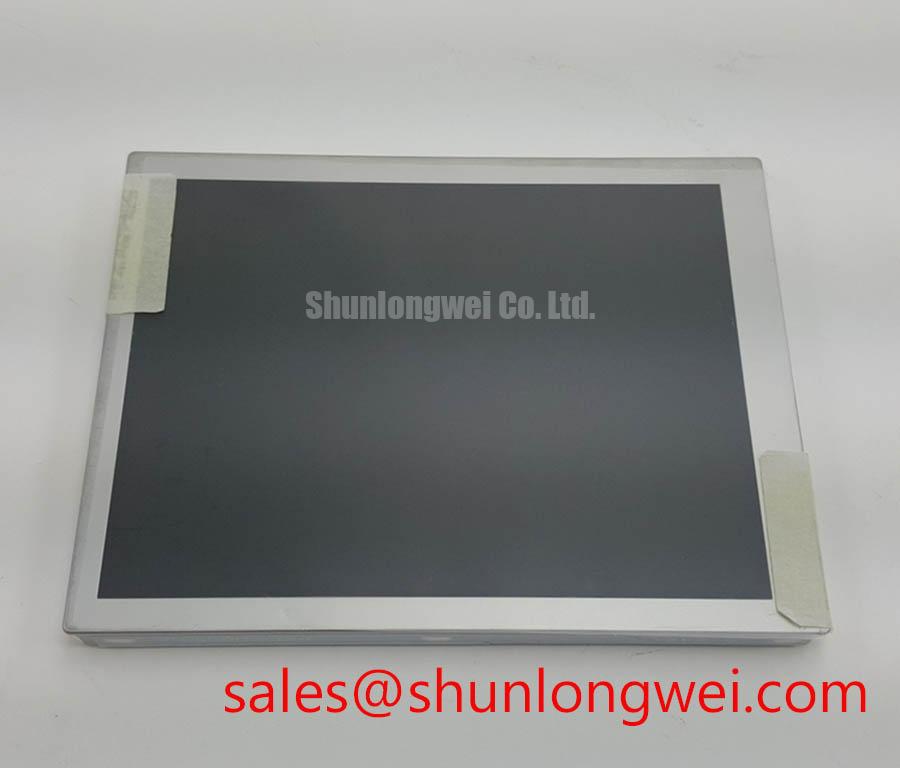

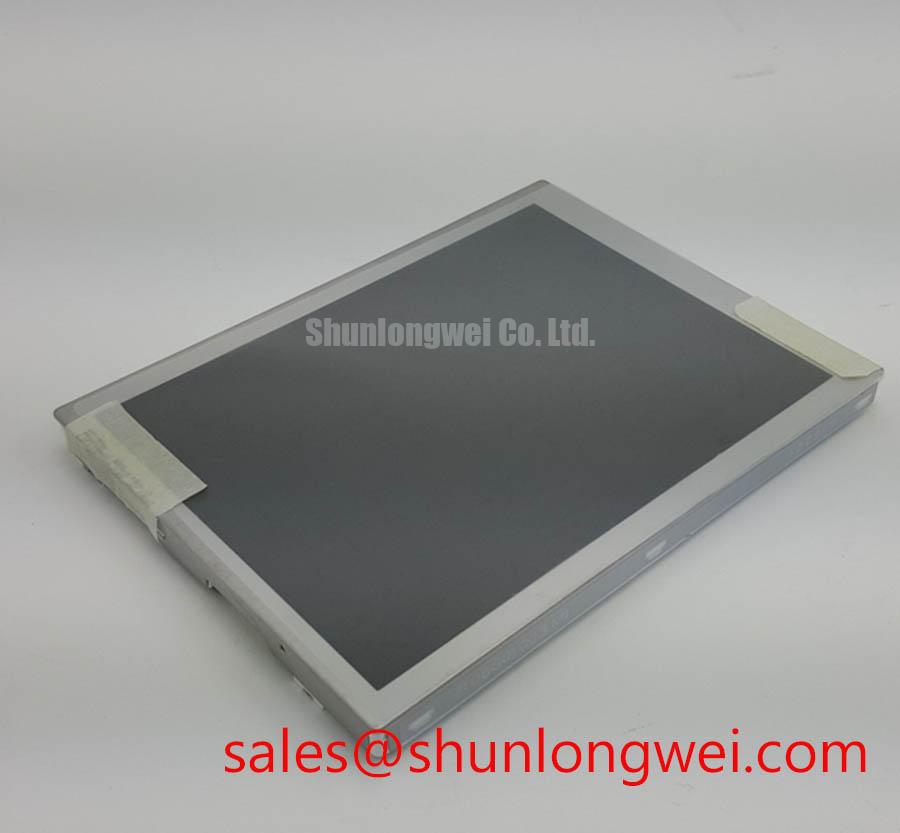

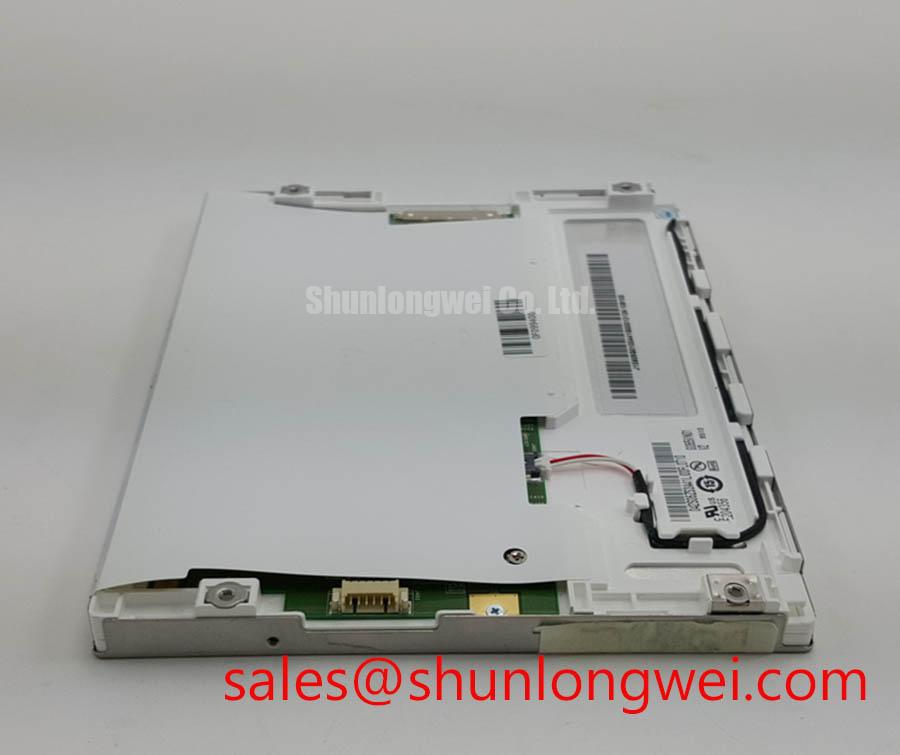

AUO G065VN01 V2: 6.5-inch Industrial LCD for Demanding Environments
Introduction: A Technical Overview for Engineering Professionals
The AUO G065VN01 V2 is a 6.5-inch VGA TFT-LCD module engineered for exceptional reliability and visual performance in harsh industrial and outdoor environments. Delivering a powerful combination of high brightness and an extreme operational temperature range, this display provides a robust foundation for building dependable Human-Machine Interfaces (HMIs) and instrumentation panels. Key specifications include: 640x480 VGA Resolution | 800 cd/m² Brightness | -30 to 80°C Operating Temperature. The primary engineering benefits are uncompromised readability in high ambient light and an extended operational life under thermal stress. For industrial HMIs deployed in unconditioned environments requiring consistent readability, the G065VN01 V2 is the definitive choice.
Application Scenarios & Value
System-Level Benefits in Industrial Automation and Outdoor Instrumentation
The G065VN01 V2 is engineered to solve the critical challenges of display failure and poor readability in thermally dynamic and high-ambient-light settings. Its feature set makes it a prime candidate for applications where performance cannot be compromised.
A high-fidelity engineering scenario is the control panel for an Automated Guided Vehicle (AGV) or a forklift operating within a large logistics center. These environments present significant challenges, from the cold temperatures of a refrigerated loading dock to the heat near processing equipment, alongside intense, shifting artificial and natural light. The G065VN01 V2's expansive operating temperature range of -30°C to 80°C ensures consistent performance without the need for auxiliary heating or cooling systems, simplifying the mechanical design and reducing potential points of failure. Simultaneously, its high luminance of 800 nits, coupled with an anti-glare surface treatment, cuts through direct overhead lighting and reflections, ensuring that critical operational data is always legible. This directly enhances operator efficiency and reduces the risk of costly errors.
- Industrial HMI Panels: Excels in factory automation, process control systems, and machinery interfaces where temperature fluctuations are common.
- Outdoor Kiosks & Terminals: The high brightness ensures excellent sunlight readability for applications like ticketing machines, fuel pumps, and public information displays.
- Marine & Transportation Displays: Provides the robustness and wide viewing angles required for navigation systems and in-vehicle instrumentation.
- Test and Measurement Equipment: Delivers the visual clarity and durability needed for portable and benchtop diagnostic tools used in field service.
For systems that require a larger display area while maintaining similar environmental resilience, the 8.4-inch G084SN05 V9 presents a viable alternative for consideration.
Key Parameter Overview
Decoding the Specifications for Robust System Integration
The technical specifications of the G065VN01 V2 are carefully balanced to deliver visual performance and long-term reliability. The following parameters are crucial for design and integration assessment.
| Optical Characteristics | |
|---|---|
| Panel Type | a-Si TFT-LCD, TN, Normally White |
| Resolution | 640(RGB) × 480 [VGA] |
| Brightness | 800 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| Viewing Angle | 80/80/70/70 (Typ.)(CR≥10) (L/R/U/D) |
| Display Colors | 262K / 16.2M (6-bit / 6-bit + FRC) |
| Response Time | 15/10 (Typ.)(Tr/Td) ms |
| Interface & Backlight | |
| Signal Interface | LVDS (Low-Voltage Differential Signaling) (1 ch, 6/8-bit), 20 pins Connector |
| Backlight | WLED, 50K hours (Typ.), with LED Driver |
| Environmental & Mechanical Ratings | |
| Operating Temperature | -30 ~ 80 °C |
| Storage Temperature | -30 ~ 80 °C |
| Surface Treatment | Anti-glare, Hard coating (3H) |
| Outline Dimensions | 153(W) × 118(H) × 11.1(D) mm |
Download the G065VN01 V2 datasheet for detailed specifications and performance curves.
Frequently Asked Questions (FAQ)
How does the -30°C to 80°C operating temperature range of the G065VN01 V2 reduce system design complexity?
This wide thermal tolerance directly mitigates the need for dedicated heating elements in cold-start scenarios or active cooling fans in high-temperature environments. This simplifies the overall product enclosure design, reduces power consumption, eliminates potential acoustic noise from fans, and increases the system's intrinsic reliability by removing mechanical points of failure.
What is the engineering significance of the 50,000-hour LED backlight lifetime?
The 50,000-hour rating translates to over 5.7 years of continuous 24/7 operation to half-brightness. For industrial equipment with long service life requirements, this minimizes scheduled maintenance and reduces the Total Cost of Ownership (TCO). It ensures that the display's brightness remains viable for the expected lifespan of the host system, a critical factor in applications where unit replacement is difficult or expensive.
Technical Deep Dive
Engineering for Longevity: Backlight and Thermal Synergy
The true engineering value of the G065VN01 V2 lies in the synergy between its thermal design and its WLED backlight system. The ability to operate reliably at 80°C is not merely about component survival; it is about maintaining performance. What is the primary benefit of its long-life backlight? It offers enhanced long-term reliability by minimizing maintenance cycles. High temperatures are a primary accelerator of LED degradation. The robust thermal management of this module, designed by a leading manufacturer like AUO, ensures that heat generated by the backlight itself is efficiently dissipated. This prevents localized temperature spikes that would otherwise shorten the LEDs' lifespan, especially when operating at the high end of the ambient temperature range. This synergy ensures the 50,000-hour backlight lifetime is a realistic field metric, not just a laboratory ideal, providing system designers with a predictable and dependable component lifespan.
Industry Insights & Strategic Advantage
Enabling the Next Wave of Industrial Connectivity and Automation
The trend towards the Industrial Internet of Things (IIoT) and decentralized control systems places greater demand on displays that can function reliably outside of traditional, climate-controlled control rooms. The G065VN01 V2 directly addresses this shift. As intelligent sensors and controls are deployed deeper into the manufacturing process, on mobile platforms like AGVs, and in outdoor infrastructure, the need for a resilient HMI becomes paramount. This display provides the durability required to bring complex data visualization and control to the edge of the operational network. Its proven reliability and clarity support the implementation of more sophisticated on-machine diagnostics and operator guidance, contributing to the overall efficiency and uptime goals of modern smart factories and automated systems.
To evaluate the G065VN01 V2 for your next demanding HMI or instrumentation project, or to discuss specific integration requirements, please contact our team of technical specialists for an in-depth consultation.
