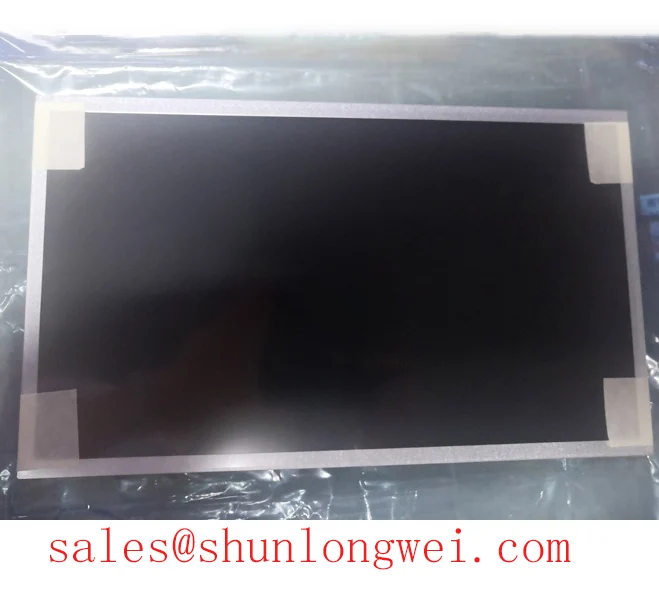

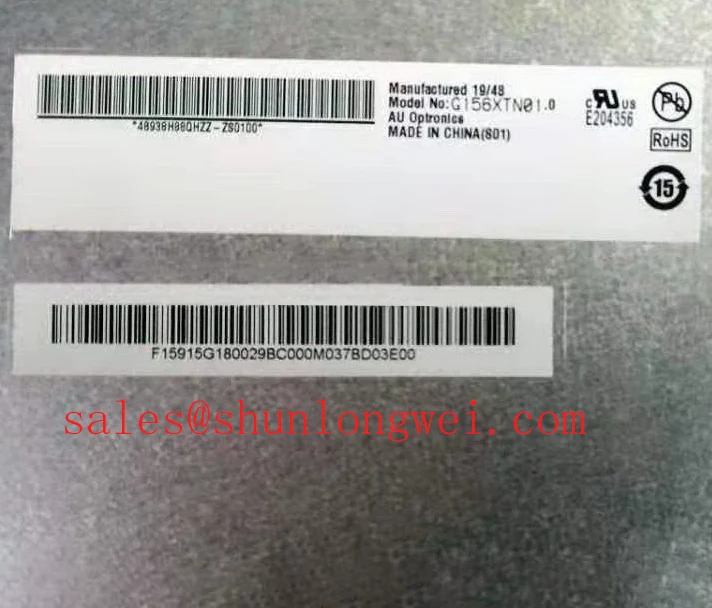

AUO G156XTN01.0 | Reliable 15.6" WXGA Display for Commercial and Light Industrial HMIs
The AUO G156XTN01.0 is a 15.6-inch TFT-LCD panel engineered for reliability and cost-effectiveness in a wide range of indoor applications. It delivers a balanced combination of performance, a standard WXGA resolution, and a proven interface, making it an ideal workhorse for system integrators and designers who require consistent visual output without the cost overhead of specialized, high-performance displays.
Key Performance Specifications
For engineers requiring a quick technical overview, the following table outlines the core parameters of the G156XTN01.0. For a comprehensive list of specifications, you can download the official datasheet.
| Parameter | Specification |
|---|---|
| Manufacturer | AUO |
| Screen Size | 15.6 inches |
| Resolution | 1366(RGB)×768, WXGA |
| Display Technology | a-Si TFT-LCD, TN |
| Brightness | 220 cd/m² (Typ.) |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) |
| Contrast Ratio | 500:1 (Typ.) |
| Interface | LVDS (1 ch, 6-bit) |
| Backlight | WLED, 30K hours (Typ.) |
| Operating Temperature | 0 ~ 50 °C |
Application Scenarios and Engineering Value
The AUO G156XTN01.0 is not designed to be a one-size-fits-all solution. Its value is demonstrated in applications where its specific feature set solves key engineering and commercial challenges.
- Point-of-Sale (POS) Systems: The 15.6-inch screen and WXGA resolution provide ample space for displaying transactional data and graphical user interfaces clearly. The standard brightness is perfectly suited for indoor retail environments.
- Embedded HMIs for Machinery Control: For control panels on manufacturing equipment located in stable, indoor factory settings, the G156XTN01.0 offers a durable and cost-efficient visual interface. Its proven LVDS Interface ensures compatibility with a wide array of industrial motherboards and single-board computers.
- Information Kiosks and Vending Machines: In controlled environments like lobbies, transportation hubs, and malls, this display provides a reliable and clear screen for user interaction, balancing performance with total cost of ownership.
- Medical Diagnostic Equipment (Non-critical): For devices used in laboratory or examination room settings, the consistent performance and long-life WLED backlight of the G156XTN01.0 ensure dependable operation over the product's lifecycle.
Technical Deep Dive: The Engineering Behind the Choice
Two core features of the G156XTN01.0 highlight its suitability for targeted applications: its interface and backlight technology.
1. The LVDS Interface Advantage: While newer interfaces like eDP have emerged, the LVDS (Low-Voltage Differential Signaling) interface remains a cornerstone of industrial and commercial design for good reason. It offers excellent noise immunity, crucial for electrically noisy factory environments. Furthermore, its long-standing presence ensures a mature ecosystem of controller boards, cables, and driver support, simplifying integration and reducing development time for new projects or legacy system upgrades.
2. WLED Backlight Efficiency and Longevity: The move from legacy CCFL backlights to WLED technology brings significant engineering benefits. The WLED system in this panel offers a typical lifespan of 30,000 hours, contributing to a lower total cost of ownership by minimizing maintenance and replacement needs. This solid-state lighting technology also consumes less power, reducing thermal load and simplifying the overall thermal management of the end product. For a deeper understanding, explore our guide on the energy efficiency of LED backlights.
Selection and Integration Guidance
The AUO G156XTN01.0 is an excellent choice when cost, reliability, and ease of integration are primary design drivers for an indoor application. As a TN (Twisted Nematic) panel, its viewing angles are more constrained compared to IPS technology. This makes it ideal for applications where the user is positioned directly in front of the screen, such as a dedicated operator terminal or POS system. For applications requiring wide, multi-viewer angles or direct sunlight readability, you may want to consider alternative industrial LCD displays with IPS technology or higher brightness ratings.
Frequently Asked Questions (FAQ)
Is the G156XTN01.0 suitable for outdoor use?
No. With a brightness of 220 cd/m² and a standard operating temperature range of 0 to 50°C, this panel is engineered specifically for indoor or controlled-environment applications. It is not a sunlight-readable or wide-temperature display.
What is the benefit of a 6-bit LVDS interface?
A 6-bit LVDS interface can display 262,144 colors. While 8-bit panels offer a wider color gamut, 6-bit color depth is entirely sufficient for the vast majority of industrial control, data display, and HMI applications. This choice helps optimize the panel for cost-effectiveness without compromising functionality for its intended use cases. Learn more in The Ultimate Guide to TFT-LCD.
For detailed pricing, availability, or to discuss whether the G156XTN01.0 is the right fit for your project, please do not hesitate to contact our technical team.
