SanRex DF60AA160 | Robust 1600V Three-Phase Rectifier for Industrial Power Systems

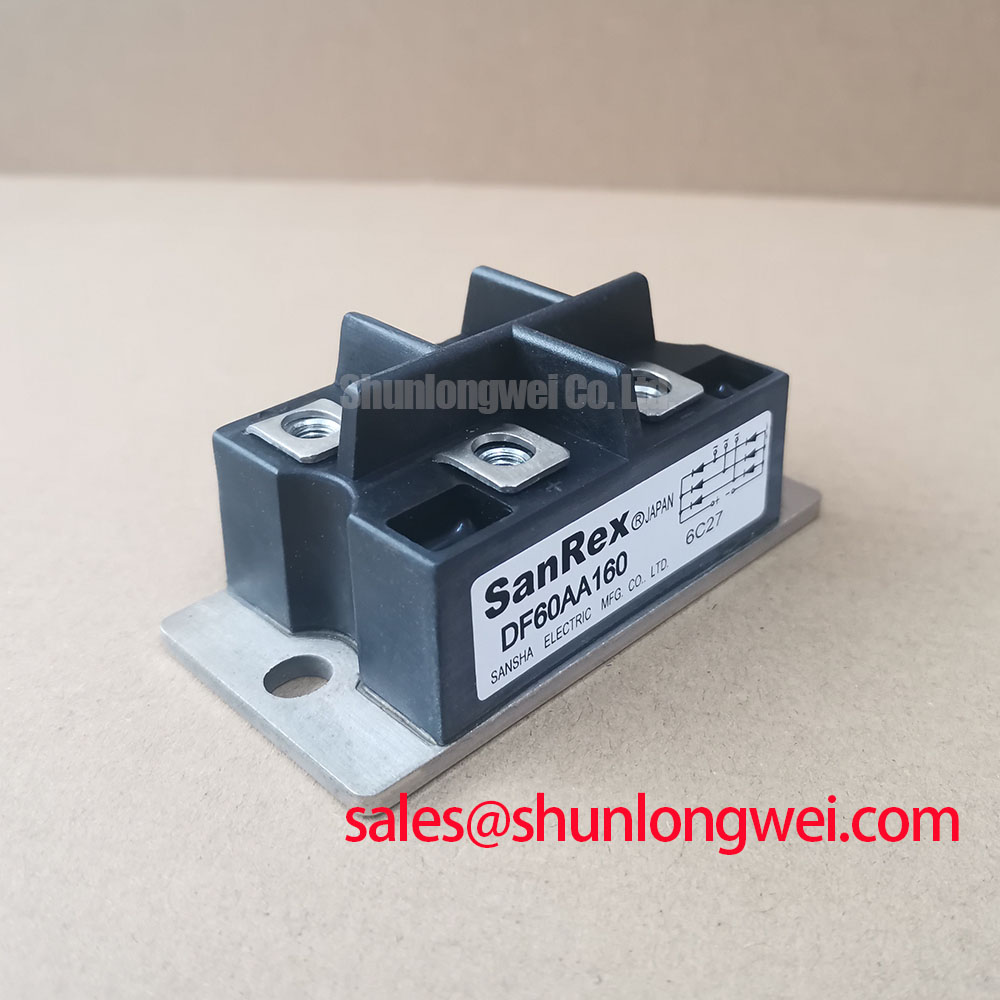

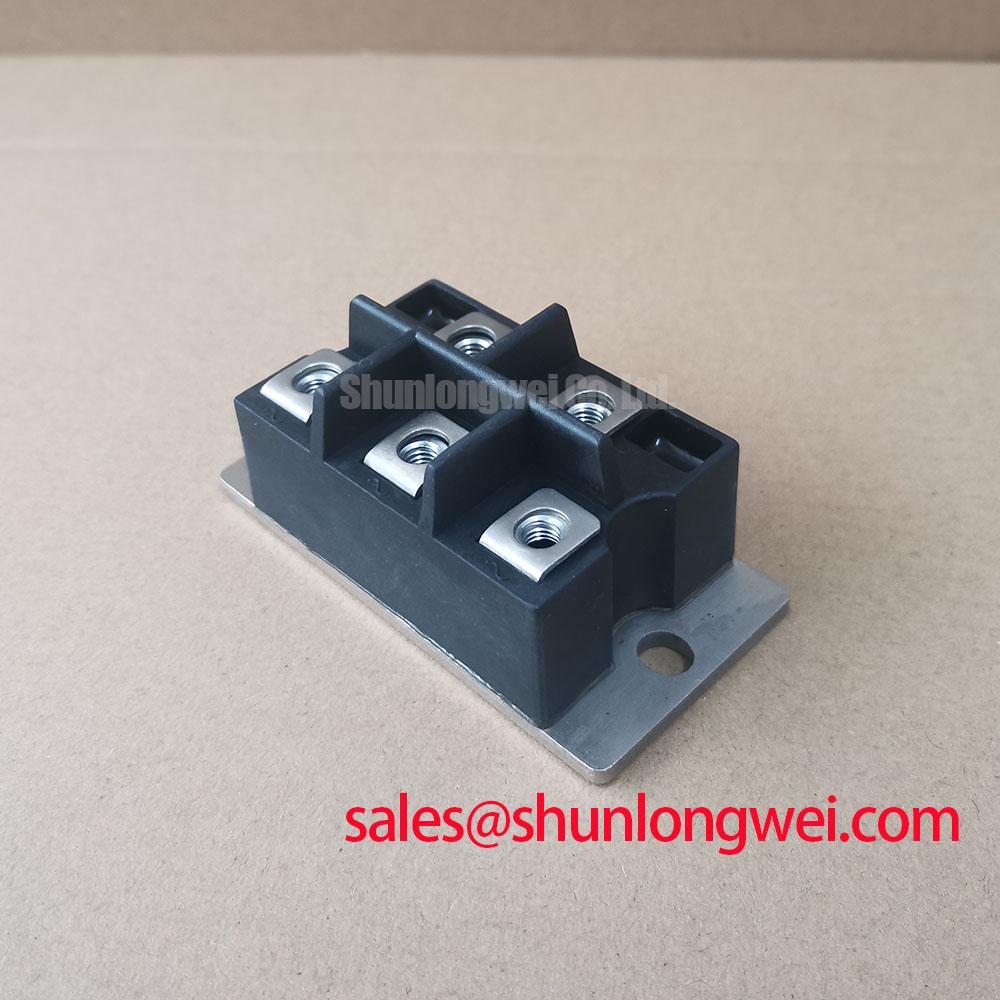

The SanRex DF60AA160 is not merely a component; it is the bedrock of reliable power conversion for demanding industrial environments. As a three-phase diode bridge module, its primary function is to provide the initial, critical AC-to-DC rectification that powers the entire downstream system. With a formidable 1600V reverse voltage rating and a 60A average forward current capacity, this module is engineered to deliver a stable, high-integrity DC bus from three-phase AC lines, ensuring the robust performance of inverters, power supplies, and motor drives.
Application Focus: Where the DF60AA160 Excels
The design philosophy behind the DF60AA160 centers on resilience and efficiency. This makes it a first-choice component for engineers designing systems where reliability is non-negotiable.
- Variable Frequency Drives (VFDs): In VFDs, the DF60AA160 creates the stable DC bus that the inverter stage depends on. Its high 1600V rating provides a crucial safety margin against the voltage transients and line swells common on 380V and 480V industrial grids, directly preventing catastrophic failures in the IGBT-based output stage.
- Industrial Power Supplies & UPS Systems: For power supplies and Uninterruptible Power Supply (UPS) systems, this module offers a rugged and dependable front-end. Its efficient conversion and robust thermal characteristics contribute to a lower overall system operating temperature and enhanced service life.
- DC Motor Drives and Battery Chargers: The module provides a simple, powerful, and cost-effective solution for creating the high-current DC required for DC motor controls and industrial-scale battery charging systems.
Key Technical Specifications at a Glance
For engineers, key data points are essential for initial design evaluation. The following table summarizes the critical performance parameters of the SanRex DF60AA160.
| Parameter | Value |
|---|---|
| Repetitive Peak Reverse Voltage (VRRM) | 1600 V |
| Average Forward Current (IF(AV)) | 60 A |
| Surge Forward Current (IFSM) | 650 A (50Hz, 1 cycle) |
| Operating Junction Temperature (Tj) | -40 to +150 °C |
| Thermal Resistance (Rth(j-c)) | 0.42 °C/W (per device) |
| Isolation Voltage (VISO) | 2500 V (AC, 1 minute) |
For a comprehensive list of all electrical and thermal characteristics, you can download the official DF60AA160 datasheet.
Technical Deep Dive: The Engineering Advantages
Beyond the raw specifications, two features of the DF60AA160 provide significant practical advantages in system design and manufacturing.
Engineered for High Line Voltage and Transient Immunity
The 1600V VRRM is a deliberate engineering choice for superior reliability. While a 1200V module may suffice for a 480V AC system on paper (peak voltage ≈ 678V), it leaves little margin for the real-world conditions of industrial plants. The DF60AA160's 1600V rating provides substantial headroom to absorb voltage spikes from switching large inductive loads or other grid disturbances, preventing avalanche breakdown and ensuring long-term operational stability.
Simplified Assembly and Superior Thermal Management

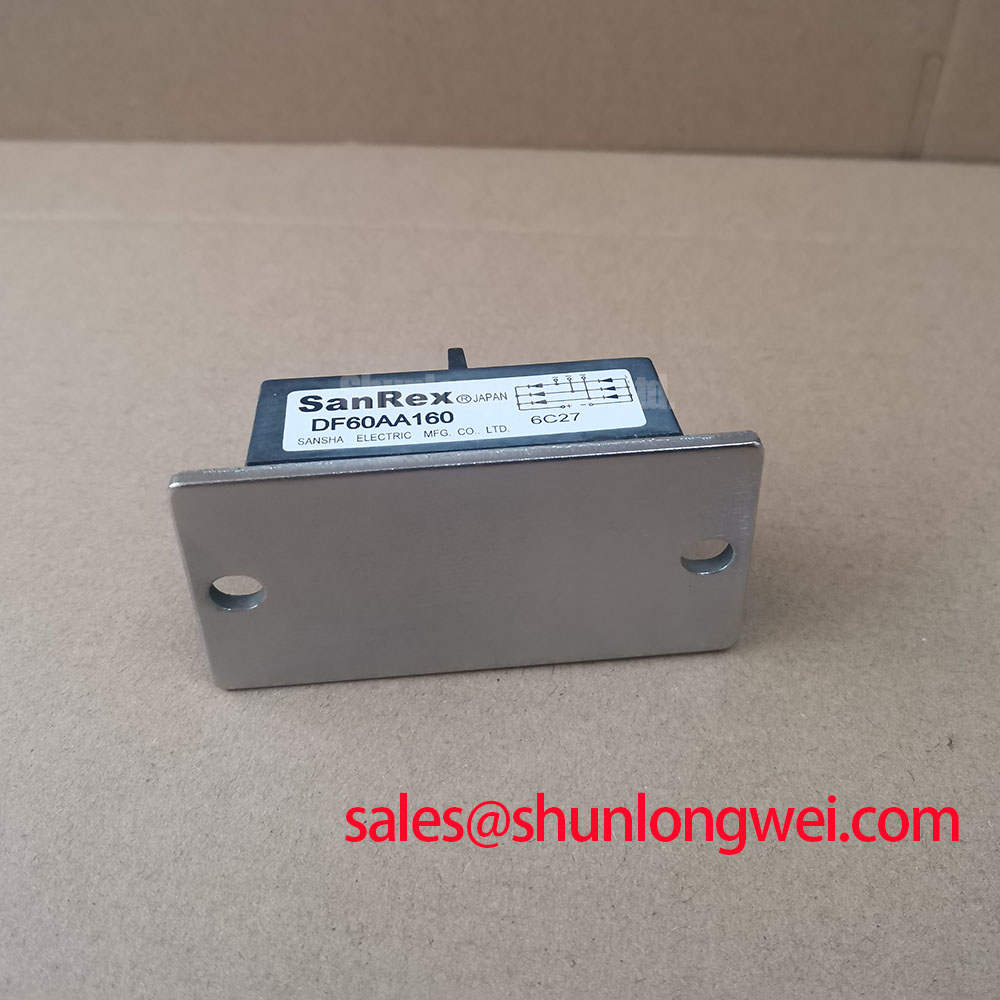

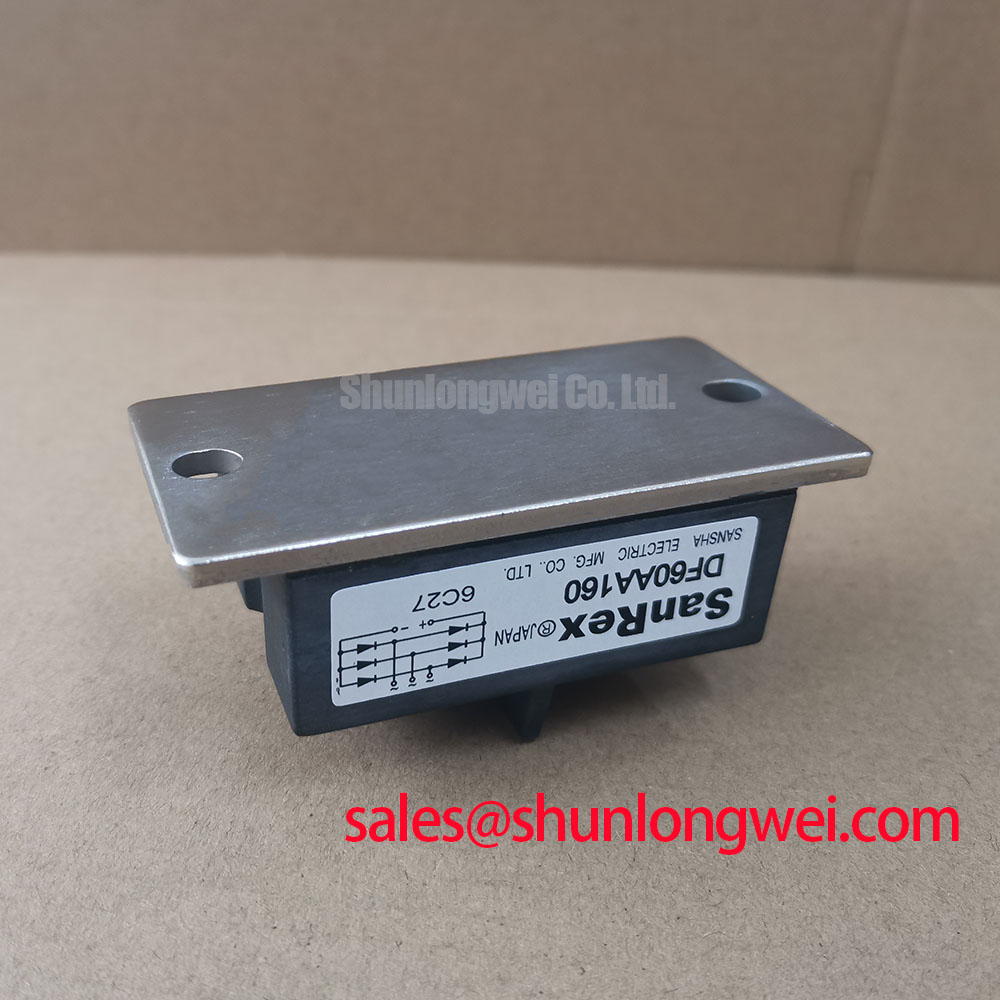

This module features an electrically isolated mounting base. This seemingly simple feature has profound design implications. It eliminates the need for separate, often fragile, thermal isolation pads (e.g., mica or silicone). This direct metal-to-heatsink mounting simplifies the assembly process, reduces part count, and, most importantly, creates a more efficient and reliable thermal path. Improved heat dissipation is directly linked to enhanced reliability and understanding why thermal resistance matters is key to unlocking the module's full potential.
Frequently Asked Questions (FAQ)
What is the primary role of the DF60AA160 in an inverter system?
Its role is to function as the front-end rectifier. It takes the incoming three-phase AC power from the grid and converts it into a smooth DC voltage. This DC voltage, known as the DC bus, is the power source for the subsequent IGBT inverter stage, which then creates the variable frequency AC output to drive a motor.
Can I use this module for a single-phase application?
Yes, it is possible to use two of the six diodes in the bridge for a full-wave single-phase rectifier. However, the DF60AA160 is optimized for three-phase systems, where all internal diodes are utilized for balanced current loading and optimal thermal performance. For dedicated single-phase designs, a specific single-phase module may be more cost-effective.
If your design requires a robust, high-voltage rectification stage with built-in reliability, the SanRex DF60AA160 is an exemplary choice. For specific application advice or volume pricing, please contact our technical team.
