DMF5010NB-FW-BC: A High-Clarity Monochrome Graphic LCD Module for Industrial Instrumentation
Engineered for Precision Readability and Longevity in Demanding HMI Applications

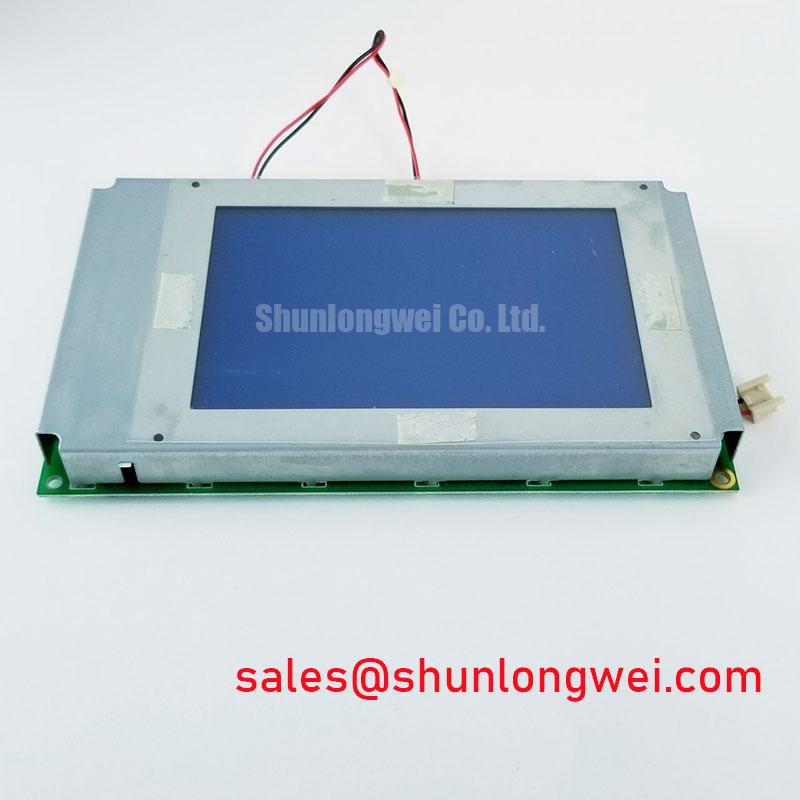

The Optrex DMF5010NB-FW-BC is a 5.2-inch STN monochrome graphic LCD module designed for robust performance in industrial control panels, medical devices, and test and measurement equipment. It delivers exceptional visual clarity through a combination of high brightness and a dedicated CCFL backlight, ensuring data is easily legible under a variety of indoor and ambient light conditions. This display's design prioritizes durability and stable, long-term operation for integration into systems where reliability is a primary engineering concern.
Best Fit: For industrial HMI systems requiring a highly readable, monochrome graphic display with proven CCFL backlight technology for sustained performance.
Application Scenarios & Value
Delivering Unwavering Clarity in Process Control and Monitoring Systems
In environments like factory floors or laboratory settings, operators require at-a-glance readability of critical process parameters, alarms, and system status. The DMF5010NB-FW-BC addresses this challenge directly. Its high minimum brightness of 400 cd/m² ensures that the 240x64 pixel display remains sharp and discernible, even in brightly lit control rooms. This is not simply about illumination; it is about reducing operator error and improving response times. The monochrome display provides a high-contrast, distraction-free interface, ideal for presenting numerical data, simple graphics, and status indicators in applications such as PLC interfaces, temperature controllers, and power supply monitoring units. The use of a Cold Cathode Fluorescent Lamp (CCFL) backlight provides a stable and long-lasting illumination source, a key consideration for equipment designed for a long service life.
For systems requiring a different form factor or resolution while maintaining robust industrial characteristics, the KCG057QV1DB-G000 provides a 320x240 resolution in a 5.7-inch format.
Key Parameter Overview
Defining Performance for Industrial Human-Machine Interfaces
The specifications of the DMF5010NB-FW-BC are tailored for integration into demanding industrial environments where performance and reliability are paramount.
| Display Characteristics | |
|---|---|
| Panel Size | 5.2 inch |
| Resolution | 240 x 64 pixels |
| Display Technology | STN-LCD, Monochrome |
| Brightness | 400 cd/m² (Min.) |
| Contrast Ratio | 7:1 (Typ.) |
| Electrical & Physical Specifications | |
| Supply Voltage (Logic) | 5.0V (Typ.) |
| Backlight System | CCFL with an average life of 10,000 to 15,000 hours |
| Outline Dimensions | 200.0(W) x 66.0(H) x 23.0 max (D) mm |
| Operating Temperature | 0°C to +50°C |
| Interface | 8-bit Parallel |
Download the DMF5010NB-FW-BC datasheet for detailed specifications and performance curves.
Industry Insights & Strategic Advantage
System-Level Benefits of Proven Display Technology
While the display industry evolves rapidly, the selection of a component like the Optrex DMF5010NB-FW-BC represents a strategic decision based on proven reliability. The use of STN (Super-twisted Nematic) technology and a CCFL backlight is a testament to a design philosophy prioritizing stability and fitness-for-purpose over bleeding-edge features. For many industrial applications, particularly those with long design and certification cycles, a display's track record is a critical asset. What is the benefit of a long-lifespan backlight? It directly translates to lower total cost of ownership by minimizing maintenance cycles and equipment downtime. The module's standard parallel interface simplifies integration with a wide range of common microcontrollers, reducing development time for engineers working on new designs or upgrading legacy systems. In a landscape focused on sustainability and equipment longevity, employing a display built for durability aligns with the core principles of industrial design.
Frequently Asked Questions (FAQ)
What is the primary advantage of the 400 cd/m² brightness level?
A minimum brightness of 400 cd/m² ensures excellent readability in typical indoor industrial and commercial lighting conditions. This high brightness creates a strong contrast, making the monochrome text and graphics sharp and easy to read, which is crucial for reducing operator fatigue and potential errors when monitoring critical data.
How does the specified operating temperature range of 0°C to 50°C impact its ideal applications?
This temperature range makes the DMF5010NB-FW-BC perfectly suited for controlled indoor environments such as factory control rooms, medical laboratories, and electronic test facilities. It is not intended for outdoor use or in environments with extreme temperature fluctuations, but it provides reliable performance across the full spectrum of standard industrial and commercial operating conditions.
