Content last revised on June 19, 2025

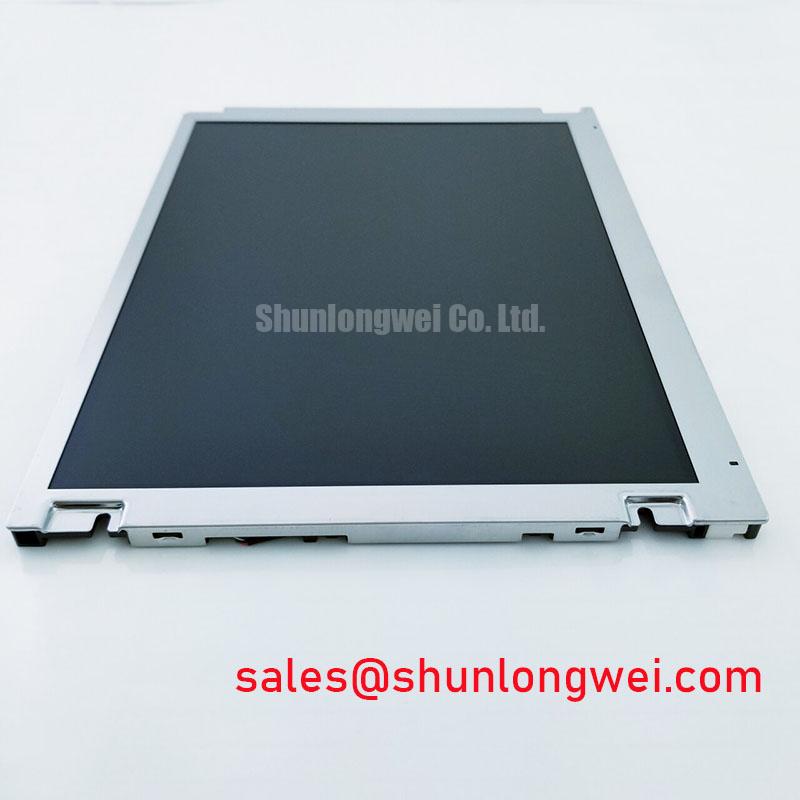

Panel Brand AUO Panel
Model G104SN02 V3
Panel Size 10.4"
Panel Type a-Si TFT-LCD, LCM
Resolution 800(RGB)×600, SVGA, 96PPI
Pixel Format RGB Vertical Stripe
Display Area 211.2(W)×158.4(H) mm
Bezel Opening 214.8(W)×162.7(H) mm
Outline Size 243(W)×184(H) ×8.5(D) mm
Surface Antiglare, Hard coating (3H)
Brightness 400 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 80/80/60/80 (Typ.)(CR≥10) Left / Right / Up / Down
Display Mode TN, Normally White, Transmissive
Response Time 10/20 (Typ.)(Tr/Td)
Display Colors 262K/16.2M 45% NTSC
Lamp Type 7S2P WLED , 50K hours , With LED Driver
Frequency 60Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC Circuit
Touch Screen Without
Panel Weight 370g (Typ.)
Application Industrial
Signal Interface LVDS (1 ch, 6/8-bit) , 20 pins Connector
Input Voltage 3.3V (Typ.)
Environment Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C
