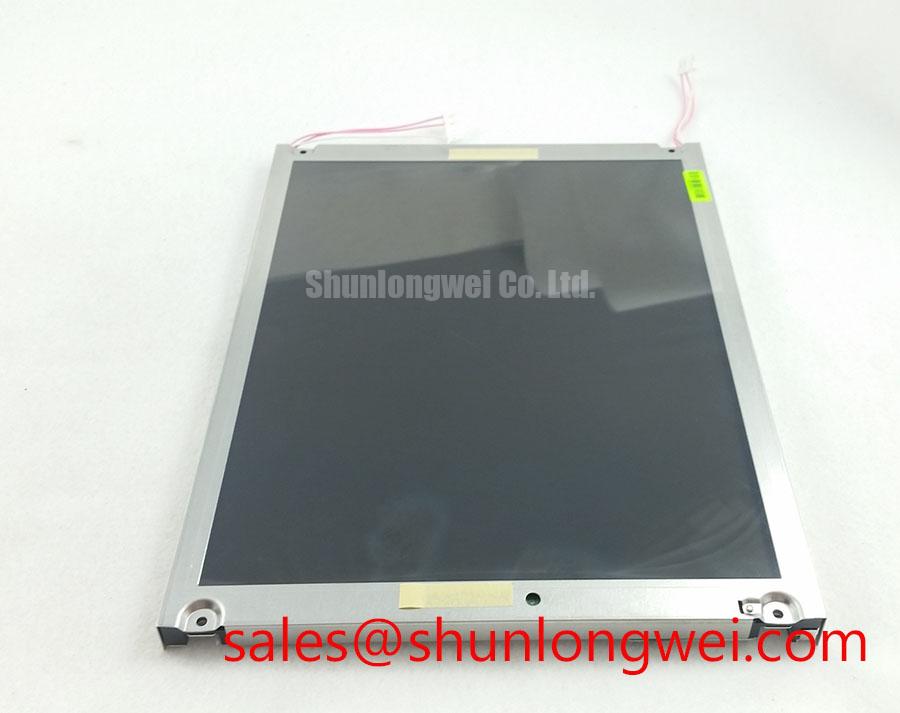

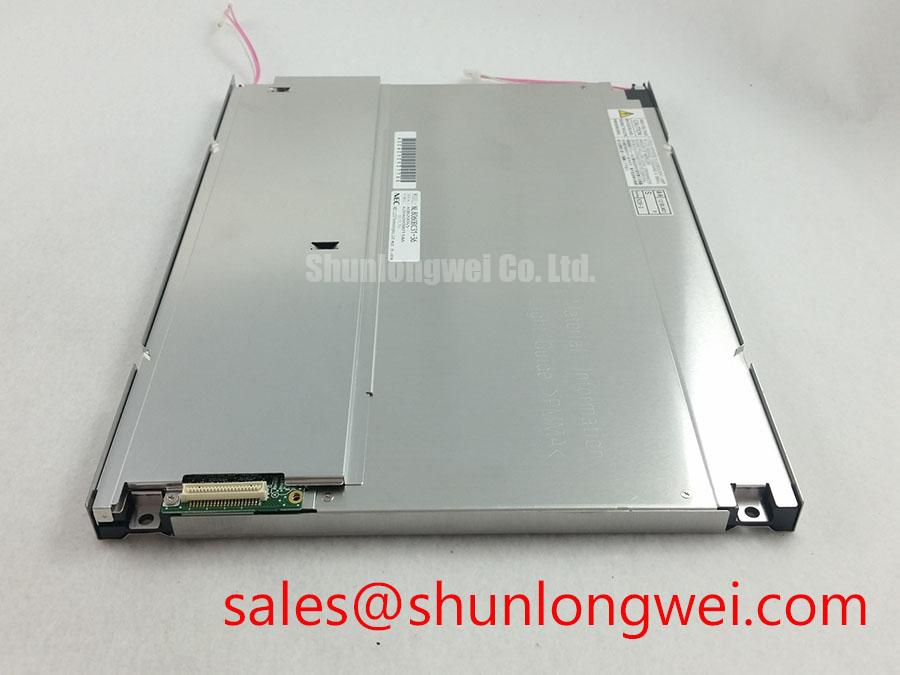

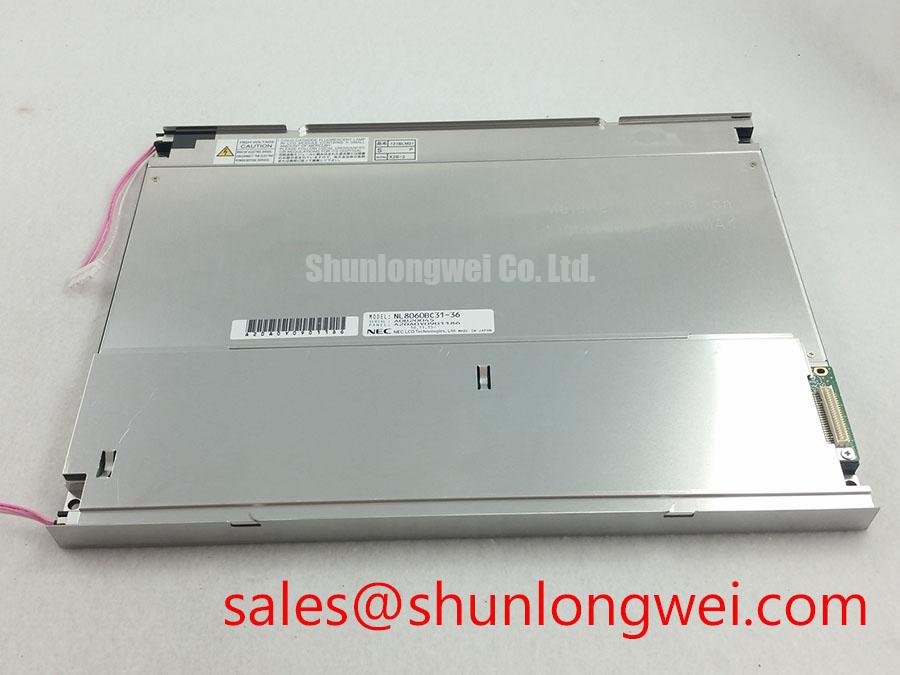

NL8060BC31-36: Engineering Analysis of a 12.1" SVGA Industrial TFT-LCD
The NEC NL8060BC31-36 is a 12.1-inch a-Si TFT-LCD module engineered for industrial applications where operational reliability in thermally dynamic environments is a primary design criterion. This rugged SVGA display delivers consistent optical performance, making it a durable solution for demanding Human Machine Interface (HMI) systems. With key specifications of 800x600 SVGA | 1100 cd/m² Brightness | -10 to +70°C Operating Temperature, its design priorities are clear: exceptional thermal resilience and unambiguous data legibility. By ensuring stable function across a wide thermal range, it directly addresses the engineering challenge of deploying HMIs in environments without climate control. For industrial control systems requiring a robust 12.1-inch SVGA display, the NL8060BC31-36's thermal range makes it an ideal engineering choice.
Application Scenarios & Value
Delivering Operational Clarity in Demanding Industrial Environments
The NL8060BC31-36 is engineered for environments where temperature fluctuation and ambient light are significant operational variables. Its primary value proposition lies in its ability to deliver sustained performance in settings that would compromise consumer-grade displays. What is the key benefit of the wide temperature range? It ensures operational reliability in non-climate-controlled industrial settings.
Consider a process control HMI located on a factory floor, subject to cold starts in the morning and radiant heat from machinery during peak operation. The NL8060BC31-36's wide operating temperature range of -10°C to +70°C ensures that the display remains fully functional without requiring auxiliary heating or cooling systems. This inherent robustness prevents common issues like liquid crystal freezing or overheating, which can lead to display failure and costly downtime. Combined with its very high brightness of 1100 cd/m² and a 600:1 contrast ratio, operators can clearly read critical data, alarms, and schematics, enhancing both safety and productivity. This makes it an excellent fit for applications such as:
- Factory Automation and Process Control Panels
- Outdoor Kiosks and Ticketing Machines (within a NEMA enclosure)
- Vehicle-Mounted Displays in Logistics and Construction
- Test and Measurement Equipment
While the NL8060BC31-36 is optimized for SVGA applications, systems requiring a different form factor or resolution might consider the compact 6.5-inch VGA NL6448BC33-97D or the higher-resolution 15-inch XGA NL10276AC30-42D.
Key Parameter Overview
Decoding Key Specifications for System Integration
The NL8060BC31-36's specifications reflect a design focused on performance and straightforward integration into industrial systems. The use of a standard CMOS interface simplifies the connection to a wide range of single-board computers and embedded controllers. How does the LVDS interface simplify design? It reduces electromagnetic interference and allows for longer cable runs.
| Parameter | Specification |
|---|---|
| Display Technology | a-Si TFT-LCD, Normally White, Transmissive |
| Screen Size | 12.1 inches (31 cm) |
| Resolution | 800(RGB)×600 [SVGA] |
| Brightness | 1100 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) |
| Viewing Angles (CR≥10) | 70°/70°/45°/55° (L/R/U/D) |
| Signal Interface | CMOS (1 ch, 6-bit), 41-pin connector |
| Operating Temperature | -10°C to +70°C |
| Storage Temperature | -20°C to +80°C |
| Outline Dimensions | 280(W) × 209(H) × 17(D) mm |
Download the NL8060BC31-36 datasheet for detailed specifications and performance curves.
Technical Deep Dive
Analyzing the Impact of Wide Temperature Range and Optical Performance
The true engineering value of the NL8060BC31-36 emerges from the synergy between its thermal resilience and its optical design. At the component level, temperature extremes can degrade the performance of a TFT-LCD panel by affecting the viscosity of the liquid crystals, which can slow response times and reduce contrast. This display is specifically constructed to mitigate these effects, ensuring that response times and color fidelity remain stable across its entire operating range. This stability is critical in HMI applications where a lagging display could lead to misinterpretation of real-time data.
Furthermore, its high contrast ratio and brightness are not just standalone features; they are essential for overcoming challenging lighting. The contrast ratio can be visualized as the optical 'dynamic range' of the display. Think of it as the difference between the deepest black and the brightest white the screen can produce. A high ratio of 600:1 ensures that text, lines, and color-coded statuses on a control interface remain sharp and distinct, rather than appearing "washed out," even under the glare of factory overhead lighting. This robust optical performance, maintained across a wide temperature spectrum, is what defines the NL8060BC31-36 as a true industrial-grade component.
FAQ
How does the -10°C to +70°C operating temperature range of the NL8060BC31-36 reduce total cost of ownership in industrial applications?
This wide range significantly reduces the need for external thermal management systems like heaters or fans within an HMI enclosure. This not only lowers the initial bill of materials (BOM) cost but also eliminates potential points of failure, decreases power consumption, and simplifies the mechanical design, leading to a lower total cost of ownership over the product's lifecycle.
What are the key considerations when integrating the NL8060BC31-36's CMOS interface into a system?
The CMOS interface is a parallel digital interface. Engineers should ensure that the host controller's logic levels are compatible with the display's requirements (typically 3.3V or 5V). Additionally, signal integrity is key; keeping cable lengths short and properly shielded is important to minimize susceptibility to the electromagnetic interference common in industrial settings. For more information on display interfaces, see this guide to the LVDS Interface, a common alternative.
Is the 1100 cd/m² brightness sufficient for environments with high ambient lighting?
Yes, a brightness of 1100 cd/m² (nits) is considered very high and is well-suited for most indoor industrial environments and even some outdoor, shaded applications. It provides the luminance needed to maintain screen clarity against strong overhead lighting, ensuring that the display content remains easily readable. For detailed insights on display selection, explore the differences between industrial and consumer displays.
What is the significance of the 600:1 contrast ratio for a process control HMI?
A high contrast ratio is critical for immediate and accurate data interpretation. In a process control interface, it ensures that subtle graphical elements, different shades of color used for status indicators (e.g., green for normal, yellow for caution), and small text are clearly distinguishable from the background. This reduces operator eye strain and minimizes the risk of misreading critical information.
The strategic selection of components like the NL8060BC31-36 is fundamental to building resilient and effective automation systems. By prioritizing core performance metrics like thermal stability and optical clarity, designers can ensure their equipment meets the rigorous demands of modern industrial operations.
