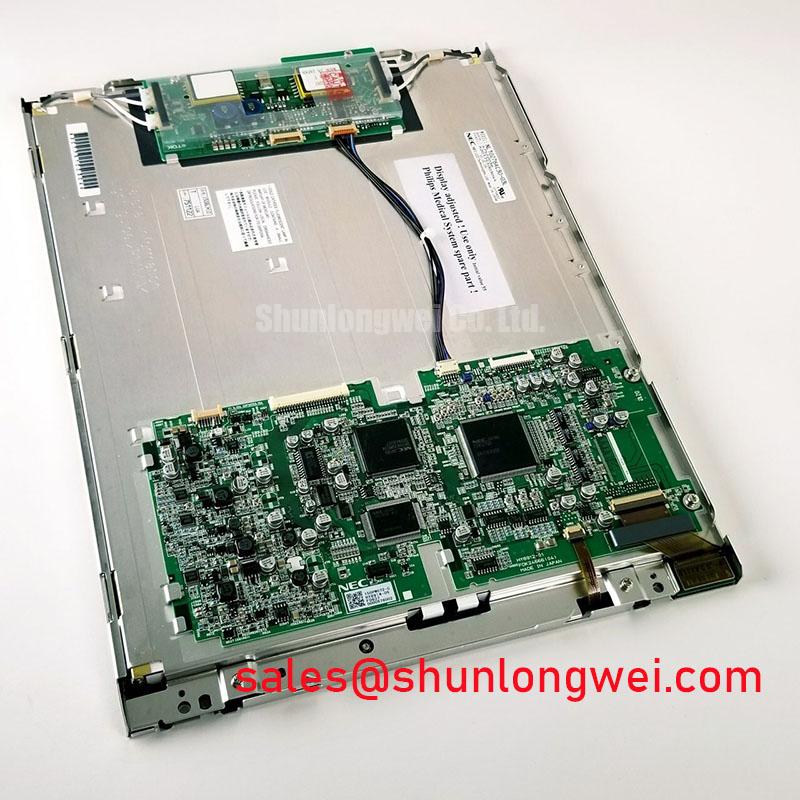

NEC NL10276AC30-03L | Proven SFT Technology for Uncompromised Visuals
The NEC NL10276AC30-03L is a 15-inch XGA TFT-LCD engineered for applications where visual consistency and long-term reliability are paramount. While many displays suffice for basic tasks, the NL10276AC30-03L distinguishes itself with NEC's Super-Fine TFT (SFT) technology, delivering exceptional color fidelity and ultra-wide viewing angles. This makes it a trusted solution for industrial controls, medical diagnostic equipment, and legacy system upgrades where performance cannot be compromised.
Technical Deep Dive: Why the NL10276AC30-03L Excels in Demanding Environments
Two core pillars define the value of the NEC NL10276AC30-03L: its optical performance and its rugged construction. These are not just specifications on a sheet; they translate directly into operational advantages.
Super-Fine TFT (SFT) for Critical Viewing Angles
- Technology Principle: SFT is NEC's advanced version of In-Plane Switching (IPS) technology. Unlike standard TN (Twisted Nematic) panels that exhibit significant color and contrast shifts when viewed from an angle, SFT technology maintains a stable, accurate image across a wide viewing cone (typically 170°/170°).
- Application Value: In a busy control room or at a medical station, personnel are constantly moving. The ability to read data accurately from any position prevents errors and improves efficiency. For designers of medical imaging devices or high-end instrumentation, this guarantees that the visual data presented to the user is unequivocal and true-to-source.
Robust Industrial-Grade Construction
- Technology Principle: The NL10276AC30-03L is designed with a wide operating temperature range of -10°C to +70°C. This is achieved through the careful selection of liquid crystal fluid, polarizers, and electronic components that can withstand thermal stress without degradation in performance or lifespan.
- Application Value: Consumer-grade displays often fail in non-climate-controlled environments like factory floors, outdoor kiosks, or vehicle cabins. The robust thermal design of this display ensures consistent operation, reduces the risk of system downtime, and simplifies system-level thermal management.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Screen Size | 15.0 inch |
| Resolution | 1024(RGB)×768, XGA |
| Technology | SFT (Super-Fine TFT), Normally Black |
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Interface | LVDS (1 ch, 6/8-bit) |
| Operating Temperature | -10 ~ 70 °C |
| Datasheet | NL10276AC30-03L Datasheet |
Application-Specific Value Proposition
The features of the NEC NL10276AC30-03L provide tangible benefits across several key sectors:
- Medical Imaging & Diagnostics: The SFT panel's superior grayscale reproduction and color stability are crucial for accurately interpreting X-rays, ultrasounds, and other diagnostic scans, aiding clinicians in making confident assessments.
- Industrial HMI (Human-Machine Interface): On a bustling factory floor, operators need to glance at control panels from various angles. The wide viewing cone of the NL10276AC30-03L prevents misreading of critical process parameters, enhancing operational safety.
- Test and Measurement Equipment: Provides engineers and technicians with a clear, stable, and artifact-free display for analyzing waveforms and complex data sets, where precision is non-negotiable.
- Legacy System Retrofits: Serves as a perfect form, fit, and function replacement for aging 15" XGA CCFL panels in existing systems, allowing for cost-effective life extension without a complete and expensive redesign of the HMI assembly.
Selection Guidance: When to Choose the NL10276AC30-03L
While many new designs utilize LED-backlit displays, the CCFL-backlit NL10276AC30-03L remains a strategic choice. For legacy systems originally designed with a CCFL panel and a compatible inverter, this model offers a seamless, drop-in replacement that avoids the need to re-engineer the system's power and control boards. It is the most direct path to restoring or upgrading equipment with minimal validation and development overhead. For new designs where power consumption and backlight longevity are the absolute highest priorities, you may want to explore more industrial LCDs with LED backlighting.
If you are unsure about compatibility or need help selecting the right display for your project, do not hesitate to contact our technical specialists for a quote.
