Optical Luminance Degradation Curve & CCFL-to-LED Modernization Retrofit Pathways
I compare screen luminance at repeatable brightness settings before deciding whether a dim LTA104A261F needs backlight work or a supply investigation. A useful maintenance record includes the displayed test image, ambient conditions, measurement position, warm-up state, and brightness command. Measurements taken under different conditions can exaggerate apparent deterioration. Uneven illumination also needs separate attention: a darker edge, broad central shadow, and uniformly dim image call for different checks rather than an immediate backlight replacement decision.
Design Consideration: Separate illumination behavior from image generation by displaying uniform light and dark fields while monitoring the existing backlight controller. Compare its supply, enable signal, and brightness command with the equipment service documentation. If illumination changes while the image remains stable, investigate the lighting path and its connections. If brightness and image stability change together, examine shared power distribution before assigning the fault to the display module.
A CCFL-to-LED modernization project should begin with the installed assembly’s documented backlight construction. Where a documented CCFL assembly is being converted, the replacement light source, constant-current driver, mechanical retention, illumination distribution, and thermal path require coordinated evaluation. Lamp ignition voltage does not define an LED driver requirement. Acoustic noise also warrants investigation at the controller and mounting points; a change in lighting technology alone does not establish that the assembled display will operate quietly.

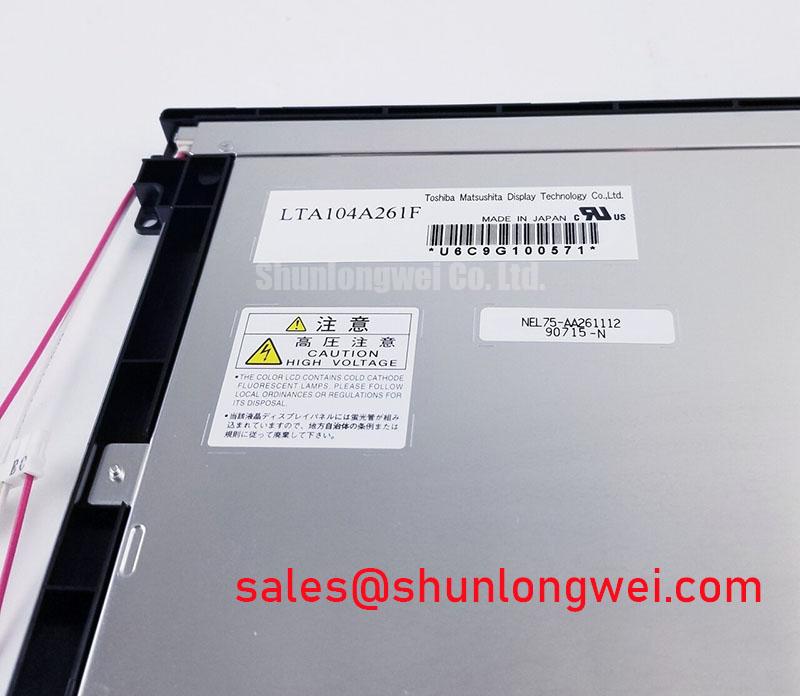

For the Toshiba LTA104A261F, retain a baseline photograph and luminance map before changing the lighting assembly. Compare the modified unit at the same measurement positions, including edges and corners. Evaluate brightness adjustment across the host controller’s usable range, watching for low-level instability and uneven illumination. Backlight lumen maintenance, driver service life, and assembly reliability describe different outcomes; a retrofit assessment should keep those measures separate.
Engineering Recommendation: Review power coordination whenever the lighting controller changes. The NL6448BC33-71 provides a separate display-module reference when comparing panel and backlight integration requirements; it is not a standalone driver or an established substitute. For the actual assembly, verify that panel power, image signals, and backlight enable follow the applicable sequence during startup, shutdown, and interrupted supply recovery. Record startup white screens and shutdown residual images against those transitions.
Mitigating Gray-to-Gray (GTG) Response Time Escalation during Cold-Start Machine Power-Up
Compare moving text and grayscale transitions immediately after a cold start with the same patterns after the assembly reaches a stable temperature. Slower liquid crystal response at lower temperatures can make transitions trail even when the source image and communication link remain correct. Use identical content and brightness settings for the comparison, and record the panel temperature alongside the observation. A moving test pattern is more informative here than a static desktop.
Design Consideration: Conduct cold-start evaluation within the panel’s documented operating limits. Distinguish liquid crystal response changes from delayed host rendering, backlight startup behavior, and supply instability. Where the host permits it, compare a locally generated display pattern with normal application content. That comparison helps identify whether the observed delay originates in the display path or upstream processing without turning a single symptom into a diagnosis.
Condensation control begins at the enclosure boundary. Inspect gasket seating, cable entries, and evidence of moisture migration around the bezel before changing temperature-control hardware. A cold assembly moved into warmer humid air can collect moisture even while ambient temperature appears acceptable. Allow conditions to stabilize before energizing exposed connections, and base enclosure heating or ventilation decisions on the complete equipment assessment. Additional heaters require their own control and thermal validation.
Thermal cycling also makes mechanical restraint relevant. Check that the bezel, mounting supports, and gasket do not impose concentrated loads as the assembly expands and contracts. Avoid treating sealant around the panel perimeter as an accessible maintenance surface; internal sealing chemistry is not established by the module designation. External enclosure seals should receive attention through the equipment’s approved service procedure.
For an AGV or forklift telematics display assessment, evaluate cold-start legibility alongside vibration restraint, enclosure sealing, and viewing position. This is a compatibility exercise rather than an application qualification. The LQ121S1LG45 can serve as another reference during display selection, but comparison must establish active area, resolution, mounting geometry, interface, and optical behavior before any replacement decision.
Diffuser Film & Prism Sheet Thermal Buckling Prevention under Continuous Full-Duty Operation
Map enclosure and bezel temperatures with the display installed and operating at the intended brightness, then compare any uneven image regions with nearby heat concentrations. A module tested outside its enclosure can behave differently after installation because surrounding electronics, restricted airflow, and mounting contact change its thermal environment. Record whether a visible patch develops gradually with temperature or appears immediately when the bezel is fastened.
Design Consideration: Treat temperature-related optical distortion as an assembly investigation. Optical layers can respond to heat and restraint, but the LTA104A261F designation alone does not establish their materials or internal arrangement. Check external mounting flatness, support locations, cable routing, and neighboring heat sources before considering internal intervention. Changes in image uniformity after controlled adjustment of enclosure fasteners can help identify mounting sensitivity without proving a particular internal defect.
If the equipment design includes heat spreaders or conductive supports, evaluate their contact locations against the permitted mounting arrangement. Their dimensions and attachment method should follow measured temperatures, available space, and mechanical tolerances. Avoid transferring heat into a sensitive panel edge simply because that edge offers convenient mounting space. Verify the result with the enclosure closed and the surrounding electronics carrying their representative load.
Maintenance Note: Periodically inspect cooling passages and bezel gaskets for blockage, displacement, or compression damage.
Brightness control belongs in the same thermal assessment. Where the installed controller uses PWM dimming, inspect illumination stability across its working range and compare visible flicker or audible noise with the control waveform. Select controller settings through system testing rather than assigning a universal frequency. Assess brightness consistency separately from command linearity, since an apparently smooth control signal does not establish uniform optical output.
Engineering Recommendation: Keep flexible cables clear of sharp edges, moving joints, and stressed connector exits. Preserve the assembly’s intended cable routing and confirm that connector locks engage without pulling the cable sideways. For broader enclosure and thermal planning, Industrial Display & HMI Solutions provides related integration context; service acceptance should remain tied to the installed assembly’s measured behavior.
Dynamic Contrast Ratio Stabilization & Liquid Crystal Birefringence Temperature Tracking
Compare grayscale patches from the operator’s actual viewing position before adjusting contrast controls. Repeat the observation above, below, and beside that position to separate viewing-direction effects from a uniform brightness change. Temperature-dependent optical behavior can alter perceived grayscale, but display mode, drive settings, and ambient reflections also influence the result. Keep the test image and lighting arrangement consistent while comparing conditions.
Design Consideration: Do not assign TN, IPS, or MVA characteristics to the LTA104A261F without its optical specification. When evaluating a different display technology, compare grayscale ordering, dark-state appearance, color shift, and readability from the required positions. A nominal viewing-angle figure does not establish equivalent image appearance across an operator’s working area. The Winstar Industrial TFT-LCD and OLED Display Modules reference provides industry context for comparing display technologies and optical options.
Evaluate ambient-light readability with the intended cover window fitted. Surface reflections and the cover-to-display gap can affect perceived contrast even when emitted luminance is unchanged. Optical bonding should be assessed as a complete assembly process, including material compatibility, cure conditions, mechanical stress, and serviceability. Bonding does not independently establish enclosure airtightness or moisture protection; those properties require evaluation of the assembled housing and seals.
When image corruption accompanies equipment switching, inspect connector seating, cable shielding arrangements, grounding, and supply behavior before altering display settings. Apply differential-pair routing rules only after identifying the actual interface and receiver requirements. Impedance, timing skew, and cable construction belong to that interface specification and host design, with acceptance based on measurements under representative operating conditions.
For persistent static-interface patterns, compare the affected area with uniform grayscale content after changing the displayed image. Record whether the pattern changes with operating time and temperature rather than declaring permanent damage from one observation. Where operationally acceptable, designers can evaluate screen blanking, reduced idle brightness, or changing static interface elements. Confirm that these measures preserve alarm visibility and that normal imagery returns correctly after the equipment’s shutdown and restart sequence.
