Content last revised on November 12, 2024

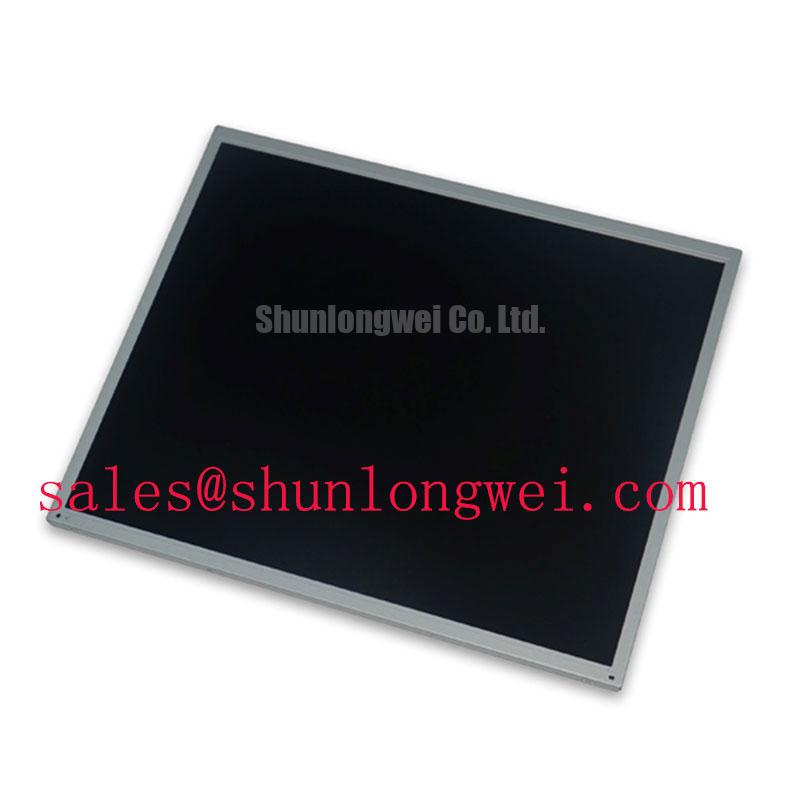

Panel Brand AUO
Panel Model G150XTN06.C
Panel Size 15.0 inch
Panel Typ e a-Si TFT-LCD, LCM
Resolution 1024(RGB)×768, XGA, 85PPI
Pixel Format RGB Vertical Stripe
display Area 304.128(W)×228.096(H) mm
Bezel Opening 311.9(W)×236.85(H) mm
Outline Size 326.5(W)×253.5(H) ×10(D) mm
Surface Antireflection
Brightness 800 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 80/80/70/80 (Typ.)(CR≥10) Left / Right / Up / Down
Display Mode TN, Normally White, Transmissive
Response Time 5.7/2.3 (Typ.)(Tr/Td)
Display Colors 262K/16.2M 60% NTSC
Lamp Type WLED , 50K hours , With LED Driver
Frequency 60Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC Circuit
Touch Screen Without
Panel Weight 1.00Kgs (Max.)ApplicationIndustrial Outdoor High Brightness
Signal Interface eDP (1 Lane) Connector
Environment Operating Temp.: -30 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
