GF100HF60T1VH T-Type NPC IGBT | Advanced 3-Level Topology for High-Efficiency Inverters

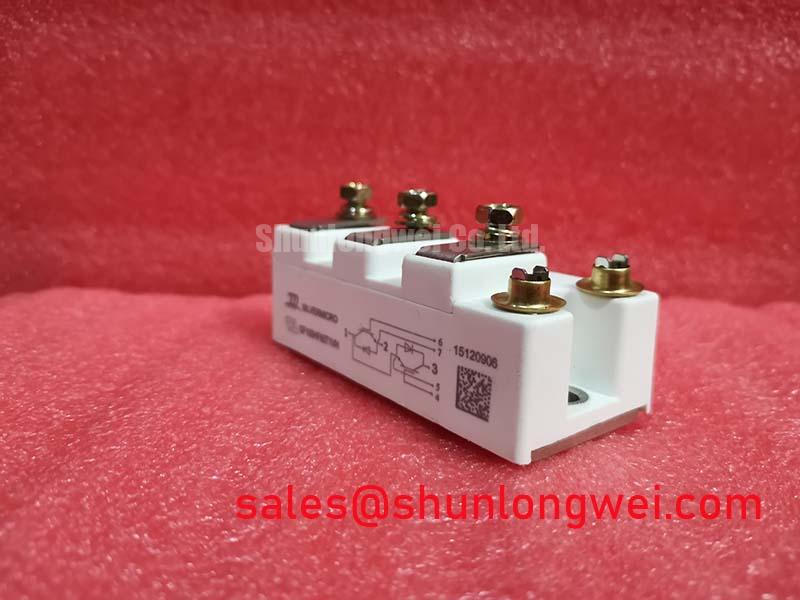

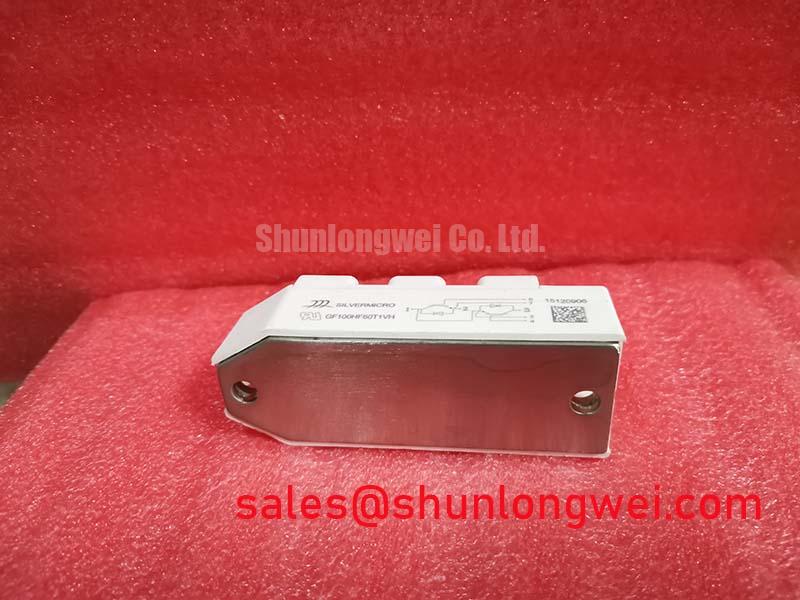

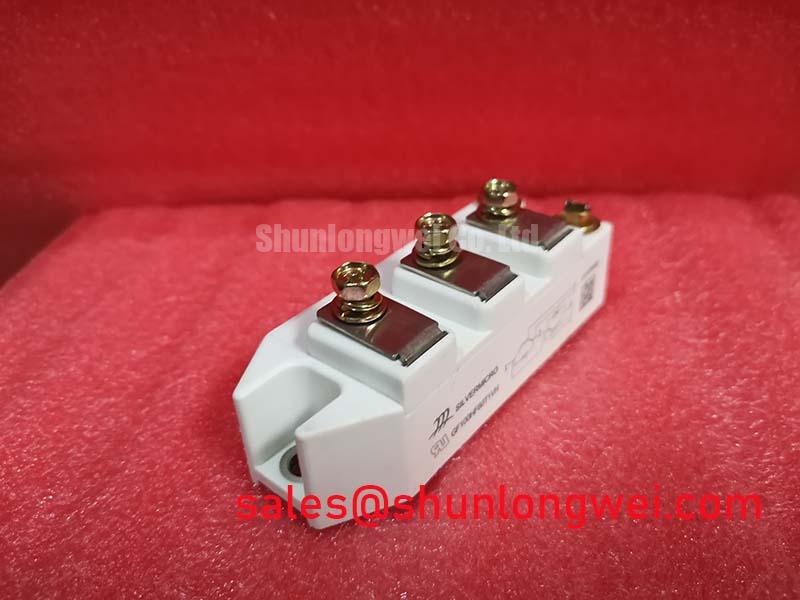

The GF100HF60T1VH is a high-performance IGBT module engineered for next-generation power conversion systems. At its core, this 600V, 100A module leverages an advanced 3-Level T-type inverter topology, setting it apart from conventional 2-level modules. It is specifically designed for applications where efficiency, power density, and output waveform quality are critical, such as solar inverters, uninterruptible power supplies (UPS), and sophisticated motor drives. By fundamentally reducing switching losses and harmonic distortion, the GF100HF60T1VH enables designers to build more compact, reliable, and energy-efficient systems.
Technical Deep Dive: The T-NPC Advantage
The standout feature of the GF100HF60T1VH is its integrated T-Type Neutral-Point-Clamped (T-NPC) circuit. This intelligent configuration provides a significant leap in performance over standard inverter designs.
- Principle of T-NPC Topology: Unlike a conventional 2-level inverter that switches between the positive and negative DC rails, a T-NPC topology introduces a third, neutral voltage level. The GF100HF60T1VH achieves this by using a combination of high-voltage (600V) and low-voltage (300V-class) IGBTs. The high-voltage switches handle the main blocking voltage but operate at the fundamental line frequency, while the low-voltage switches, connected to the neutral point, handle the high-frequency PWM switching.
- Application Value: Since the high-frequency switching is performed by lower-voltage devices, the associated switching loss is dramatically reduced. This allows for higher operating frequencies without a severe efficiency penalty, leading to smaller magnetic components, lower output ripple, and improved system dynamics. The 3-level output also produces a waveform with lower total harmonic distortion (THD), which simplifies EMI filter design and reduces stress on connected equipment.
Multi-Dimensional Application Scenarios
The unique benefits of the GF100HF60T1VH translate into tangible value across demanding industries:
- Solar & Energy Storage Systems: In an IGBT for solar inverter applications, higher efficiency directly translates to more harvested energy (kWh). The GF100HF60T1VH's lower losses enable higher power density, allowing for smaller, lighter inverters that are easier to install and require less thermal management hardware.
- Uninterruptible Power Supplies (UPS): For data centers and critical facilities, the module's high efficiency reduces operating costs (electricity and cooling). The low THD output provides cleaner power, ensuring the safe operation of sensitive IT equipment and minimizing interference.
- High-Performance Motor Drives: The quasi-sinusoidal output waveform generated by the 3-level topology reduces torque ripple and acoustic noise in motors. Furthermore, the lower dv/dt stress on the output minimizes wear on motor windings and bearings, enhancing the overall reliability and lifespan of the drive system. If you're working on such advanced systems, feel free to Contact Us for a Quote.
Key Technical Parameters Overview
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (Vces) | 600 V |
| Continuous Collector Current (Ic) @ Tc=80°C | 100 A |
| Topology | Single-Phase 3-Level T-Type NPC |
| Max. Junction Temperature (Tjmax) | 175 °C |
| Integrated NTC Thermistor | Yes |
| Datasheet | GF100HF60T1VH Datasheet |
Comparison and Selection Guidance
Engineers often weigh the GF100HF60T1VH against a standard 600V/100A 6-pack IGBT module. While a 6-pack module is simpler to implement and suitable for general-purpose motor drives, it is limited by higher switching losses at frequencies above 10-15 kHz. The GF100HF60T1VH is the superior choice when:
- System efficiency is a primary design constraint.
- High switching frequencies are needed to reduce the size of passive components.
- Low output harmonic distortion and minimal EMI are required.
For applications where cost and simplicity are paramount and operating frequencies are low, a traditional 6-pack may suffice. For cutting-edge, high-density power conversion, the T-NPC topology of the GF100HF60T1VH offers a distinct competitive advantage. You can Explore More IGBT Modules to compare different topologies.
Frequently Asked Questions
- What are the main benefits of a 3-level topology?The primary benefits are significantly lower switching losses, which leads to higher system efficiency, and a stepped output voltage waveform that has lower harmonic content. This results in smaller filters, less stress on connected equipment, and better overall performance.
- Does the GF100HF60T1VH require a special gate driver circuit?Yes, a 3-level T-NPC topology requires a more sophisticated gate driver than a standard 2-level inverter. The driver must be able to control four IGBTs per phase leg with precise timing and provide isolated power supplies for each switch. However, the system-level benefits in efficiency and density often justify this added complexity.
