LB043WQ1-TD04: 4.3-inch WQVGA TFT-LCD for Streamlined Embedded HMI Integration
Introduction & Key Highlights
A Compact Display Solution for Rapid Development Cycles

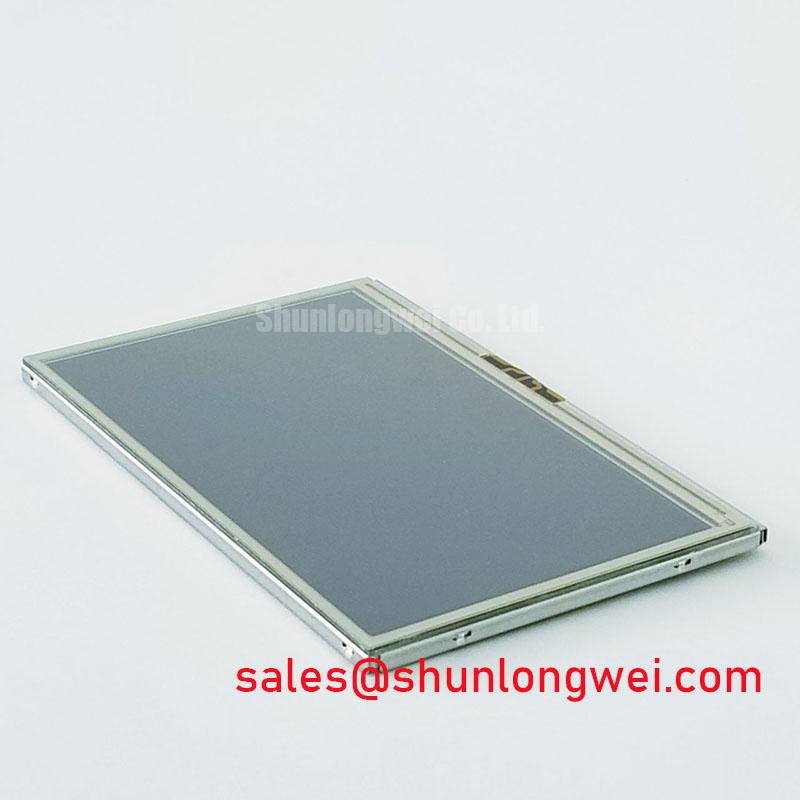

The LG Display LB043WQ1-TD04 is a 4.3-inch TFT-LCD module engineered to accelerate the design of compact graphical interfaces. It delivers a clear and functional visual foundation with a WQVGA 480x272 resolution, 350-nit brightness, and a standard 24-bit parallel RGB interface, simplifying integration with a wide array of embedded processors. Its design prioritizes a direct, no-frills connection to host systems, reducing both hardware complexity and software development overhead. The inclusion of a 4-wire resistive touch panel further streamlines the bill of materials for interactive devices. For embedded systems requiring a compact, cost-effective display with a widely supported parallel interface, the LB043WQ1-TD04 is a definitive choice.
Application Scenarios & Value
System-Level Benefits of a Standardized Parallel RGB Interface
The primary value of the LB043WQ1-TD04 lies in its straightforward integration, a critical factor in cost-sensitive and time-to-market-driven projects. Consider an engineering team developing a new generation of portable diagnostic equipment or a tabletop industrial control panel. A key challenge is to create a responsive and clear Graphical User Interface (GUI) without the complexity and higher cost associated with high-speed serial interfaces like MIPI DSI. The LB043WQ1-TD04's 24-bit parallel RGB interface directly addresses this challenge. This interface allows for a direct connection to the GPIO pins of many common microcontrollers and single-board computers, simplifying the hardware layout and making the driver development significantly more manageable. This approach accelerates prototyping and validation, enabling teams to focus on application-level software rather than low-level display communication protocols. This makes the module an excellent fit for applications including:
- Portable Medical and Test Equipment
- Industrial Automation HMIs
- Smart Home Control Panels
- Appliance User Interfaces
- Point-of-Sale (POS) Terminals
While the 4.3-inch format is ideal for compact handheld devices, systems requiring a larger screen for more complex data visualization might consider a related model such as the LB070WV8-SL01, which offers a 7.0-inch display area, often with a similar focus on integration simplicity.
Key Parameter Overview
Decoding the Specifications for Efficient System Design
The technical specifications of the LB043WQ1-TD04 are tailored for performance and ease of use in embedded applications. The parallel data interface is a key feature, as it behaves like a direct, multi-lane highway for pixel data between the processor and the display. Unlike serial interfaces that require data to be packetized and then decoded, this parallel structure is simpler to implement in both hardware and firmware, a significant advantage for many TFT-LCD based embedded systems.
| Display & Optical Characteristics | |
|---|---|
| Screen Size | 4.3 inch |
| Resolution | 480(RGB)×272 (WQVGA) |
| Display Technology | a-Si TFT-LCD, TN, Normally White. |
| Brightness | 350 cd/m² (Typ.). |
| Contrast Ratio | 400:1 (Typ.). |
| Viewing Angle | 70/70/65/55 (L/R/U/D) (Typ., CR≥10). |
| Color Support | 16.7M (8-bit). |
| Backlight | WLED. |
| Interface & Electrical | |
| Signal Interface | Parallel RGB (1 ch, 8-bit). |
| Connector Type | FPC, 45 pins. |
| Supply Voltage | 2.5/3.3V (Typ.). |
| Mechanical & Environmental | |
| Touchscreen | 4-wire Resistive Touch. |
| Surface Treatment | Antiglare. |
| Operating Temperature | -20 ~ 70 °C. |
| Storage Temperature | -40 ~ 80 °C. |
For complete electrical and timing specifications, please refer to the official datasheet. Sourcing and availability are subject to market conditions.
Industry Insights & Strategic Advantage
Aligning with Trends in Compact and Cost-Effective HMI Development
The market for embedded systems, particularly in industrial and specialized consumer sectors, continues to demand richer user experiences without escalating costs or development complexity. The move from simple segmented or character-based displays to full-color GUIs is a dominant trend. The LB043WQ1-TD04 is strategically positioned to serve this transition. Its combination of a standard WQVGA resolution, an integrated resistive touch layer, and, most importantly, a parallel RGB interface makes it a key enabler for this upgrade path. It provides a "sweet spot" for developers who need graphical capabilities but whose host processor or project budget does not support more complex, high-speed serial interfaces. This makes it an invaluable component for maintaining a competitive edge in developing next-generation Human-Machine Interfaces (HMIs) that are both capable and economical.
Frequently Asked Questions (FAQ)
Engineering Questions on Integration and Performance
What is the primary benefit of the 24-bit parallel RGB interface on the LB043WQ1-TD04?
The primary benefit is simplified system integration. It allows for a direct, pin-to-pin connection to many microcontrollers, reducing the need for specialized interface bridge chips and complex driver software. This accelerates the hardware design and debugging process, lowering overall development costs.
With a typical brightness of 350 nits, for what environments is the LB043WQ1-TD04 best suited?
A brightness of 350 cd/m² is well-suited for indoor and controlled-light environments. It provides excellent clarity for applications like medical monitoring equipment, factory floor control panels, and home automation systems. It is not designed for direct sunlight readability, which typically requires significantly higher brightness levels.
Technical Specifications and Sourcing
Engineers and procurement specialists are encouraged to review the official datasheets for detailed electrical characteristics, timing diagrams, and mechanical drawings to ensure proper integration into their designs. For inquiries regarding lead times, and availability, please consult with a sales representative for the most current information.
