LC260W01-A5K4: 26.0-inch WXGA TFT-LCD for High-Volume Display Integration
An Engineering-Focused Overview of the LC260W01-A5K4

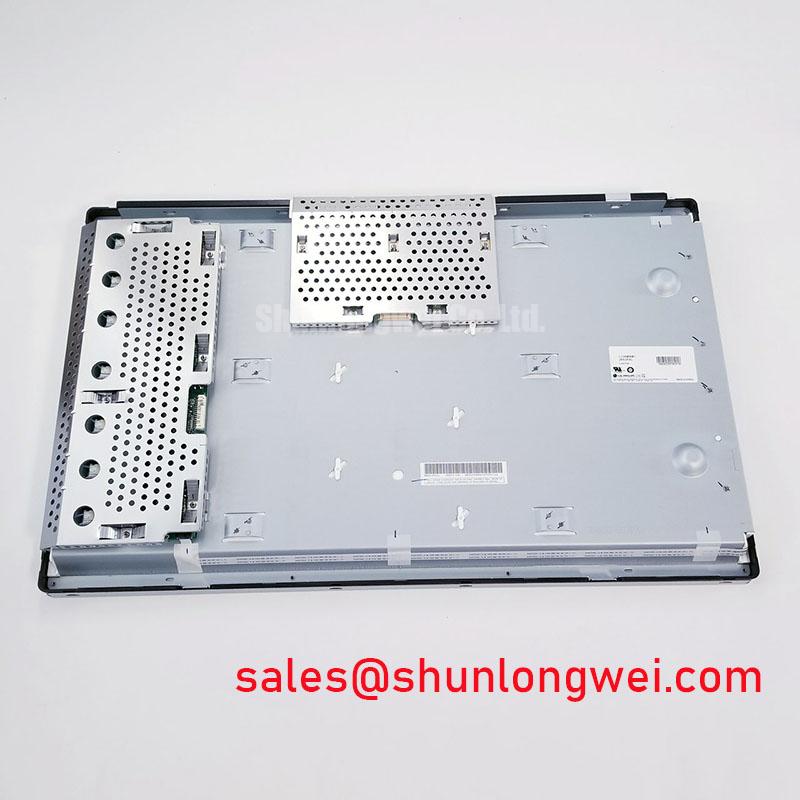

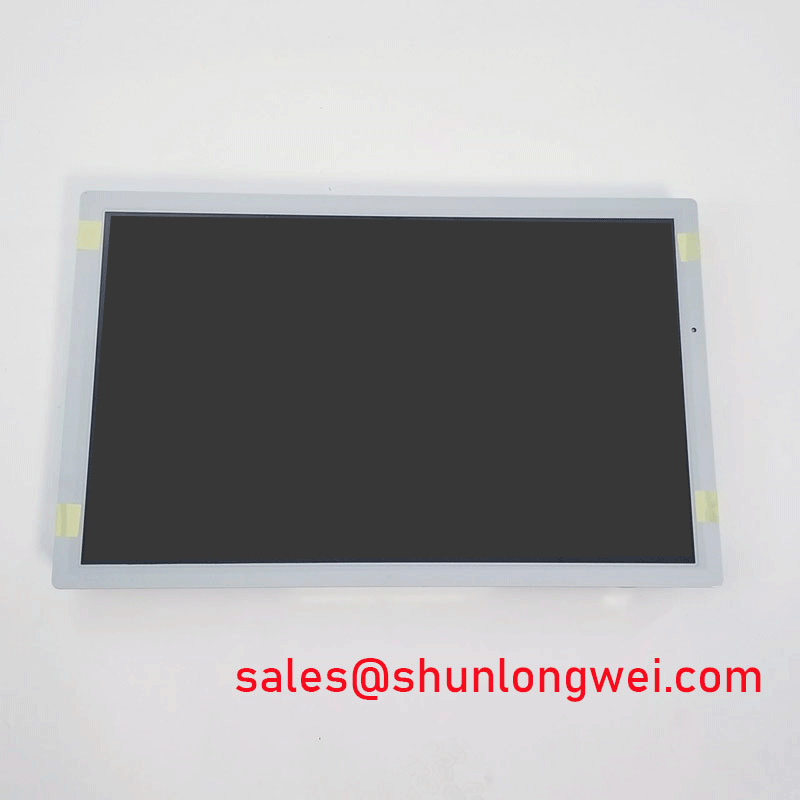

The LG.Philips LC260W01-A5K4 is a 26.0-inch WXGA TFT-LCD module designed for streamlined integration into consumer and light-commercial display systems. Delivering a core specification of 1366x768 Resolution | LVDS Interface | 500 cd/m² Brightness, it provides a solid foundation for visually demanding applications. Key engineering benefits include simplified system connectivity and vibrant color reproduction. This panel is engineered to reduce design complexity for developers working with standard video controller boards. For systems requiring Full HD resolution in a slightly smaller form factor, the G215HAN01.0 presents an alternative design path. What is the primary advantage of this panel's interface? Its industry-standard LVDS interface ensures broad compatibility and simplifies electrical design.
Key Parameter Overview
Decoding the Specifications for Seamless System Integration
The technical specifications of the LC260W01-A5K4 are tailored for efficiency in both performance and system design. The following parameters are critical for engineering evaluation and integration planning. The emphasis on a standard interface and conventional power requirements highlights its role as a versatile component for mainstream applications.
| Parameter | Specification | Engineering Implication |
|---|---|---|
| Screen Diagonal | 26.0 inches (66 cm) | Provides a significant viewing area for television and digital signage applications. |
| Resolution | 1366(H) x 768(V), WXGA | Supports HD-Ready (720p) content, a key requirement for consumer electronics of its era. |
| Pixel Pitch | 0.4215 mm x 0.4215 mm | Defines the pixel density and viewing characteristics at typical distances. |
| Display Interface | LVDS (Low Voltage Differential Signaling), 1 Port | Ensures reliable, high-speed data transmission with reduced EMI, simplifying connection to standard TFT-LCD controllers. |
| Color Gamut | 72% (NTSC) | Delivers a rich and saturated color palette essential for a compelling viewing experience. |
| Luminance (White) | 500 cd/m² (Typical) | Offers bright, clear images suitable for indoor environments like living rooms or retail spaces. |
| Contrast Ratio | 500:1 (Typical) | Provides good differentiation between light and dark scenes. A 500:1 ratio means the brightest white is 500 times brighter than the darkest black the panel can produce. |
| Viewing Angle (CR>10) | ±80° Horizontal, ±80° Vertical | Ensures consistent image quality from a wide range of viewing positions. |
| Logic Power Supply (VCC) | 12.0V (Typical) | Utilizes a common voltage rail, simplifying the system's power delivery network. |
| Operating Temperature | 0°C to +50°C | Defines the suitable operational environment for the module. |
Application Scenarios & Value
System-Level Benefits in Consumer and Light Commercial Displays
The LC260W01-A5K4 is best suited for high-volume manufacturing environments where development speed and BOM cost are critical design constraints. Its feature set provides tangible value in specific engineering contexts.
A primary high-fidelity engineering scenario is the development of mid-range consumer televisions or basic digital information displays for retail or hospitality. In this context, an engineer's challenge is to interface a display panel with an off-the-shelf video processing board or a simple digital signage player. The LC260W01-A5K4's standard single-port LVDS Interface is the key enabler. This widely adopted standard eliminates the need for custom interface hardware, allowing for direct connection to a vast ecosystem of controller solutions. The integrated on-board timing controller (T-CON) further streamlines the design, removing an external component from the system architecture and reducing overall product cost and complexity. What is the benefit of its 72% color gamut? It produces vibrant, life-like images critical for engaging consumer applications.
This module's WXGA resolution provides a cost-effective solution for delivering HD-ready content without the higher data bandwidth and processing requirements of Full HD panels. While this model serves the 26-inch segment well, systems designed for larger public information displays might consider a panel like the G270HAN01.0, which offers a larger screen size and higher resolution for more immersive content.
Frequently Asked Questions
Engineering Questions on Integration and Performance
How does the 72% NTSC color gamut rating impact the end-user experience?
The 72% NTSC color gamut allows the display to reproduce a wider range of colors than panels with a lower gamut (e.g., 45-55% NTSC). For the viewer, this translates into more vibrant reds, deeper greens, and richer blues, resulting in a more lifelike and engaging picture that is crucial for television and advertising content.
What is the primary benefit of the integrated LVDS interface for a design engineer?
For a design engineer, the LVDS interface simplifies the electrical design process significantly. Its differential signaling provides high noise immunity, which is critical in consumer electronics. This allows for more flexible cable routing and reduces the engineering effort required to manage electromagnetic interference (EMI), leading to a faster and more robust design cycle.
Does the 12.0V single power supply requirement simplify the power architecture?
Yes, absolutely. A single 12.0V rail is a very common voltage in consumer and industrial electronics. This allows engineers to use readily available, cost-effective power supply units (PSUs) without the need for multiple voltage converters to power the display logic, thereby simplifying the power tree, reducing BOM cost, and saving board space.
Is the LC260W01-A5K4 suitable for outdoor or harsh industrial environments?
Based on its specified operating temperature range of 0°C to +50°C and a brightness of 500 cd/m², this module is intended for controlled indoor environments. It is not designed for direct sunlight readability or the extreme temperatures and humidity associated with outdoor or heavy industrial applications.
Strategic Outlook
Establishing a Baseline for HD Display Technology
The LC260W01-A5K4 represents a strategic component choice for systems built on established, reliable technology. Its architecture, centered on a WXGA resolution and standard LVDS connectivity, reflects a period of display manufacturing focused on bringing high-definition viewing to the mass market. For engineering teams maintaining or developing products within this ecosystem, this panel provides a predictable, well-documented, and easily integrated solution. It serves as a testament to the design principles of standardization and manufacturing efficiency that enabled the widespread adoption of flat-panel display technology in consumer electronics worldwide.
