Content last revised on June 19, 2025

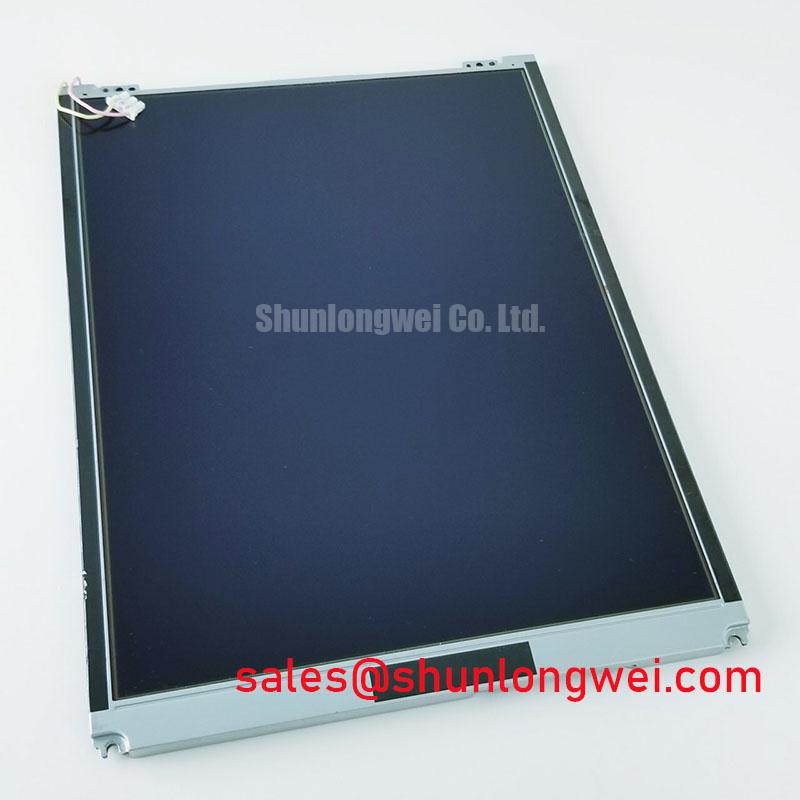

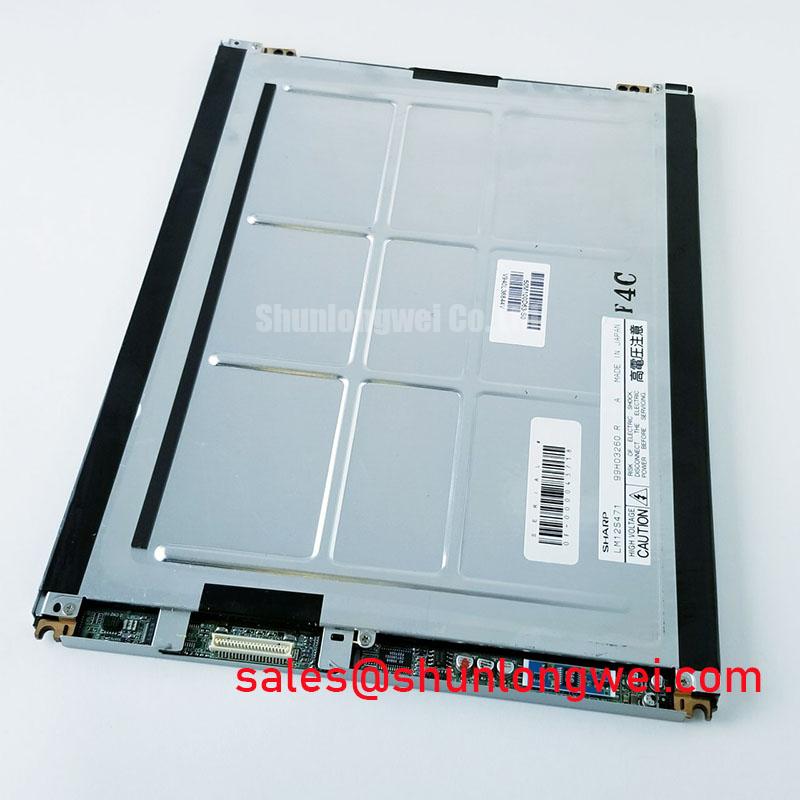

Brand Sharp
Model LM12S471F
Diagonal Size 12.1 inch
Type CSTN-LCD, LCM
Pixel Format 800(RGB)×600 [SVGA] 82PPI
Configuration RGB Vertical Stripe
Active Area 246(H)×184.5(V) mm
Outline Dim 275(H)×202.5(V) mm
Luminance 100 cd/m² (Typ.)
Contrast Ratio 40:1 (Typ.) (TM)
Response Time 120/30 (Typ.)(Tr/Td)
Viewing Angle 30/30/25/15 (Typ.)(CR>5) Left / Right / Up / Down
Operating Mode STN, Normally Black, Transmissive
Support Color Color
Light Source CCFL [1 pcs] , 25K hours , W/O Driver
Weight 500g (Typ.)
Designed For Industrial
Frame Rate 150Hz [Panelook copyright, copy is strictly prohibited]
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC Circuit
Touch Panel Without
Interface Type Parallel Data (8-bit) , 41 pins Connector
Power Supply 3.3/5.0V (Typ.)(VDD)
Environment Operating Temperature: 0 ~ 40 °C ; Storage Temperature: -25 ~ 60 °C
