Sharp LM32008F: High-Clarity 4.7-inch QVGA FSTN Display for Demanding Environments
Delivering Uncompromised Readability with Minimal Power Consumption
Content last revised on October 14, 2025.

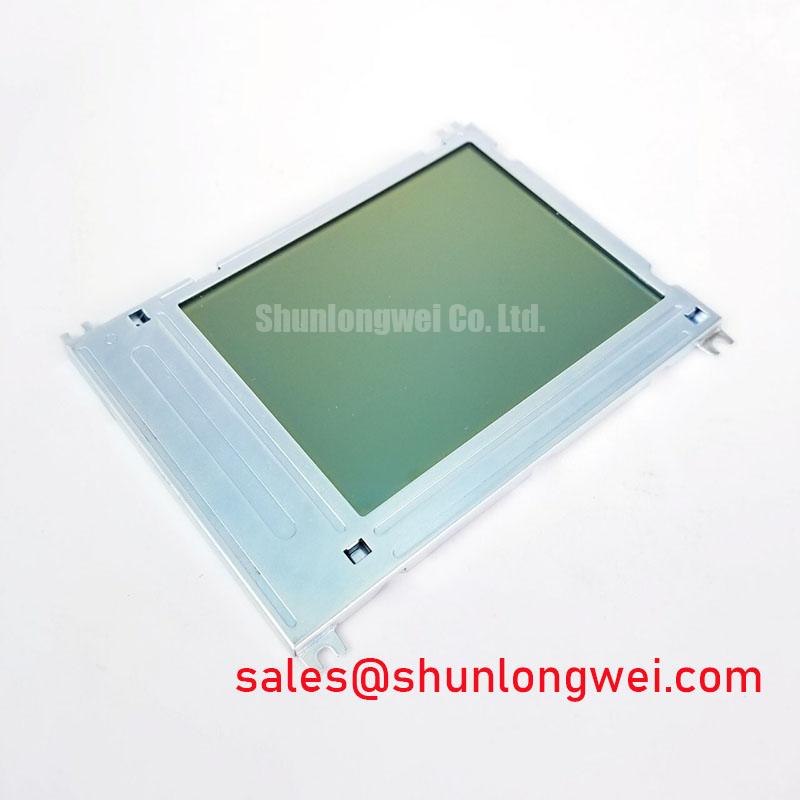

Engineered for maximum clarity in high ambient light, the Sharp LM32008F is a 4.7-inch FSTN-LCD module that provides a robust solution for data visualization where power efficiency and direct sunlight readability are critical. Its core specifications are: 320x240 QVGA Resolution | FSTN Monochrome Display | Reflective Technology. This design delivers two primary engineering benefits: exceptional low power consumption and the elimination of screen washout in bright conditions. The LM32008F directly addresses the need for a reliable display in portable or outdoor equipment that must perform flawlessly without a backlight. For applications requiring a clear, energy-efficient HMI in challenging lighting, this reflective FSTN panel is an optimal design choice.
Key Parameter Overview
Decoding the Specs for Environmental Resilience and Low-Power Design
The technical specifications of the LM32008F are tailored for industrial and portable applications. The highlighted parameters underscore its suitability for designs where power budgets are tight and environmental conditions are variable.
| Parameter | Specification | Engineering Implication |
|---|---|---|
| Panel Brand | Sharp | Proven manufacturer of industrial-grade displays. |
| Model | LM32008F | Specific part number for procurement and system integration. |
| Display Technology | FSTN-LCD, Monochrome (Black/White) | Provides higher contrast and a wider viewing cone than standard STN, ensuring crisp text and graphics. |
| Diagonal Size | 4.7 inch | Compact form factor for portable or space-constrained HMI designs. |
| Resolution | 320×240 (QVGA) | Sufficient pixel density for detailed readouts and simple graphical interfaces. |
| Display Mode | STN, Positive, Reflective | Utilizes ambient light for illumination, guaranteeing sunlight readability and near-zero power usage for the screen itself. |
| Backlight | None | Dramatically reduces overall power consumption and eliminates a common point of failure. |
| Logic Voltage (VCC) | 5.0V (Typ.) | Compatible with standard logic levels, simplifying system power architecture. |
| Interface | Parallel Data (4-bit) | A straightforward interface for direct connection to a wide range of microcontrollers. |
Download the product brief for the LM32008F for detailed specifications and performance curves.
Application Scenarios & Value
System-Level Benefits in Outdoor and Portable Instrumentation
The unique characteristics of the Sharp LM32008F deliver significant value in specific engineering contexts. Its primary strength lies in applications where a power-hungry, backlit color display would be a liability. Consider the challenge of designing portable diagnostic equipment for field service technicians. These devices must be usable in direct sunlight and operate for extended periods on battery power.
The LM32008F's reflective technology provides the solution. By using the sun's own light for illumination, the display becomes clearer as the ambient light increases—the exact opposite of a standard transmissive LCD. This eliminates screen washout and the need for a high-power backlight, drastically extending battery life. The 320x240 resolution is ample for displaying critical data, waveforms, or diagnostic menus, making it a perfect fit for field service instruments, geological survey equipment, and outdoor metering devices. This design choice simplifies thermal management and contributes to a more reliable and cost-effective final product. For systems requiring a similar low-power profile but in a larger form factor for more complex data visualization, the G104S1-L01 offers a different set of capabilities to evaluate.
Frequently Asked Questions (FAQ)
What is the primary advantage of the FSTN technology in the LM32008F?
Film-compensated Super-twisted Nematic (FSTN) technology provides superior contrast and a wider, more consistent viewing angle compared to older STN displays. This results in a sharper, more readable screen, which is critical for user interfaces that must convey information clearly and without ambiguity.
How does the reflective display mode impact system design for outdoor products?
The reflective design is a game-changer for outdoor applications. It eliminates the need for a power-intensive backlight, which can be the single largest consumer of energy in a portable device. This directly translates to smaller batteries, lower system weight, and longer operational uptime. It also removes a significant heat source, simplifying thermal design and enhancing overall system reliability.
Is the parallel interface suitable for modern embedded systems?
Yes, the 4-bit parallel data interface is a robust and widely supported standard. It offers a direct, high-speed connection to many microcontrollers (MCUs) and avoids the complexity of protocols like MIPI or LVDS. This simplicity can accelerate development time and is ideal for industrial control panels where straightforward, reliable data transfer is paramount.
Technical Deep Dive
A Closer Look at Reflective FSTN Technology for Industrial Reliability
To fully appreciate the value of the LM32008F, it is essential to understand the engineering behind its display technology. Unlike a transmissive LCD that requires a backlight to push light through the liquid crystal layer, a reflective display uses a mirror-like layer behind the crystals. Ambient light passes through the screen, reflects off this layer, and travels back to the viewer's eye. Think of it like reading a book: the brighter the light shining on the page, the easier it is to read. This is the core principle that gives the LM32008F its exceptional sunlight readability.
The addition of FSTN technology is a crucial enhancement. In a standard STN display, the twisting of liquid crystals can cause color shifting (typically a blue or yellow tint) and limit the viewing angle. By adding a retardation film layer, FSTN technology corrects this phase shift, resulting in a true black-and-white display with significantly better contrast. This level of clarity is vital for reducing user error in applications like medical devices or precision measurement tools where data must be interpreted correctly at a glance.
Strategic Advantage
Designing for Longevity and Purpose-Built Functionality
Integrating the Sharp LM32008F into a system is a strategic decision that prioritizes long-term reliability and fitness-for-purpose over superfluous features. In an industry often focused on higher resolutions and brighter colors, this display offers a competitive advantage for products deployed in harsh or unconventional environments. By designing with a component that excels under challenging conditions—from bright sunlight to power-constrained scenarios—engineers can deliver a more robust, efficient, and ultimately more valuable product to the end-user. This focus on functional resilience is a hallmark of superior industrial design, a principle embodied by the capabilities of the LM32008F from Sharp.
