Hitachi LMG5278XUFC-00T: High-Clarity 9.4-inch VGA Monochrome Display for Industrial HMIs
Content last revised on October 20, 2025.

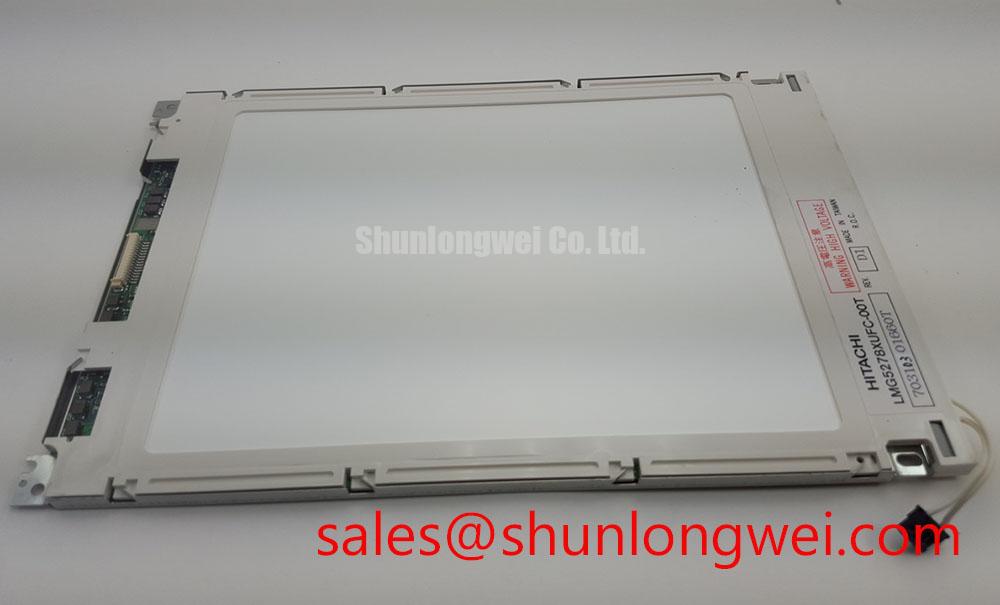

The Hitachi LMG5278XUFC-00T is a 9.4-inch FSTN monochrome LCD module engineered for robust performance in industrial control and instrumentation applications. It delivers crisp, high-contrast visuals essential for complex data and graphical user interfaces. With key specifications of 640x480 VGA Resolution | 18:1 Contrast Ratio | 0°C to +45°C Operating Temperature, this display provides excellent readability and proven reliability. Its design ensures straightforward system integration for legacy and new equipment. For industrial HMIs requiring a durable, clear, and easy-to-integrate VGA display, the LMG5278XUFC-00T offers a field-proven solution.
Key Parameter Overview
Highlighting Critical Specifications for System Integration
The technical specifications of the LMG5278XUFC-00T are tailored for industrial applications where clarity, reliability, and ease of integration are paramount. The combination of its resolution, display technology, and standard interface makes it a durable choice for long-life equipment. For systems requiring a different form factor but similar robust performance, the LMG6911RPBC offers alternative dimensions.
| Feature | Specification | Engineering Value |
|---|---|---|
| Display Technology | FSTN (Film Super-Twisted Nematic) LCD | Delivers high contrast and wide viewing characteristics suitable for operator panels. |
| Resolution | 640 x 480 pixels (VGA) | Provides sufficient detail for displaying complex graphics, text, and data in industrial control systems. |
| Contrast Ratio | 18:1 (Typical) | Ensures clear differentiation between on and off pixels, crucial for readability in variable factory lighting. |
| Display Mode | Transmissive, Black/White (Negative) | Offers a bright background with dark pixels, a common and effective format for industrial HMIs. |
| Active Area | 191.97 mm (W) x 143.97 mm (H) | Provides a substantial 9.4-inch diagonal viewing area for user interfaces. |
| Interface | 4-bit Parallel Data | A standard, reliable interface that simplifies connection to a wide range of microcontrollers and embedded systems. |
| Backlight | Single CCFL (Cold Cathode Fluorescent Lamp) | Provides bright and uniform illumination with a long operational lifespan. (Note: External inverter required). |
| Operating Temperature | 0°C to +45°C | Suitable for use in controlled indoor industrial environments. |
| Storage Temperature | -25°C to +60°C | Allows for safe transport and storage in a wide range of non-operational conditions. |
Download the LMG5278XUFC-00T datasheet for detailed specifications and performance curves.
Application Scenarios & Value
System-Level Benefits in Industrial Control and Monitoring
The LMG5278XUFC-00T is best suited for applications where clear, unambiguous information display is critical for operational efficiency and safety. For legacy systems requiring a drop-in 640x480 monochrome display with proven reliability, the LMG5278XUFC-00T is a direct-fit solution.
A primary engineering challenge in maintaining or upgrading long-service industrial equipment, such as CNC machines or Human-Machine Interface (HMI) panels, is sourcing components that match the original system's interface and form factor. The LMG5278XUFC-00T directly addresses this with its standard 4-bit parallel data interface. This interface acts like a multi-lane local road—it’s not designed for high-speed video but is exceptionally reliable and straightforward for transmitting the static graphics and text typical of a Programmable Logic Controller (PLC) or embedded system. This simplifies the electronic design, reduces development time for replacement parts, and ensures continued operation of valuable capital equipment without extensive redesigns.
- Industrial Automation: Ideal for operator consoles in manufacturing lines, providing clear status readouts, alerts, and control menus.
- Test and Measurement Equipment: Used in devices like oscilloscopes and spectrum analyzers where precise data visualization is required.
- Medical Devices: Suitable for patient monitoring systems and diagnostic equipment that require a reliable, high-contrast monochrome display.
- CNC and PLC Panels: Serves as a direct replacement or upgrade for aging displays in machine tools and process controllers, ensuring continued productivity.
Technical Deep Dive
A Closer Look at FSTN Technology and Interface Integration
The selection of FSTN (Film Super-Twisted Nematic) technology is a key design choice for the LMG5278XUFC-00T. Unlike simpler STN displays, the addition of a retardation film layer corrects for color dispersion, resulting in a true black-and-white display with a sharper image and a superior contrast ratio of 18:1. Think of the contrast ratio as the difference between the darkest black and brightest white the screen can produce. A ratio of 18:1 is like reading crisp, black ink on bright white paper, making it easily legible even from a distance or at an angle in a busy factory setting.
This high-contrast output is critical in environments where an operator must quickly and accurately read information. The VGA resolution of 640x480 pixels provides the necessary granularity to render detailed schematics, process flow diagrams, or multiple lines of text without pixelation, which is essential for effective machine control and monitoring through a PLC interface.
Frequently Asked Questions (FAQ)
What is the primary advantage of the FSTN display technology used in the LMG5278XUFC-00T?
FSTN technology provides a significantly higher contrast ratio and a more stable black-and-white image compared to standard STN displays. This results in superior readability, which is critical for industrial HMIs where operators need to quickly interpret data.
Does the LMG5278XUFC-00T module include a backlight driver?
No, this module includes the CCFL backlight lamp but requires an external inverter (backlight driver) to power it. This allows system designers to select an inverter that best fits their power supply and control requirements.
How does the 4-bit parallel interface impact system design?
The 4-bit parallel interface is a well-established standard that is easy to implement with a wide variety of microcontrollers and logic ICs. It simplifies the hardware and software design for displaying static or moderately dynamic content, making it ideal for cost-effective and reliable control panel applications.
What is the significance of the 12 o'clock viewing direction?
The 12 o'clock viewing direction indicates that the display achieves its optimal contrast and image quality when viewed from slightly above. This is a deliberate design choice for panels that are typically mounted below the operator's eye level, such as in a control console or rack-mounted instrument.
Strategic Component Selection
The LMG5278XUFC-00T represents a strategic choice for maintaining the operational life of industrial systems. By providing a component with a standard interface and a common VGA resolution, it minimizes the engineering effort required for repairs and retrofits. Its robust FSTN technology ensures that the visual interface remains clear and reliable, preserving the value and functionality of the equipment it serves. For designs requiring higher brightness or a different interface, related products such as the LMG5271XUFC-D may offer suitable alternatives. This focus on compatibility and long-term reliability makes it a vital component in the lifecycle management of industrial automation and control hardware.
