Industrial Bezel Mechanical Envelope Tolerances and Mounting Screw Torque Optimization

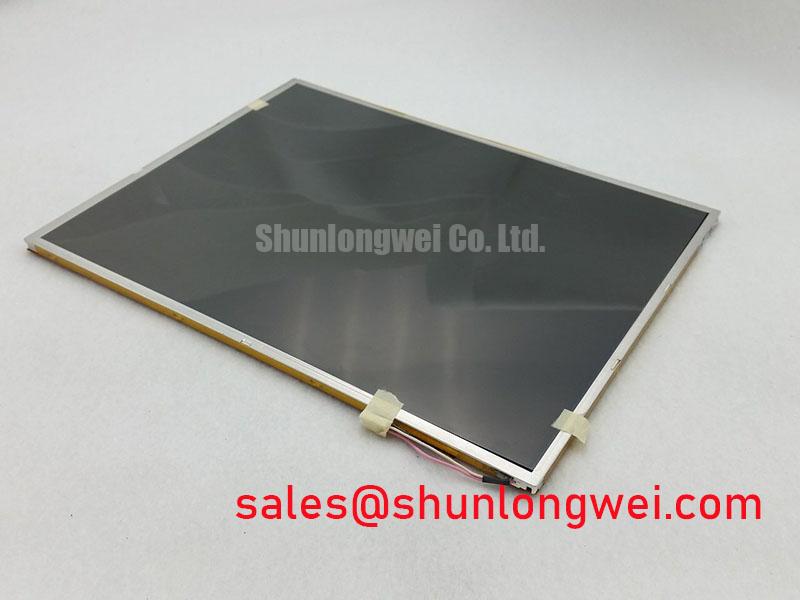

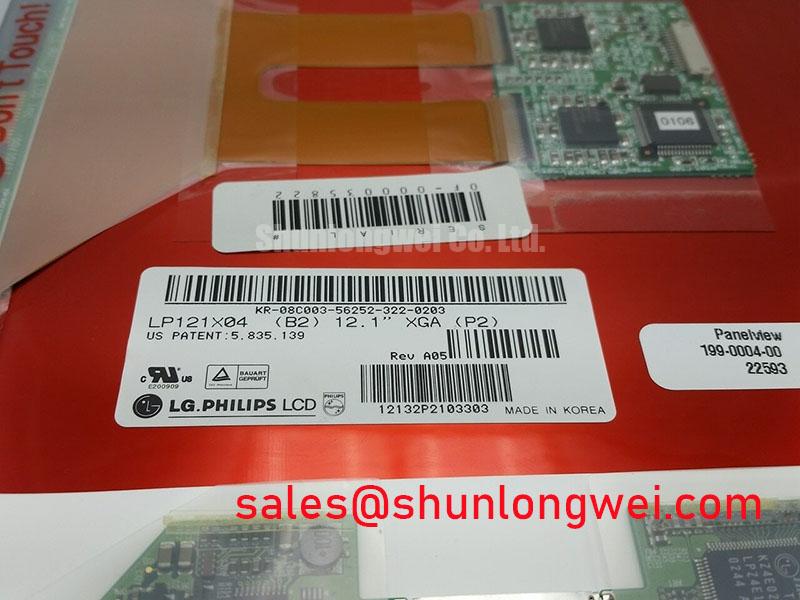

Check the original panel documentation before energizing the replacement, then inspect the bezel, mounting points, display connector, and backlight interface for mechanical stress or contamination. LP121X04-B2 is identified as an LG Display industrial-grade LCD/HMI panel with a TFT LCD active-matrix color display module construction.
For railway passenger information systems and cab signalling displays, compatibility depends on more than the visible screen area. The service engineer should compare the original panel’s electrical interface, data mapping, backlight arrangement, mounting envelope, and environmental limits before installation. The model designation alone should not be used to assume a host supply voltage, signaling standard, or backlight technology.
Industrial Bezel Mechanical Envelope Tolerances and Mounting Screw Torque Optimization
Mechanical alignment should be established before any electrical commissioning. Place the panel against the chassis without forcing the corners into position, and check that the bezel opening supports the display evenly around its perimeter. A twisted enclosure or uneven gasket contact can transfer localized pressure into the optical stack, producing nonuniform dark-field appearance, edge shading, or light leakage that may be mistaken for a panel drive fault.
The supplied product information identifies the package as a TFT LCD active matrix color display module, but it does not define a model-specific chassis drawing or approved fastener torque. Any cross-pattern tightening value must therefore be treated as a Design Consideration, not an LG Display factory specification. Use the original equipment service drawing where available, tighten progressively across opposing mounting points, and confirm that the panel remains flat after the final pass. The system integrator should determine the suitable M3 torque from the bracket material, fastener grade, gasket compression, and enclosure design.
In high-EMI control cabinets, the display cable should follow a controlled route away from contactors, inverter output conductors, and unfiltered switching nodes. Differential routing can reduce susceptibility to common industrial noise, but the applicable characteristic impedance, pair skew, shielding termination, and connector pinout must come from the host display controller and original panel documentation. Validate the complete signal path with a known-good assembly rather than assigning a display symptom to mechanical installation alone.
For replacement planning, NL6448BC28-01 may be reviewed as a separate same-class display option. It should be evaluated against the original panel’s active area, optical format, connector arrangement, mounting pattern, and controller compatibility; it is not presented as a universal substitute for LP121X04-B2.
Logic Supply Voltage Sequencing and Driver Interface Verification
Power sequencing must be checked at the panel connector and not inferred from the host cabinet label. The available product identity confirms the manufacturer and display category, while the required logic supply voltage, enable timing, data mapping, and connector pin assignment remain system-interface conditions that must match the original documentation. Do not connect an unverified 3.3 V or 5 V rail to the panel simply because either voltage is common in industrial display equipment.
During commissioning, observe the rise and fall relationship between logic power, display enable, data activity, and backlight control. A panel that shows a split image, unstable colors, or an incomplete raster may be experiencing an interface mapping mismatch, timing incompatibility, marginal grounding, or an unsuitable startup sequence. These symptoms should be compared with the known-good signal path using the host controller documentation and appropriate measurement equipment.
JEIDA and VESA data mapping are not interchangeable assumptions. Confirm the bit order, color depth, clock polarity, lane assignment, and connector orientation before changing firmware or replacing the panel. Where the equipment uses a controlled differential interface, the PCB designer should manage pair continuity, return paths, shielding, and impedance according to the controller and cable specifications. The final routing target is determined by the system interface, not by the LP121X04-B2 model number alone.
A compatible display installation also requires attention to connector insertion force and cable bend radius. Support the cable close to the connector, avoid side loading the panel socket, and disconnect power before handling the display interface. These practices help separate cable or installation faults from panel-level faults during a maintenance exchange.
Optical Luminance Degradation and Backlight Retrofit Assessment
Backlight replacement should begin by identifying the technology fitted to the original assembly. The supplied LP121X04-B2 information does not establish a CCFL or LED backlight specification, so a retrofit must not be selected from the display model alone. Check the original inverter or LED driver, connector pinout, dimming method, current control arrangement, thermal path, and mechanical clearance before considering a modernization route.
For a CCFL-equipped system, the service engineer should treat the inverter, lamp wiring, insulation, and cold-start behavior as a connected subsystem. Audible noise, delayed illumination, intermittent ignition, or uneven brightness can arise from the inverter, lamp, connector, or control signal. High-voltage backlight testing requires an appropriate procedure and isolation controls; it should not be performed by probing exposed lamp wiring with general-purpose instruments.
For an LED retrofit, a constant-current driver must be matched to the original LED string configuration and its protection behavior. Verify open-load response, short-circuit response, overvoltage handling, thermal derating, enable logic, and PWM compatibility at the system level. A stated dimming frequency or lifetime figure should only be used when it is documented for the selected driver and display assembly. The LP121X04-B2 listing does not establish a model-specific 50,000-hour rating, 1,000:1 dimming ratio, or guaranteed half-life curve.
Brightness comparison should be performed after the panel reaches a stable operating condition, using the same input image and measurement geometry. Record whether the change is uniform across the active area or concentrated near an edge. Optical aging, diffuser or guide stress, connector resistance, driver regulation, and ambient temperature can produce similar field observations. A replacement backlight should preserve the enclosure’s heat path and should not press against the LCD cell.
For a related display and backlight system review, engineers can consult NL6448BC33-50 as a separate complementary display solution. Its interface and electrical requirements must be assessed independently rather than assumed to match LP121X04-B2.
Temperature Operating Margin and Sub-Zero Liquid Crystal Response
Temperature qualification should cover the complete display assembly, including the panel, cable, bezel, sealing materials, controller, and backlight driver. The supplied product data does not provide a confirmed operating range of −30 °C to +85 °C for LP121X04-B2, so those values must not be treated as a factory rating. When evaluating a railway cab display or passenger information terminal, use the original equipment environmental specification and test the installed assembly inside its actual enclosure.
At low temperature, liquid-crystal viscosity can increase and produce slower optical transitions, especially in gray-level changes. This may appear as image trailing or delayed response without indicating an immediate electronic failure. At elevated temperature, brightness stability, adhesive behavior, connector retention, and backlight thermal conditions deserve equal attention. Allow the display to stabilize before judging image quality, and compare the same test pattern at each controlled temperature point.
Condensation is a separate risk from low temperature. When a cold panel enters a warm, humid service area, moisture can form around connectors, the bezel seal, or the enclosure window. The maintenance plan should include inspection of the gasket contact surface, ventilation path, drain strategy, and cabinet humidity control. Maintenance Note: Inspect the bezel gasket and cabinet airflow during scheduled service, and keep the display unpowered until visible condensation has cleared.
For broader engineering guidance on industrial HMI integration and harsh-environment evaluation, refer to Industrial Display & HMI Solutions. General LCD optical background can also be reviewed through Winstar’s industrial display reference and LCD optical principles.
Before returning the equipment to service, verify the displayed image, connector retention, bezel seating, backlight control, startup behavior, and temperature response under the host system’s documented conditions.
