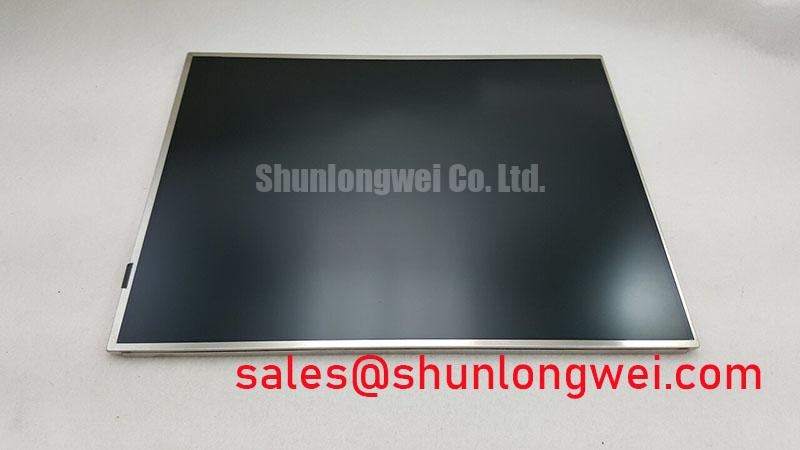

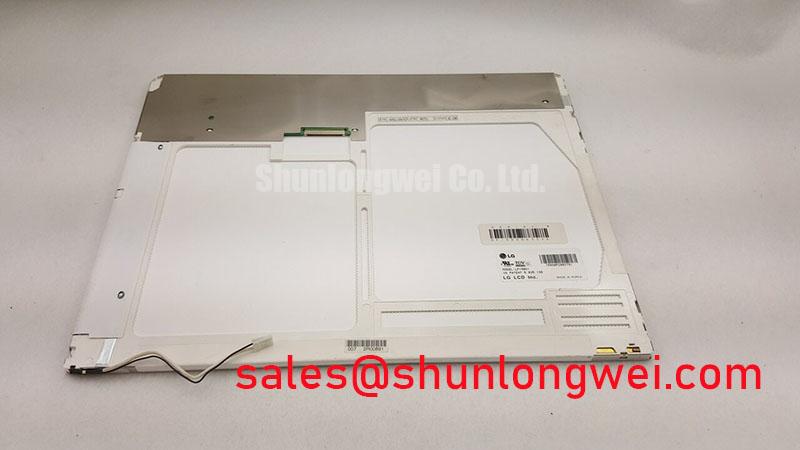

#LG Display, #LP150X1, #LCD_Display, #LCD, LG Display 15 inch LCM 1024×768 120 250:1 40/40/10/30 262K CCFL LVDS; LP150X1
Brand LG Semicon
Model LP150X1
Diagonal Size 15.0 inch
Type a-Si TFT-LCD, LCM
Pixel Format 1024(RGB)×768 [XGA] 85PPI
ConfigurationRGB Vertical Stripe
Active Area 304.128(H)×228.096(V) mm
Outline Dim 315.5(H)×242.3(V) ×7.3(D) mm
Bezel Area 308.5(H)×232.5(V) mm
Treatment Antiglare, Hard coating (3H)
Luminance 120 cd/m² (Typ.)
Contrast Ratio 250:1 (Typ.) (TM)
View Direction 6 o'clock
Response Time 30/50 (Typ.)(Tr/Td)
Viewing Angle 40/40/10/30 (Min.)(CR≥10) Left / Right / Up / Down
Operating Mode TN, Normally White, Transmissive
Support Color 262K
Light Source CCFL [1 pcs] , 10K hours , W/O Driver
Form Style Wedge (PCBA Bent, T≥5.2mm)
Designed For Laptop
Frame Rate 60Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC Circuit
Touch Panel Without
Interface Type LVDS (1 ch, 6-bit) , 20 pins Connector
Power Supply 3.3V (Typ.)
Environment Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
