LQ104V1DG51: Sharp 10.4" VGA TFT-LCD for Industrial HMIs Requiring Durability and Visual Consistency
Engineered for Demanding Environments and Stable Performance

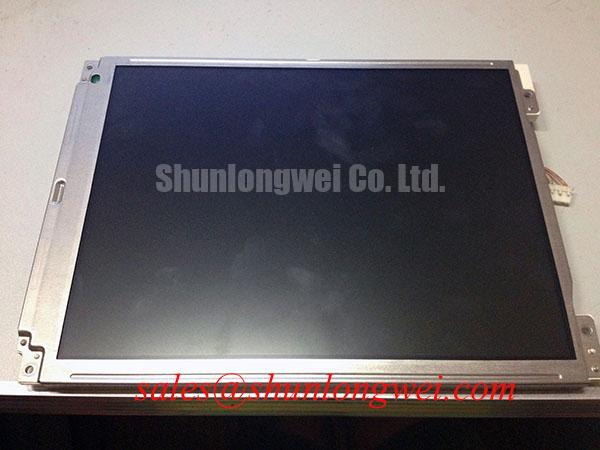

The Sharp LQ104V1DG51 is a 10.4-inch a-Si TFT-LCD module engineered for long-term operational reliability in industrial applications. Its unique value lies in a robust design that balances proven display technology with specifications supporting longevity and consistent visual performance under challenging conditions. Delivering a resolution of 640x480 pixels, a brightness of 350 cd/m², and a wide operating temperature range, this display provides the essential features for human-machine interfaces (HMIs), process control systems, and instrumentation. It directly addresses the need for a durable display solution that ensures readability and sustained performance where consumer-grade panels would fail. With its combination of a replaceable CCFL backlight system and anti-glare, anti-reflective surface treatments, the LQ104V1DG51 is an optimal choice for legacy system integration or new designs prioritizing serviceability and visual clarity in industrial settings.
Key Parameter Overview
Decoding the Specs for Mechanical Robustness and Environmental Resilience
The technical specifications of the Sharp LQ104V1DG51 are tailored for integration into industrial equipment where durability and reliable performance are paramount. The parameters highlighted below underscore its suitability for environments that experience temperature fluctuations and require consistent, clear visual output.
| Parameter | Value | Engineering Significance |
|---|---|---|
| Screen Size | 10.4 inches | Provides a substantial active area for complex graphical interfaces without consuming excessive cabinet space. |
| Resolution | 640(RGB) × 480 (VGA) | Ensures crisp, clear rendering of standard industrial control software and GUIs. |
| Brightness | 350 cd/m² (Typ.) | Delivers solid readability in typical indoor industrial and factory floor lighting conditions. |
| Operating Temperature | -10°C to +65°C | Critical for deployment in non-climate-controlled environments like factory floors or enclosed control panels where internal temperatures can rise significantly. |
| Storage Temperature | -30°C to +70°C | Allows for resilience during transport and storage in unconditioned warehouses or shipping containers. |
| Backlight System | Dual CCFL with 50k Hour Lifetime (Typ.) | Offers a proven, field-serviceable illumination source, a key factor for extending the total operational life of the host equipment. |
| Surface Treatment | Antiglare, Hard coating (3H), Antireflection | Enhances operator usability by minimizing reflections from overhead lighting and providing a durable, scratch-resistant surface. |
| Interface | Parallel RGB (1 ch, 6-bit) | Ensures straightforward integration with a wide range of industrial motherboards and single-board computers that utilize this common interface. |
Download the LQ104V1DG51 datasheet for detailed specifications and performance curves.
Application Scenarios & Value
Achieving System-Level Benefits in Industrial Control and Instrumentation
The LQ104V1DG51 is engineered specifically for scenarios where operational uptime and environmental resilience are non-negotiable. Its design directly addresses the challenges faced by engineers deploying human-machine interfaces (HMIs) and monitoring systems in demanding settings.
A primary application is in factory automation and process control panels. In these environments, an operator interface must remain clear and functional despite temperature swings and harsh ambient lighting. The LQ104V1DG51's wide operating temperature range (-10°C to +65°C) is not just a specification; it is a guarantee of stability. Imagine a control panel in a steel stamping facility where ambient temperatures fluctuate throughout the day. A consumer-grade display might suffer from image lag or blackout under such conditions, leading to misread data and potential operational errors. The LQ104V1DG51's robust thermal design ensures the display remains stable, providing reliable data visualization when it matters most.
Furthermore, its 350-nit brightness, combined with anti-glare and anti-reflective surface coatings, ensures excellent viewability under the direct overhead lighting common in industrial facilities. This mitigates operator eye strain and reduces the likelihood of errors caused by misinterpreting on-screen information. For systems requiring a smaller footprint with similar durability, the LQ064V3DG06 offers a 6.4-inch VGA solution. Conversely, for applications that demand a higher resolution within the same 10.4-inch format, the G104VN01 V0 provides an SVGA option.
Technical Deep Dive
A Closer Look at the Design for Serviceability and Longevity
A key distinguishing feature of the Sharp LQ104V1DG51 is its CCFL backlight system. While LED backlights are now common, the use of Cold Cathode Fluorescent Lamps in this mature design offers a distinct advantage in terms of long-term serviceability. The backlight is often the first component to degrade in an industrial display, leading to dimming and eventual failure. The LQ104V1DG51's dual-CCFL architecture, with a typical lifetime of 50,000 hours, is inherently modular. This means that in the event of a backlight failure after years of service, a trained technician can replace the lamps, effectively restoring the display to its original brightness. This is analogous to replacing the tires on a vehicle instead of replacing the entire car. For capital-intensive industrial machinery with expected lifecycles exceeding a decade, this serviceability is a critical factor in minimizing the total cost of ownership (TCO) and avoiding costly complete system replacements.
Frequently Asked Questions (FAQ)
What is the primary benefit of the -10°C to +65°C operating temperature range?
This wide range ensures the display operates reliably without performance degradation in environments that are not climate-controlled, such as manufacturing floors, outdoor-housed kiosks, or vehicle cabins, preventing issues like crystallization at low temperatures or blackouts at high temperatures.
How does the Antiglare (AG) and Antireflection (AR) surface treatment impact usability in an industrial setting?
It significantly improves readability by diffusing reflections from strong overhead factory lighting or indirect sunlight. This reduces operator eye strain and minimizes the potential for critical data to be obscured by glare, enhancing both safety and accuracy.
Is the CCFL backlight a disadvantage compared to modern LED backlights?
While LEDs can offer lower power consumption, the CCFL system in the LQ104V1DG51 is a proven, high-reliability technology. Its key advantage is field serviceability. For many long-life industrial applications, the ability to replace just the backlight after its 50,000-hour life is a significant benefit, extending the usability of the entire HMI unit and lowering the total cost of ownership.
Does the 6-bit Parallel RGB interface limit its application?
Not for its intended applications. The 6-bit interface, capable of displaying 262,144 colors, is perfectly sufficient for the graphical user interfaces found in most industrial control systems, SCADA, and instrumentation panels. It offers broad compatibility with established industrial single-board computers and controllers, simplifying system integration.
Strategic Considerations for System Integration
Integrating the Sharp LQ104V1DG51 into an industrial system is a decision rooted in prioritizing long-term reliability and serviceability over cutting-edge specifications. This display is not designed to compete with high-resolution, multi-touch panels but to serve as a steadfastly reliable visual interface for essential machinery and control systems. Its VGA resolution and parallel interface ensure backward compatibility and straightforward integration with a vast ecosystem of industrial hardware. Engineering teams focused on maximizing the operational lifespan of their equipment and ensuring parts availability for future maintenance will find this module to be a strategically sound choice. By opting for a component designed for durability and ease of repair, designers can significantly enhance the value proposition of their final product, aligning with industry demands for lower total cost of ownership and extended system viability.
