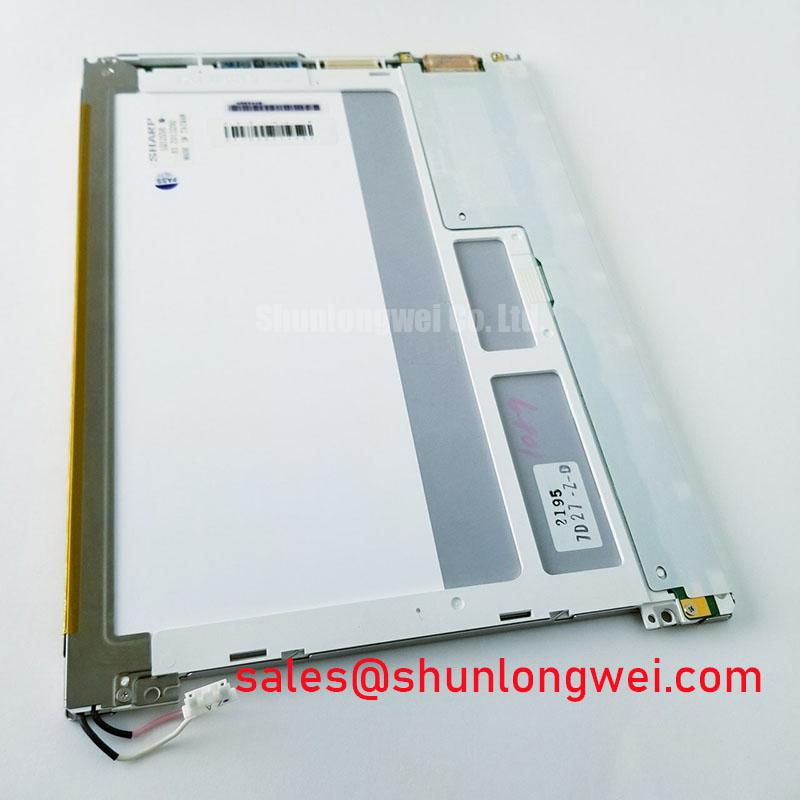

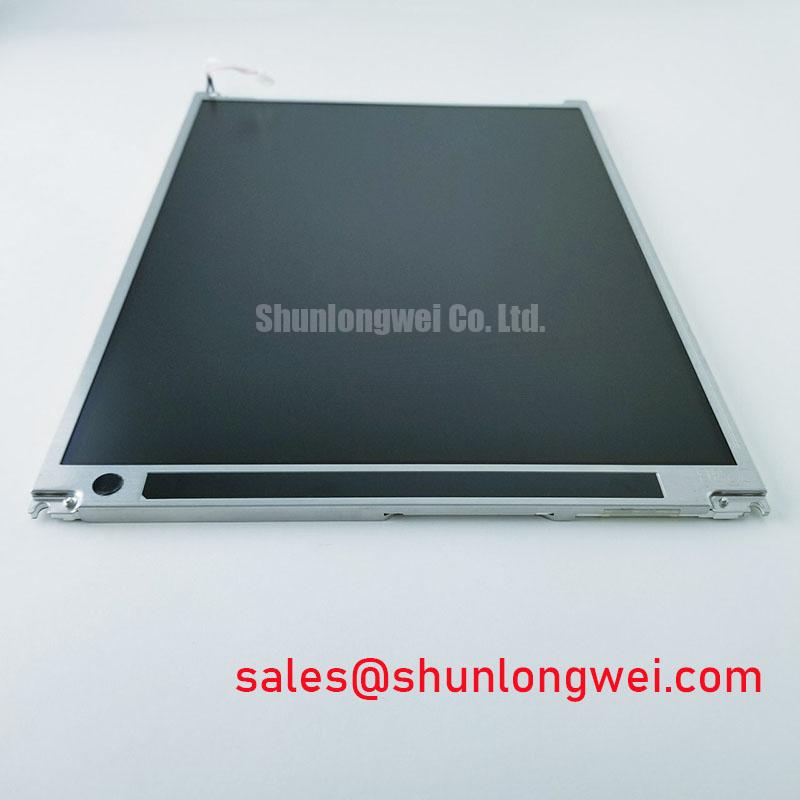

Panel Brand Sharp
Panel Model LQ12S56A Compatible Model 2 Compatible
Panel Size 12.1 inch
Panel Type a-Si TFT-LCD, LCM
Resolution 800(RGB)×600, SVGA, 82PPI
Pixel Format RGB Vertical Stripe
Display Area 246(W)×184.5(H) mm
Bezel Opening 250.0(W)×188.5(H) mm
Outline Size 275(W)×199(H) ×7(D) mm
Surface Antiglare, Hard coating (2H), Reflection 5.0% (Max.)
Brightness 70 cd/m² (Typ.)
Contrast Ratio 300:1 (Typ.) (TM)
Viewing Angle 45/45/10/30 (Min.)(CR≥10) Left / Right / Up / Down
Display Mode TN, Normally White, Transmissive
Best View on 6 o'clock
Response Time 30/50 (Typ.)(Tr/Td)
Display Colors 262K
Lamp Type 1 pcs CCFL , 10K hours , Without Driver
Frequency 60Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC Circuit
Touch Screen Without
Application Laptop
Signal Interface Parallel RGB (1 ch, 6-bit) , 41 pins Connector
Input Voltage 3.3V (Typ.)(VCC)
Environment Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -25 ~ 60 °C
