LQ141F1LH02B: Technical Review of the Sharp 14.1" XGA Industrial Display
Introduction: A Focus on System Compatibility and Longevity

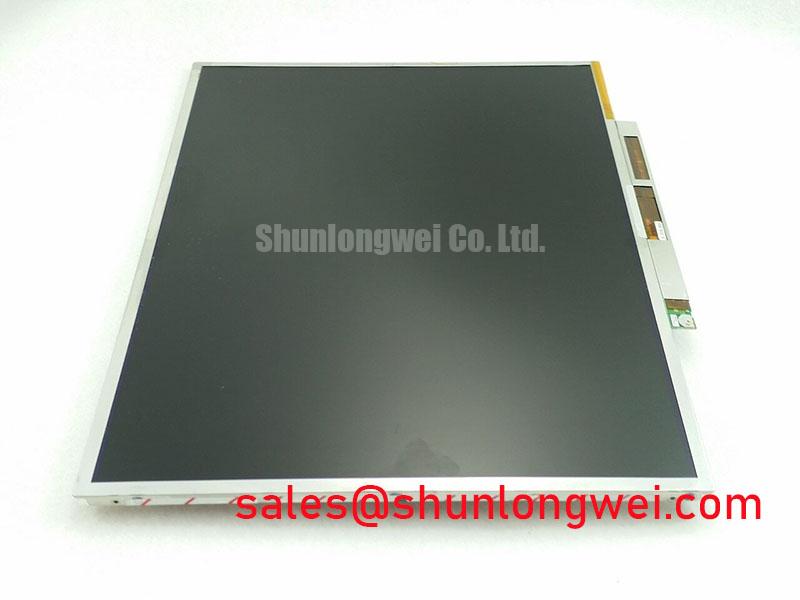

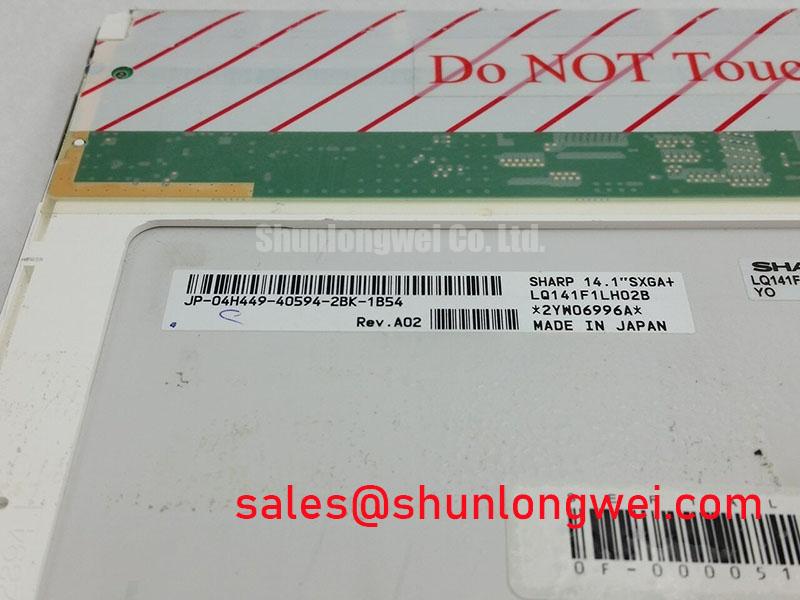

The Sharp LQ141F1LH02B is a 14.1-inch XGA TFT-LCD engineered for seamless integration and reliable performance in legacy industrial control systems. This display delivers specified performance with key specifications of 1024x768 Resolution | 200 cd/m² Brightness | LVDS Interface. Its primary engineering benefits include ensuring backward compatibility with established systems and simplifying the logistics of repair and maintenance. It directly addresses the critical need for a form-fit-function replacement for older 14.1" XGA panels, effectively minimizing the need for costly system redesigns. For targeted MRO applications requiring a cost-effective 14.1-inch XGA display, the LQ141F1LH02B provides a proven, compatible solution.
Key Parameter Overview
Decoding the Specs for System Integration
The technical specifications of the LQ141F1LH02B are tailored for straightforward implementation in specific industrial environments. The focus is on compatibility and predictable performance rather than cutting-edge metrics. Understanding these key parameters is essential for assessing its fit within a target application, particularly for legacy system upgrades.
| Parameter | Value | Engineering Value & Interpretation |
| Screen Size | 14.1 inch | Provides a direct physical replacement for a common size in older industrial laptops and HMI panels, simplifying mechanical integration. |
| Resolution | 1024 x 768 (XGA) | Ensures software and controller compatibility with a vast number of existing industrial automation systems designed around the XGA standard. |
| Interface | LVDS (1 ch, 6-bit) | A standard, low-noise interface that simplifies the electrical connection to a wide range of embedded controller boards without requiring specialized drivers. |
| Backlight | 1 pc CCFL | Requires an external CCFL inverter. While an older technology, its power and thermal characteristics are well-documented, ensuring predictable system behavior. |
| Contrast Ratio | 200:1 (Typ.) | Provides sufficient differentiation for clear text and graphical elements in controlled, indoor lighting. This ratio can be visualized as the difference between faint gray chalk on a sidewalk versus bright white chalk on black asphalt; it offers functional clarity for typical HMI tasks. |
| Viewing Angle (L/R/U/D) | 40/40/15/35 (Typ.) | The narrow vertical viewing angle makes this panel best suited for single-operator interfaces where the user's viewing position is fixed and directly in front of the screen. |
Download the LQ141F1LH02B datasheet for detailed specifications and performance curves.
Application Scenarios & Value
System-Level Benefits in Maintenance, Repair, and Operations (MRO)
The primary value of the LQ141F1LH02B is not in creating new designs but in sustaining existing ones. Consider an engineer responsible for a factory floor with dozens of CNC machines from the early 2000s. The original HMI panel on a critical machine fails. The manufacturer no longer supports the part. Machine downtime is unacceptable. The challenge is to find a display that matches the original's 14.1-inch XGA format and uses a standard LVDS Interface to communicate with the existing machine controller. Any deviation would require a costly and time-consuming system retrofit.
This is the precise scenario where the LQ141F1LH02B excels. Its specifications provide a form-fit-function solution, enabling a straightforward repair that minimizes downtime and extends the operational life of valuable capital equipment. It's a strategic component for MRO, ensuring business continuity without the significant expense of a full system overhaul. While this model is ideal for such legacy repairs, for new designs or systems where a modern, brighter panel with LED backlighting is feasible, the G150XNE-L01 may offer enhanced optical performance.
Frequently Asked Questions (FAQ)
What is the primary benefit of the standard 1024x768 XGA resolution?
Its main advantage is guaranteed compatibility with a wide range of legacy industrial automation software and hardware. This eliminates the need for engineers to recompile code, update drivers, or re-validate a system's graphical user interface, saving significant time and resources during repairs.
Does the LQ141F1LH02B display require a separate inverter?
Yes. The panel uses a Cold Cathode Fluorescent Lamp (CCFL) for its backlight, which requires a separate, external inverter to supply the necessary high voltage. This is a critical consideration for system integration and sourcing.
How does the 200:1 contrast ratio impact its ideal use case?
This contrast ratio is suitable for operator interfaces in typical indoor industrial environments where ambient light is controlled. It is designed for displaying clear schematics, text, and control buttons, but it is not intended for applications requiring high-fidelity color reproduction or outdoor readability.
What defines the LQ141F1LH02B's primary role in today's market?
Its primary role is as a service and replacement part for existing equipment. More details on component selection for different environments can be found in our guide on Industrial vs. Consumer Displays.
Are the narrow viewing angles a design limitation?
They are a design characteristic that defines the application. The limited vertical viewing angles (15/35 degrees) make it unsuitable for displays that need to be seen by multiple people from various positions. However, for a fixed, single-operator control panel where the user is positioned directly in front, it is a perfectly acceptable and cost-effective specification.
Application Vignette
A Closer Look at the CNC Machine Controller Retrofit
A manufacturing plant's key milling machine goes down. The diagnosis: a failed display on its proprietary HMI control unit. The cost of downtime is measured in thousands of dollars per hour. The original display is a 14.1-inch TFT-LCD that has been out of production for a decade. The challenge for the maintenance engineer is not just to find a replacement, but to do so quickly and without triggering a cascade of compatibility issues with the machine's hardened, validated controller.
The engineer selects the LQ141F1LH02B. The choice is strategic. Its identical XGA resolution means the existing graphical interface will render perfectly without distortion or scaling artifacts. The single-channel LVDS connection is a direct match for the controller's output, preventing any need for signal converters or custom cabling. The panel's viewing angle, while narrow, is a non-issue as the machine operator always stands in a fixed position. The analogy here is clear: the viewing angle acts like a focused flashlight beam, perfect for a single, stationary user. Within hours, the new panel is installed, the existing CCFL inverter is reconnected, and the machine is powered on. The HMI displays correctly, and the multi-million dollar asset is back in production. The LQ141F1LH02B didn't just replace a screen; it preserved the integrity of the entire control system and averted a costly, extended shutdown.
An Engineer's Perspective on Application
From an engineering standpoint, the LQ141F1LH02B serves a vital role in asset lifecycle management. It's not a component for pioneering new technology but a critical tool for maintaining the backbone of established industrial infrastructure. Its value is measured in uptime, compatibility, and the avoidance of unnecessary capital expenditure. For engineers tasked with keeping proven, reliable systems operational, this display offers a straightforward, predictable, and effective solution that respects the constraints of legacy hardware and software environments.
