Innolux G150XNE-L01: High-Contrast 15.0" XGA Display for Industrial Applications
Introduction: Core Features & Engineering Value

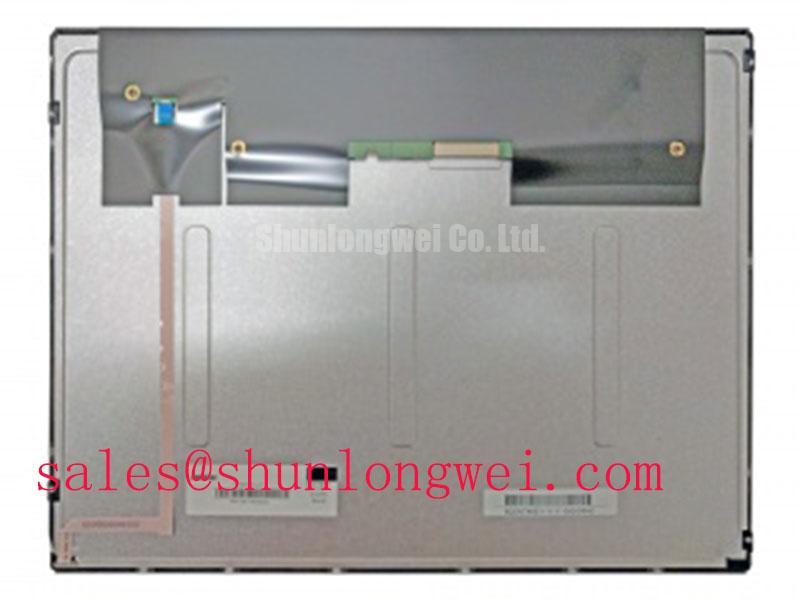

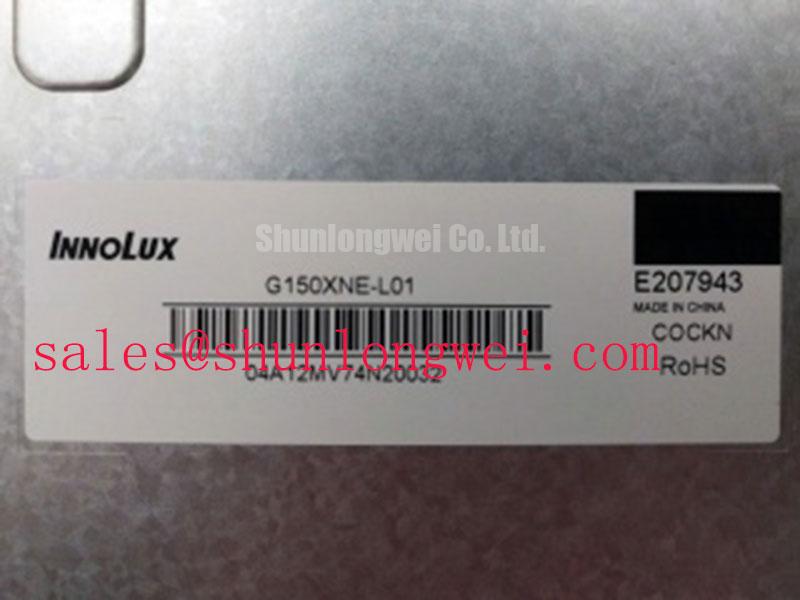

The Innolux G150XNE-L01 is a 15.0-inch a-Si TFT-LCD module engineered for performance in demanding industrial environments. It delivers exceptional visual clarity through a combination of high contrast and wide operational temperature tolerance. With key specifications of 1024x768 XGA | 2500:1 Contrast Ratio | -30 to 80°C Operating Temp, this display provides superior image legibility and robust environmental resilience. It directly addresses the need for reliable human-machine interfaces (HMIs) in factory automation, transportation, and control systems where ambient conditions are challenging and data must be clearly readable from wide angles. For systems requiring consistent performance across extreme temperature shifts, the G150XNE-L01's wide thermal range is a critical design advantage.
Key Parameter Overview
Decoding the Specs for Environmental Robustness and Visual Performance
The technical specifications of the G150XNE-L01 are tailored for industrial integration, emphasizing durability and optical excellence. The display's ability to operate from -30°C to 80°C is a significant feature, ensuring functionality in unconditioned environments, from cold storage facilities to sun-exposed kiosks. What is the benefit of its high contrast ratio? The 2500:1 contrast ratio, enabled by its Normally Black display mode, produces deep blacks and vibrant colors, making complex user interfaces or detailed schematics easily decipherable, even in sub-optimal lighting.
| Parameter | Specification | Engineering Insight |
|---|---|---|
| Screen Size | 15.0 inch | Standard industrial size for broad compatibility with existing enclosures and systems. |
| Resolution | 1024(RGB)×768, XGA | Provides clear and detailed imaging suitable for industrial control panels and data visualization. |
| Operating Temperature | -30 ~ 80 °C | Critical for outdoor, transportation, and unheated factory applications, guaranteeing operational stability. |
| Contrast Ratio | 2500:1 (Typ.) | Ensures excellent image legibility with deep blacks and bright whites, vital for operator accuracy. |
| Brightness | 500 cd/m² (Typ.) | Offers strong brightness for typical indoor industrial environments and some shaded outdoor use. |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Symmetrical wide viewing angles ensure consistent image quality from off-axis positions. |
| Backlight & Lifetime | WLED, 50K Hours (Typ.) | Long-life backlight reduces maintenance cycles and total cost of ownership. |
| Interface | LVDS (1 ch, 6/8-bit), 20 pins | Standard interface simplifies integration with a wide range of industrial motherboards. |
Application Scenarios & Value
Achieving System-Level Benefits in Demanding HMI Applications
The Innolux G150XNE-L01 is an optimal choice for systems where operational reliability and visual clarity cannot be compromised. Its robust design is well-suited for a variety of demanding sectors.
- Industrial Automation & Control Panels: The wide operating temperature and high contrast are crucial for factory floors, where HMIs must function reliably amidst fluctuating temperatures and provide clear readings for machinery operators.
- Marine & Transportation: In ship bridges or vehicle dashboards, the display's wide viewing angles and anti-glare surface treatment ensure that critical navigation and system data are visible to multiple crew members from different positions.
- Outdoor Kiosks & Vending: For semi-outdoor applications, the combination of 500-nit brightness and an extended temperature range allows the display to perform consistently, resisting the effects of both cold winters and warm, sunny conditions.
- Medical Instrumentation: The display's precise color reproduction and high contrast ratio are valuable for medical devices where accurate visual representation of data is essential for diagnosis and monitoring.
For system designs that require a different balance of features, such as higher resolution or a different form factor, related products like the G150XTN06.8 or the G150XNE-L03 may offer alternative solutions within a similar class of industrial displays.
Frequently Asked Questions (FAQ)
What makes the G150XNE-L01 suitable for environments with wide temperature swings?
The G150XNE-L01 is engineered with industrial-grade components and materials that allow it to operate reliably across a temperature range of -30°C to 80°C. This resilience prevents common issues like screen freezing or blackouts in extreme cold and protects against degradation in high heat, ensuring consistent uptime.
How does the 2500:1 contrast ratio benefit an HMI operator?
A high contrast ratio means the difference between the brightest white and the darkest black is significant. For an operator, this translates to sharper text, more defined graphics, and better overall readability, especially for complex interfaces. It's like reading crisp black ink on bright white paper versus gray text on a light gray background; the former reduces eye strain and minimizes the chance of misinterpretation.
Is the display readable from an angle?
Yes, the G150XNE-L01 features symmetrical viewing angles of 88 degrees in all directions (up, down, left, right). This ensures that colors and brightness remain consistent even when the screen is viewed from off-center, a critical feature for control panels that may be monitored by multiple people simultaneously.
What is "Normally Black" display mode and why is it important?
"Normally Black" technology, often associated with VA (Vertical Alignment) panels, means that the liquid crystals block light when no voltage is applied, resulting in a naturally deep black state. This is the primary reason the display achieves its high 2500:1 contrast ratio, leading to superior image quality compared to technologies that may show a grayish hue for black.
System Integration & Design Simplification
Streamlining Development with Standardized Interfaces and Form Factors
Integrating the Innolux G150XNE-L01 into new or existing systems is facilitated by its adherence to industry standards. The display utilizes a 20-pin LVDS Interface, a widely adopted standard that ensures compatibility with a vast ecosystem of single-board computers, controllers, and industrial motherboards. This simplifies the electrical design process, reducing the need for custom interface converters. Mechanically, its 15.0-inch form factor and standardized mounting points, compliant with the Panel Standardization Working Group (PSWG), allow for straightforward physical integration into existing enclosure designs, accelerating prototype development and final production. Furthermore, the built-in WLED driver circuitry for the backlight streamlines the power system design, as it only requires a single voltage supply for the display and logic, minimizing external components and potential points of failure.
