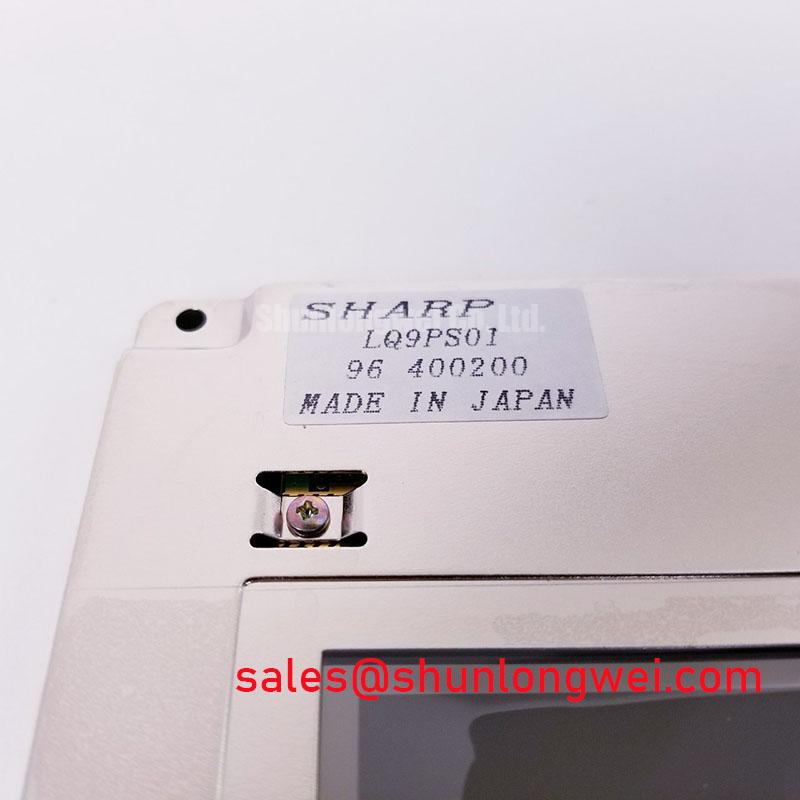

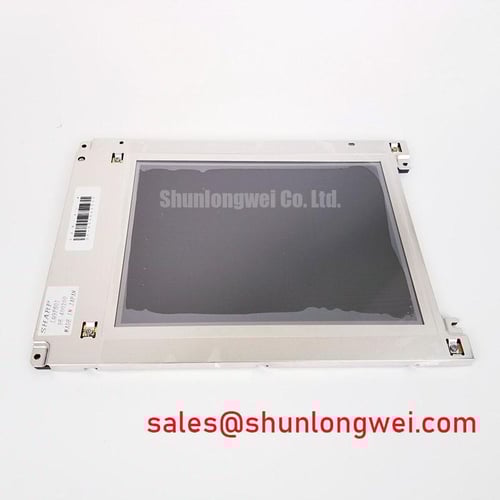

Sharp LQ9PS01 8.4-inch SVGA TFT-LCD Module: Engineering Reliable Visual Feedback in Industrial Systems
The Sharp LQ9PS01 represents a specialized solution in the 8.4-inch form factor, delivering consistent 800x600 SVGA resolution tailored for legacy industrial and medical environments where mechanical stability and signal compatibility are paramount. As a professional distributor, we provide the technical data required for engineers to evaluate its integration into existing HMI frameworks or diagnostic equipment.
Key Parameter Overview
Decoding the Specs for Enhanced Visual Reliability
| Feature | Specification |
|---|---|
| Manufacturer | Sharp |
| Model Number | LQ9PS01 |
| Screen Size | 8.4 inch |
| Resolution | 800x600 (SVGA) |
| Interface Type | CMOS (Parallel) |
| Brightness | 350 cd/m² (Typical) |
| Contrast Ratio | 500:1 (Typical) |
| Aspect Ratio | 4:3 |
| Active Area | 170.4 x 127.8 mm |
Application Scenarios & Value
Achieving System-Level Benefits in Legacy Form Factors
Engineers often face the challenge of maintaining legacy industrial machinery where the software and video controllers are locked into specific timing parameters. The LQ9PS01 addresses this by offering a stable CMOS interface that avoids the complexities of modern high-speed differential signaling while maintaining a reliable 8.4-inch footprint. For 400V industrial control systems requiring human-machine interaction, the 4:3 aspect ratio provides a natural layout for traditional GUI designs.
In the field of medical diagnostics, visual consistency is critical. The LQ9PS01 utilizes a 500:1 contrast ratio to ensure that grayscale transitions—vital for imaging—remain discernible across various ambient lighting conditions. Its 350 cd/m² brightness is optimized for indoor control rooms where excessive glare is managed, yet high clarity is required. For systems that require significantly higher brightness for sunlight readability, the related G084SN05 V9 offers a specialized alternative with enhanced backlight output.
Additional related components for 8.4-inch applications include the AA084VC02, which serves as a point of comparison for engineers evaluating different interface standards within the same size category. For more information on choosing between display technologies, see our ultimate guide to TFT LCD applications.
Technical & Design Deep Dive
A Closer Look at Signal Integrity and Mechanical Integration
The LQ9PS01 is built upon an a-Si TFT-LCD structure, providing a cost-effective yet rugged foundation for industrial HMIs. One of its most significant engineering advantages is the CMOS (1 ch, 6-bit) interface. Think of this interface as a "well-paved, multi-lane local road" compared to the "high-speed highway" of LVDS. While it doesn't support the extreme distances of differential signaling, it allows for direct, low-latency communication with many microcontrollers and older FPGA-based video drivers without requiring expensive bridge chips.

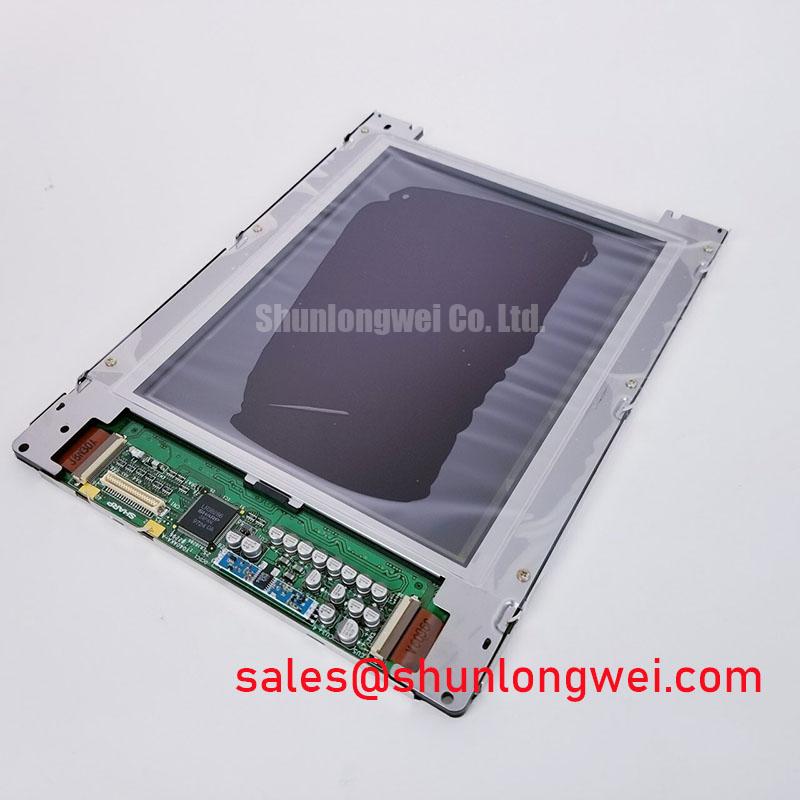

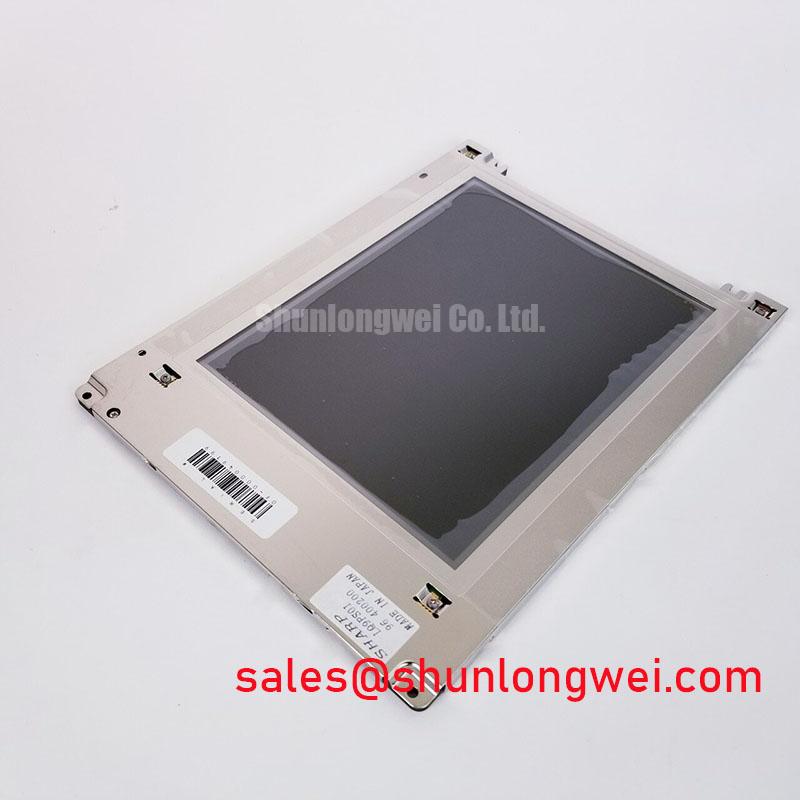

From a mechanical perspective, the 170.4 x 127.8 mm active area is housed in a robust frame designed to withstand the vibrations typically found in CNC environments or mobile medical carts. The 800x600 resolution at this size results in a pixel density that is highly favorable for "Information-Dense" displays, where text legibility is more important than video playback fluidness. Engineers must account for the CCFL or LED backlight configuration (depending on specific revision) to ensure the power inverter or driver circuit matches the thermal and electrical requirements of the cabinet.
To further understand the engineering behind these panels, you might explore the microscopic analysis of pixel structures, which explains how Sharp maintains color accuracy in industrial modules.
FAQ
How does the 800x600 SVGA resolution of the LQ9PS01 impact the rendering of legacy 640x480 content?
The LQ9PS01 features a native SVGA resolution. When displaying VGA (640x480) signals, engineers must utilize software scaling or centered mapping. Centered mapping is often preferred in industrial contexts to avoid "interpolation artifacts" which can blur critical diagnostic text or fine lines in CAD-based interfaces.
Is the CMOS interface of the Sharp LQ9PS01 susceptible to EMI in high-power environments?
Yes, parallel CMOS signals are more sensitive to electromagnetic interference than differential pairs. Designers should keep the ribbon cable length as short as possible and consider shielded enclosures if the module is placed near high-frequency inverters or IGBT modules. For high-EMI environments, consulting the field engineer's handbook on harsh environments is recommended.
Does the LQ9PS01 support wide viewing angles for overhead or side-mounted installations?
The Sharp LQ9PS01 provides standard industrial viewing angles. While suitable for most desk-level or eye-level HMIs, installations that require extreme vertical viewing (such as high-mounted status displays) should be tested for "grayscale inversion," a common characteristic of a-Si TFT panels at acute angles. Proper orientation during the design phase is crucial for ensuring the operator maintains a clear view of the 350 cd/m² output.
As the industrial landscape shifts toward higher integration, the Sharp LQ9PS01 remains a vital bridge for maintaining high-value machinery. By focusing on signal compatibility and mechanical consistency, engineers can extend the lifecycle of their equipment while ensuring reliable visual performance. For further technical insights, visit Sharp Display Solutions.
