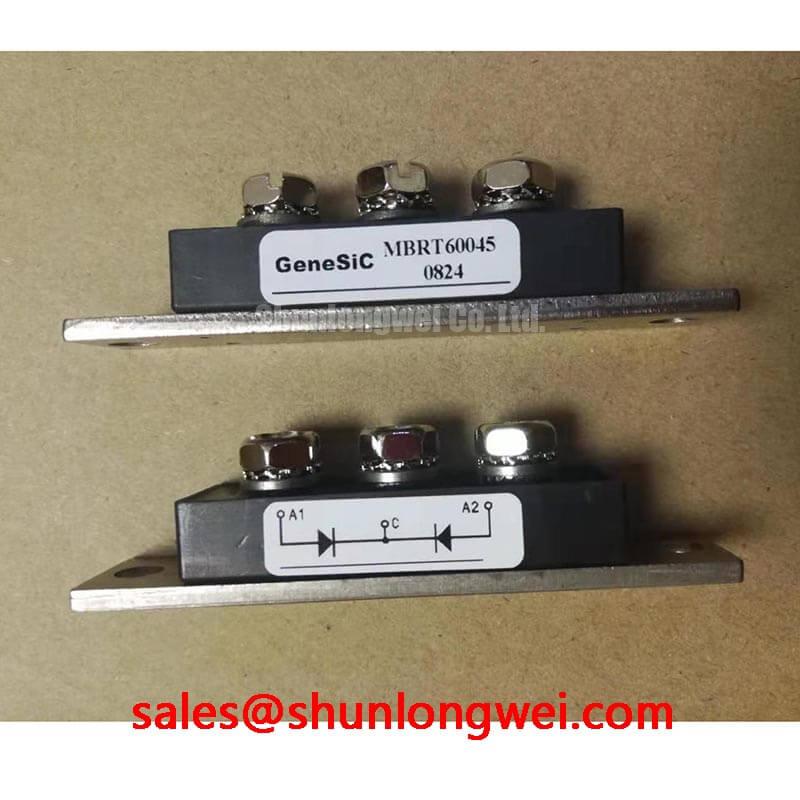

MBR60045CT: High-Efficiency 600A, 45V Schottky Rectifier for Demanding Power Systems
Engineered for Maximum Efficiency in High-Current Applications
The MBR60045CT is a high-performance, dual Schottky barrier rectifier module designed for engineers who cannot compromise on efficiency and power density. Delivering a formidable 600A forward current with a 45V reverse voltage rating, this component is purpose-built to minimize conduction losses in the most demanding power conversion systems. Its core strength lies in an exceptionally low forward voltage drop, making it the definitive choice for next-generation switch-mode power supplies, UPS systems, and industrial welding applications.
- Ultra-Low Forward Voltage (VF): A typical VF of just 0.55V at 300A per leg drastically reduces power loss, leading to cooler operation and lower system-level energy consumption.
- High Current Capability: With a total average forward current of 600A, the MBR60045CT simplifies design by replacing multiple paralleled discrete diodes, saving space and improving reliability.
- Superior Thermal Performance: Housed in a robust PRM5 power module, this rectifier is designed for optimal heat dissipation and operates with a junction temperature of up to 150°C, ensuring stability in harsh industrial environments.
- High Reliability Design: Features a guard ring for transient protection and a hermetically sealed construction, guaranteeing long-term performance in critical applications.
A Technical Deep-Dive: The Critical Impact of Forward Voltage on System Efficiency
In high-current power systems, conduction loss is a primary source of inefficiency and heat generation. This loss is calculated as P_loss = VF * IF. For a device like the MBR60045CT operating at its full potential, every millivolt reduction in forward voltage (VF) translates directly into significant power savings. Its remarkably low VF of 0.55V under a heavy 300A load per diode is not just a datasheet metric; it is a fundamental design advantage. This characteristic allows engineers to design systems with smaller heatsinks, achieve higher power density, and meet stringent energy efficiency standards like 80 PLUS Titanium for server power supplies. The module's design, which you can learn more about by decoding component datasheets, ensures these electrical advantages are matched by superior thermal transfer.
Meeting the Demands of Modern Data Centers and Industrial Automation
The global push towards higher data processing capabilities and industrial automation has created an urgent need for more efficient power conversion. Legacy rectifier solutions often become a bottleneck, generating excess heat and inflating operational costs. The MBR60045CT directly addresses this challenge. Its architecture is optimized for the high-frequency, high-current environments found in modern uninterruptible power supplies (UPS) that protect critical data centers. By minimizing rectification losses, it contributes to a better Power Usage Effectiveness (PUE) rating, a key performance indicator for data center efficiency. This focus on minimizing losses is a universal principle in power electronics, crucial for preventing common issues like overcurrent and overtemperature failures.
Application Spotlight: High-Power Uninterruptible Power Supply (UPS)
Consider a 500kW enterprise-level UPS (Uninterruptible Power Supply) system. In the output rectification stage, the MBR60045CT module can handle massive current surges with minimal energy wasted as heat. This not only improves the overall AC-to-AC efficiency of the UPS but also enhances its reliability by reducing thermal stress on surrounding components. The result is a more robust, efficient, and cost-effective power protection solution for mission-critical infrastructure.
Other key applications include:
- High-frequency welding equipment
- Large-scale electroplating power supplies
- Output rectification for forward and center-tap converters
- Freewheeling diodes in high-power converters
Key Technical Specifications
| Parameter | Value |
|---|---|
| Repetitive Peak Reverse Voltage (VRRM) | 45 V |
| Average Forward Current (IF(AV)) | 600 A (300 A per leg) |
| Peak Forward Surge Current (IFSM) | 5500 A |
| Forward Voltage Drop (VF) @ 300 A, 25°C | 0.55 V (Typical) |
| Maximum Operating Junction Temperature (Tj) | -55°C to 150°C |
| Package | PRM5 Power Module |
Frequently Asked Questions for the MBR60045CT
1. Why is the 0.55V forward voltage so significant for a 600A rectifier?
At high currents, power loss due to forward voltage (P = VF * IF) becomes substantial. A low VF like 0.55V at 300A means significantly less power is converted into waste heat compared to standard rectifiers, which might have a VF of 0.8V or higher. This directly improves system efficiency, reduces cooling requirements, and enhances overall reliability.
2. What are the key considerations for thermal management with the PRM5 package?
The PRM5 package is designed for superior Thermal Resistance management. It requires mounting on a flat, clean heatsink with an appropriate thermal interface material (TIM). Ensuring correct mounting pressure is crucial to minimize the thermal resistance from the module case to the heatsink, allowing the device to operate reliably at its high current rating.
3. Can the MBR60045CT be used in parallel for currents exceeding 600A?
Yes, but proper design practices are essential. To ensure current shares evenly, diodes should be matched for forward voltage characteristics. Additionally, the physical layout of bus bars and connections should be symmetrical to balance stray inductance and resistance, preventing one module from carrying a disproportionate share of the current.
For systems requiring high-power switching in addition to rectification, consider pairing the MBR60045CT with robust IGBT modules like the CM600DX-24T or the FS450R17KE3 to build a complete, high-efficiency power stage. Understanding the nuances of different power components is key, and resources like this guide on power semiconductor selection can provide valuable context.
