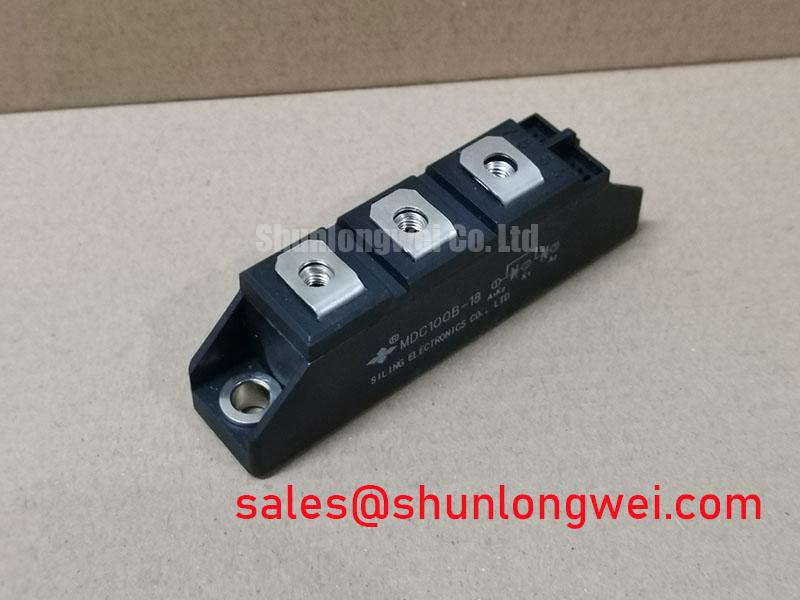

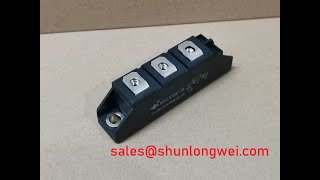

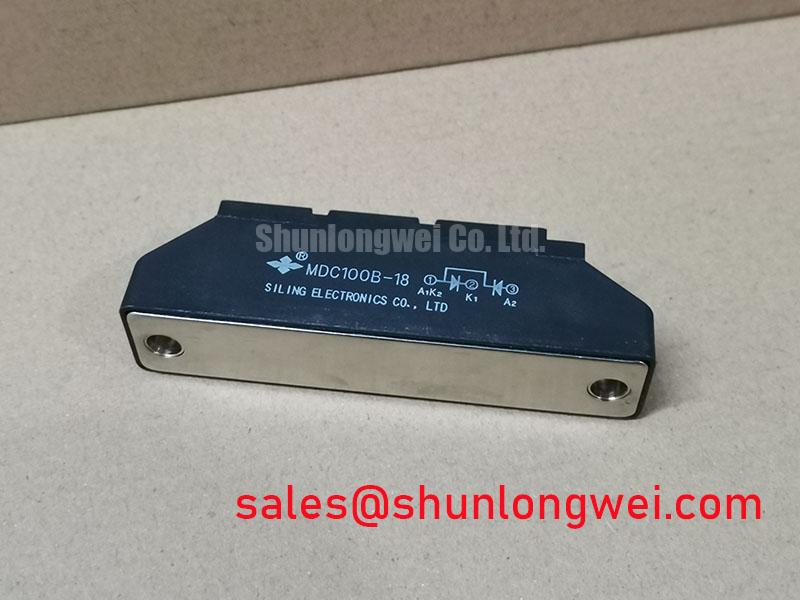

IXYS MDC100B-18 | High-Voltage Thyristor/Diode Module for Precision Power Control
The IXYS MDC100B-18 is an expertly engineered power module designed for robust and reliable phase control in high-power industrial applications. Combining a 100A thyristor (SCR) and a 100A diode in a common cathode configuration, this module provides a streamlined solution for controlling AC and DC power with high precision and safety. Its 1800V blocking voltage capability makes it an ideal choice for systems connected to demanding mains voltages, offering significant design headroom.
Product Highlights: Engineered for Reliability and Performance
- High Voltage Capability: With a repetitive peak off-state and reverse voltage (VDRM/VRRM) of 1800V, the MDC100B-18 is built to handle substantial voltage levels, ensuring operational stability in demanding electrical environments.
- Robust Current Handling: Both the thyristor and diode components are rated for an average forward current of 100A, making the module suitable for medium to high-power conversion and control tasks.
- Superior Isolation: Featuring an isolation voltage of 3600V~, the module guarantees safety and protects control circuits from high power lines, a critical requirement in industrial machinery.
- Amplifying Gate Thyristor: This advanced gate design ensures high dV/dt and dI/dt immunity, leading to reliable turn-on characteristics and reducing the complexity of the required gate drive circuitry.
- Industry Standard Package: Housed in an international standard package, the MDC100B-18 simplifies mechanical integration, heatsink mounting, and overall system assembly, saving valuable engineering time.
Key Parameters Overview
For engineers requiring quick-reference data, the table below summarizes the critical electrical and thermal characteristics of the MDC100B-18. These specifications are fundamental for accurate system modeling and thermal management design.
| Parameter | Value |
|---|---|
| Repetitive Peak Reverse/Off-State Voltage (VRRM/VDRM) | 1800 V |
| Thyristor Average On-State Current (IT(AV)) @ TC=85°C | 100 A |
| Diode Average Forward Current (IF(AV)) @ TC=85°C | 100 A |
| Thyristor RMS On-State Current (ITRMS) | 157 A |
| Isolation Voltage (VISOL, 50/60Hz, RMS, t=1 min) | 3600 V~ |
| Thyristor Gate Trigger Current (IGT) @ TVJ=25°C | < 150 mA |
| Operating Junction Temperature (TVJ) | -40°C to 130°C |
For a complete list of parameters, operational curves, and package details, download the IXYS MDC100B-18 Datasheet.
Optimized Application Scenarios
The unique topology and robust characteristics of the IXYS MDC100B-18 make it a superior choice for specific power control applications where reliability and precise phase control are paramount.
- DC Motor Control: The module excels in controlled rectifier circuits for DC motor drives. It provides smooth and efficient speed and torque control by precisely adjusting the firing angle of the thyristor, ideal for conveyors, mixers, and industrial pumps. While IGBTs are used in high-performance servo drives, this module offers a rugged, cost-effective solution for less dynamic applications.
- AC Soft Starters: When used in an AC voltage controller configuration, the MDC100B-18 can effectively limit the large inrush currents associated with starting heavy induction motors, reducing mechanical stress on equipment and electrical stress on the power grid.
- Industrial Heating and Lighting Control: For applications like large industrial furnaces, ovens, or professional lighting rigs, this module enables precise power regulation. By controlling the phase angle, it delivers the exact amount of energy required, improving process accuracy and energy efficiency.
Frequently Asked Engineering Questions (FAQ)
How does this thyristor/diode module compare to a full IGBT-based converter?
This is a critical point in power semiconductor selection. The MDC100B-18 is a line-frequency device designed for phase-angle control, making it simpler, more robust, and often more cost-effective for applications like controlled rectifiers and AC voltage regulators operating at 50/60Hz. An IGBT-based converter, in contrast, is designed for high-frequency pulse-width modulation (PWM) and offers higher efficiency, faster response, and lower harmonic distortion, but at a greater complexity and cost. For simple, rugged power regulation, a thyristor module is often the superior engineering choice.
What is the significance of the "amplifying gate" feature?
The amplifying gate is an internal two-stage thyristor structure. A small, sensitive pilot thyristor is triggered by the external gate signal, which then unleashes a much larger current pulse to turn on the main thyristor gate. This design has two primary benefits for the engineer: first, it makes the device highly resistant to spurious turn-on from fast-rising anode voltage (high dV/dt), enhancing system reliability. Second, it ensures a very rapid and uniform turn-on of the entire silicon chip area, giving it a high dI/dt capability and excellent robustness against current spikes during switching. This robust design directly impacts the device's Thermal Resistance and long-term durability under stressful conditions.
