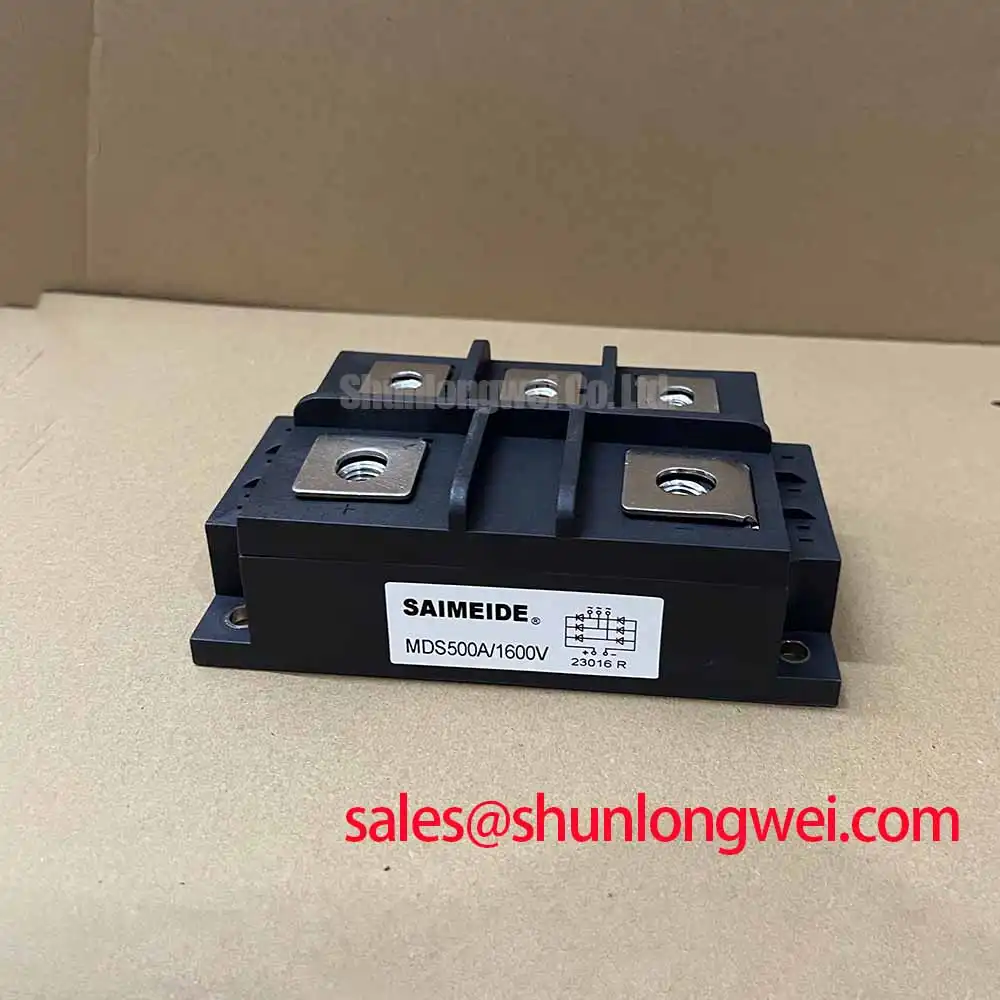

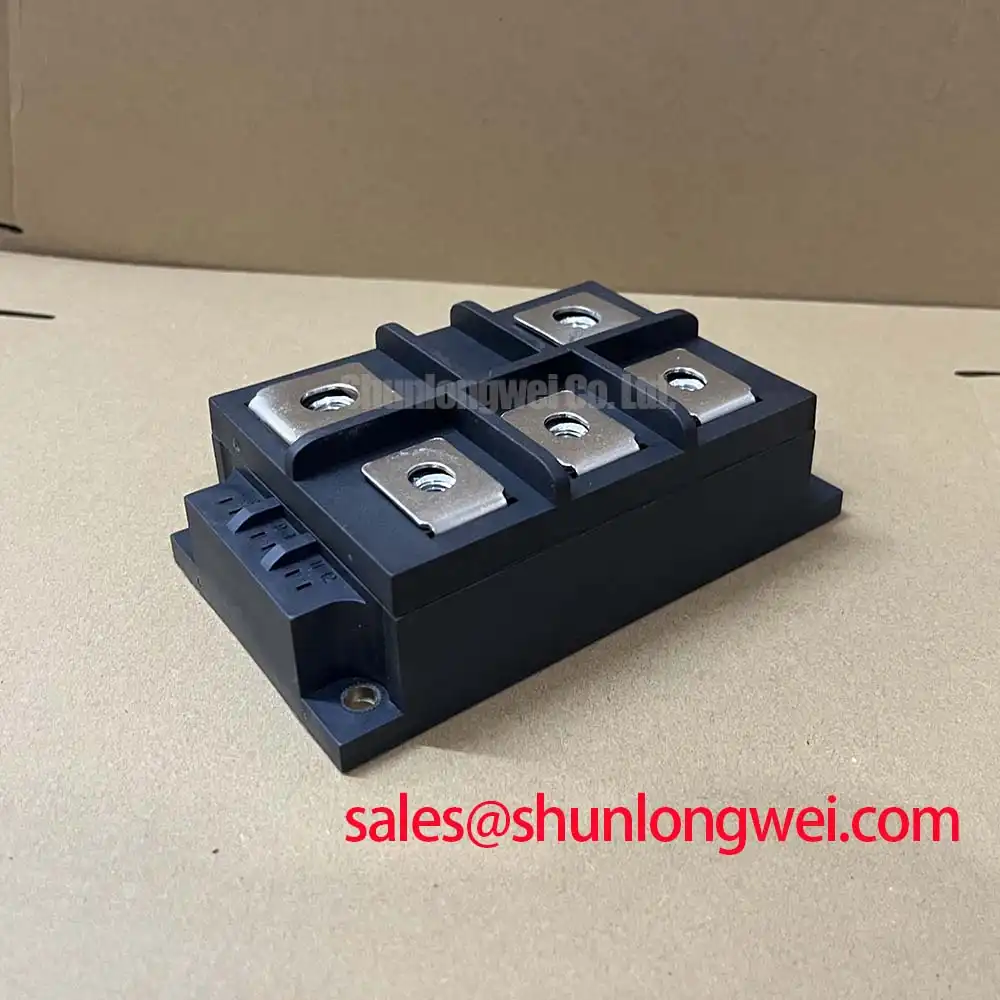

MDS500A/1600V Thyristor Module | Robust Power Control for High-Current Rectification
The MDS500A/1600V is a high-power, three-phase bridge rectifier module engineered for resilience and precise control in the most demanding industrial environments. Designed with robust thyristors (SCRs), this module is the cornerstone for building reliable front-end AC-DC converters for high-power motor drives, uninterruptible power supplies (UPS), and heavy-duty industrial systems. Instead of a simple diode bridge, the MDS500A/1600V provides controlled rectification, offering superior protection and performance where grid instability and high inrush currents are a primary concern.
Technical Deep Dive: Why the MDS500A/1600V Excels in Harsh Environments
- Superior Inrush Current Handling: Standard diode rectifiers can be vulnerable to the massive inrush currents experienced when powering up large capacitive DC links. The MDS500A/1600V utilizes thyristors (SCRs) which remain in a non-conductive state until a gate signal is applied. This allows for soft-start implementation, gradually charging the DC bus and eliminating the severe electrical and mechanical stress associated with direct-on-line startups. This controlled activation is fundamental in applications relying on Back-to-back SCR topology for enhanced system protection.
- Optimized Thermal Performance and Reliability: At 500A, effective thermal management is non-negotiable. This module is constructed with a high-conductivity copper baseplate bonded to a ceramic substrate (DBC), ensuring minimal thermal resistance between the semiconductor junctions and the heatsink. This efficient heat dissipation prevents overheating under continuous load, significantly extending the operational lifespan and preventing premature failure in critical power conversion systems. Mastering IGBT thermal design principles is key to leveraging this module's full potential.
Application-Specific Advantages of the MDS500A/1600V
- Industrial Motor Drives: For large AC motor drives, the module's soft-start capability is crucial. It mitigates voltage sags on the power line and reduces mechanical shock to gearboxes and couplings during startup, leading to lower maintenance costs and improved system longevity.
- High-Power DC Supplies: In applications like industrial electroplating or large-scale battery charging systems, the MDS500A/1600V provides a stable and robust rectified DC voltage, capable of withstanding line fluctuations without compromising the output.
- Welding Equipment: The demanding, pulsating load cycles of industrial welding can destroy lesser components. This module’s high surge current rating (ITSM) and robust construction ensure it can reliably handle the repeated power bursts inherent in welding processes.
- Uninterruptible Power Supplies (UPS): As the primary rectifier in a large online UPS, it provides the first line of defense against grid anomalies, ensuring a clean and stable DC bus for the subsequent inverter stage. To find the right component for that stage, you can explore more IGBT Modules.
Key Technical Specifications
For complete details, refer to the MDS500A/1600V Datasheet.
| Parameter | Value |
|---|---|
| Repetitive Peak Reverse Voltage (VRRM) | 1600 V |
| Average On-State Current (IT(AV)) | 500 A |
| Peak On-State Voltage (VTM) | ≤1.55 V |
| Surge (Non-Repetitive) On-State Current (ITSM) | 12000 A (50Hz) / 13000 A (60Hz) |
| Isolation Voltage (Visol) | 2500 V (AC, 1 minute) |
Selection Guidance: MDS500A/1600V vs. Standard Diode Rectifiers
While a standard diode bridge module may suffice for applications with stable power and low inrush risk, the MDS500A/1600V is the superior choice when control and ruggedness are paramount. Choose this thyristor module if your application requires:
- Soft-Start Functionality: To limit inrush current and reduce stress on mechanical and electrical components.
- Operation on Unstable Grids: The controlled firing provides inherent immunity to line-side voltage transients.
- Highest Reliability Needs: In mission-critical systems where rectifier failure would lead to significant downtime or damage.
For systems that do not require controlled rectification, a simpler and more cost-effective diode module may be suitable. However, for high-power industrial automation and power conversion, the protective features of the MDS500A/1600V offer invaluable long-term benefits. For detailed application analysis and pricing, please Contact Us for a Quote.
