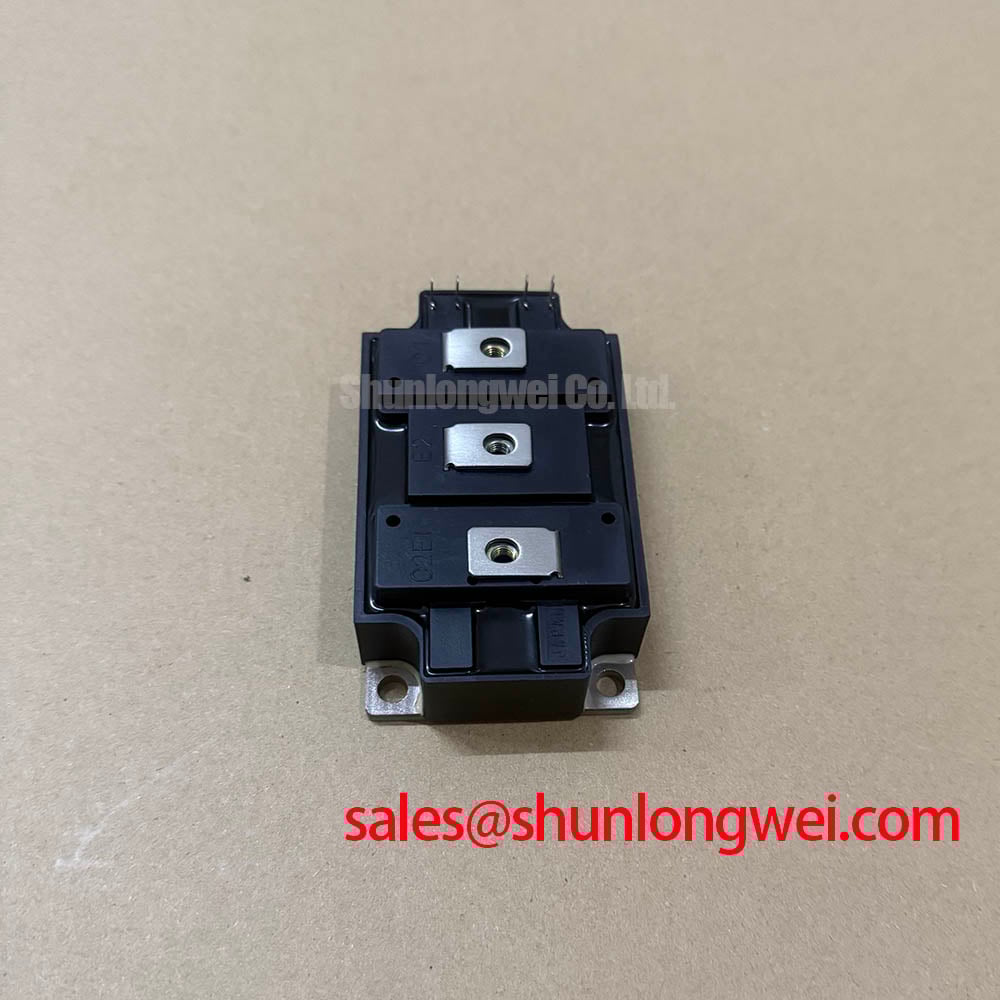

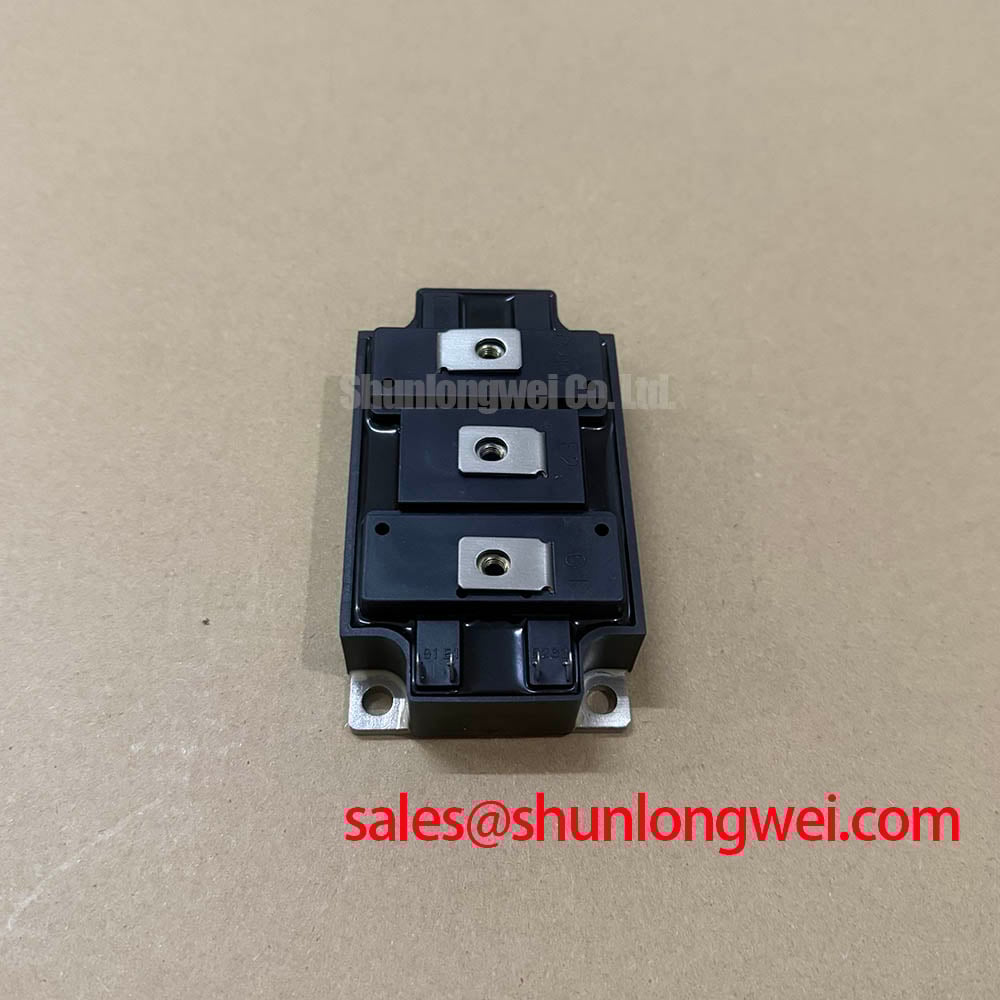

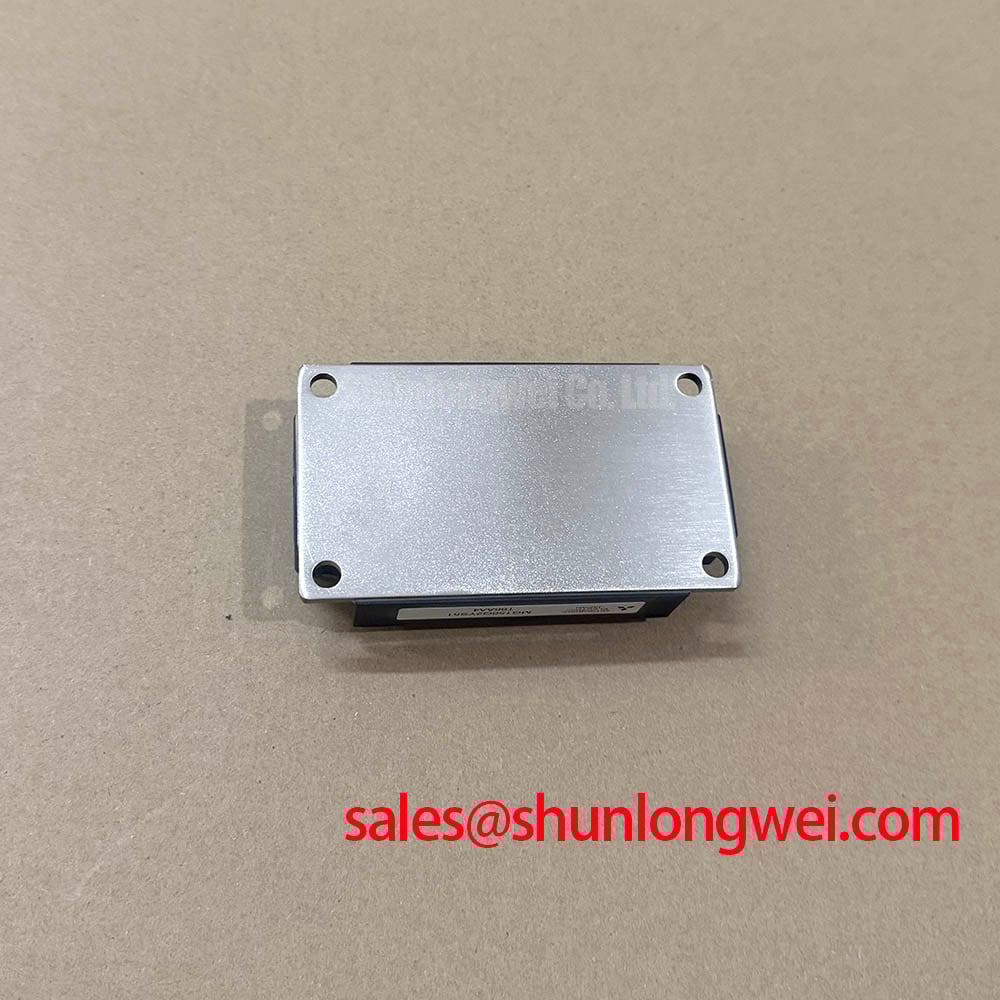

Toshiba MG150Q2YS51 | Robust 1200V/150A Dual IGBT for High-Reliability Power Conversion
The Toshiba MG150Q2YS51 is a stalwart in the world of power electronics, representing a class of IGBT modules engineered for durability and consistent performance. This dual IGBT module, configured as a half-bridge, delivers a robust 1200V blocking voltage and a 150A continuous collector current rating. It is designed not for chasing the latest efficiency records, but for providing an exceptionally reliable and cost-effective switching solution in demanding industrial environments where long-term operational stability is paramount.
Application Scenarios & Engineering Value
The true value of a component like the MG150Q2YS51 is demonstrated in its field-proven applicability. Its design characteristics make it an ideal choice for engineers developing or maintaining systems in the following domains:
- Variable Frequency Drives (VFDs): In motor control applications, the module's ruggedness and well-defined Safe Operating Area (SOA) provide the necessary resilience to handle the demanding inductive load switching inherent in three-phase motor inverters. Its thermal performance ensures reliability under cyclic loading conditions.
- Uninterruptible Power Supplies (UPS): For mission-critical systems, component failure is not an option. The MG150Q2YS51 offers a legacy of proven performance, giving system designers confidence in its long-term reliability for both online and line-interactive UPS topologies.
- Industrial Welding Power Supplies: The module's high-speed switching capabilities are well-suited for the power stages of welding equipment, enabling the high-frequency operation required for stable arc control and efficient power delivery.
Key Technical Parameters at a Glance
For engineers requiring quick access to critical specifications, the following table summarizes the performance of the Toshiba MG150Q2YS51. For a comprehensive breakdown of all parameters, you can download the full datasheet here.
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (VCES) | 1200 V |
| Continuous Collector Current (IC) @ TC=80°C | 150 A |
| Collector-Emitter Saturation Voltage (VCE(sat)) typ. @ IC=150A | 2.7 V |
| Total Power Dissipation (PC) | 830 W |
| Operating Junction Temperature (Tj) | -40°C to +150°C |
| Isolation Voltage (Visol) | 2500 V (AC, 1 minute) |
Technical Deep Dive: The Engineering Trade-offs
Understanding the design philosophy behind the MG150Q2YS51 is key to deploying it effectively. Unlike modern trench-gate IGBTs that prioritize ultra-low conduction losses, this module strikes a deliberate balance between VCE(sat) and switching performance. This optimization makes it highly effective in applications operating in the 5 kHz to 20 kHz range, where both switching and conduction losses contribute significantly to the total thermal load. This balanced approach prevents the excessive switching losses that can occur when using a slower, low-VCE(sat) device at higher frequencies, leading to a more manageable and reliable thermal design.
Design-In and Selection Guidance
When incorporating the Toshiba MG150Q2YS51 into a new design or as a replacement part, certain considerations will maximize performance and reliability. Proper gate drive design is critical; a voltage of +15V for turn-on and a negative voltage between -5V and -10V for turn-off is recommended. The negative turn-off voltage provides a strong buffer against dV/dt induced parasitic turn-on, enhancing system immunity in noisy environments.
This module is the optimal choice for systems where proven reliability and cost-effectiveness outweigh the need for the absolute highest power density or efficiency. For new, compact designs targeting premium efficiency standards, a more modern module with advanced silicon technology might be warranted. However, for upgrading existing systems or for new designs in rugged industrial machinery, the MG150Q2YS51 offers a robust, no-compromise solution with a well-understood performance profile.
Frequently Asked Questions (FAQ)
Q1: Can the MG150Q2YS51 modules be connected in parallel for higher current capability?
A: Yes, paralleling is possible. However, careful attention must be paid to ensure symmetrical layout to balance stray inductances and dedicated gate driver resistors for each module to prevent oscillations. It's also crucial to match modules based on their VCE(sat) characteristics and ensure effective thermal coupling for current sharing, a topic further explored in our in-depth analysis of IGBT modules.
Q2: Given its VCE(sat), is this module still efficient for modern applications?
A: Efficiency is application-dependent. While its VCE(sat) is higher than the latest-generation IGBTs, its switching losses are well-controlled. In moderate-frequency Variable Frequency Drives (VFDs) or UPS systems, the total power loss can be comparable to or even better than some alternatives not optimized for that frequency range. It represents a trade-off that prioritizes ruggedness and cost over peak efficiency metrics.
