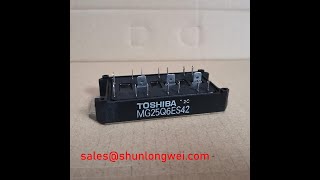

Toshiba MG25Q6ES42 | Robust 1200V Six-Pack IGBT Module for Industrial Drives
The Toshiba MG25Q6ES42 is a workhorse Insulated Gate Bipolar Transistor (IGBT) module designed for reliability and simplicity in three-phase power conversion systems. Engineered by Toshiba, this module integrates a full six-pack (3-phase bridge) configuration into a single, robust package, making it an ideal choice for legacy system repairs, cost-sensitive new designs, and applications where durability is paramount.
Product Highlights at a Glance
- Voltage and Current Rating: 1200V Collector-Emitter Voltage (VCES) and 25A Collector Current (IC), providing ample headroom for industrial applications.
- Integrated Six-Pack Topology: Contains six IGBTs in a three-phase bridge configuration, simplifying PCB layout, reducing component count, and minimizing stray inductance compared to discrete solutions.
- Proven Durability: Built for long-term performance in demanding industrial environments like motor control and general-purpose inverters.
- Optimized for Low-to-Mid Frequency: Well-suited for applications operating in the typical motor drive frequency range (a few kHz up to ~10 kHz).
Key Technical Parameters
For engineers requiring quick access to critical data, the table below summarizes the core specifications of the Toshiba MG25Q6ES42. For a comprehensive overview, you can Download the MG25Q6ES42 Datasheet.
| Parameter | Value |
|---|---|
| Max. Collector-Emitter Voltage (VCES) | 1200V |
| Max. Continuous Collector Current (IC at TC=80°C) | 15A |
| Max. Collector-Emitter Saturation Voltage (VCE(sat)) | 4.0V |
| Max. Power Dissipation (PC) | 150W |
| Operating Junction Temperature (Tj) | -40°C to +150°C |
Application Scenarios & Value Proposition
The MG25Q6ES42 excels in applications where a balance of performance, cost, and proven reliability is essential. Its architecture provides tangible benefits across several key industrial sectors.
- Small to Medium AC Motor Drives: The 1200V rating offers a crucial safety margin for drives operating on 380V to 480V AC lines. Its integrated six-pack design is perfect for compact Variable Frequency Drives (VFDs) powering motors in conveyors, pumps, and manufacturing equipment up to approximately 5.5 kW.
- HVAC Systems and Pumps: In applications like commercial air handlers and water pumps, where switching frequencies are moderate and system cost is a key driver, the Toshiba MG25Q6ES42 provides a reliable and economical power stage solution.
- General-Purpose Power Supplies: For building robust welding power supplies or industrial battery chargers, this module's rugged construction ensures stable operation under demanding load conditions.
Engineered for Durability and System Integration
The design philosophy behind the Toshiba MG25Q6ES42 prioritizes operational robustness and ease of integration over chasing the lowest possible conduction loss. This makes it a strategic choice for specific engineering challenges.
The high 1200V breakdown voltage is not just a number; it's a buffer against the unpredictable voltage spikes and transients common on industrial power grids. This inherent ruggedness helps prevent catastrophic failures and extends the operational life of the end equipment. Furthermore, consolidating six IGBTs into a single module simplifies thermal management by providing a single, flat baseplate to mount to a heatsink. This contrasts with the more complex thermal design required for six individual discrete components, ultimately improving the system's thermal performance and reliability. To learn more about the advantages of integrated solutions, explore our guide to IGBT modules as the backbone of power systems.
Frequently Asked Questions (FAQ)
1. What is the optimal switching frequency for the MG25Q6ES42?
Based on its switching characteristics and relatively high VCE(sat), this module is optimized for lower-frequency hard-switching topologies, typically in the 2 kHz to 10 kHz range. Operating at higher frequencies will lead to a significant increase in switching losses, potentially compromising thermal stability and efficiency.
2. What are the key considerations for its gate drive circuit?
A stable gate drive is crucial for reliable operation. We recommend a dual-supply voltage, such as +15V for turn-on and a negative voltage (e.g., -5V to -15V) for turn-off. The negative bias provides a strong defense against parasitic turn-on caused by the Miller effect, especially in a bridge configuration. For more in-depth guidance, see our tips for robust IGBT gate drive design.
3. Is this module a good choice for new, high-efficiency designs like solar inverters?
The MG25Q6ES42 is an excellent, cost-effective solution for maintenance, repair, and operations (MRO) or for new designs where cost and ruggedness are the primary concerns. For new applications demanding the highest levels of efficiency, such as advanced solar inverters or EV chargers, we recommend exploring newer-generation IGBT modules featuring lower VCE(sat) and faster switching speeds. For specific application advice, please contact our technical team.
