NL6448BC33-70C: 10.4-inch VGA TFT-LCD Engineered for Extreme Industrial Environments and Long-Term Reliability

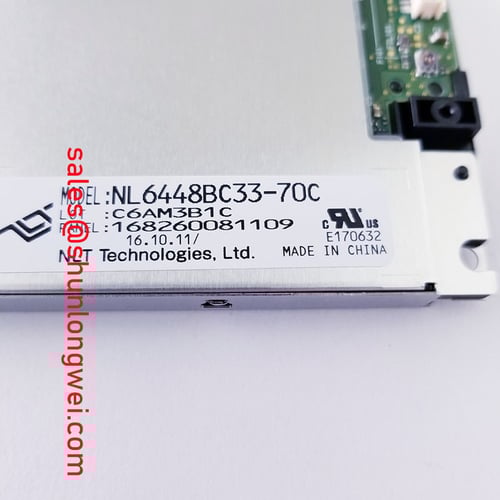

The Tianma (NLT/NEC) NL6448BC33-70C is an industrial-grade 10.4-inch amorphous silicon TFT-LCD module engineered for exceptional visual performance and operational resilience in demanding applications. Its defining feature is an exceptionally wide operating temperature range coupled with a high-brightness, long-life LED backlight, ensuring unwavering clarity and reliability. With its combination of VGA (640x480) resolution, high luminance, and robust construction, this display provides a dependable human-machine interface (HMI) solution for environments where standard displays would fail. For legacy systems in industrial automation or medical diagnostics requiring a display that withstands severe thermal stress, the NL6448BC33-70C's wide temperature range is a critical design advantage. What is the primary benefit of its expansive temperature rating? It guarantees stable optical performance from freezing conditions to high-heat industrial settings, eliminating the need for costly external heating or cooling systems.
Key Parameter Overview
Decoding the Specs for Environmental Resilience and Optical Performance
The technical specifications of the NL6448BC33-70C are purpose-built for industrial endurance and superior readability. The combination of high brightness, an extensive temperature range, and a remarkably long-life backlight system establishes this module as a premier choice for high-reliability systems where uptime and low total cost of ownership are paramount.
| Parameter | Specification | Engineering Value & Interpretation |
|---|---|---|
| Display Size | 10.4 inches (26 cm) | Provides a standard, compact viewing area suitable for a wide range of industrial control panels and embedded HMIs. |
| Resolution | 640(H) x 480(V) VGA | Offers clear, sharp rendering of GUIs, data, and schematics, ideal for legacy system upgrades and new designs not requiring HD resolution. |
| Luminance | 900 cd/m² (Typ.) | Delivers exceptionally bright images, ensuring excellent readability in high ambient light conditions, including indirect sunlight. This is crucial for outdoor kiosks or factory floors with intense lighting. |
| Operating Temperature | -30°C to +80°C | This exceptionally wide range is a key differentiator. It allows for deployment in unconditioned outdoor enclosures, vehicle cabins, and harsh factory environments without performance degradation. |
| Contrast Ratio | 900:1 (Typ.) | Ensures deep blacks and vibrant colors, leading to superior image clarity and reduced operator eye strain. |
| Viewing Angle | 80°/80°/80°/80° (U/D/L/R) | Provides consistent image quality from virtually any viewing direction, a critical feature for control panels accessed by multiple operators from various positions. |
| Backlight Lifetime | 70,000 hours (Typ.) | Translates to nearly 8 years of continuous 24/7 operation, drastically reducing maintenance cycles and total cost of ownership compared to displays with shorter-lived backlights. |
| Interface | CMOS RGB 6-bit | A common interface ensuring compatibility with a wide array of industrial motherboards and single-board computers. |
Download the NL6448BC33-70C datasheet for detailed specifications and performance curves.
Application Scenarios & Value
System-Level Benefits in Mission-Critical HMI and Instrumentation
The NL6448BC33-70C is engineered to deliver unwavering performance where it matters most. Its robust feature set provides tangible value in specialized industrial and commercial applications.
A prime application is in Industrial Automation and process control HMIs. Consider a control panel on a factory floor that experiences significant temperature swings from -10°C in the winter to +50°C near machinery in the summer. The NL6448BC33-70C's exceptional operating temperature range from -30°C to +80°C ensures the display remains fully operational and readable without requiring costly and complex environmental control systems within the HMI enclosure. This simplifies the mechanical design, reduces power consumption, and enhances overall system reliability.
In the field of Marine Electronics, such as bridge control systems or fish finders, displays must contend with direct and reflected sunlight. The panel's high luminance of 900 cd/m², combined with its anti-reflection polarizer surface, cuts through glare to provide pilots and captains with clear, legible critical navigation and sonar data. Its wide viewing angles ensure the data is visible to multiple crew members simultaneously. For systems that may require a different form factor or resolution, the NL6448BC20-30 offers alternative specifications within a similar class of industrial displays.
Frequently Asked Questions (FAQ)
How does the -30°C to +80°C operating temperature impact system design and cost?
This extremely wide temperature range is a significant advantage. It allows the display to be integrated into systems deployed in outdoor, mobile, or unheated/uncooled industrial settings without the need for auxiliary heaters or fans. This directly reduces the bill of materials (BOM), lowers power consumption, simplifies thermal management, and decreases potential points of failure, leading to a more robust and cost-effective final product.
What makes the 70,000-hour backlight lifetime crucial for industrial applications?
A 70,000-hour lifetime equates to approximately 7.9 years of continuous, 24/7 operation. For industrial equipment with long service life expectations, such as CNC machines or power grid controllers, this minimizes the need for costly downtime and maintenance to replace the backlight. It is a key factor in calculating a lower Total Cost of Ownership (TCO).
Is the 900 cd/m² brightness sufficient for outdoor applications?
Yes, a luminance of 900 cd/m² is considered high brightness and is suitable for many outdoor, high ambient light applications, particularly when combined with the display's anti-reflection surface. It ensures readability in environments like covered outdoor kiosks, vehicle cabins, and brightly lit factory floors. For more details on designing for outdoor visibility, explore our guide to sunlight-readable HMIs.
Can the NL6448BC33-70C be used in both portrait and landscape orientations?
The datasheet confirms a reversible-scan direction feature. This, combined with its symmetrical 80-degree viewing angles (up, down, left, and right), makes it perfectly suited for both landscape and portrait mode installations without compromising image quality or color fidelity.
What is the significance of the Transmissive-Enhanced View (T-EVT) technology mentioned in the features?
This is a proprietary technology from Tianma (formerly NEC) designed to improve optical characteristics. It enhances light transmission efficiency through the liquid crystal layer, contributing to the display's high brightness, wide viewing angles, and high contrast ratio, all while maintaining power efficiency.
Technical Deep Dive
Engineering for Uptime: The Long-Life LED Backlight System
At the core of the NL6448BC33-70C's value proposition is its robust LED backlight unit, rated for 70,000 hours of operation. This is not simply a marketing figure; it's the result of specific engineering choices. Unlike the CCFL (Cold Cathode Fluorescent Lamp) backlights found in older industrial displays, this module utilizes high-efficiency, industrial-grade LEDs. This design choice provides several key advantages. Firstly, LEDs are inherently more resistant to shock and vibration, a common reality in industrial machinery and mobile equipment. Secondly, their aging characteristic is gradual dimming over a very long period, rather than the sudden failure common with CCFL inverters. This predictability is vital for preventative maintenance scheduling in critical systems. The backlight's longevity is akin to the difference between a commercial light bulb and an industrial-rated one designed to run for years in a factory; it's fundamentally about minimizing maintenance and maximizing operational uptime.
Industry Insights & Strategic Advantage
Meeting the Demand for Longevity in Industrial Product Lifecycles
OEMs in the industrial, medical, and transportation sectors face a critical challenge: their products often have lifecycles of 10-15 years or more. Sourcing components that can be reliably procured over such a long period is paramount to avoiding costly redesigns and re-certifications. The NL6448BC33-70C is a prime example of a component designed with this long-term availability in mind. Its use of a standard VGA resolution and a common CMOS interface ensures its relevance for both upgrading legacy systems and for new designs where stability is prioritized over cutting-edge resolution. By selecting a display with a proven track record and a design focused on durability rather than fleeting consumer trends, engineers can mitigate supply chain risks and ensure product supportability for years to come. This strategic approach to component selection is a cornerstone of building a sustainable and profitable product line in the industrial market.
From an engineer's perspective, the NL6448BC33-70C is not just a display; it's a design problem-solver. It eliminates the need for complex thermal management, offers predictable long-term performance, and provides the optical clarity required for effective human-machine interaction in challenging settings. Its specifications directly address the core reliability and operational demands of industrial-grade equipment, making it a sound engineering choice for systems built to last.
