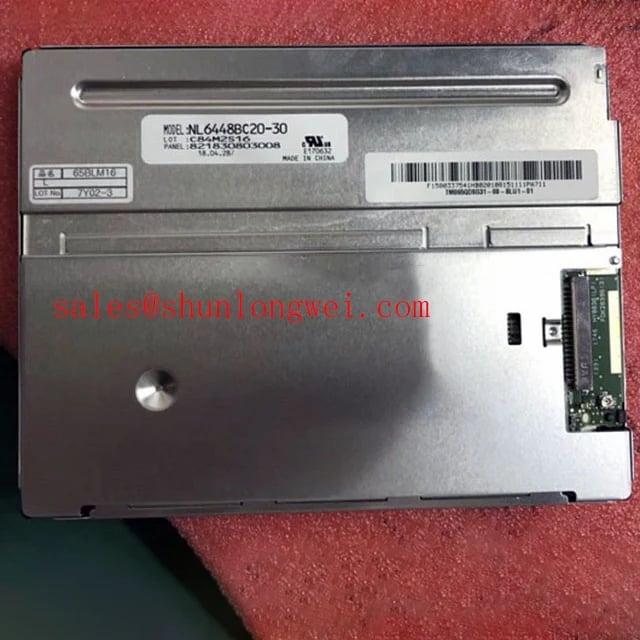

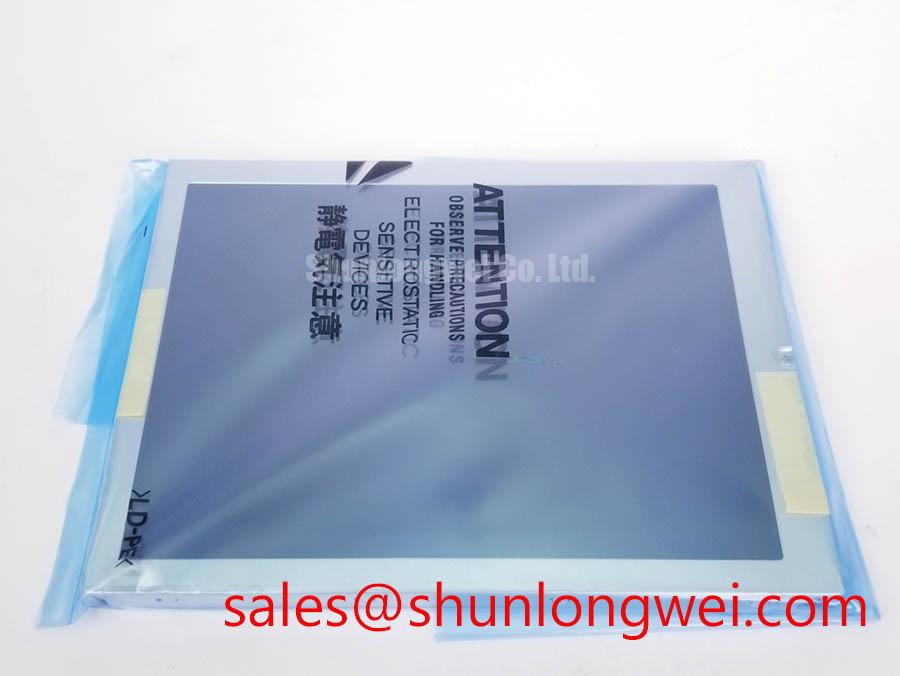

NL6448BC20-30: Industrial 6.5" VGA Display Engineered for Extreme Temperatures and High-Ambient Light Conditions
Introduction: A Benchmark in Rugged Optical Performance
The NL6448BC20-30 is a 6.5-inch a-Si TFT-LCD module engineered for exceptional visual clarity and operational resilience in demanding industrial and outdoor environments. Delivering an impressive 1000 cd/m² brightness and an expansive operating temperature range, this display provides a robust HMI solution where performance cannot be compromised. Its combination of high brightness, wide temperature tolerance, and long-life WLED backlight directly addresses the critical need for reliable readability in applications from transportation to industrial automation. For systems requiring consistent performance across extreme thermal gradients and high-ambient light, the NL6448BC20-30's specification profile makes it a premier engineering choice.
Key Parameter Overview
Decoding the Specs for Environmental Resilience and Optical Clarity
The technical specifications of the NL6448BC20-30 are tailored for high-reliability applications. The display's performance is anchored by its exceptional brightness and ability to function across a wide thermal spectrum, ensuring data is always legible and the system remains operational.
| Parameter | Specification | Engineering Value |
|---|---|---|
| Screen Size | 6.5 inch (17 cm) | Compact form factor for space-constrained industrial panels. |
| Resolution | 640(RGB) x 480 (VGA) | Standard resolution for clear rendering of industrial HMI graphics and data. |
| Luminance | 1000 cd/m² (typ.) | Ensures excellent readability in direct sunlight or high-ambient light factory settings. |
| Operating Temperature | -30°C to +80°C | Guarantees reliable operation in unconditioned outdoor enclosures or industrial control cabinets. |
| Contrast Ratio | 800:1 (typ.) | Provides sharp, well-defined images and text. |
| Viewing Angle (H/V) | 80°/80°/80°/80° (typ.) | Allows for clear off-axis viewing, critical for panels accessed by multiple operators. |
| Backlight System | WLED, 70,000 hours (typ.) | Offers long operational life, reducing total cost of ownership and maintenance requirements. |
| Interface | LVDS (1 ch, 6/8-bit) | Provides a robust, low-noise digital signal interface common in industrial systems. |
Download the NL6448BC20-30 datasheet for detailed specifications and performance curves.
Application Scenarios & Value
Delivering System-Level Benefits in Harsh Environment HMIs
The NL6448BC20-30 is engineered to solve specific challenges faced by system designers in harsh environments. Its value is most evident where standard displays fail due to environmental stress or poor readability.
High-Fidelity Engineering Scenario: Outdoor Kiosks & Public Information Displays
An engineering team designing an outdoor ticketing kiosk faces a critical challenge: ensuring the screen remains perfectly readable from dawn to dusk, under direct sunlight, and functional through freezing winters and hot summers. A standard commercial display would wash out in bright light and could fail at temperature extremes. The NL6448BC20-30 directly addresses this. Its 1000 cd/m² luminance—akin to the difference between a standard indoor light bulb and a high-intensity spotlight—cuts through solar glare, ensuring ticket information is always legible. Simultaneously, its wide -30°C to +80°C operating range means the kiosk's HMI will perform reliably, whether installed in a ski resort or a desert climate, eliminating the need for complex and costly external heating or cooling systems. This dual capability simplifies the thermal management design and drastically improves system uptime and reliability.
For applications demanding a different resolution or feature set, related products can provide tailored solutions. For instance, the NL8060BC26-30D offers a higher SVGA resolution in a larger 10.4-inch format for more complex data visualization needs.
Frequently Asked Questions (FAQ)
What is the primary benefit of the 1000 cd/m² brightness?
Its primary benefit is exceptional sunlight readability, making it ideal for outdoor applications like vehicle dashboards, marine chart plotters, and public information kiosks where visibility in high-ambient light is non-negotiable.
How does the -30°C to +80°C operating temperature range impact system design?
This wide temperature range allows the display to be used in unconditioned environments without requiring auxiliary heaters or cooling fans. This simplifies the mechanical and thermal design of the end product, reducing complexity, cost, and potential points of failure.
Is the LED backlight on the NL6448BC20-30 replaceable?
Yes, the datasheet indicates that the WLED backlight is a replaceable unit. This is a significant advantage for long-lifecycle industrial equipment, as it allows for field maintenance to extend the operational life of the HMI, maximizing return on investment.
What does the 80/80/80/80 viewing angle specification mean for a user?
It means the display maintains a contrast ratio of at least 10:1 across a very wide viewing cone—80 degrees in every direction (left, right, up, and down). For an operator of industrial machinery, this ensures that critical information can be read accurately from various positions without needing to be directly in front of the screen.
Industry Insights & Strategic Advantage
Meeting the Demands of Modern Industrial and Outdoor Systems
The design philosophy of the NL6448BC20-30 aligns perfectly with the increasing demand for robust and reliable Human-Machine Interfaces (HMIs) in the era of Industrial IoT (IIoT) and automation. As control systems and data displays are pushed out of climate-controlled rooms and into the field—on factory floors, in vehicle cabins, and in outdoor public spaces—the environmental resilience of components becomes a primary driver of system reliability and Total Cost of Ownership (TCO). The NL6448BC20-30's combination of high brightness and extreme temperature tolerance is not just a feature; it is a strategic enabler for OEMs building next-generation equipment. By ensuring data legibility and operational consistency regardless of environmental conditions, this display supports key industry trends like predictive maintenance and remote asset monitoring, where accurate data visualization in the field is paramount. This focus on performance under stress provides a distinct competitive advantage for products intended for long service lives in mission-critical applications, a standard upheld by leading manufacturers like NEC.
Strategic Outlook for Long-Term Deployments
For procurement managers and system architects planning long-lifecycle industrial products, the NL6448BC20-30 offers a compelling value proposition. Its robust design, characterized by a wide operating temperature range and a long-life, replaceable backlight, mitigates risks associated with component obsolescence and environmental failure. This focus on durability and serviceability ensures that equipment deployed in the field today remains functional and maintainable for years to come, protecting the initial capital investment and ensuring operational continuity.
