NL6448BC26-25: Engineering a High-Clarity 8.4-inch VGA Display for Demanding Industrial Environments
A Technical Overview for System Integrators and Design Engineers

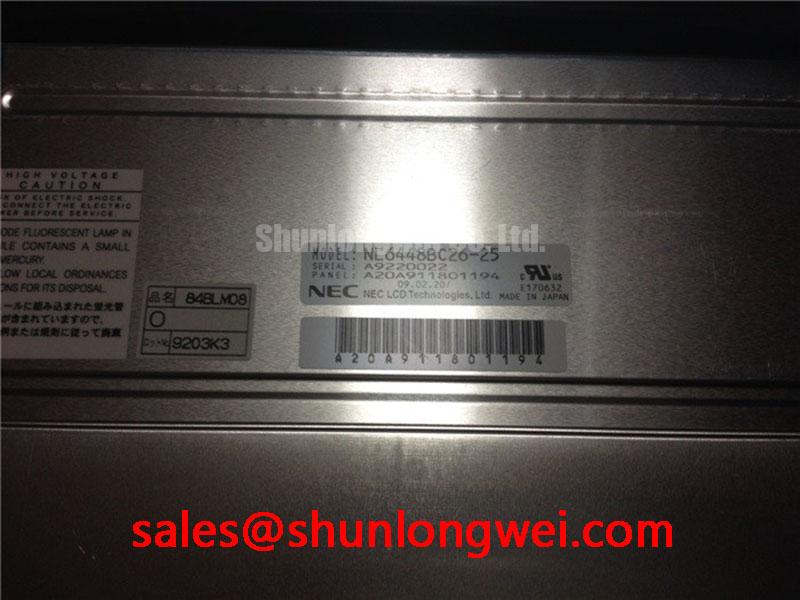

The NL6448BC26-25 is a robust 8.4-inch amorphous silicon TFT-LCD module designed for high-performance industrial applications. It delivers a sharp **640 x 480 (VGA)** resolution with a high brightness of **600 cd/m²** and a contrast ratio of **600:1**. Engineered for reliability and ease of integration, this display provides the optical clarity and operational resilience required for complex Human-Machine Interfaces (HMIs). Its combination of a standard CMOS interface and CCFL backlight system answers the need for a dependable and straightforward display solution in legacy and new system designs. For industrial HMIs requiring consistent visual performance across various lighting conditions, this display's high brightness and contrast are critical engineering advantages.
Application Scenarios & Value
System-Level Benefits in Industrial Control and Instrumentation
The NL6448BC26-25 is engineered to excel in environments where visual clarity and operational uptime are non-negotiable. Its primary value lies in its ability to simplify system integration while providing the durability needed for industrial settings. For an engineer designing a Programmable Logic Controller (PLC) interface or a piece of test and measurement equipment, the display's standard 6-bit CMOS interface is a key advantage. This interface simplifies the connection to a wide range of single-board computers and custom controller boards, reducing the need for complex interface conversion hardware. What does this mean for the design cycle? A faster path from prototype to production by minimizing hardware development overhead.
Consider a specific engineering challenge: deploying a control panel on a factory floor with variable and often harsh lighting. The panel must be instantly readable to ensure operator safety and efficiency. The NL6448BC26-25's high luminance of 600 nits directly addresses this challenge, providing a bright, clear image that remains legible even under intense overhead lighting. This is not merely a convenience; it's a core functional requirement for effective HMI design. The 8.4-inch screen size and VGA resolution offer an optimal balance between information density and physical footprint, making it suitable for compact control consoles without sacrificing usability. While this model provides excellent performance, for applications requiring a direct digital LVDS interface, the related NL6448BC33-97D offers an alternative integration path.
Key Parameter Overview
Highlighting Critical Specifications for Design-In
The technical specifications of the NL6448BC26-25 are tailored for industrial utility. The following parameters are crucial for system-level design, thermal management, and interface compatibility.
| Parameter | Specification | Engineering Significance |
|---|---|---|
| Screen Size | 8.4 inches (21 cm) | Provides a compact yet readable viewing area for data-rich HMIs. |
| Resolution | 640(RGB)×480, VGA | Standard resolution ensuring compatibility with a wide range of industrial software and graphics controllers. |
| Brightness | 600 cd/m² (Typ.) | Ensures excellent readability in high ambient light conditions, critical for factory floors and outdoor-adjacent applications. |
| Contrast Ratio | 600:1 (Typ.) | Delivers sharp image quality with distinct blacks and whites, enhancing data legibility. |
| Viewing Angle | 80/80/60/70 (L/R/U/D) (Typ.) | Offers flexible installation and viewing options for operators who may not be directly in front of the screen. |
| Signal Interface | CMOS (1 ch, 6-bit) | A straightforward parallel interface that simplifies connection to legacy and embedded systems without specialized drivers. |
| Operating Temperature | -10 ~ 70 °C | Supports reliable operation in a wide range of industrial environments. |
| Backlight System | CCFL with replaceable lamp | A proven, high-brightness backlight technology designed for long-term serviceability. |
Download the NL6448BC26-25 datasheet for detailed specifications and performance curves.
Frequently Asked Questions for Engineers
How does the 600 cd/m² brightness impact HMI design in real-world industrial settings?
The high brightness level is a critical performance metric that directly translates to superior sunlight readability and visibility under harsh factory lighting. Think of it as the display's ability to "shout" over the "noise" of ambient light. This ensures that critical alerts, data readouts, and control interfaces on a sunlight-readable HMI are never washed out, reducing operator error and improving safety.
What are the primary considerations when integrating a display with a CMOS interface versus an LVDS interface?
A CMOS interface, like the one on the NL6448BC26-25, is a parallel interface that is often simpler to implement for shorter distances between the display and controller. It can sometimes be more susceptible to noise over longer cable runs. In contrast, an LVDS (Low-Voltage Differential Signaling) interface uses fewer wires and offers superior noise immunity, making it ideal for systems where the display is further from the driver board. The choice depends on your system's specific architecture and EMI constraints.
What is the typical lifespan of the CCFL backlight, and how does it affect system maintenance?
The CCFL backlight is typically rated for tens of thousands of hours of operation. A key feature is its serviceability; the lamp is often designed to be replaceable. This extends the useful life of the entire HMI unit, as a failed backlight does not necessitate a complete system replacement, thereby lowering the total cost of ownership over the product's lifecycle.
Does the -10 to 70 °C operating temperature range accommodate unconditioned environments?
Yes, this wide operating temperature range is a hallmark of an industrial-grade display. It ensures reliable startup and sustained performance in environments that lack strict climate control, such as factory floors, warehouses, or enclosed outdoor kiosks, where temperatures can fluctuate significantly.
Strategic Integration for Long-Life Industrial Systems
Selecting the NL6448BC26-25 is a strategic decision for projects prioritizing proven technology, straightforward integration, and reliable visual performance. Its robust design and high-clarity optics provide the foundation for building effective and durable human-machine interfaces that can withstand the rigors of the industrial environment. This display is not just a component; it is an enabling technology for creating dependable control and monitoring systems that deliver value over an extended operational lifetime.
