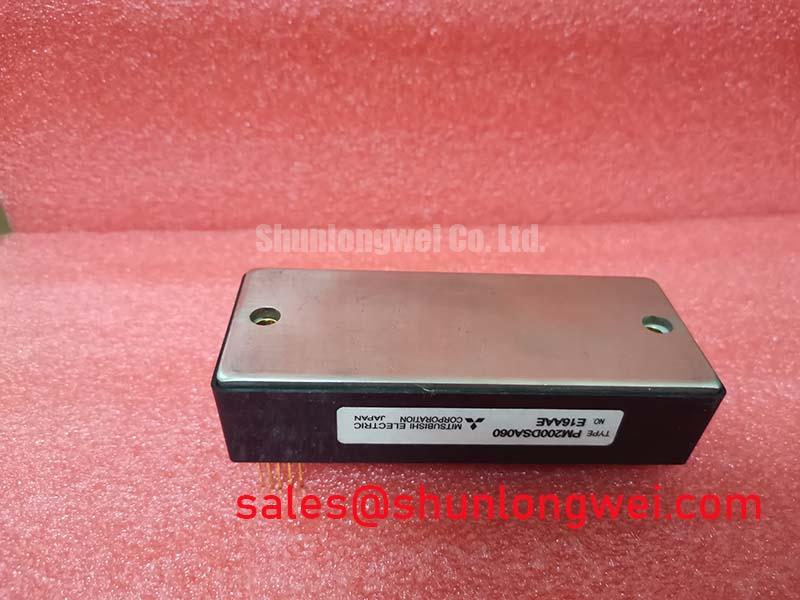

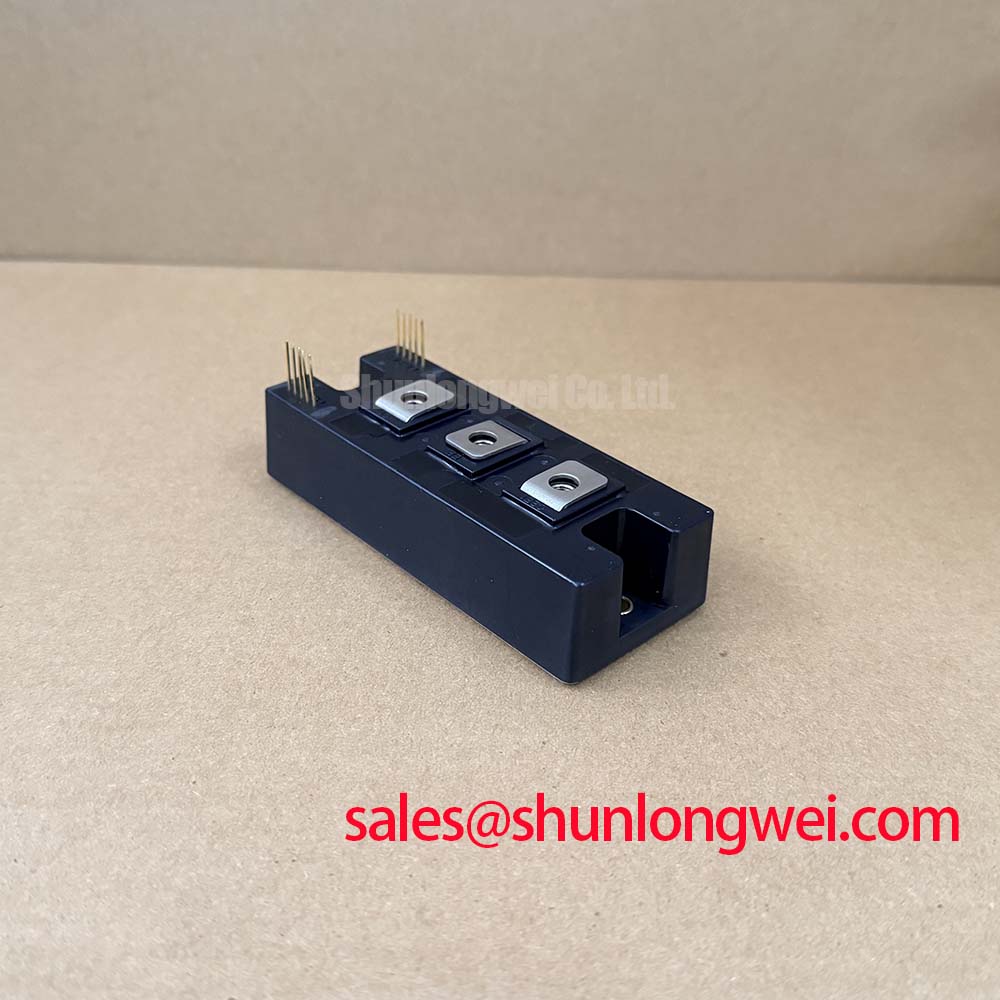

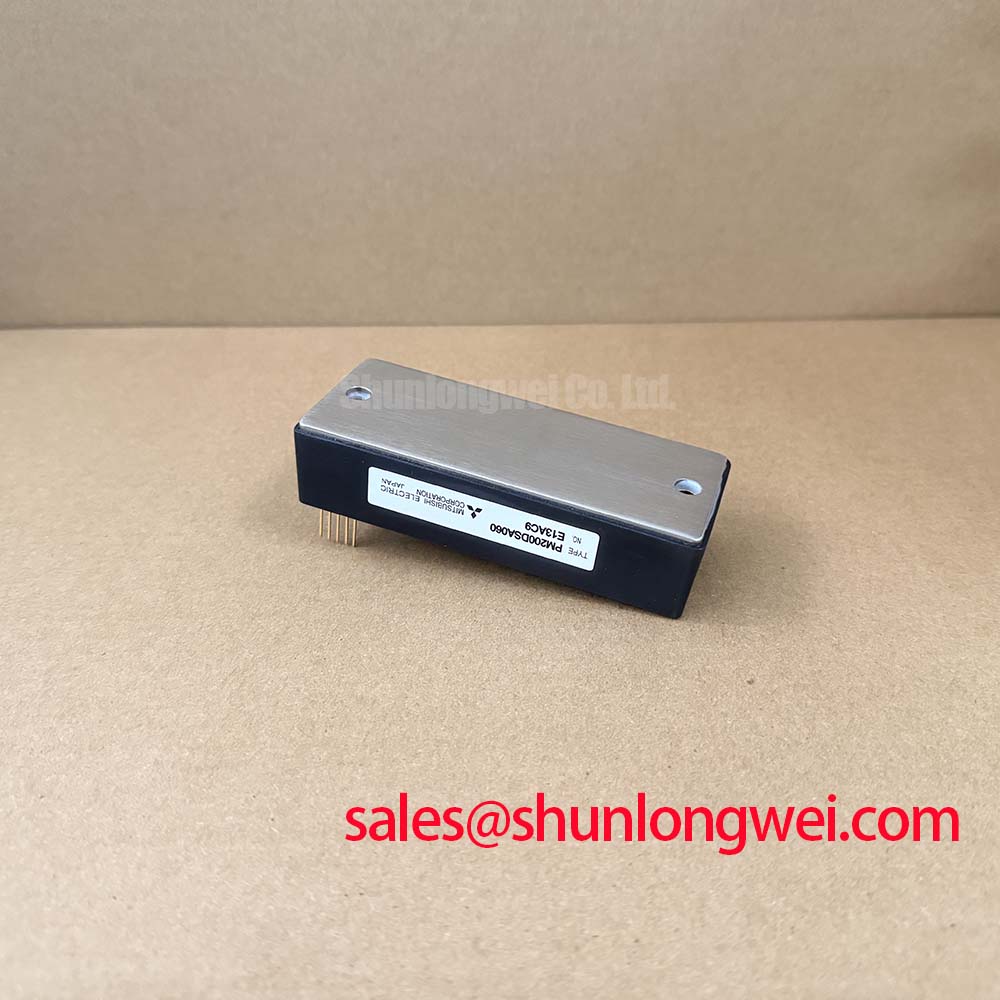

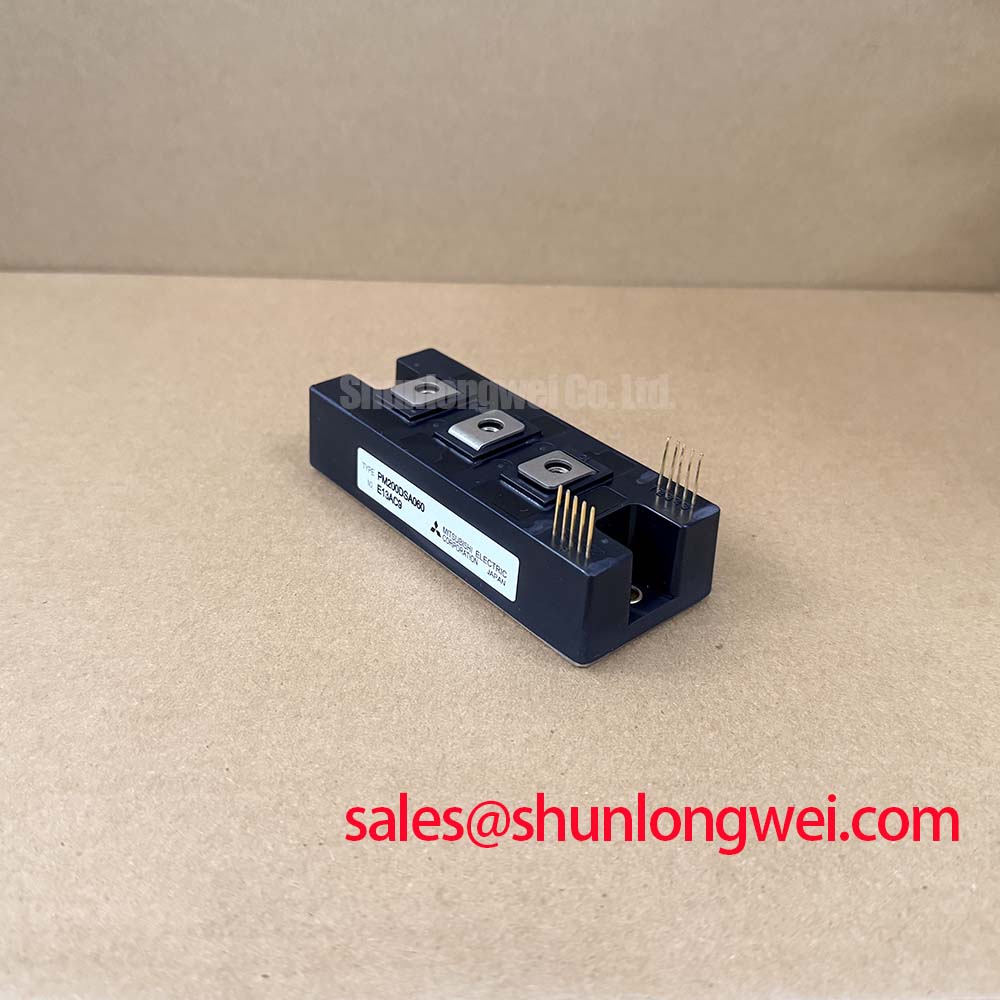

PM200DSA060 IPM: Reliable 600V/200A Power Stage with Integrated Drive and Protection
From Design Complexity to Integrated Simplicity
Designing a robust three-phase inverter stage with discrete components presents a significant engineering challenge. It involves intricate gate drive design, careful component matching, complex layout for minimizing parasitic inductance, and implementing multiple layers of external protection circuitry. Each of these steps introduces potential points of failure and extends development timelines. The Mitsubishi PM200DSA060 Intelligent Power Module (IPM) fundamentally changes this equation. It transitions the design focus from component-level complexity to system-level integration. This module is not simply a collection of IGBTs; it is a fully integrated power stage, complete with optimized gate drivers and a comprehensive suite of protection functions. The core value of the PM200DSA060 lies in its ability to deliver pre-validated reliability and accelerate time-to-market for demanding motor control applications.
Strategic Selection: PM200DSA060 vs. Alternative Design Approaches
When specifying a power stage, engineers face a critical choice between discrete components, standard IGBT modules, and Intelligent Power Modules. A discrete solution offers maximum layout flexibility but carries the highest design burden and risk. A standard IGBT module, like the CM200DY-24H, simplifies the power switch layout but still requires a separate, carefully designed gate driver board and external protection logic. The PM200DSA060 IPM represents the highest level of integration. It incorporates the power switches, freewheeling diodes, and the critical drive and protection intelligence into a single, thermally efficient package. This approach drastically reduces component count, shrinks the overall system footprint, and, most importantly, eliminates the complex and sensitive interface between the control logic and the power devices, a common source of field failures.
Deploying Integrated Reliability: Core Applications
The inherent robustness and simplified design interface of the PM200DSA060 make it an ideal solution for systems where operational uptime and long-term reliability are paramount.
- Variable Frequency Drives (VFDs): In industrial VFDs controlling pumps, fans, and conveyors, the integrated over-temperature and short-circuit protection prevents catastrophic failures due to motor stalls or phase-to-phase faults.
- Servo Drives: The module's optimized switching characteristics and fast-acting protection are essential for the high-dynamic performance required in CNC machinery and robotic servo systems.
- Industrial Robotics: For multi-axis robotic arms, the compact footprint allows for higher power density in the robot controller, while the built-in protections ensure the safety and longevity of the drive system.
- Commercial HVAC Systems: In high-capacity air conditioning and refrigeration units, the PM200DSA060 provides a dependable and efficient heart for the compressor and fan motor inverters, reducing service calls and operational costs.
Inside the Architecture: How Integrated Functions Deliver Robustness
The performance of the PM200DSA060 is rooted in its highly integrated internal architecture. The module contains six 600V-rated IGBTs and six freewheeling diodes arranged in a three-phase bridge configuration. Crucially, it also houses low-voltage ICs that provide several key functions. An optimized gate drive circuit ensures controlled switching of the IGBTs, minimizing both switching losses and electromagnetic interference (EMI). The true advantage comes from the built-in protection logic. This includes short-circuit (SC) protection, which rapidly shuts down the IGBTs in case of a load fault; over-temperature (OT) protection, which prevents thermal runaway; and control supply under-voltage (UV) lockout, which ensures the IGBTs are never driven with insufficient gate voltage. Think of these integrated protections as a vehicle's traction control and airbag system—always on, reacting faster than an external controller ever could to prevent system damage. Understanding these integrated features is key, and resources like a guide to decoding IGBT datasheets can provide deeper context on individual parameters.
Meeting Tomorrow's Demands for Uptime and Efficiency
The industrial landscape is moving towards greater automation and connectivity under the banner of Industry 4.0. This evolution places immense pressure on equipment manufacturers to deliver systems with near-zero downtime and higher energy efficiency. The Mitsubishi PM200DSA060 directly supports these objectives. By providing a power stage with validated, built-in protection, it significantly enhances the overall reliability of the end system. This leads to a lower total cost of ownership (TCO) for the asset operator. Furthermore, the integrated design approach allows engineering teams to focus their resources on higher-level software and system features, rather than on the intricacies of power circuit design, fostering innovation and reducing the product development cycle. For more information on the technology behind this module, visit the official Mitsubishi Electric power devices page.
Core Specifications for System Integration
The following parameters are central to the integration of the PM200DSA060 into your power conversion system. For a complete list of specifications, please download the official datasheet.
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (VCES) | 600 V |
| Collector Current (IC) | 200 A |
| Collector Power Dissipation (PC) | 694 W |
| Isolation Voltage (Viso) | 2500 Vrms |
| Integrated Protection Functions | Short-Circuit (SC), Over-Temperature (OT), Control Under-Voltage (UV) |
Interpreting the Key Values
Isolation Voltage (Viso): The 2500 Vrms rating is not just about meeting safety standards; it defines the module's electrical robustness. This level of isolation ensures a safe and reliable barrier between the high-power output and the sensitive low-voltage control circuits, which is critical for compliance with industrial safety regulations like UL and IEC.
Integrated Protection Functions: This is arguably the most critical "parameter." Unlike a standard module where protection is external, the PM200DSA060's internal, high-speed fault detection and shutdown capability provides a much more effective defense against destructive events, directly translating to enhanced system longevity and reduced field service requirements.
A Strategic Path to More Resilient Power Systems
Integrating the Mitsubishi PM200DSA060 is more than a component choice; it is a strategic decision to de-risk product development and build more resilient, compact, and market-ready power systems. By abstracting the complexities of gate drive and protection design, this Intelligent Power Module empowers engineering teams to innovate with confidence. It lays a reliable foundation for the next generation of industrial automation, servo control, and high-efficiency motor drives, ensuring that system performance is matched by unwavering operational integrity. Adopting this integrated approach is a direct investment in the long-term reliability and market competitiveness of your final product.
