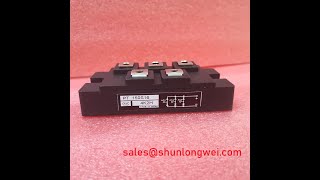

NIEC PT150S16 IGBT Module

```html

NIEC PT150S16 | High-Voltage 1600V Power IGBT Module for Robust Industrial Applications

The NIEC PT150S16 is not just another power switch; it's a foundational component engineered for exceptional durability in high-stress power conversion systems. As a single IGBT module, it provides design engineers with a straightforward, high-performance solution for applications where voltage ruggedness is paramount. This module is the go-to choice for systems demanding a significant safety margin and proven reliability.

Engineered for Demanding High-Power Environments

The true value of the NIEC PT150S16 is revealed in its performance under challenging operational conditions. Its high voltage and current ratings make it a perfect fit for several key industrial applications:

• High-Voltage Motor Drives: In large-scale Variable Frequency Drives (VFDs), the 1600V collector-emitter voltage (VCES) rating provides a critical safety margin against the severe voltage overshoots generated by the inductive kickback of large motors. This enhances system longevity and reduces the risk of catastrophic failure.
• Welding Power Supplies: Welding applications subject components to intense thermal cycling and erratic load conditions. The PT150S16's robust construction and 150A current capability ensure stable power delivery for consistent, high-quality welds.
• Industrial UPS Systems: For high-power Uninterruptible Power Supply (UPS) units, especially those connected to unstable grids or employing high DC bus voltages, reliability is non-negotiable. This module provides the robust switching backbone needed to ensure continuous, clean power.

Under the Hood: The Engineering of High-Voltage Reliability

Two core engineering principles define the PT150S16's suitability for demanding applications. Understanding these reveals why it's more than just its specs.

First, the 1600V VCES Rating is a deliberate design choice for creating a wide Safe Operating Area (SOA). This rating provides an essential buffer against the transient overvoltage events that are a leading cause of IGBT failure in industrial environments. By integrating this level of protection at the die level, engineers can often simplify external snubber circuit designs, saving both cost and board space.

Second, there is a strategic balance between Conduction Loss (VCE(sat)) and Robustness. While 1200V IGBTs may offer marginally lower VCE(sat) values, the NIEC PT150S16 is optimized for applications where surviving voltage stress is a higher priority than minimizing every last millivolt of conduction loss. This trade-off ensures the module remains stable and reliable in its intended high-voltage, hard-switching applications.

Key Technical Specifications at a Glance

For a complete list of parameters, absolute maximum ratings, and characteristic curves, please download the official NIEC PT150S16 datasheet.

Expert Answers to Your Design Questions

What is the primary benefit of using a 1600V IGBT over a more common 1200V one?

The primary benefit is the significantly enhanced safety margin against overvoltage. For systems with DC bus voltages approaching or exceeding 700V, or in applications known for high inductive voltage spikes (like large motor control), a 1200V device offers little headroom. The 1600V rating of the PT150S16 provides the necessary protection to ensure long-term system reliability and prevent field failures.

How critical is thermal management for the PT150S16?

It is absolutely critical. For any power module rated at 150A, effectively dissipating heat is essential for performance and longevity. The goal is to minimize the Thermal Resistance from the IGBT junction to the ambient air. This requires a high-quality thermal interface material (TIM) and an appropriately sized heatsink designed to handle the calculated power losses for your specific application.

Choosing the Right Tool: When to Specify the PT150S16

The decision to use a 1600V IGBT module like the NIEC PT150S16 is a strategic one. It is the ideal choice when your design priorities are, in order: safety, reliability, and then efficiency. While 1200V modules are the workhorses for standard 400/480VAC-fed inverters, the PT150S16 excels where the electrical environment is harsh and unpredictable. It is the engineer's selection for building systems that are not just powerful, but truly resilient.

If your system demands uncompromising reliability in the face of high voltage stress, the NIEC PT150S16 is a proven and dependable power switching solution. For detailed application support or to discuss your specific design challenges, contact our technical team.

```
