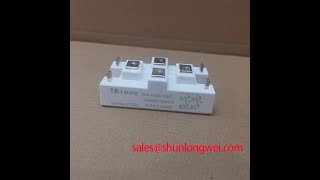

TRinno S4G50T120SC9 IGBT Module

S4G50T120SC9 IGBT Module: Technical Review for Power System Design

Introduction and Core Specifications

The S4G50T120SC9 is an IGBT module engineered for robust performance in demanding power conversion applications. It delivers a well-defined balance of voltage withstand capability and current handling, making it a key component for industrial power electronics. With core specifications of 1200V | 50A | VCE(sat) of 1.75V (typ), this module provides two primary engineering benefits: high voltage safety margin and efficient power throughput. It directly addresses the need for reliable switching components in three-phase industrial systems operating on 400V to 480V AC lines. For industrial motor drives up to 22 kW requiring dependable performance, this 1200V module provides a solid design foundation.

Application Scenarios & Value

System-Level Benefits in Industrial Power Control

The S4G50T120SC9 is optimized for applications where efficient and reliable power switching is paramount. Its specifications make it a strong candidate for the inverter stage of small to mid-power industrial systems.

A primary application is in Variable Frequency Drives (VFDs) for AC induction motors. In a typical VFD operating from a 400V AC line, the DC bus voltage can approach 560V. The 1200V Collector-Emitter Voltage (VCES) rating of the S4G50T120SC9 provides the critical voltage headroom required to safely manage voltage spikes caused by inductive load switching, enhancing the drive's long-term reliability. Its 50A continuous collector current rating is well-suited for controlling motors in the 15 kW to 22 kW range, common in conveyor systems, pumps, and HVAC applications.

The module's performance also extends to uninterruptible power supplies (UPS) and welding power sources. In these systems, the 1.75V typical saturation voltage (VCE(sat)) becomes a key factor. A lower VCE(sat) translates directly into lower conduction losses, meaning less heat is generated during operation. This simplifies the thermal management design, potentially allowing for smaller heatsinks and contributing to a more compact and cost-effective end product.

For systems with different power demands, related components can be considered. For instance, applications requiring lower current might evaluate the FP25R12KE3, while higher power systems could necessitate a component like the BSM150GT120DN2 which offers a higher current rating.

Key Parameter Overview

Decoding Performance Metrics for Design Evaluation

The technical specifications of the S4G50T120SC9 provide the data necessary for initial system design and component evaluation. The parameters are grouped by function to facilitate a clear review.

Note: The parameters listed are typical values based on available documentation. Engineers must consult the official datasheet for complete characterization, including maximum ratings and performance curves under various operating conditions.

Download the S4G50T120SC9 datasheet for detailed specifications and performance curves.

Industry Insights & Strategic Advantage

Enabling Efficiency in Modern Industrial Automation

The push for greater energy efficiency and automation across the industrial sector places significant demands on power semiconductor technology. IGBT modules like the S4G50T120SC9 are fundamental enablers of this transition. By facilitating precise control over motor speed and torque in VFDs, these components directly contribute to reducing the immense energy consumption of industrial motor systems, helping facilities meet stringent energy standards and lower operational costs.

The reliability of power components is a cornerstone of Overall Equipment Effectiveness (OEE) in manufacturing. The robust 1200V rating of this module provides the design margin needed to create resilient systems that can withstand the electrical stresses of harsh industrial environments. This focus on reliability ensures longer equipment lifecycles and minimizes costly downtime. As industries increasingly adopt smart manufacturing and Industry 4.0 principles, the need for dependable and efficient power control building blocks like the S4G50T120SC9 will only continue to grow.

Frequently Asked Questions (FAQ)

What is the primary benefit of the 1200V VCES rating?
The 1200V rating provides a crucial safety margin for applications running on 400V to 480V three-phase AC power lines. It ensures the device can safely handle the high DC bus voltages and transient overvoltage spikes common in motor drive and inverter circuits, leading to higher system reliability.

How does the S4G50T120SC9's VCE(sat) of 1.75V influence system design?
This relatively low VCE(sat) directly reduces the power lost as heat during the IGBT's on-state (conduction losses). For a design engineer, this means less heat to manage, potentially simplifying the heatsink requirements and improving the overall energy efficiency of the power converter.

Is the S4G50T120SC9 suitable for high-frequency switching applications?
While the VCE(sat) suggests efficient conduction, evaluating suitability for high-frequency operation (typically >15 kHz) requires a full analysis of the switching losses (Eon, Eoff) and thermal impedance from the complete product datasheet. These parameters determine the heat generated during the turn-on and turn-off transitions, which becomes the dominant loss factor at higher frequencies.
