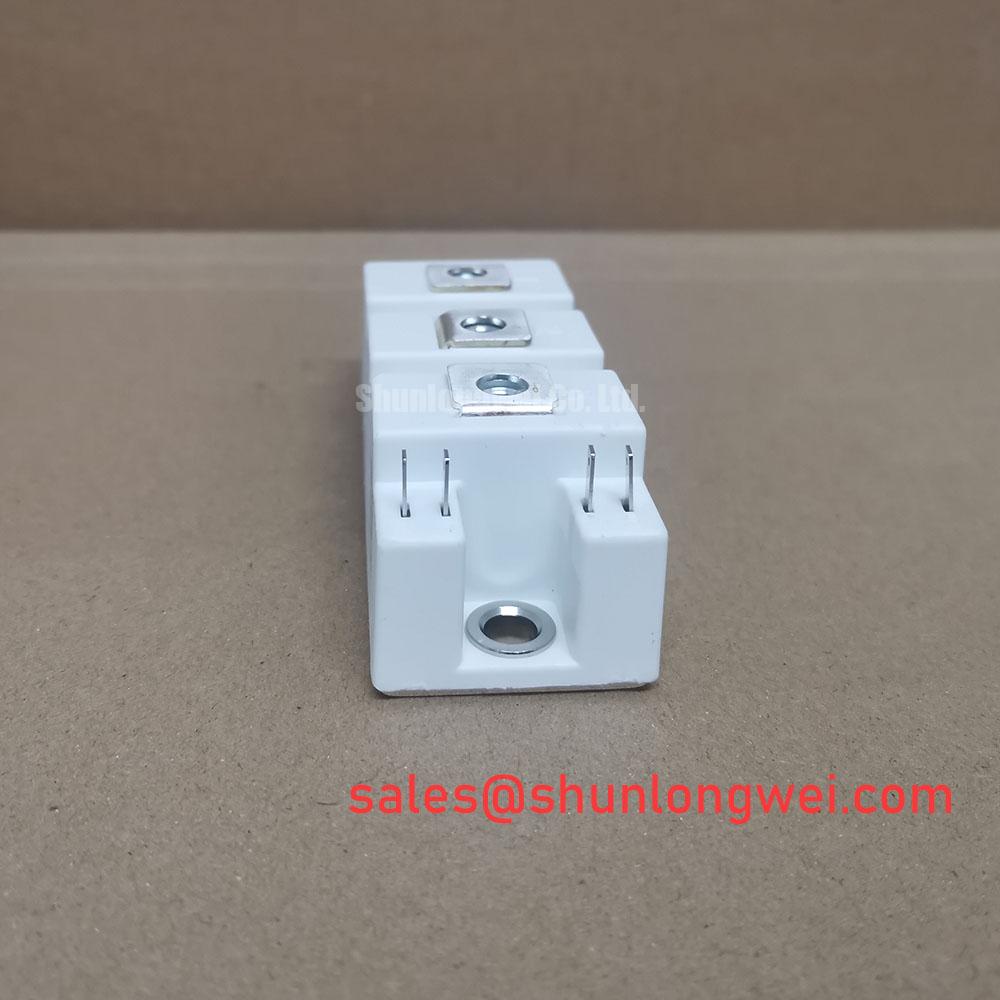

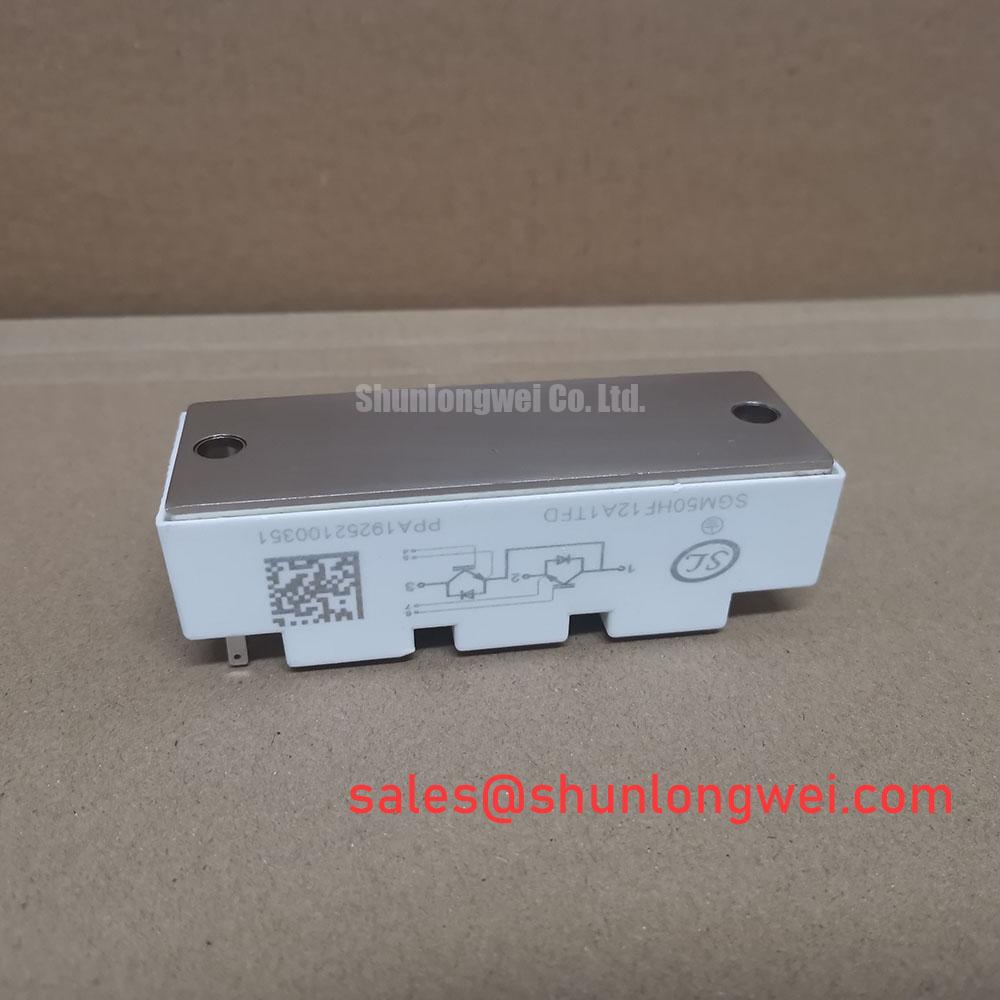

SGM50HF12A1TFD: A 1200V IGBT Module Engineered for High-Frequency Switching Stability
The SGM50HF12A1TFD from Silan Microelectronics is a robust IGBT module engineered for high-reliability power conversion in demanding industrial applications. It delivers a superior balance of conduction and switching performance, centered on a 1200V breakdown voltage and 50A continuous collector current capability. Key specifications include a typical VCE(sat) of 2.3V at its nominal current and a positive temperature coefficient for simplified paralleling. For engineers designing high-frequency systems like uninterruptible power supplies (UPS) and AC inverter drives, this module's architecture directly addresses the critical need for low switching losses and robust short-circuit tolerance. Its design is particularly suited for applications where maintaining stable operation and thermal efficiency under heavy load cycles is a primary design constraint.
Key Parameter Overview
Decoding Electrical and Thermal Characteristics for System Reliability
The SGM50HF12A1TFD's performance is defined by a set of carefully balanced parameters that directly influence its efficiency and durability in real-world applications. Understanding these specifications is crucial for effective thermal management and achieving target system performance.
| Parameter | Value | Conditions |
|---|---|---|
| Collector-Emitter Voltage (Vces) | 1200 V | VGE = 0V, IC = 1mA, Tj = 25°C |
| Continuous Collector Current (Ic) | 50 A | Tc = 110°C |
| Collector-Emitter Saturation Voltage (VCE(sat)) | 2.3 V (Typ.) | VGE = 15V, IC = 50A, Tj = 25°C |
| Total Power Dissipation (Pc) | 340 W | Tc = 25°C |
| Short Circuit Withstand Time (tsc) | ≥ 10 µs | VGE ≤ 15V, VCC = 600V, Tj ≤ 125°C |
| Operating Junction Temperature (Tj) | -40 to +150 °C |
Download the SGM50HF12A1TFD datasheet for detailed specifications and performance curves.
Application Scenarios & Value
Achieving Robust Performance in Industrial Drives and Power Systems
The SGM50HF12A1TFD is optimized for power electronics systems where efficiency and reliability are paramount. Its characteristics make it a strong candidate for several core industrial applications.
- AC Inverter Drives: In a variable frequency drive (VFD), precise motor control requires fast and efficient switching. The low switching loss of the SGM50HF12A1TFD translates directly to reduced thermal stress on the module and the overall system, enabling more compact heatsink designs and improving the drive's long-term reliability. Its high short-circuit capability provides a crucial safety margin against fault conditions common in industrial motor control environments.
- Uninterruptible Power Supplies (UPS): For a UPS system, the ability to handle sudden load changes without failure is critical. The robust 1200V rating and 50A current handling provide ample headroom. The VCE(sat) positive temperature coefficient is a key advantage for paralleling modules to achieve higher power output, ensuring stable current sharing between devices without the risk of thermal runaway.
- Electronic Welding Power Supplies: Welding applications demand components that can withstand high pulse currents and harsh operating conditions. The SGM50HF12A1TFD's DBC (Direct Bonded Copper) technology ensures excellent thermal cycling capability and a low thermal resistance path from the chip to the heatsink, which is essential for managing the intense heat generated during welding processes.
For systems that require different current ratings or configurations while maintaining a 1200V classification, related components such as the BSM75GD120DN2 may offer alternative solutions for designers.
Frequently Asked Questions (FAQ)
What is the primary benefit of the VCE(sat) positive temperature coefficient?
This characteristic is crucial for reliability when connecting multiple IGBT modules in parallel to handle higher currents. As a module heats up, its on-state voltage (VCE(sat)) increases slightly. This self-regulating effect forces current to share more evenly among the parallel devices, preventing a single module from carrying a disproportionate load and succumbing to thermal runaway.
How does the DBC technology contribute to the module's performance?
Direct Bonded Copper (DBC) technology creates a robust, thermally efficient substrate that electrically isolates the silicon die from the copper baseplate. This results in superior heat transfer away from the IGBT chip, lower thermal stress during temperature changes, and enhanced overall reliability and power cycling capability compared to older, more complex isolation methods.
What does the 10µs short-circuit withstand time imply for system design?
This rating specifies that the IGBT can survive a direct short-circuit condition for at least 10 microseconds, providing a critical window for the system's protection circuitry (like the gate driver's desaturation detection) to safely shut down the device. This is a key parameter for building a fault-tolerant system, particularly in motor drives where winding shorts or locked-rotor conditions can occur.
Strategic Outlook
The SGM50HF12A1TFD is positioned as a dependable workhorse component for mainstream industrial power conversion. Its design prioritizes a proven balance of electrical ruggedness and thermal stability, addressing the core requirements of designers focused on long-term system reliability and cost-effective performance. By integrating features like a positive temperature coefficient and a robust short-circuit rating, Silan provides a solution that simplifies the engineering challenges associated with high-power inverter and UPS design. This module enables developers to build systems that not only meet performance specifications but also offer the resilience demanded by harsh industrial environments.
