SKKH330/16E: High-Reliability Thyristor/Diode Module for Demanding Power Control
Engineered for Long-Term Performance in Industrial Phase Control Applications

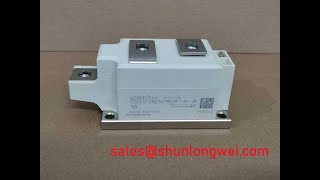

The Semikron SKKH330/16E is a thyristor/diode module designed for robust and reliable power control in demanding industrial environments. Leveraging proven pressure contact technology, this SEMIPACK 3 module delivers exceptional operational longevity by eliminating solder joints prone to fatigue. Its core specifications are 1600V | 305A | ITSM 8000A. The primary engineering benefits include superior thermal efficiency and high electrical reliability. This module directly addresses the need for dependable power stages in high-current applications by ensuring stable performance and minimizing thermal management complexities.
Key Parameter Overview
Decoding the Specs for Enhanced Thermal Reliability
The technical specifications of the SKKH330/16E are tailored for high-power phase control applications where reliability and thermal stability are paramount. The combination of high voltage and current ratings with a robust thermal interface makes it suitable for heavy-duty industrial cycles.
| Parameter | Value | Notes |
|---|---|---|
| Repetitive Peak Reverse Voltage (VRRM) | 1600 V | Provides a significant safety margin for operation on 400V, 480V, and even 690V industrial lines. |
| Average On-State Current (ITAV) | 305 A | (At Tcase = 85°C, sin 180°), enabling high continuous power throughput. |
| RMS On-State Current (ITRMS) | 510 A | Indicates the module's capacity to handle high root-mean-square currents. |
| Surge Non-Repetitive On-State Current (ITSM) | 8000 A | A critical parameter for surviving large inrush currents typical in motor starting or fault conditions. |
| Gate Trigger Current (IGT) | typ. 200 mA | Features an amplifying gate, allowing for control with lower power gate drive circuits. |
| Operating Junction Temperature (Tvj) | -40°C to 130°C | Wide operating range suitable for diverse industrial settings. |
Download the SKKH330/16E datasheet for detailed specifications and performance curves.
Application Scenarios & Value
Achieving System-Level Benefits in Industrial Power Conversion
The SKKH330/16E is engineered for applications where precise control of high power is essential. Its robust design ensures dependable performance in systems that cannot afford downtime. For applications requiring lower current handling but similar voltage ratings, the SKKH106/16E offers a comparable design philosophy in a smaller power class.
- DC Motor Drives: In applications like machine tools and industrial automation, the module provides precise and reliable speed and torque control for large DC motors. Its high surge current capability (ITSM of 8000A) is crucial for managing the initial high-current demands during motor startup without device degradation.
- AC Motor Soft Starters: By gradually increasing the voltage applied to AC motors, this module helps to reduce mechanical stress on the powertrain and minimize electrical disturbances (inrush current) on the supply line, enhancing the longevity of the entire system.
- Industrial Heating and Temperature Control: For large industrial ovens, chemical processes, or furnaces, the SKKH330/16E acts as a high-power AC switch, enabling precise regulation of heating elements to maintain stable process temperatures, a key factor in ensuring product quality and energy efficiency.
- Professional Light Dimming: In high-power lighting systems for theaters and studios, the module's controlled switching allows for smooth, flicker-free dimming, a critical requirement for professional broadcasting and performance venues.
Technical Deep Dive
A Closer Look at the Pressure-Contact Design for Long-Term Reliability
A key differentiating feature of the SKKH330/16E is its use of precious metal pressure contacts. Unlike conventional modules that rely on soldered connections between the semiconductor die and the baseplate, this design uses mechanical pressure to ensure a highly reliable electrical and thermal connection. Think of it like a high-force, precision clamp instead of a rigid glue. As the module heats and cools during operation, soldered joints expand and contract at different rates, leading to microscopic cracks and eventual failure—a phenomenon known as solder fatigue. The pressure contact system allows for this microscopic movement without building up stress, drastically improving the module's power cycling capability and extending its operational lifetime, especially in applications with frequent on/off cycles or fluctuating loads.
Frequently Asked Questions (FAQ)
What is the primary advantage of the Aluminium Nitride (AlN) ceramic baseplate?
The AlN ceramic provides excellent electrical isolation while offering superior heat transfer compared to more common materials like alumina. This ensures that heat generated by the thyristor and diode is efficiently moved to the heatsink, keeping the junction temperatures lower and enhancing both performance and long-term reliability.
How does the "amplifying gate" feature benefit my design?
The amplifying gate is a small, integrated thyristor structure that boosts the initial gate signal. This means the main thyristor can be triggered with a much lower gate current (typically 200mA) than would otherwise be required for a device of this power rating. This simplifies the design and reduces the cost of the gate driver circuitry.
Is the SKKH330/16E suitable for line-commutated converter applications?
Yes, its robust voltage rating (1600V) and high current handling make it an excellent choice for controlled rectifiers and line-commutated converters used in industrial power supplies and DC drive front-ends, providing reliable phase angle control for power regulation.
Strategic Advantage
Integrating the SKKH330/16E into a power system is a strategic decision favoring long-term reliability over minimal initial cost. Its pressure contact technology and robust thermal design from a reputable manufacturer like Semikron translate directly to reduced maintenance cycles, lower total cost of ownership, and enhanced equipment uptime in critical industrial machinery. For engineering teams developing high-power control systems where dependability is a core design requirement, this module provides a proven and durable foundation.
