SKKT460/22EH4 Operational Boundaries: Evaluating High-Current DC Rectifier Topologies
| Manufacturer | Semikron |
|---|---|
| Part Number | SKKT460/22EH4 |
| Category | Thyristor Module |
| Topology | Dual Thyristor Module |
| Voltage Rating | 2,200 V |
| Current Rating | 460 A |
| Package | SEMIPACK |
| Series | Standard |

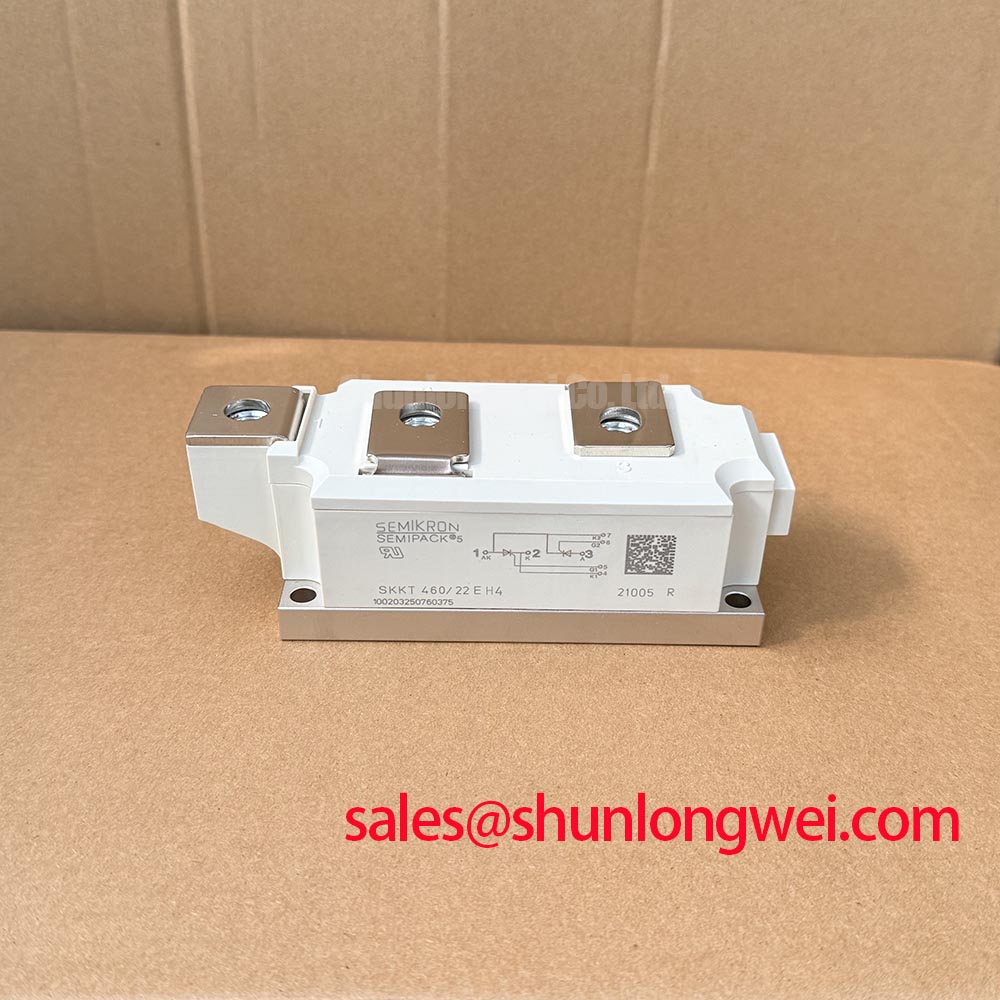

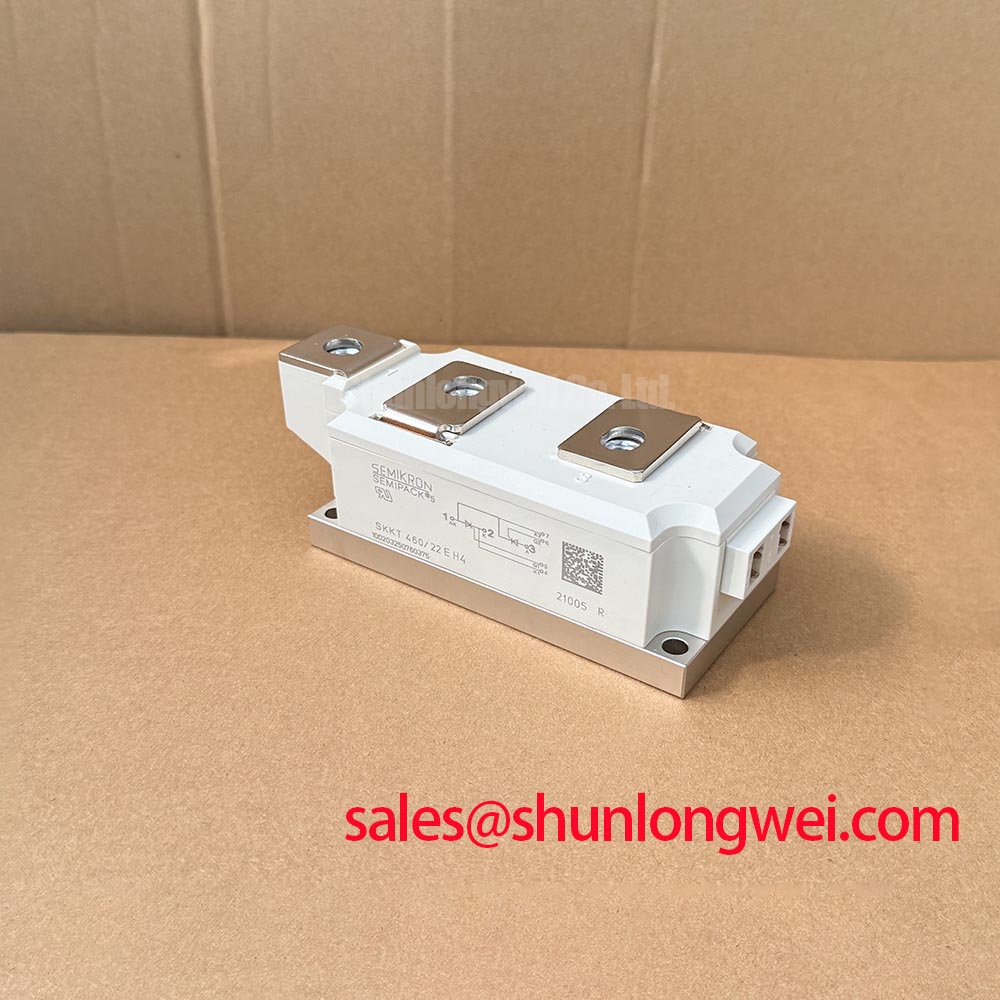

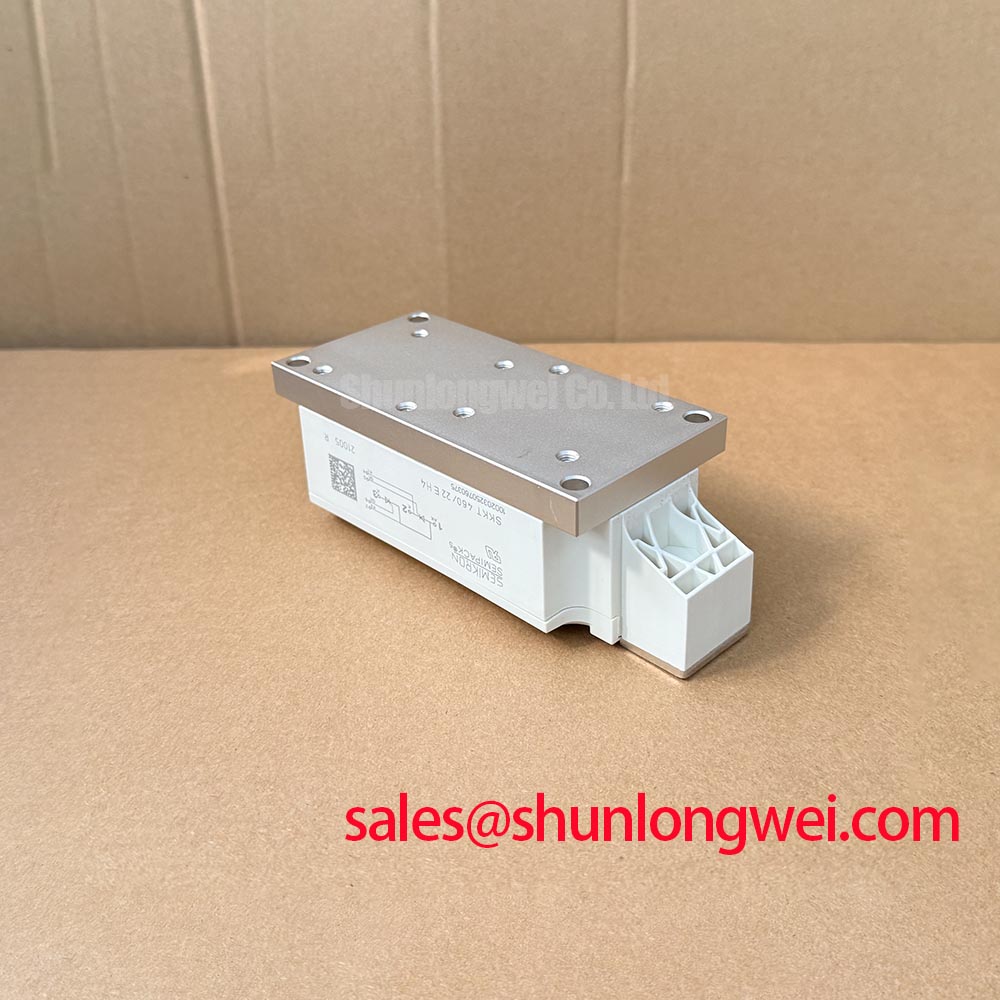

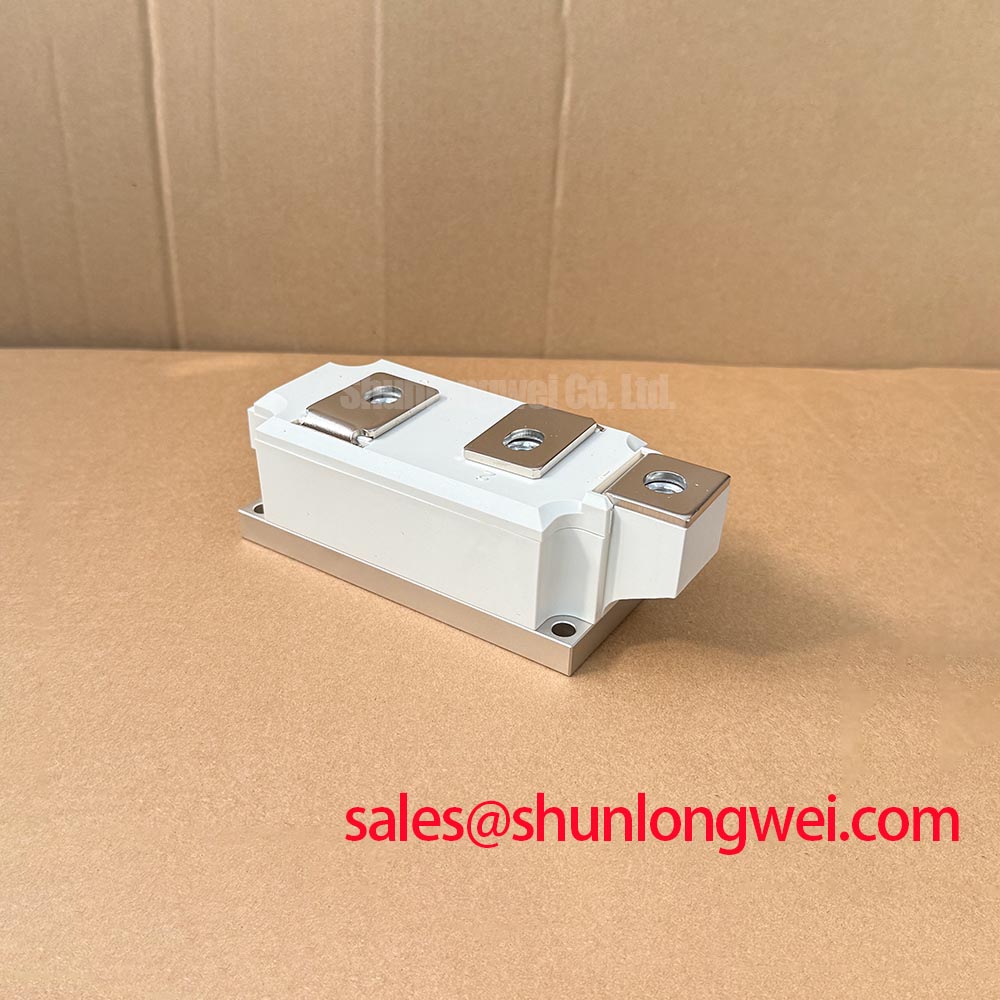

Verify the main-terminal polarity against the rectifier schematic and compare the cold-state semiconductor-junction readings across each accessible thyristor path before reconnecting any busbar. The SKKT460/22EH4 has a specified voltage rating of 2,200 V and a rated current of 460 A under the applicable datasheet conditions. It is supplied in the SEMIPACK package format with a dual-thyristor topology.
For high-current green hydrogen electrolyzer DC power rectifiers, engineers commonly assess six-pulse and twelve-pulse bridge arrangements where current distribution between parallel bridge sections determines semiconductor stress. In a twelve-pulse arrangement, the phase-shift transformer and interphase transformer must be checked as a complete current-sharing system. Uneven DC current, unequal AC phase current, or asymmetric commutation waveforms can place one device path under substantially different thermal and surge exposure than its neighbouring path.
Design Consideration: Inspect every busbar contact face for flat seating, oxidation, heat discoloration, and evidence of non-uniform pressure. The terminal connection arrangement must follow the original equipment drawing rather than an assumed package pin sequence. The external reference page for SEMIPACK thyristor and diode modules provides useful product-family context, while the exact terminal mapping must be verified against the equipment documentation and component marking.
Where a bridge position requires a different voltage class or current envelope, the SKKH162-14E can be reviewed as a separate engineering comparison point. It is not a declared drop-in replacement for the SKKT460/22EH4; mounting geometry, terminal arrangement, gate drive conditions, thermal interface, and protection coordination require independent verification.
Field Diagnostics & Commissioning: Type-2 Coordination and Sub-Cycle Faults in SKKT460/22EH4 Topologies
Capture the fuse part number, its pre-arcing and total-clearing I²t data, and the bridge branch location before replacing a device after a dead-short event. Type-2 coordination depends on the relationship between the selected semiconductor fuse, the prospective short-circuit current, cable impedance, transformer impedance, and the withstand capability documented for the thyristor assembly. A fuse cannot be evaluated from ampere rating alone.
Engineering Recommendation: Compare the fuse clearing-energy curve against the applicable thyristor surge-withstand limits from the original component datasheet, then verify the coordination across the expected fault-current range. This evaluation should include faults directly at the DC output, faults on individual bridge arms, and faults located beyond series reactor or busbar sections. Oscilloscope records from a known-good commissioning sequence can help distinguish a true hard short from a gate-command overlap, commutation disturbance, or measurement-reference error.
Use semiconductor-junction testing only after isolating the assembly from parallel circuit paths. A low reading between two terminals may reflect a connected snubber, transformer secondary, measurement lead path, or another semiconductor in the bridge. Gate-to-cathode checks should be compared between the paired thyristor positions and against a known-good reference where available.
💡 Bench Tip: Discharge the DC link, isolate gate-drive cables, and record cold-state readings with the same meter and lead orientation so that later comparisons are meaningful.
In multi-stage rectifier cabinets, an auxiliary bridge or related controlled stage may use a different device family such as the SKKH106-14E. Treat its fuse coordination independently because equal cabinet placement does not establish equal semiconductor stress.
Preventing Spurious Faults: ITSM Safety Derating and Repetitive Pulse Guidelines for SKKT460/22EH4
Review the captured AC current waveform immediately before the protection trip and look for repeated asymmetric half-cycles, missing firing pulses, or delayed current extinction. A sinusoidal 10 ms half-cycle surge test is a datasheet test condition used to characterize non-repetitive current capability; it must not be treated as a routine operating current allowance.
Repeated overload pulses can create cumulative junction heating even when the visible RMS current appears acceptable. Design Consideration: Investigate the actual pulse duration, repetition pattern, heatsink condition, airflow path, thermal interface quality, and phase-current balance. The system engineer should validate junction-temperature margin against the relevant transient thermal impedance data and the operating waveform measured in the equipment.
Reverse voltage reapplication deserves attention after a fault, commutation irregularity, or supply disturbance. A distorted supply waveform, unsuitable firing timing, or gate-drive reference movement may create conditions that differ from normal line commutation. Check gate pulse timing relative to each phase voltage and compare both controlled paths rather than diagnosing the module from one waveform alone.
For broader guidance on power-device operating margins, test discipline, and system-level reliability checks, consult the Power Electronics Masterclass. Its principles are useful when reviewing thermal paths and protection interactions, while the SKKT460/22EH4 remains governed by its own specified 2,200 V voltage rating, 460 A current rating, and SEMIPACK construction.
Benchtop Waveform Tuning: Mitigating Stress via Surge Energy Dissipation and Clamping Voltage on SKKT460/22EH4
Probe the AC input and device-terminal waveforms with correctly rated differential instrumentation while observing the response to normal commutation and controlled transient events. Ringing at the thyristor terminals can arise from transformer leakage inductance, busbar layout, snubber condition, probing method, or a degraded surge-protection network. Compare measurements at the incoming AC terminals, bridge terminals, and DC output to identify where the transient originates.
Design Consideration: MOV and RC snubber networks should be evaluated as system-level protection elements rather than assigned a generic value. Their voltage capability, energy handling, repetitive exposure, capacitance, resistor pulse loading, and physical placement must match the measured surge environment. The system designer should confirm peak terminal voltage against the 2,200 V device voltage rating during switching and surge testing.
For installations assessed against IEC 61000-4-5 surge conditions, verify the complete protection chain, including incoming protective devices, grounding arrangement, transformer coupling, enclosure bonding, and any board-level suppression hardware. A thyristor module is a power-semiconductor assembly and does not independently establish equipment-level EMC compliance.
Inspect RC snubber resistors for cracking or heat damage, check capacitor condition using appropriate test equipment, and verify that MOVs have not developed leakage or physical distress. Keep high-current paths compact to reduce parasitic inductance, especially where bridge busbars transition to the DC reactor or electrolyzer load. Final clamping performance must be proven on the installed topology because lead routing and transformer characteristics strongly influence the measured transient.
