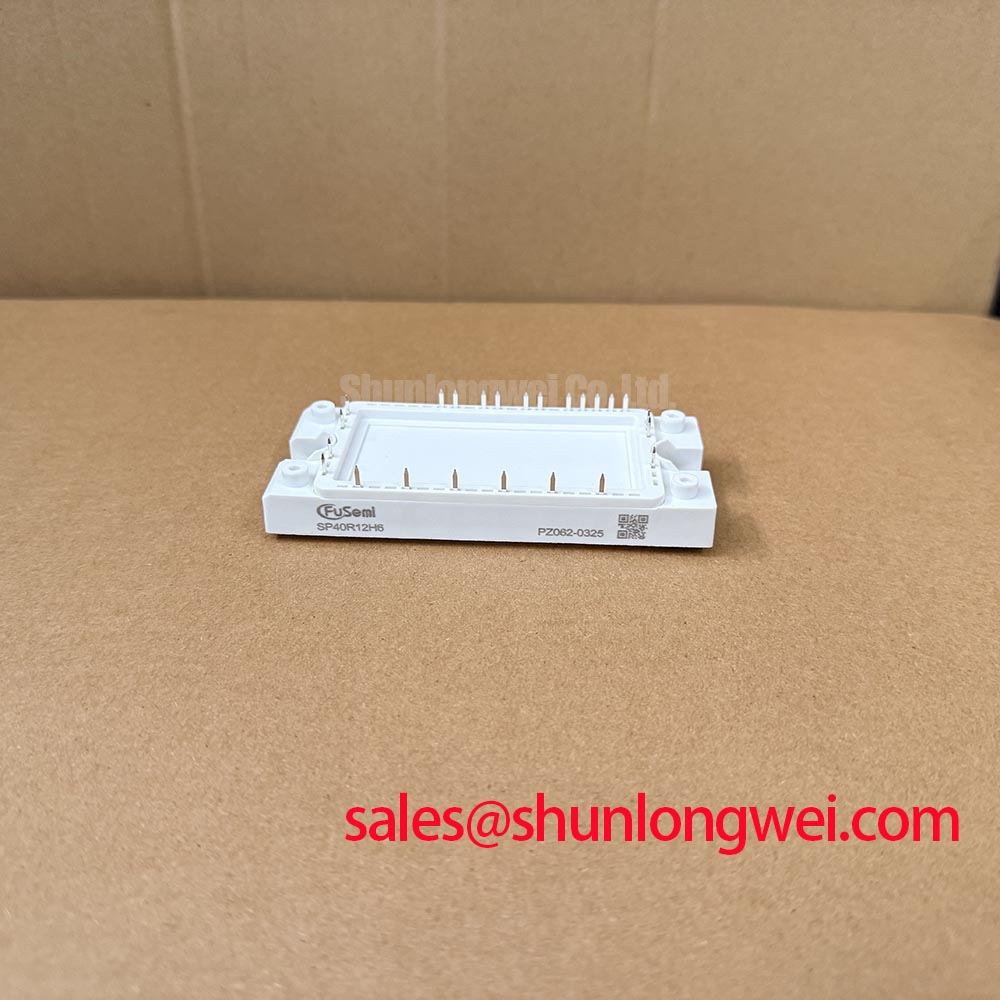

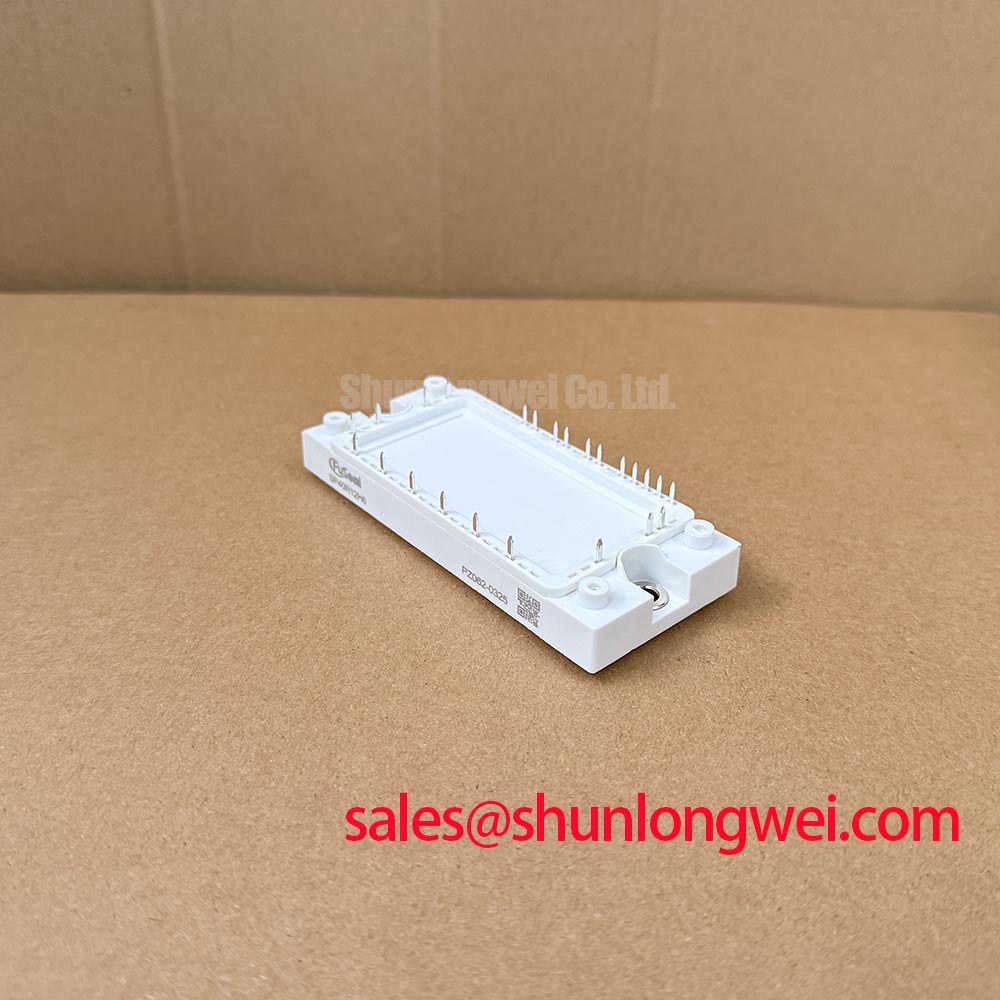

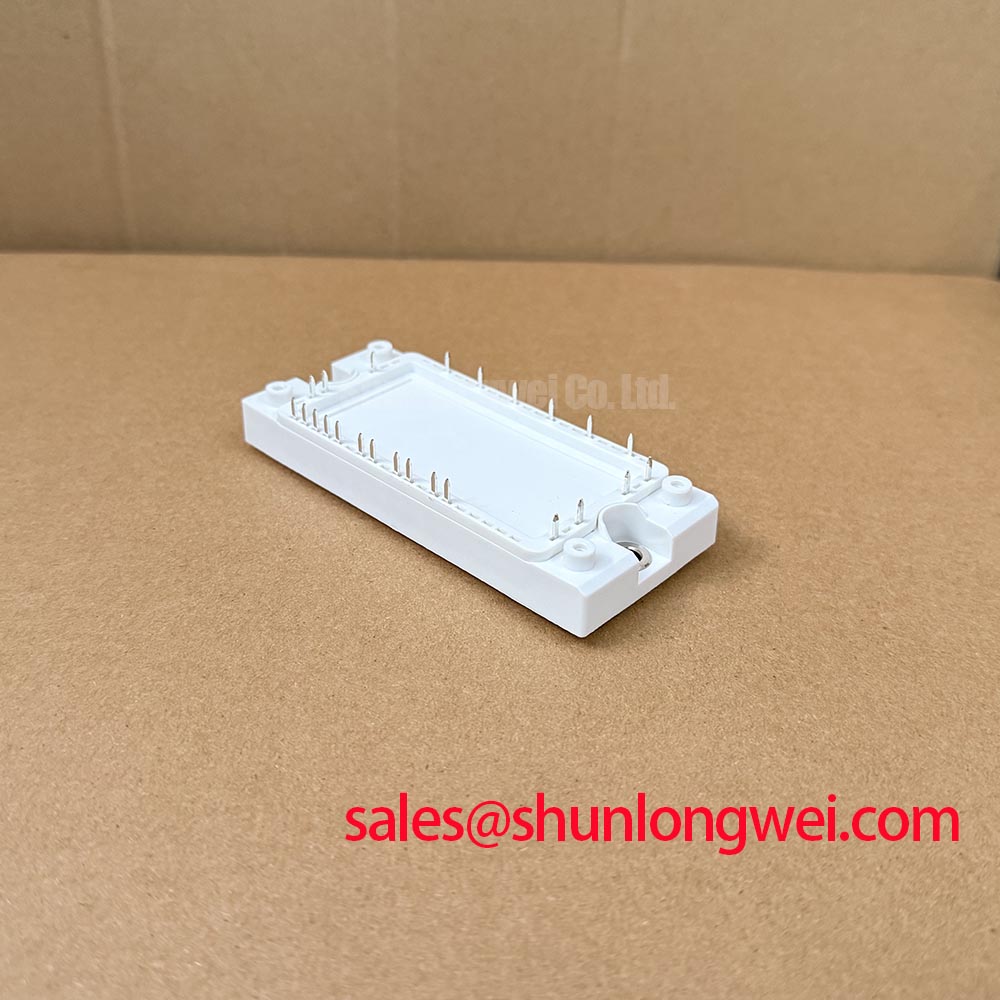

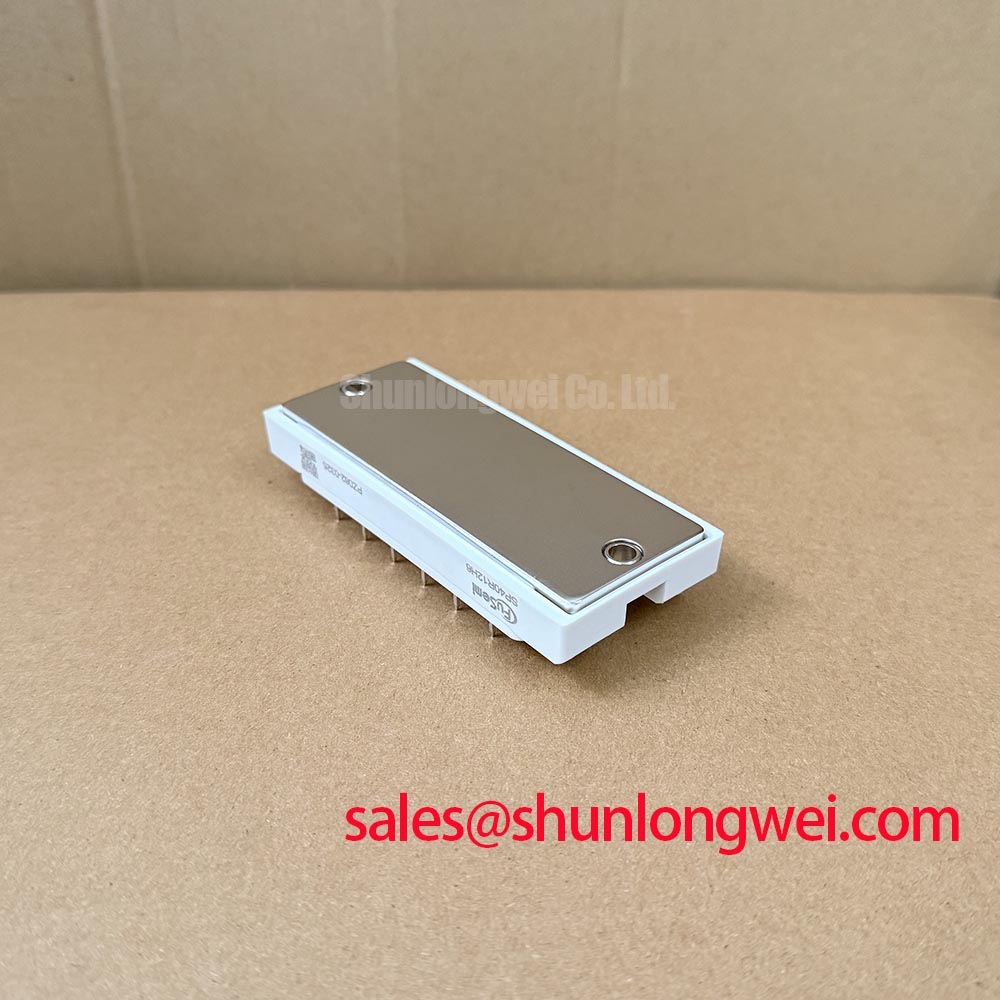

SP40R12H6 KOE / Hitachi FSTN/STN Passive Matrix LCD Display

Content last revised on September 17, 2026

Bezel Mechanical Frame Clamp Uniformity & Uniform Gasket Pressure Distribution

Inspect the display contact area with the panel unpowered, the bezel removed, and the display contact area exposed without disturbing its original alignment. Then power the panel under controlled conditions to check for missing rows, intermittent columns, and contrast bands. The SP40R12H6 is a KOE / Hitachi Passive Matrix FSTN/STN LCD Panel; its visible image depends on stable electrical contact and uniform mechanical support across the display stack. A fault that changes when the bezel is gently supported, released, or reassembled can point toward contact pressure distribution, connector seating, contamination, or frame distortion rather than a confirmed failure within the liquid crystal cell.

Use a clean, diffuse full screen illumination condition to inspect the monochrome viewing area before reconnecting the host electronics. Look for fixed missing segments, uneven background appearance, pressure marks, polarizer lifting, adhesive bubbles, and traces of movement around the bezel or display contact region. Record the condition with the panel held flat, then compare it after controlled reassembly. This method separates display changes caused by external compression from effects caused by the host timing or contrast drive circuit.

Where the original assembly uses an elastomeric zebra connector, preserve the original alignment reference and inspect the conductive face for debris, deformation, and uneven compression marks. The required clamping pressure is a Design Consideration for the elastomeric connector assembly, not an official SP40R12H6 clamp-force specification. The final compression condition is determined by the original frame geometry, gasket stack, contact pitch, and service documentation. Reinstalling a bezel with one corner tightened ahead of the others can create a pressure gradient that is visible as intermittent rows or columns.

Practical handling note: Disconnect power and discharge the host equipment before inserting or removing a display flex or elastomeric contact assembly.

FSTN and STN displays rely on ambient light and polarizer performance for readable contrast. Heat exposure, ultraviolet exposure, and long service intervals can affect polarizer appearance and adhesive condition, while low temperature can slow the liquid crystal response enough to make normal updates appear sluggish. These observations are diagnostic clues, not proof of one single mechanism. Keep the panel flat during inspection, avoid flexing the glass edges, and compare behavior at a controlled ambient condition when a known-good host terminal is available.

For equipment maintainers evaluating an older monochrome interface against a different display technology, the LM12S49 comparison provides useful context on why mechanical, optical, interface, and mounting details must be treated as separate compatibility checks. A product category match does not establish a direct physical or electrical replacement relationship.

Data Setup & Hold Time Margin Verification on High Capacitance Flat Ribbon Flex Cables

Probe the display-side signal path while the original panel remains connected, comparing frame synchronization, line activity, dot-clock behavior, and contrast-drive behavior against a known-good signal path where possible. Passive-matrix modules can be sensitive to signal integrity at the connector because long or high-capacitance flat ribbon cables alter edge shape, reference stability, and timing margin. A clean signal measured at the controller does not prove the same waveform arrives at the panel contact interface.

Trace the original cable routing before replacing or reseating the display. Confirm that the flex is fully parallel to its connector edge, that its retention feature is engaged as designed, and that no bend radius, strain relief, or chassis edge is forcing the cable out of plane. Inspect for repeated-contact wear and localized conductor damage under magnification. An unstable image, occasional loss of character data, or behavior that changes with cable position may indicate a signal-path problem; verify it with oscilloscope measurements against the original host timing rather than assigning a single cause from the symptom alone.

Signal names such as FLM frame synchronization, LP line pulse, and CP dot clock appear in many passive-matrix display architectures, but their presence, voltage levels, edge requirements, and pin locations are not official published specifications in the supplied SP40R12H6 product data. The system integrator should verify the exact interface definition from the original panel documentation and host schematic. Do not transfer a pinout or timing table from another KOE, Hitachi, FSTN, STN, CSTN, or TFT model.

Power sequencing needs the same discipline. Observe supply rails and display-drive nodes during startup, shutdown, reset, and brownout events, then compare the sequence with the original equipment documentation. Persistent DC bias across a passive liquid crystal drive arrangement can affect image quality or operating stability, so the investigation should establish whether the host controller correctly transitions its display-control signals and bias rails. This is an Engineering Recommendation for system validation, not a claim about an unpublished SP40R12H6 operating sequence.

Legacy monochrome display circuits often include a negative contrast or bias rail identified by labels such as VEE or V0. The requested range of negative-voltage possibilities is not an official parameter for SP40R12H6, and it must not be assumed from panel type alone. Measure the original terminal carefully and verify the intended rail from the original panel documentation. Check rail ripple, grounding continuity, temperature compensation components, and connector contact quality when text washes out or contrast drifts after warm-up.

Use a high-impedance probe with an appropriate ground connection, and inspect both the display connector and host source point. Excessive probing capacitance or an unsuitable ground lead can distort a fast edge and lead to a false diagnosis. The Texas Instruments LVDS Interface Application Note is useful for general differential-signal measurement discipline, although no LVDS interface is claimed for this passive-matrix LCD panel without model-specific documentation.

Direct Sunlight High Ambient Readability in Reflective or Ambient-Light Conditions

Examine the panel under controlled ambient illumination and then under the intended enclosure window to distinguish reflective-contrast loss from glare, cover-window contamination, or host-drive variation. The official product classification confirms a monochrome FSTN/STN passive-matrix LCD panel, but it does not confirm a particular backlight architecture, luminance value, viewing-angle specification, color temperature, transflective construction, or sunlight-readable rating. Service decisions should therefore be based on the installed terminal assembly and original panel documentation.

Reflective monochrome displays can remain legible in high ambient light when the polarizers, cover window, optical stack, and contrast drive are in sound condition. In older equipment, inspect the visible surface for haze, scratches, polarizer discoloration, edge lifting, trapped bubbles, and residues that scatter light. Evaluate the same displayed pattern from the normal operator position and through the finished bezel aperture. A panel that looks acceptable on an open bench can appear weak after installation if the enclosure window introduces reflections or if the viewing direction changes.

Anti-reflective surface treatments are an enclosure-level optical consideration. The general optical mechanism is described in this reference on anti-reflective coating. It should not be interpreted as evidence that the SP40R12H6 includes a specific coating. When a replacement panel is evaluated in an industrial terminal, retain the original window, masking geometry, and illumination conditions during comparison so the panel is not judged through a different optical system.

Contrast changes across ambient temperature can originate in the passive display cell, the host bias circuit, a thermistor compensation network, cable contacts, or supply behavior. Observe a stable test image through temperature transition where permitted by the equipment procedure, and note whether the change is global, localized, temporary, or related to a particular operating state. This evidence supports a targeted repair decision without presenting an unsupported service-life prediction or environmental certification claim.

Railway passenger information and cab-signalling displays are examples where maintainers may evaluate image clarity, monochrome contrast, mechanical retention, and host interface continuity. They are compatibility examples only. The physical outline, active area, resolution, connector configuration, required drive voltages, timing, environmental approval, and enclosure qualification must each be verified for the actual terminal before integration.

Suppressing Ghosting and Crosstalk via Bias-Voltage Networks

Display a repeated text pattern, alternating dark and light fields, and the normal operating screen while observing whether faint neighboring images follow active content or remain fixed in place. Ghosting and crosstalk in a passive-matrix system can be associated with drive waveform balance, bias rail stability, timing behavior, connector resistance, temperature effects, or mechanical contact nonuniformity. The pattern and its response to controlled checks provide more useful evidence than treating one visual symptom as a guaranteed diagnosis.

Measure the host display-bias network at the points defined in the equipment schematic, paying attention to the relationship between the contrast-control setting, reference nodes, and observed image. The original system may use a divider network and temperature-dependent compensation to maintain usable contrast across changing conditions. Component values, negative rail magnitude, ripple limit, and compensation curve are system-determined unless they are explicitly provided in the original SP40R12H6 documentation. Replacing resistors, altering a contrast circuit, or imposing a generic bias value without that verification risks creating a new fault condition.

Clean accessible contact surfaces only with materials approved for the assembly, and allow the area to dry fully before reassembly. Anhydrous IPA is commonly used as a Design Consideration for suitable electronic contact-cleaning work, but compatibility with the original connector, printed circuit, adhesive, polarizer, and seal materials must be confirmed by the service procedure. Avoid abrasive methods on contact areas and avoid allowing solvent to migrate into the panel edges.

After reassembly, inspect the screen at normal contrast adjustment and repeat the same static and changing-image tests used before service. Verify each bezel fastener progression for uniform seating rather than evaluating only the final image. If behavior changes after applying controlled support to a frame edge, inspect gasket position, zebra connector alignment, flex seating, and frame flatness before changing electronic parts. If the behavior remains unchanged across mechanical checks, continue with host waveform and bias verification.

For broader engineering context on industrial display integration, enclosure effects, interface assessment, and practical maintenance variables, consult Industrial Display & HMI Solutions. The SP40R12H6 should be assessed as its documented KOE / Hitachi Standard FSTN/STN monochrome passive-matrix LCD panel, with final interchangeability established from the original equipment’s mechanical drawing, electrical documentation, and functional test results.
