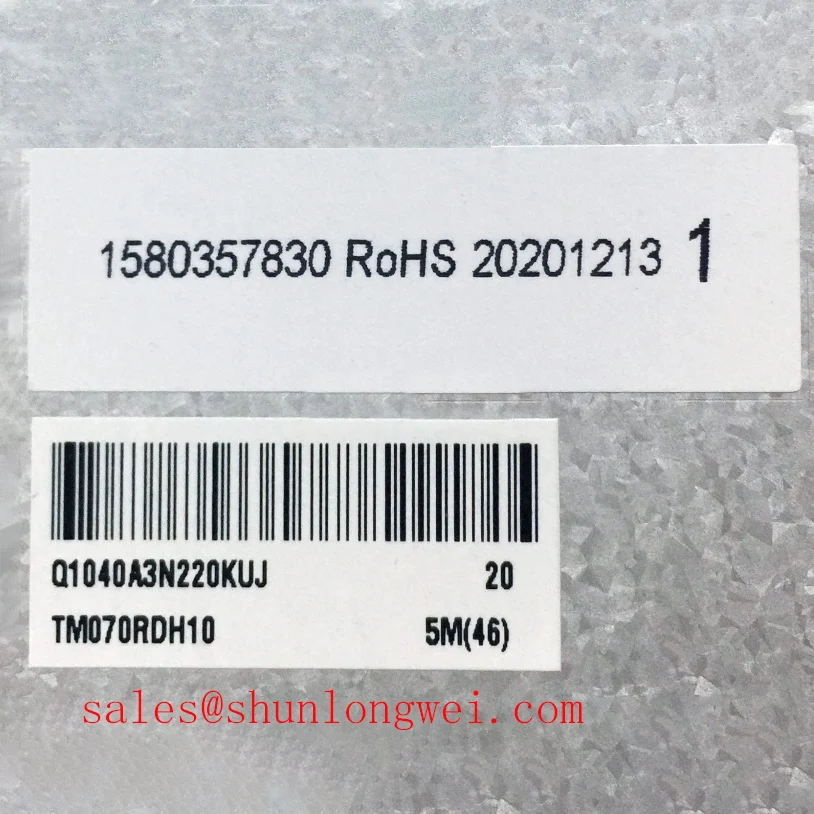

TM070RDH10-46: Engineering a 7.0-inch WVGA Display for Streamlined System Integration
Introduction and Key Features
The Tianma TM070RDH10-46 is a 7.0-inch a-Si TFT-LCD module engineered to accelerate the design cycle for industrial and commercial applications. It delivers a practical solution for engineers by integrating key components and ensuring performance across a wide operational spectrum. With its built-in WLED backlight driver, this display simplifies PCB layout and power system design, directly addressing the need for faster time-to-market. Best fit for space-constrained industrial HMIs requiring accelerated development cycles and reliable performance in fluctuating temperatures.
- Core Specifications: 7.0-inch Diagonal | 800x480 WVGA Resolution | Integrated WLED Driver | -20°C to 70°C Operating Temperature
- Key Engineering Benefits: Reduced component count and simplified integration. Dependable visual performance in demanding environments.
- Primary Application Focus: Industrial control panels, test and measurement equipment, and portable medical devices.
Application Scenarios & Value
System-Level Benefits in Industrial and Embedded Systems
The TM070RDH10-46 is engineered to solve common challenges in the development of modern embedded visual interfaces. In a typical engineering scenario, designing a compact Human-Machine Interface (HMI) for an industrial control panel involves maximizing screen real estate while minimizing the internal hardware footprint. The primary challenge is often the additional space and complexity required for an external LED backlight driver and its associated cabling.
This is where the TM070RDH10-46 provides a distinct advantage. By integrating the WLED driver directly into the module's design, it eliminates the need for a separate driver board. This not only saves valuable PCB space but also simplifies the power supply architecture and reduces the number of potential failure points. This integration allows engineers to focus on core application logic rather than spending critical time on backlight power management and component matching. The result is a more compact, reliable final product with an accelerated path from prototype to production. For systems requiring a slightly larger display area with similar integration benefits, the AT080TN64 offers an 8.0-inch alternative.
Key Parameter Overview
Decoding the Specs for Rapid Prototyping and Production
The technical specifications of the TM070RDH10-46 are selected to support robust performance and straightforward implementation in a variety of embedded systems.
| Parameter | Specification | Engineering Value & Interpretation |
|---|---|---|
| Display Mode | TN, Normally White, Transmissive | Provides fast response times suitable for dynamic information display in control systems and monitoring equipment. |
| Resolution | 800(RGB)×480 [WVGA] | A standard resolution that offers a good balance between information density and compatibility with a wide range of microcontrollers (MCUs) and System on Chips (SoCs). |
| Brightness | 350 cd/m² (Typ.) | Delivers clear readability for indoor industrial environments. The brightness is sufficient for most control rooms and operator stations. |
| Interface Type | Parallel RGB (1 ch, 6/8-bit), 40 pins FPC | A widely adopted, straightforward interface that simplifies connection to many processors and single-board computers, reducing hardware development complexity. |
| Operating Temperature | -20 ~ 70 °C | This wide range ensures the display's reliability in unconditioned environments, from refrigerated areas to factory floors without climate control. |
| Backlight System | WLED, driver included | The key integration feature. This is like buying a car with a factory-tuned engine; it removes the guesswork of matching a driver to the LEDs, ensuring optimal performance and longevity while simplifying your design. |
For complete electrical characteristics, timing diagrams, and mechanical drawings, please Download the TM070RDH10-46 datasheet for detailed specifications and performance curves.
Technical Deep Dive
A Closer Look at the Integrated Design for Simplified Engineering
The strategic inclusion of the WLED driver board is the most significant design choice in the TM070RDH10-46. For a system designer, this integrated approach transforms the display from a simple component into a near plug-and-play subsystem. The backlight's electrical characteristics, such as forward voltage and current, are perfectly matched to the onboard driver's output. This pre-validated configuration eliminates a common source of engineering headaches: flicker, uneven brightness, or premature backlight failure due to a driver-LED mismatch.
Think of it as the difference between building a PC from individual parts versus using a pre-configured motherboard/CPU combo. While the former offers customization, the latter guarantees compatibility and significantly reduces build time. The TM070RDH10-46 provides that guaranteed compatibility for the display's illumination system. This allows the engineering team to allocate resources to software development and application-specific features, ultimately leading to a more robust final product delivered on a shorter timeline. What is the primary benefit of the integrated WLED driver? It simplifies design by eliminating the need for an external driver component.
Frequently Asked Questions (FAQ)
Engineering FAQs for Seamless Implementation
What is the benefit of the integrated WLED driver for my system's power design?
The integrated driver simplifies your power architecture. You only need to provide a single voltage line to the display module as specified in the datasheet, rather than designing a separate, constant-current boost converter circuit for the backlight LEDs. This reduces component count, PCB complexity, and potential EMI sources.
How does the -20°C to 70°C operating temperature range impact application suitability?
This industrial-grade temperature range allows the display to be deployed in environments where consumer-grade displays would fail. It is suitable for outdoor-housed equipment (not in direct sunlight), unheated warehouses, and control panels on machinery that generates moderate heat, ensuring operational reliability without requiring a dedicated heating or cooling system for the display itself.
Is the anti-glare (AG) surface treatment suitable for brightly lit environments?
Yes, the anti-glare surface treatment diffuses ambient light rather than reflecting it directly back at the operator. This reduces specular reflections and improves screen readability in areas with significant overhead lighting, such as factory floors or laboratories, enhancing user comfort and reducing reading errors.
What kind of controllers are best suited for the parallel RGB interface?
The parallel RGB interface is a standard supported by a vast number of microcontrollers (MCUs) with dedicated TFT drivers (LTDC) and most application processors or single-board computers (SBCs). This broad compatibility ensures that designers can choose from a wide variety of processing platforms from manufacturers like STMicroelectronics, NXP, and Broadcom.
What is the operating temperature range of the TM070RDH10-46?
The display operates reliably from -20°C to 70°C. This wide range is a critical feature for devices intended for use outside of a typical office environment.
An Engineer's Perspective on Integration
From a practical engineering standpoint, the TM070RDH10-46 represents a design that prioritizes efficiency and reliability. Its feature set is not about exotic, high-end specifications but about providing a robust and easy-to-integrate foundation for the majority of industrial and commercial HMI projects. The combination of a standard interface, a durable operating temperature range, and the critical inclusion of the backlight driver makes this display a pragmatic choice for projects where development speed and long-term dependability are paramount. For further information on this or other display solutions, please contact our technical support team for an engineering-level discussion about your project requirements.
