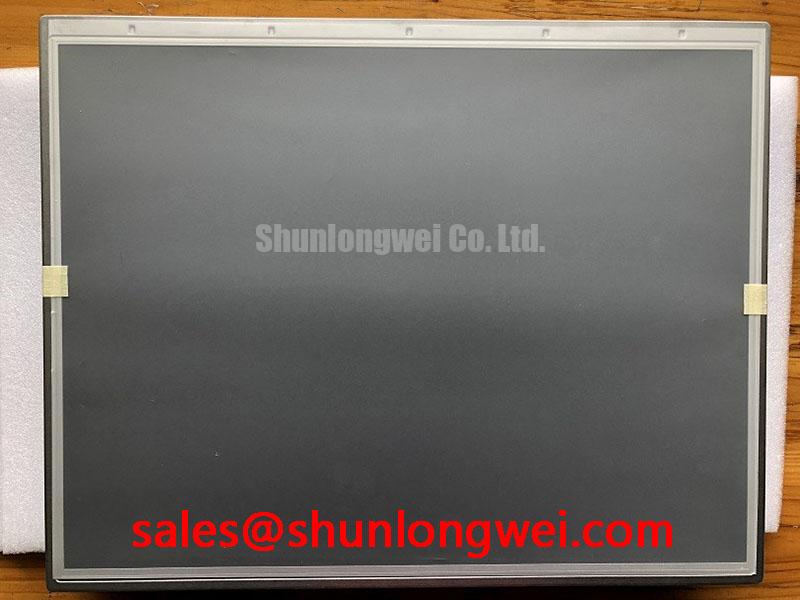

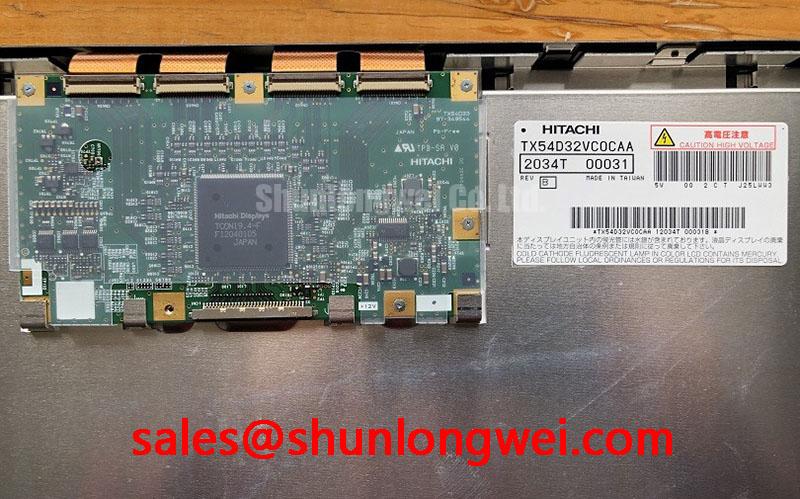

KOE TX54D32VC0CAA | 21.3" UXGA IPS-Pro Display for Medical and Industrial Imaging
The KOE TX54D32VC0CAA is a 21.3-inch UXGA TFT-LCD engineered for applications where visual precision, color fidelity, and reliability are non-negotiable. This display moves beyond standard industrial panels, leveraging KOE's advanced IPS-Pro technology to deliver performance historically reserved for high-end diagnostic and control systems. It is a purpose-built solution for system designers who cannot compromise on image quality.
Engineered for Visual Excellence
At the core of the TX54D32VC0CAA's performance is a combination of features designed to provide clear, stable, and accurate visuals under demanding conditions. This isn't just a large screen; it's a precision instrument for data visualization.
- Superior Image Clarity: With a native UXGA (1600 x 1200) resolution, this display provides the pixel density required for detailed schematics, radiological images, and complex user interfaces without scaling artifacts.
- IPS-Pro Technology: Delivers exceptionally wide 178°/178° viewing angles and a high 1700:1 contrast ratio. This ensures that colors and grayscale levels remain consistent and accurate, regardless of the operator's viewing position—a critical factor in collaborative environments. For a deeper understanding of the core technology, explore the ultimate guide to TFT LCDs.
- High Brightness & Durability: A powerful 1000 cd/m² LED backlight ensures excellent readability in high ambient light environments. The robust design supports a wide operating temperature range from -20°C to +70°C, guaranteeing performance in unconditioned industrial settings.
- Long-Term Reliability: Featuring a replaceable LED backlight system, the TX54D32VC0CAA is designed for extended operational life, protecting the end-user's investment and reducing total cost of ownership.
Technical Deep Dive: The IPS-Pro Advantage
KOE's IPS (In-Plane Switching)-Pro technology represents a significant evolution of standard IPS panels. While traditional IPS provides excellent viewing angles, IPS-Pro enhances this with superior color stability and reduced color shift when viewed off-axis. This is achieved through a more refined liquid crystal structure and pixel electrode design. For engineers, this translates directly into tangible benefits: in a medical imaging context, it means subtle grayscale variations in an X-ray are not lost when viewed from the side. In an industrial HMI, it ensures that color-coded status indicators are interpreted correctly by operators at any angle, minimizing the risk of human error.
Application-Specific Value Proposition
The specifications of the KOE TX54D32VC0CAA make it an ideal choice for several mission-critical applications:
- Medical Diagnostic Displays: The combination of high resolution, exceptional contrast, and stable color fidelity meets the stringent requirements for clinical review stations, PACS, and modality displays for ultrasound and endoscopy.
- Industrial Process Control & HMI: In complex manufacturing or power grid control rooms, this display can render intricate SCADA diagrams and process flows with absolute clarity. Its high brightness overcomes the challenges of typical factory floor lighting, making it a viable option for creating sunlight-readable HMIs.
- Test & Measurement Equipment: For high-end oscilloscopes, spectrum analyzers, and vector network analyzers, the UXGA resolution allows for the display of multiple waveforms and data windows simultaneously with high precision.
Key Parameters at a Glance
The following table outlines the critical performance metrics for the TX54D32VC0CAA. For comprehensive specifications, please refer to the official product datasheet. Download the KOE Industrial Display Brochure.
| Parameter | Value |
|---|---|
| Screen Size | 21.3" (54 cm) |
| Resolution | 1600 x 1200 (UXGA) |
| Display Technology | a-Si TFT with IPS-Pro |
| Brightness | 1000 cd/m² |
| Contrast Ratio | 1700:1 |
| Viewing Angle (H/V) | 178° / 178° |
| Operating Temperature | -20°C to +70°C |
| Interface | Dual Channel LVDS Interface |
| Backlight | White LED, Replaceable |
Frequently Asked Questions (FAQ)
Q: Is the TX54D32VC0CAA suitable for outdoor applications?
A: While its 1000 cd/m² brightness provides excellent readability in bright indoor conditions, true outdoor, direct-sunlight applications typically require higher brightness levels (1500+ cd/m²) and additional measures like optical bonding. This display is best suited for indoor, high-ambient-light environments or shaded outdoor use.
Q: What is the significance of the replaceable backlight?
A: The LED backlight is often the component with the most limited lifespan in an LCD module. A replaceable backlight allows for field servicing to extend the display's operational life significantly, which is a major advantage in expensive medical or industrial equipment where replacing the entire display unit is cost-prohibitive.
To determine if the KOE TX54D32VC0CAA is the right fit for your design or to inquire about our full range of industrial LCD displays, please contact our technical team for an in-depth consultation.
