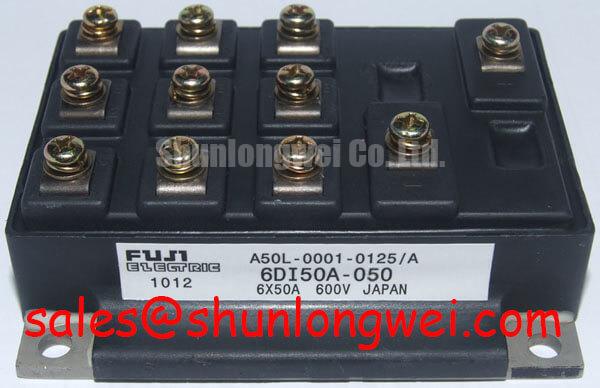

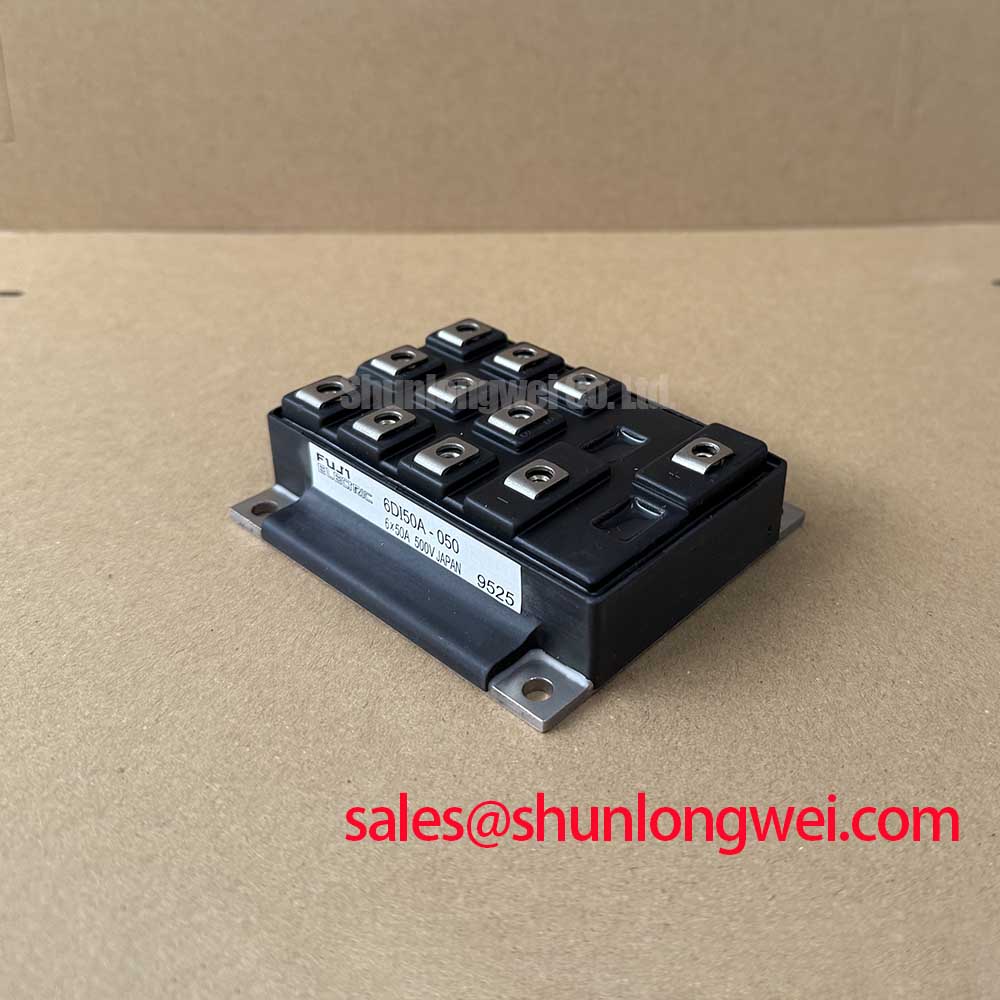

Fuji Electric 6DI50A-050 Power Transistor Module: High-Efficiency 500V 50A Darlington 6-Pack for Industrial Switching
The Fuji Electric 6DI50A-050 is a high-performance Darlington Transistor Module designed for integrated power switching in industrial environments. Featuring a 6-pack configuration, this module provides a compact and efficient solution for three-phase bridge applications, delivering a rated voltage of 500V and a continuous collector current of 50A. By leveraging a high DC current gain (hFE), it significantly reduces the drive power requirements, making it a reliable choice for legacy system maintenance and specialized motor control architectures.
Top Specs: 500V Vce | 50A Ic | 250W Max Power Dissipation
Key Benefits: Simplified gate drive design due to high hFE; High-speed switching for improved system efficiency.
What is the primary advantage of the 6DI50A-050 in legacy motor drives? It offers a direct, electrically isolated replacement that maintains high current handling with minimal base drive current.
For industrial systems prioritizing thermal margins in medium-voltage applications, the Fuji Electric 6DI50A-050 remains a robust and technically sound selection.
Application Scenarios & Value
Optimizing Medium-Power Conversion in Three-Phase Industrial Systems
The Fuji Electric 6DI50A-050 is primarily utilized in Variable Frequency Drives (VFD) and Uninterruptible Power Supplies (UPS) where a 500V ceiling is sufficient for 200V-240V AC line rectified loads. In a typical AC Motor Drive scenario, engineers often face the challenge of managing base drive losses. The high hFE characteristic of this module’s Darlington structure allows for a simpler drive circuit compared to standard bipolar transistors, directly reducing the Bill of Materials (BOM) complexity for the control board.
In DC chopper applications, the 50A current rating provides ample overhead for handling the inductive kickback and startup surges of small to medium-sized motors. While modern designs might gravitate toward the 6MBP50VBA120-50 for higher voltage 1200V requirements, the 6DI50A-050 offers a specialized fit for 500V class hardware where switching speed and saturation voltage must be finely balanced. To further understand how these modules compare to other topologies, engineers may reference the ultimate guide to power semiconductor selection.
Key Parameter Overview
Specifications and Technical Value Interpretation
The following technical data is derived from official Fuji Electric documentation to support engineering evaluation and procurement verification.
| Parameter | Official Rating | Engineering Significance |
|---|---|---|
| Collector-Emitter Voltage (Vce) | 500V | Ensures safety margins for 200V-240V AC rectified DC bus systems. |
| Collector Current (Ic) | 50A | Supports continuous operation for medium-duty industrial motors. |
| DC Current Gain (hFE) | Typ. 100 | Reduces the required input current, simplifying the Gate Drive requirements. |
| Isolation Voltage (Viso) | 2000V AC (1 min) | Critical for operator safety and preventing noise coupling between power and control logic. |
| Junction Temperature (Tj) | Up to +150°C | Provides ruggedness against IGBT failure analysis factors like overtemperature. |
Technical & Design Deep Dive
The Darlington Advantage in High-Speed Switching Reliability
The internal architecture of the 6DI50A-050 utilizes a Darlington pair configuration within each of the six switches. This cascading transistor arrangement acts as a "current multiplier." Analogous to a compound gear system in mechanical engineering—where a small input force moves a heavy load—the Darlington structure allows a milliamp-level base current to control the full 50A collector current. This is particularly valuable in legacy designs where high-integration digital controllers may have limited current-sourcing capabilities.
Furthermore, the 6DI50A-050 features integrated fast-recovery diodes connected in anti-parallel with each transistor. These diodes are essential for protecting the silicon against the high-voltage spikes generated by inductive loads during switch-off. Designers must ensure that the Safe Operating Area (SOA) is strictly maintained, particularly during high-frequency operation, to avoid secondary breakdown—a common failure mode in bipolar power transistors. For more on diagnosing such systems, see the guide on how to test a module with a multimeter.
Industry Insights & Strategic Advantage
Maintaining Stability in the Transition to Modern Power Platforms
While the power electronics industry has largely transitioned to IGBT Module and SiC Module technologies for new designs, the Fuji Electric 6DI50A-050 represents a vital component for the longevity of the existing industrial base. Many installed Servo Drive systems and UPS units in manufacturing plants were designed specifically around the saturation characteristics and switching behaviors of Darlington modules. Replacing these with newer technologies often requires a complete redesign of the control logic and gate drive timing.
Strategically, maintaining access to original-specification modules like the 6DI50A-050 ensures that TCO (Total Cost of Ownership) remains low by avoiding premature equipment obsolescence. As industries move toward Smart Manufacturing and Industrial 4.0, the focus on reliability and "repair-over-replace" becomes a key pillar of sustainability. For engineers looking into the future of these components, the global market outlook provides a broader context on power semiconductor life cycles.
FAQ
Engineering Support & Technical Clarification
How does the high hFE of the 6DI50A-050 influence the choice of base drive resistors?
The high gain significantly lowers the required base current (Ib). This allows for higher value base resistors, reducing the power dissipation in the drive circuit and enabling the use of smaller, lower-wattage surface-mount resistors in the control stage.
Can the 6DI50A-050 be used for 480V AC line applications?
No. With a Vce rating of 500V, the module does not provide sufficient voltage margin for a 480V AC line, where the rectified DC bus can exceed 670V. This module is specifically optimized for 200V-240V AC systems.
What is the primary factor limiting the switching frequency of this module?
The storage time (tstg) of the bipolar Darlington structure is the main constraint. Unlike field-effect devices, the 6DI50A-050 requires charge carriers to be removed from the base, which typically limits efficient switching to frequencies below 10-15 kHz to prevent excessive Switching Loss.
Is the 6DI50A-050's baseplate electrically isolated?
Yes, the module is an "insulated type." The internal circuitry is isolated from the copper baseplate by a ceramic substrate, typically rated at 2000V AC, allowing multiple modules to be mounted on a single grounded heatsink without additional insulators.
What is the best way to prevent thermal runaway in this Darlington module?
Strict adherence to the Safe Operating Area (SOA) and the use of a high-performance thermal interface material (TIM) are essential. Because Vce(sat) in Darlington transistors can increase with temperature, maintaining a low Thermal Resistance at the heatsink interface is the most effective preventative measure.
As industrial systems continue to evolve, the demand for precise, documented power components is paramount. For further technical exploration into Thermal Management or testing procedures, visit our Field Engineer’s Handbook.
