1DI30A-060 Fuji Electric 600V 30A Darlington Transistor Module

Content last revised on March 28, 2026

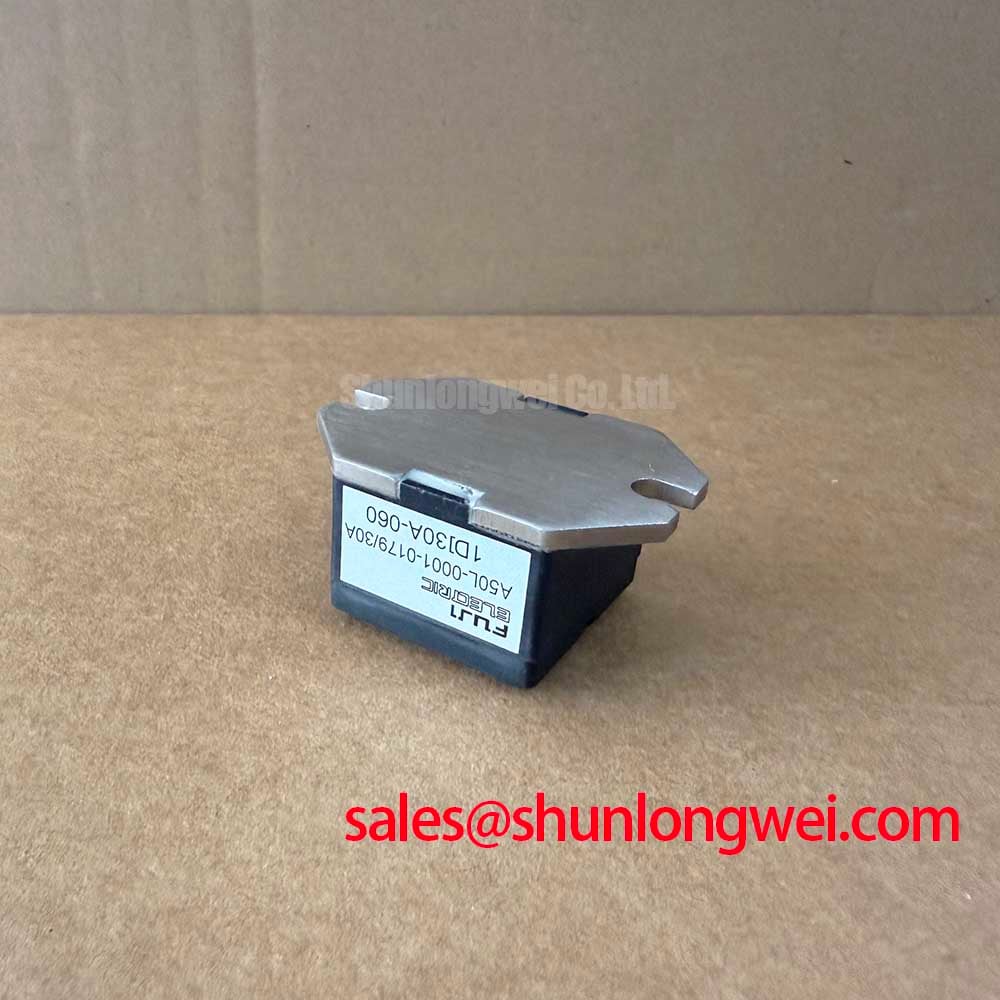

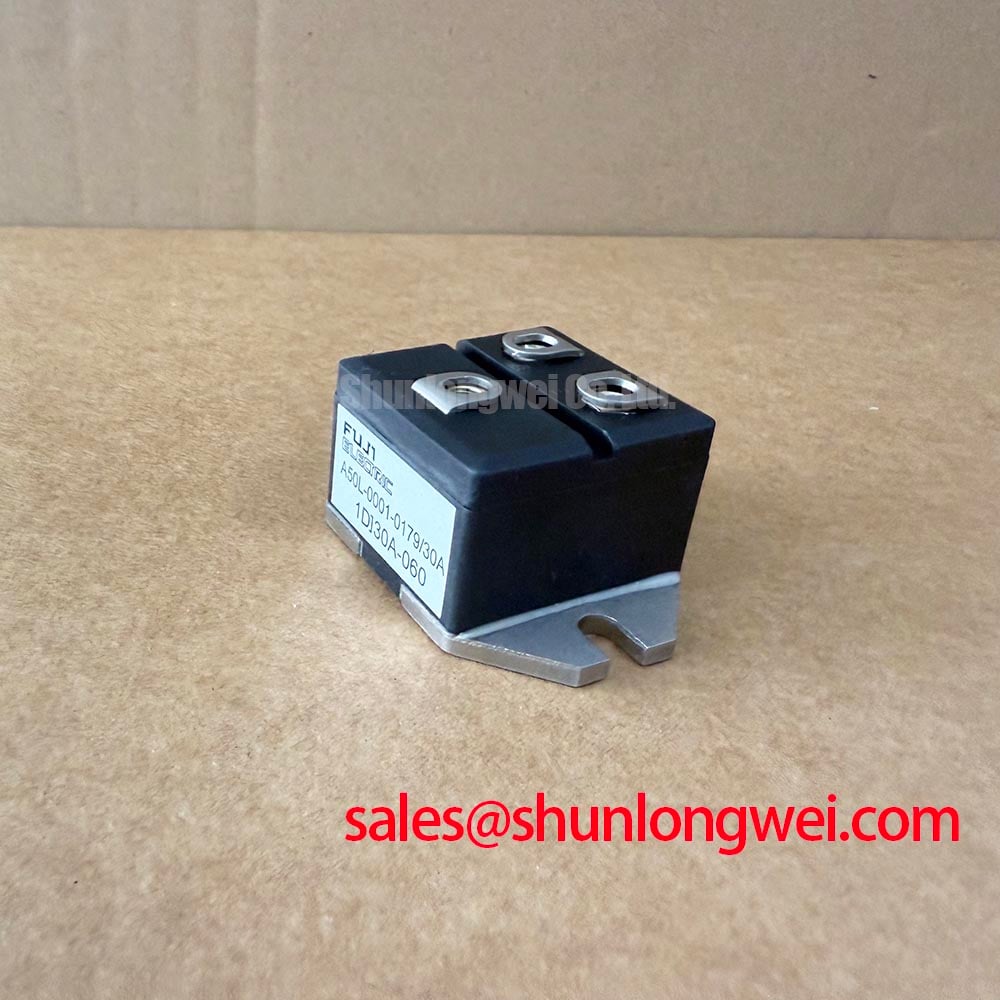

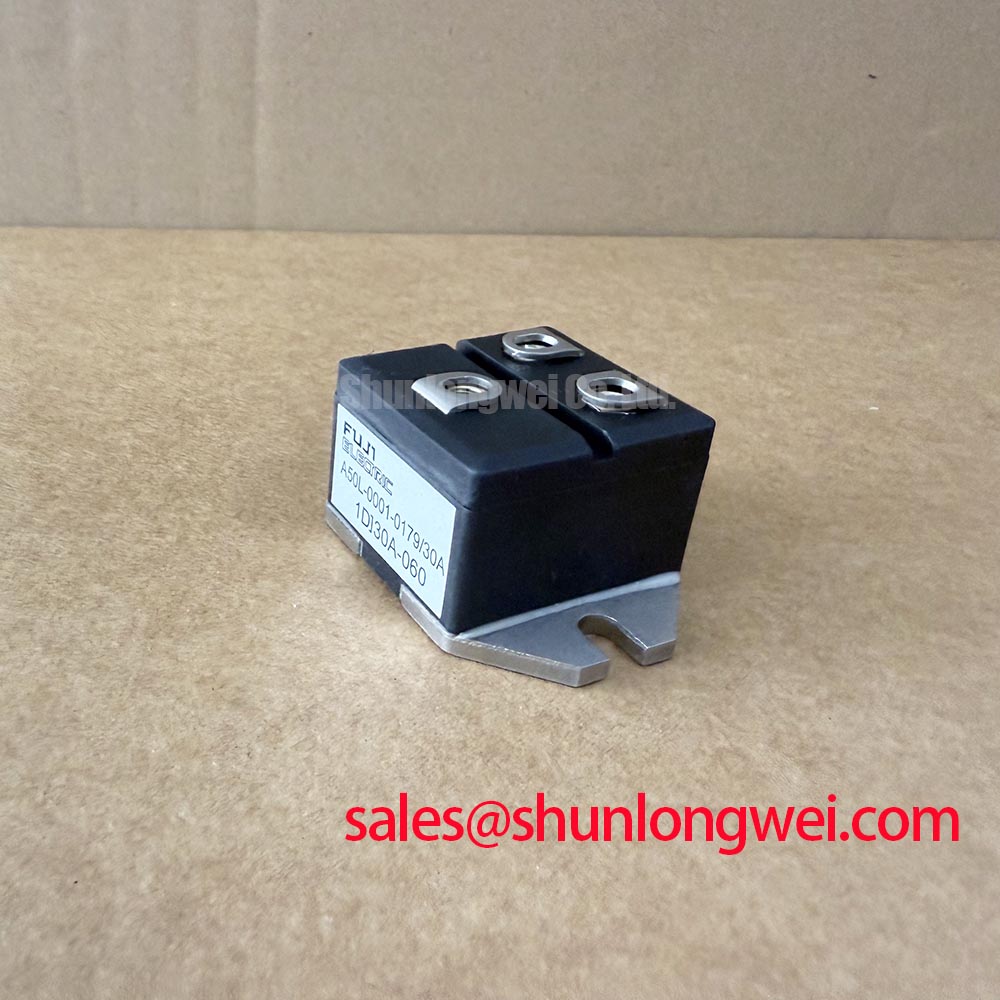

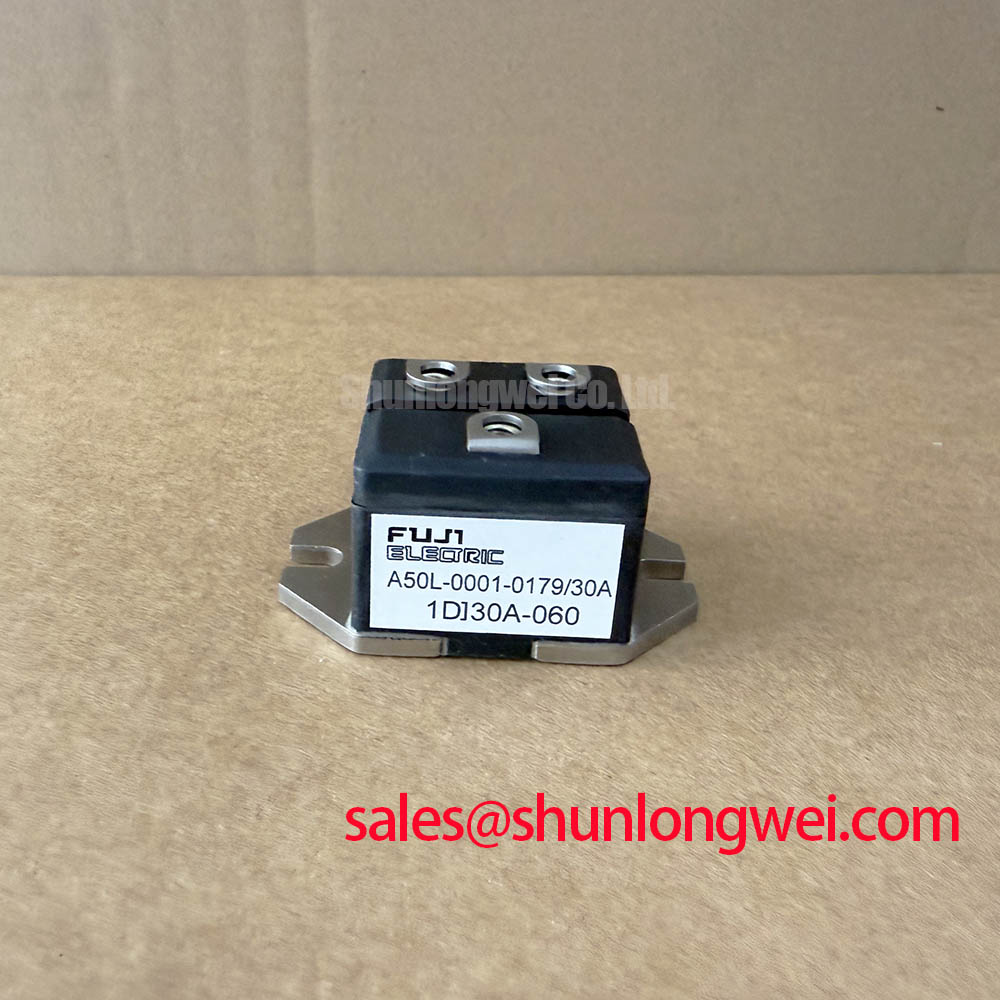

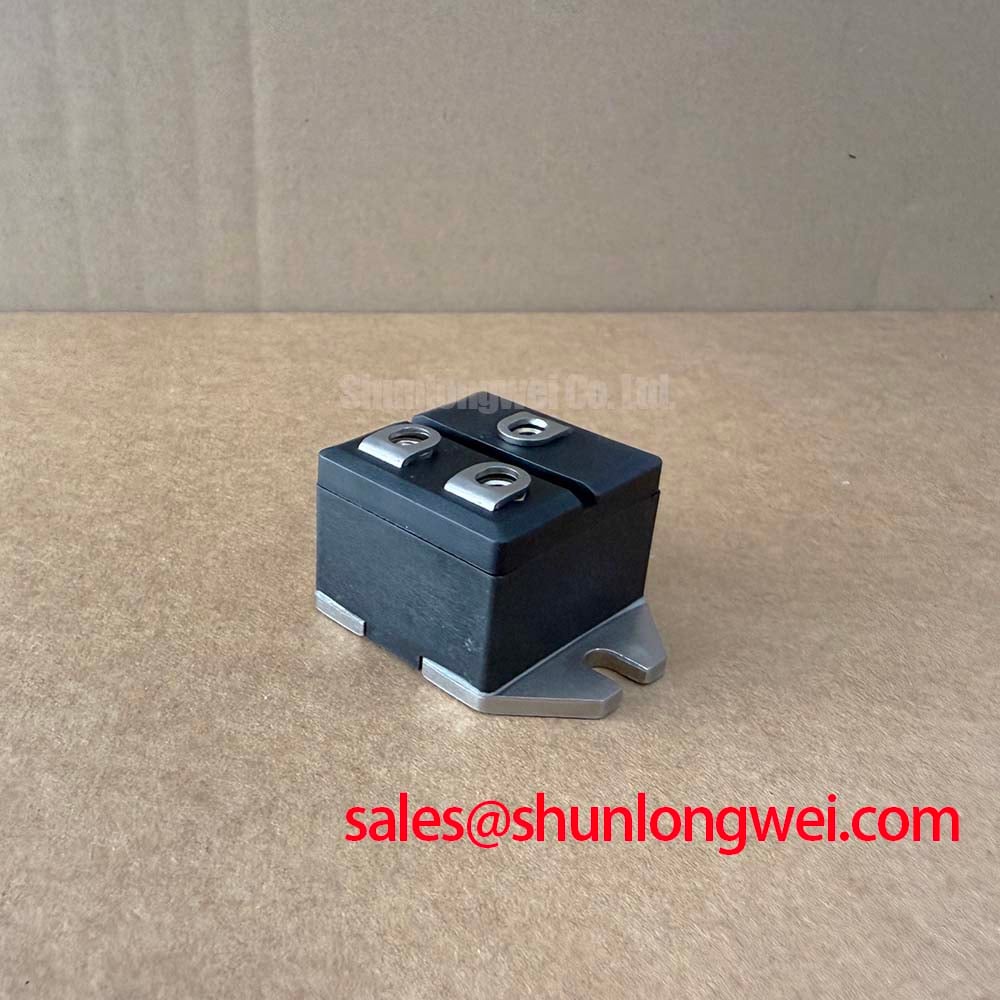

1DI30A-060 Fuji Electric Power Module: High-Gain Darlington Transistor Solution

Providing efficient current amplification for mid-range power switching, the 1DI30A-060 is a specialized Darlington transistor module designed to bridge the gap between low-power control logic and 600V industrial loads.

600V | 30A | hFE 100 (Min)

• Reduced Drive Complexity: High DC current gain significantly lowers base drive requirements for simplified circuit design.
• Integrated Protection: Includes a high-speed free-wheeling diode to manage inductive kickback in motor applications.

For designers optimizing legacy motor drives or building robust switching regulators, the 1DI30A-060 provides a proven path to high-efficiency power control without the drive-current overhead of standard bipolar transistors.

Application Scenarios & Value

Streamlining Power Control in Motor Drive and UPS Topologies

Engineers often face the challenge of driving high-power loads with low-power control signals, particularly in environments where high-frequency noise can disrupt sensitive logic. The 1DI30A-060 addresses this through its Darlington configuration, which acts as a "current multiplier." This is particularly valuable in Variable Frequency Drive (VFD) and Servo Drive systems where precise switching is required but base-drive power must be minimized to reduce heat in the control stage.

In a typical Uninterruptible Power Supply (UPS) inverter stage, the 30A continuous collector current rating allows for reliable operation during motor startup surge currents. By leveraging the high hFE of the Fuji Electric 1DI30A-060, designers can utilize smaller, more cost-effective drive transformers or optocouplers. For systems requiring higher integration or higher phase counts, comparing this single-unit module with the 6DI150AH-060 can help determine the optimal balance between individual component control and modular density.

Beyond standard drives, this module finds utility in Switching Regulators and Welding Power Supply units. The integrated Collector-Emitter isolation allows for multiple modules to be mounted on a single heatsink, facilitating compact System Integration. Understanding the nuances of these modules is essential for longevity; for further technical context, refer to the engineer's guide to power modules.

Technical Deep Dive

The Darlington Architecture: A Force Multiplier for Switching Efficiency

The core of the 1DI30A-060 is its cascaded NPN transistor structure. In this arrangement, the emitter of the first transistor is connected directly to the base of the second. This results in a total current gain that is the product of the individual gains, effectively functioning as an electrical "lever." Just as a mechanical lever allows a small force to move a large weight, the 1DI30A-060 allows a few hundred milliamps of base drive to control a full 30A load.

This architectural choice directly impacts Switching Efficiency & Loss Reduction. Because the input stage requires less current, the driver circuit dissipates less power as heat. However, engineers must account for the slightly higher VCE(sat) (typically around 2.0V to 2.5V) compared to standard BJTs, which is the inherent trade-off for such high gain. The 600V Vces rating provides a necessary safety margin for 240V AC line-operated equipment, preventing catastrophic failure during transient overvoltage events.

The module also features an isolated mounting base, achieved through advanced ceramic substrates. This enhances Thermal Management by ensuring that the Thermal Resistance (Rth) is kept to a minimum while maintaining high dielectric strength between the electrical terminals and the chassis. For insights into testing these structures in the field, see our guide on how to test power modules.

Key Parameter Overview

Essential Specifications for Circuit Evaluation

The following parameters are derived from the official Fuji Electric technical documentation and represent the absolute maximum ratings and typical characteristics at 25°C.

Frequently Asked Questions

Engineering Insights for Implementation

How does the high VCE(sat) of the 1DI30A-060 affect heatsink selection?
The VCE(sat) of a Darlington module is typically higher than a standard BJT because it includes the VBE of the output transistor. At 30A, a 2.0V saturation voltage generates 60W of conduction loss. Engineers must select a heatsink based on the Thermal Resistance junction-to-case to ensure the Tj does not exceed 150°C under peak load.

Does the 1DI30A-060 require an external snubber circuit?
While the module includes an integrated diode, a Snubber Circuit is highly recommended for inductive loads to suppress voltage spikes during turn-off. High dv/dt rates can exceed the 600V limit if the stray inductance in the DC bus is not properly managed.

What are the primary benefits of using a Darlington module over an IGBT for 600V applications?
In certain legacy or low-frequency designs, a Darlington like the 1DI30A-060 offers a linear region that is more predictable than the threshold-based switching of an IGBT. It is often preferred in applications where electromagnetic interference (EMI) must be strictly controlled through slower, softer switching transitions.

Can the 1DI30A-060 be driven directly by a microcontroller?
Despite the high gain, a direct connection is usually insufficient. A small Gate Drive or buffer transistor is typically needed to provide the required base current, though the total power consumption will be far lower than that of non-Darlington alternatives. Proper Thermal Design of the driver is still necessary for long-term Reliability.

As a professional distributor, we provide these technical insights to support your engineering evaluation. For systems requiring different current handling capabilities, the related 2MBI200VA-060 offers a higher current rating in a modern IGBT Module package. For further assistance with power semiconductor selection and Thermal Management strategies, contact our technical sales team.
